XEAST XE-703S 3-in-1 Oscilloscope Multimeter and Signal Generator User Manual

1. හැඳින්වීම

The XEAST XE-703S is a versatile 3-in-1 handheld device designed for professional and hobbyist use, integrating the functionalities of a 50MHz bandwidth oscilloscope, a 25000 counts digital multimeter, and a DDS signal generator. Featuring a 3.5-inch IPS display and a high real-time sampling rate of 280MSa/s, it provides precise measurements and accurate data analysis for a wide range of electrical and electronic applications. Its compact design and robust features make it an essential tool for diagnostics, testing, and development.

Figure 1.1: The XEAST XE-703S highlighting its three core functions: Multimeter, Signal Generator, and Oscilloscope.

2 ප්රධාන ලක්ෂණ

• Super Cost-Effective 3-in-1 Design: Combines oscilloscope, multimeter, and signal generator functions in a single portable unit.
• High Performance Oscilloscope: 2-channel, 50MHz bandwidth, 280MSa/s real-time sampling rate, 128kb recording depth, and ±400V max measuring voltage. Includes automatic measurement, XY function, and persistence mode.
• Accurate Digital Multimeter: 25000 counts, safety overload protection, continuity measurement, standard voltage, current, resistance, diode, line, and capacity tests. Features auto-range and relative measurement functions.
• Versatile Signal Generator: Capable of generating Sine, Square, Triangle, Half-wave, Full-wave, and Sawtooth waveforms.
• Excellent Ease of Use: Equipped with a 3.5-inch IPS display, 3400mA large capacity battery, USB Type-C for charging and data transfer. Supports waveform data storage, image export, PC transfer, brightness adjustment, and shutdown time settings.

රූපය 2.1: අවසන්view of the XEAST XE-703S's primary technical specifications and capabilities.

3. පිහිටුවීම

3.1 පැකේජයේ අන්තර්ගතය

Before starting, verify that all items are present in the package:

• XEAST XE-703S Oscilloscope Multimeter
• Test Leads (Multimeter Probes)
• Oscilloscope Probes (x2)
• USB Type-C ආරෝපණ කේබලය
• පරිශීලක අත්පොත (මෙම ලේඛනය)
• රැගෙන යන නඩුව
• Small Screwdriver (for battery compartment, if applicable)

Figure 3.1: The XEAST XE-703S and its complete set of accessories.

3.2 උපාංගය ආරෝපණය කිරීම

The XE-703S is powered by a built-in 3400mAh rechargeable 18650 Lithium-Ion battery. Before first use, it is recommended to fully charge the device. Connect the provided USB Type-C cable to the device's charging port and plug the other end into a standard USB power adapter (not included) or a computer's USB port. The charging indicator on the screen will show the charging status.

Figure 3.2: USB Type-C charging port and internal battery illustration.

3.3 බලය සක්රිය / අක්රිය

To power on the device, press and hold the power button (usually located on the side or top) until the screen illuminates. To power off, press and hold the same button until the screen turns off. The device also features an auto-power off function to conserve battery, which can typically be configured in the settings menu.

3.4 සම්බන්ධක පරීක්ෂණ

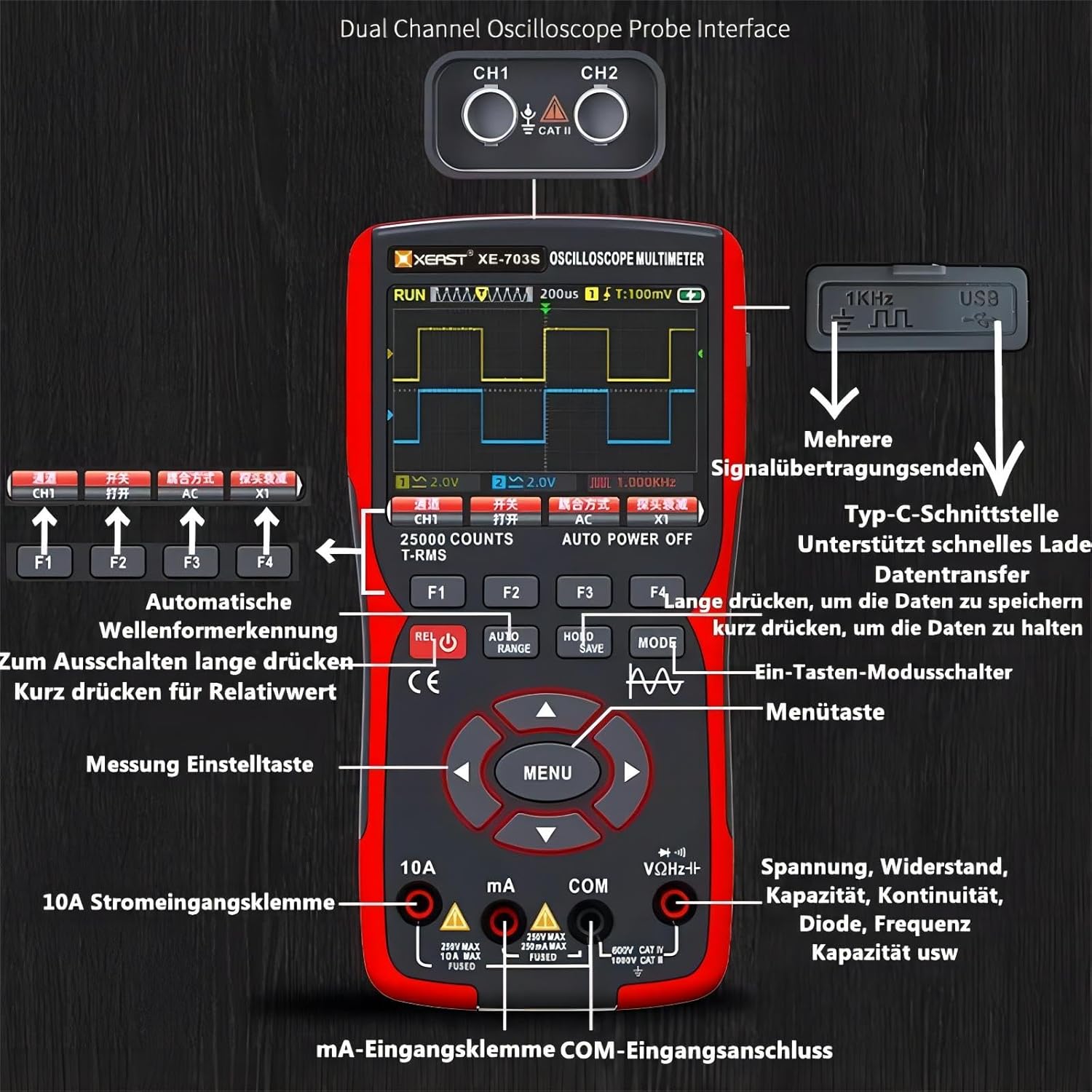

The XE-703S has dedicated input ports for oscilloscope probes (BNC connectors) and multimeter test leads (banana plug jacks). Ensure you connect the correct probes to the appropriate ports for the desired measurement mode. For oscilloscope measurements, connect the BNC probes to the CH1 and CH2 inputs. For multimeter functions, connect the red test lead to the VΩHz+ or mA/10A jack and the black test lead to the COM jack.

Figure 3.3: Input ports for oscilloscope probes and multimeter test leads.

4. මෙහෙයුම් මාතයන්

The XEAST XE-703S allows seamless switching between its three primary operating modes: Oscilloscope, Multimeter, and Signal Generator. Use the මාදිලිය මෙම කාර්යයන් හරහා චක්‍රීය කිරීමට බොත්තම.

4.1 Oscilloscope Mode

In Oscilloscope mode, the device displays real-time waveforms, allowing for analysis of electrical signals. It supports dual-channel input, enabling simultaneous observation of two different signals.

• නාලිකා තේරීම: Use the dedicated buttons (e.g., F1, F2) to enable/disable channels or adjust their settings.
• Time Base (VOL/TIME): Adjust the horizontal scale to view more or less of the waveform over time.
• Vertical Scale (VOL/TIME): Adjust the vertical scale (volts per division) to fit the signal amplitude on the screen.
• Trigger (TRIG): Set the trigger level and type (edge, slope) to stabilize the waveform display.
• Cursor (CURSOR): Use cursors to precisely measure voltage and time differences on the waveform.
• Auto Measurement: The device can automatically display key parameters like frequency, peak-to-peak voltage, and duty cycle.

Figure 4.1: Oscilloscope display showing dual-channel waveforms and a comparison of single vs. dual channel capabilities.

4.2 Multimeter Mode

The Multimeter mode provides precise digital measurements for various electrical parameters. Ensure the test leads are connected to the correct input jacks for the measurement type.

• වෙළුමtagඊ (වී): Measure DC and AC voltage.
• වත්මන් (A): Measure DC and AC current (mA and 10A ranges).
• ප්‍රතිරෝධය (Ω): Measure resistance in Ohms.
• ධාරිතාව (F): Measure capacitance in Farads.
• ඩයෝඩ පරීක්‍ෂණය: Check diode forward voltagඊ වැටීම.
• අඛණ්ඩ පරීක්ෂණය: Audible buzzer for circuit continuity.
• ස්වයංක්‍රීය පරාසය: Automatically selects the appropriate measurement range for convenience.
• Hold/Save: ඔබන්න HOLD/SAVE to freeze the current reading or save data.

Figure 4.2: Multimeter display showing AC voltage measurement alongside oscilloscope and signal generator interfaces.

4.3 Signal Generator Mode

The DDS (Direct Digital Synthesis) Signal Generator mode allows you to output various waveforms at specified frequencies and amplitudes, useful for testing circuits and components.

• Waveform Selection: Choose from Sine, Square, Triangle, Half-wave, Full-wave, and Sawtooth waveforms.
• සංඛ්‍යාත ගැලපීම: Set the desired output frequency.
• Amplitude (VPP) Adjustment: Control the peak-to-peak voltage of the output signal.
• Duty Cycle Adjustment: For square waves, adjust the duty cycle.

Figure 4.3: Signal Generator menu for waveform selection and parameter adjustment.

5. නඩත්තු කිරීම

5.1 පිරිසිදු කිරීම

To maintain the device's performance and appearance, regularly clean its exterior with a soft, dry cloth. For stubborn dirt, a slightly damp උපාංගයට දියර ඇතුළු නොවන බව සහතික කරමින් මෘදු ඩිටර්ජන්ට් සහිත රෙදි භාවිතා කළ හැකිය. උල්ෙල්ඛ පිරිසිදු කරන්නන් හෝ ද්‍රාවක භාවිතා නොකරන්න.

5.2 බැටරි සත්කාර

The built-in Lithium-Ion battery is designed for long life. To maximize battery lifespan:

• බැටරිය නිතර නිතර සම්පූර්ණයෙන්ම විසර්ජනය කිරීමෙන් වළකින්න.
• Store the device in a cool, dry place when not in use for extended periods, ideally with the battery charged to about 50%.
• If the device will not be used for a long time, charge it every 3-6 months to prevent deep discharge.

5.3 ස්ථිරාංග යාවත්කාලීන කිරීම්

Periodically check the XEAST official website for available firmware updates. Firmware updates can improve performance, add new features, or fix bugs. Follow the instructions provided with the firmware download carefully. Ensure the device is fully charged before attempting any firmware update.

6. දෝශ නිරාකරණය

This section addresses common issues you might encounter with your XEAST XE-703S. If the problem persists, please contact customer support.

7. පිරිවිතර

8. වගකීම් සහ සහාය

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official XEAST webවෙබ් අඩවිය. වගකීම් හිමිකම් සඳහා මිලදී ගැනීමේ සාක්ෂියක් ලෙස ඔබේ මිලදී ගැනීමේ රිසිට්පත තබා ගන්න.

XEAST Official Store: Visit XEAST Store on Amazon
