Generic Rejuvaknee Advanced Knee Relief Heated Massager User Manual

1. හැඳින්වීම

Thank you for choosing the Generic Rejuvaknee Advanced Knee Relief Heated Massager. This device is designed to provide targeted heat therapy and massage to help relieve joint pain and stress in areas such as the knees, shoulders, and elbows. Please read this manual thoroughly before use to ensure safe and effective operation.

2 ආරක්ෂිත තොරතුරු

• Do not use this device if you have a pacemaker, heart condition, or any other medical implant without consulting a physician.
• Avoid using on broken skin, open wounds, or areas with swelling, inflammation, or skin eruptions.
• Do not use while sleeping or in situations where you cannot monitor the device.
• දරුවන්ට ළඟා විය නොහැකි ලෙස තබා ගන්න.
• If you experience any discomfort or pain during use, discontinue immediately.
• ආහාරමය අතිරේක සම්බන්ධ ප්‍රකාශයන් FDA විසින් ඇගයීමට ලක් කර නොමැති අතර කිසිදු රෝගයක් හෝ සෞඛ්‍ය තත්වයක් හඳුනා ගැනීමට, ප්‍රතිකාර කිරීමට, සුව කිරීමට හෝ වැළැක්වීමට අදහස් නොකෙරේ.

3. නිෂ්පාදන අවසන්view & විශේෂාංග

The Rejuvaknee Advanced Knee Relief device combines heat and massage functions in an ergonomically designed brace. It features a magnetic attachment system for cordless use and is adaptable for various body parts.

ප්රධාන ලක්ෂණ:

• බහුකාර්ය නිර්මාණය: Ergonomically designed to wrap comfortably around joints, suitable for knees, shoulders, and elbows. Includes a 23-inch extension strap for versatile use.
• Magnetic Support & Cordless Use: The massager unit attaches magnetically to the brace, allowing for wireless operation.
• සකස් කළ හැකි සැකසුම්: Offers 3 distinct massage modes and 5 temperature options for personalized comfort and relief.
• වේගවත් උණුසුම: Utilizes a high-quality carbon fiber heating wire that heats up in approximately 5 seconds, providing instant warmth.
• Optimized Heat Distribution: Features a widened heat zone and 3D surround design for comprehensive and concentrated heat delivery.
• ස්වයංක්‍රීයව වසා දැමීම: Designed with a 20-minute working cycle, after which the device automatically powers down to prevent overheating or over-massage.

Image: The Rejuvaknee device providing 360-degree heat and massage for comprehensive knee care.

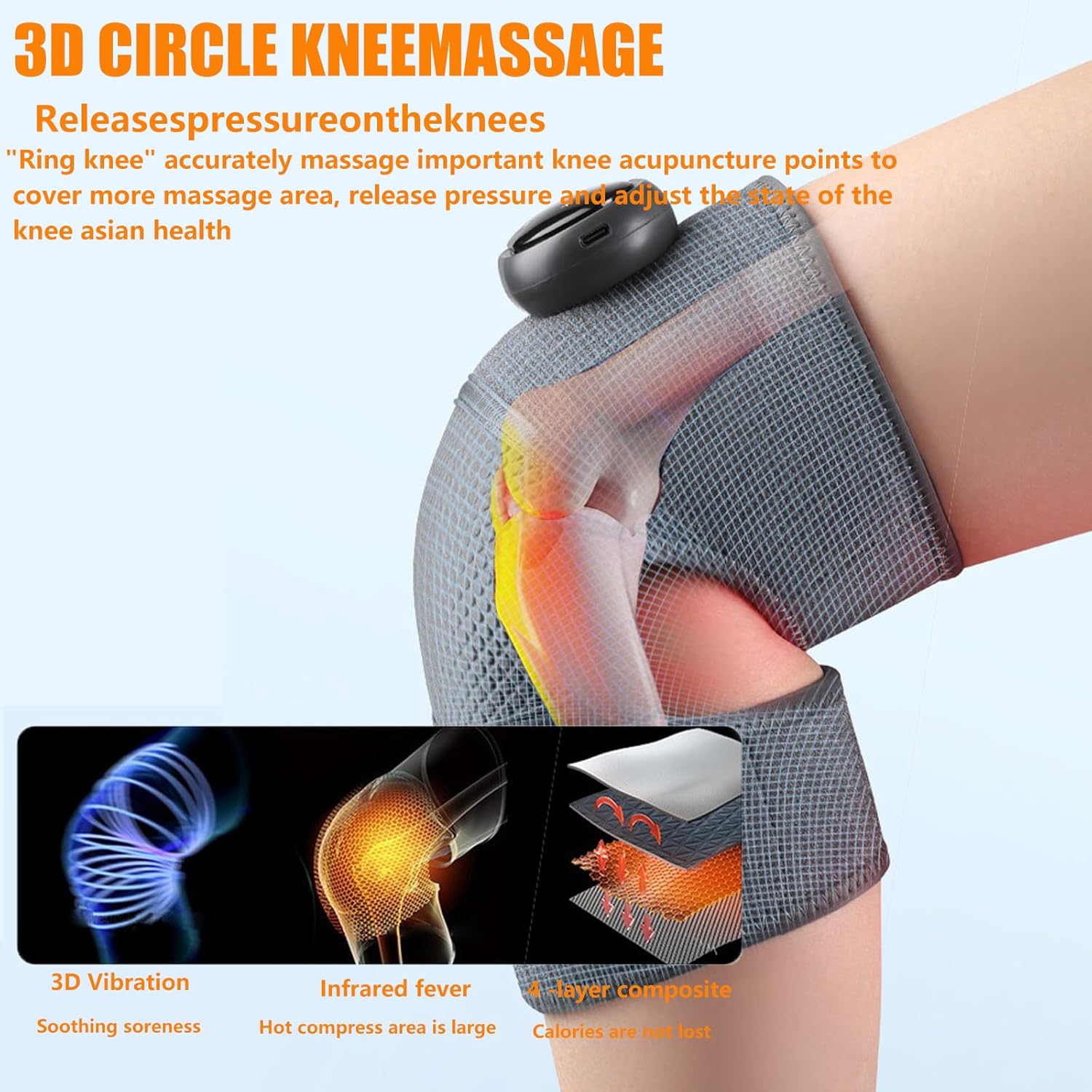

රූපය: අභ්‍යන්තර view highlighting 3D vibration, infrared heat, and multi-layer construction for effective knee massage.

Image: Demonstrating the versatility of the Rejuvaknee for various applications including muscle stiffness, joint swelling, and elbow relief.

4. පැකේජ අන්තර්ගතය

කරුණාකර පහත අයිතම සඳහා පැකේජය පරීක්ෂා කරන්න:

• Rejuvaknee Heated Massager Unit
• Adjustable Brace
• 23-inch Extension Strap
• USB ආරෝපණ කේබලය (Inferred, not explicitly listed but necessary for cordless device)
• පරිශීලක අත්පොත

5. පිහිටුවීම

5.1 උපාංගය ආරෝපණය කිරීම

1. Connect the USB charging cable to the charging port on the massager unit.
2. Plug the other end of the cable into a compatible USB power adapter (not included) or a computer USB port.
3. The indicator light on the massager unit will show charging status (e.g., blinking while charging, solid when fully charged).
4. Ensure the device is fully charged before first use for optimal performance.

5.2 Attaching the Massager Unit to the Brace

1. Identify the 5 magnetic suction points on the brace.
2. Align the massager unit with these magnetic points on the brace.
3. The unit will securely attach via magnetic adsorption.

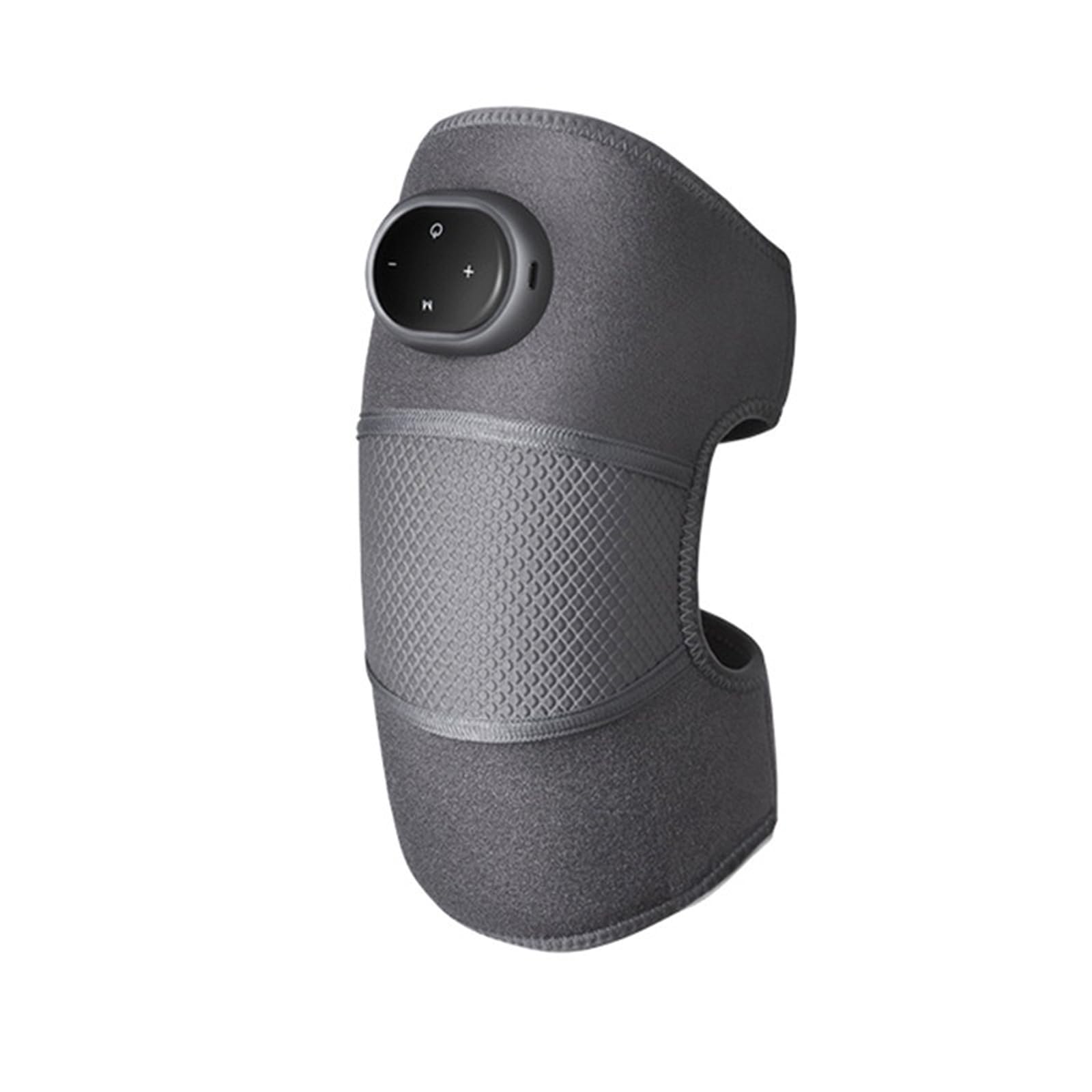

Image: Demonstrating the magnetic attachment of the massager unit to the brace for cordless use.

5.3 Wearing the Brace

1. Wrap the adjustable brace around the desired joint (knee, shoulder, elbow).
2. Secure the strap to achieve a comfortable and snug fit.
3. If needed, use the 23-inch extension strap for larger body types or areas.

6. මෙහෙයුම් උපදෙස්

The control panel on the massager unit allows for easy adjustment of settings.

Image: The control panel with clearly labeled buttons for power, mode selection, and temperature adjustment.

6.1 බලය සක්රිය / අක්රිය

• බලය ක්‍රියාත්මක කිරීමට, බල බොත්තම ඔබා අල්ලාගෙන සිටින්න (⏻ ⏻ ශ්‍රේණිය) for 2 seconds. The display will illuminate.
• බලය අක්‍රිය කිරීමට, බල බොත්තම ඔබා අල්ලාගෙන සිටින්න (⏻ ⏻ ශ්‍රේණිය) තත්පර 2 ක් සඳහා.

6.2 සම්බාහන මාදිලිය තෝරා ගැනීම

• After powering on, press the Mode button (M) to cycle through the 3 available massage modes.
• The current mode will be indicated on the display.

6.3 Adjusting Heating Temperature

• Press the '+' button to increase the heating temperature.
• Press the '-' button to decrease the heating temperature.
• There are 5 temperature options available. The selected temperature will be shown on the display.

6.4 ස්වයංක්‍රීය වසා දැමීම

The device is programmed to operate for 20 minutes per cycle. After 20 minutes, it will automatically shut down. You can restart the device for another cycle if desired.

7. නඩත්තු කිරීම

7.1 පිරිසිදු කිරීම

• පිරිසිදු කිරීමට පෙර උපාංගය ක්‍රියා විරහිත කර ඕනෑම බල ප්‍රභවයකින් විසන්ධි කර ඇති බවට සහතික වන්න.
• Wipe the massager unit with a soft, slightly damp රෙදි. වතුරේ ගිල්වන්න එපා.
• The brace can be gently hand-washed with mild soap and air-dried. Do not machine wash or tumble dry.
• උල්ෙල්ඛ පිරිසිදු කරන්නන් හෝ ද්රාවණ භාවිතා නොකරන්න.

7.2 ගබඩා කිරීම

• උපාංගය සෘජු හිරු එළියෙන් සහ අධික උෂ්ණත්වයන්ගෙන් ඈත්ව සිසිල් වියළි ස්ථානයක ගබඩා කරන්න.
• Keep the device and its accessories in their original packaging or a protective case to prevent damage.

8. දෝශ නිරාකරණය

උපාංගය ක්‍රියාත්මක නොවේ:

• උපාංගය සම්පූර්ණයෙන්ම ආරෝපණය කර ඇති බවට සහතික වන්න.
• Confirm you are pressing and holding the Power button for 2 seconds.

No Heat or Massage Function:

• Check if the device is powered on and has sufficient battery.
• Verify that a massage mode and temperature level have been selected.
• Ensure the massager unit is securely attached to the brace via the magnetic points.

Device Shuts Off Prematurely:

• The device has an automatic 20-minute shut-off feature. This is normal operation.
• If it shuts off significantly before 20 minutes, ensure the battery is adequately charged.

9. පිරිවිතර

10. පාරිභෝගික සහාය

If you have any questions or encounter problems with your Rejuvaknee Advanced Knee Relief Heated Massager, please do not hesitate to contact us. We are committed to providing a satisfactory solution within 24 hours.

සබඳතා තොරතුරු: Please refer to your purchase platform or product packaging for specific contact details.
