BXparts UT80993F Carburetor for Homelite 2700 PSI Pressure Washer - Instruction Manual

හැඳින්වීම

This instruction manual provides essential information for the proper installation, operation, and maintenance of your BXparts UT80993F Carburetor. This carburetor is designed as a replacement part for Homelite 2700 PSI Pressure Washer Model UT80993F. Please read this manual thoroughly before attempting any installation or maintenance to ensure safe and correct usage.

නිෂ්පාදනය අවසන්view සහ ඇතුළත් සංරචක

The carburetor is a crucial component in your pressure washer's engine, responsible for mixing air and fuel in the correct ratio for combustion. This replacement kit includes all necessary parts for a complete installation.

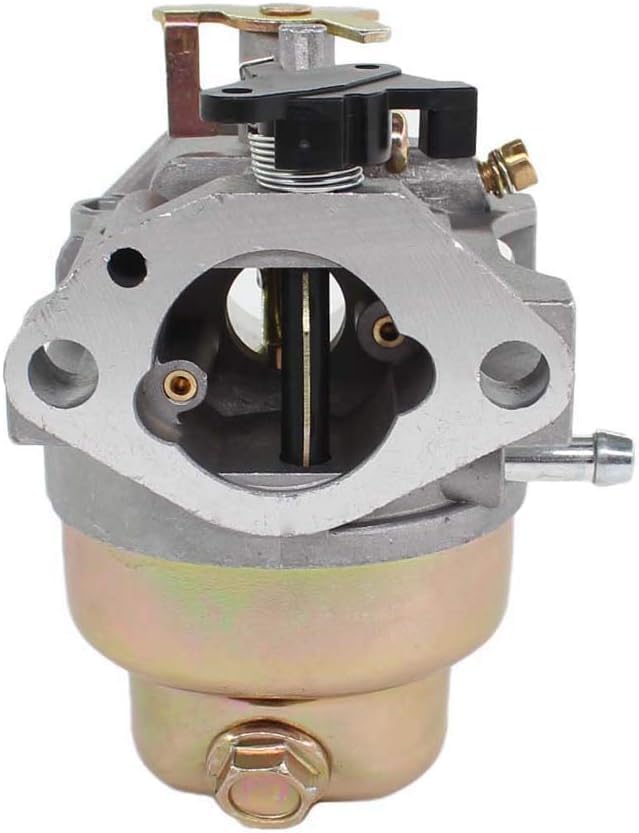

රූපය 1: ඉදිරිපස view of the BXparts UT80993F Carburetor. This image shows the main body of the carburetor, including the air intake and fuel inlet connections.

කොටුවේ ඇති දේ:

• 1 කාබ්යුරේටරය
• 3 ගෑස්කට්
• 2 ඉන්ධන පෙරහන්
• 1 ඉන්ධන මාර්ගය
• 1 වායු පෙරහන
• 1 පෙර පෙරහන

වැදගත්: Before installation, carefully compare all received components with your existing parts to ensure they are identical. Discrepancies may affect compatibility and performance.

ස්ථාපන උපදෙස්

Follow these steps carefully to install the new carburetor. If you are unsure about any step, consult a qualified technician.

ආරක්ෂිත පූර්වාරක්ෂාවන්:

• Ensure the pressure washer engine is cool and turned off.
• අහම්බෙන් ආරම්භ වීම වැළැක්වීම සඳහා ස්පාර්ක් ප්ලග් වයරය විසන්ධි කරන්න.
• හොඳින් වාතාශ්රය ඇති ප්රදේශයක වැඩ කරන්න.
• අසල ගිනි නිවන උපකරණයක් තබා ගන්න.

පියවරෙන් පියවර ස්ථාපනය:

1. ඉන්ධන කාන්දු වීම: Place a suitable container under the fuel tank and drain all fuel. Disconnect the fuel line from the old carburetor.
2. වායු පෙරහන් එකලස් කිරීම ඉවත් කරන්න: Carefully remove the air filter housing and the old air filter.
3. සම්බන්ධතා විසන්ධි කරන්න: Disconnect any throttle linkages, choke linkages, and fuel lines attached to the old carburetor. Take note of their positions for reassembly.
4. පැරණි කාබ්යුරේටරය ඉවත් කරන්න: Unbolt the old carburetor from the engine. Be mindful of any gaskets between the carburetor and the engine block/intake manifold.
5. පිරිසිදු සවි කිරීම් මතුපිට: Thoroughly clean the engine's mounting surface to ensure a proper seal with the new gaskets.
6. නව ගෑස්කට් සවි කරන්න: Place the new gaskets in their correct positions. Ensure they are aligned properly to prevent air or fuel leaks.
7. නව කාබ්යුරේටරය සවි කිරීම: Carefully position the new BXparts UT80993F Carburetor onto the engine and secure it with the bolts. Do not overtighten.
8. සම්බන්ධතා සහ ඉන්ධන මාර්ගය නැවත සම්බන්ධ කරන්න: Reattach the throttle and choke linkages to the new carburetor. Connect the new fuel line and install the new fuel filter.
9. Install New Air Filter: Place the new pre-filter and air filter into the air filter housing and reattach the housing.
10. Refill Fuel and Reconnect Spark Plug: Refill the fuel tank with fresh, appropriate fuel. Reconnect the spark plug wire.
11. පරීක්ෂණ මෙහෙයුම: Start the pressure washer and check for proper operation, including smooth idling and acceleration. Inspect for any fuel leaks.

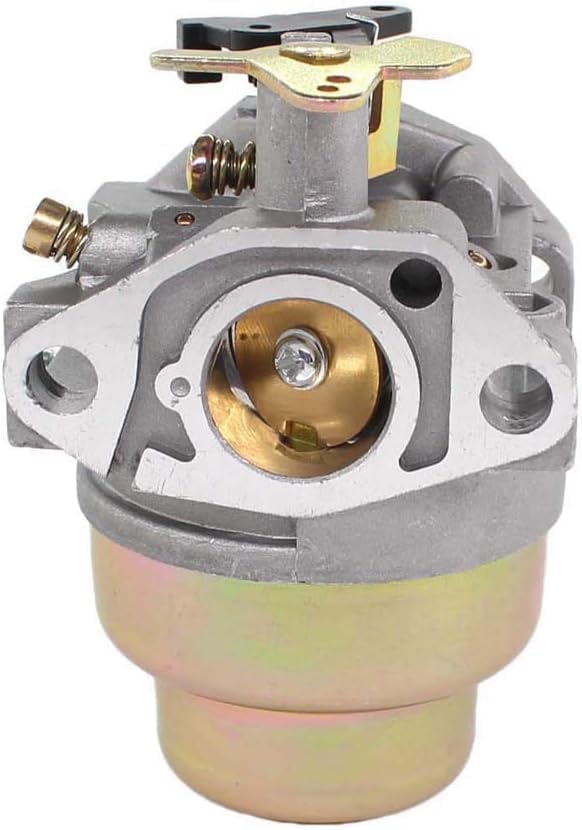

රූපය 2: පැත්ත view of the carburetor, showing the throttle and choke linkages. This view is helpful for understanding connection points during installation.

මෙහෙයුම

Once installed, the carburetor functions automatically to regulate the fuel-air mixture for your Homelite 2700 PSI Pressure Washer. Proper operation relies on a clean fuel supply and air intake. Ensure the choke and throttle controls are correctly adjusted according to your pressure washer's engine starting procedure.

රූපය 3: කෝණික view of the carburetor, highlighting various ports and adjustment screws. This perspective can assist in identifying specific components.

නඩත්තු කිරීම

Regular maintenance is essential for the longevity and optimal performance of your carburetor and pressure washer.

• ඉන්ධන පෙරහන: Inspect and replace the fuel filter periodically (e.g., annually or every 50 hours of operation) to prevent contaminants from reaching the carburetor.
• වායු පෙරහන: Regularly check and clean or replace the air filter and pre-filter. A clogged air filter can lead to a rich fuel mixture and poor engine performance.
• ඉන්ධන ගුණාත්මකභාවය: Always use fresh, clean fuel. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer if the pressure washer will be stored for extended periods.
• කාබ්යුරේටර් පිරිසිදු කිරීම: If performance issues arise, the carburetor may require cleaning. This typically involves disassembling, cleaning with carburetor cleaner, and reassembling with new gaskets. This task is often best performed by experienced individuals or professionals.

දෝෂගවේෂණය

If you encounter problems with your pressure washer after carburetor installation, consider the following common issues:

• එන්ජිම ආරම්භ නොවේ:
  • Check fuel level and ensure fresh fuel is used.
  • Verify spark plug connection and condition.
  • Ensure fuel line is not kinked or clogged.
  • Confirm choke is set correctly for starting.
  • Check for proper installation of gaskets; air leaks can prevent starting.
• Engine Runs Roughly or Stalls:
  • Inspect air filter for clogs.
  • Check fuel filter for blockages.
  • Ensure all linkages (throttle, choke) are moving freely and correctly connected.
  • Verify no air leaks around carburetor gaskets.
• ඉන්ධන කාන්දුවීම්:
  • Check all fuel line connections for tightness.
  • Ensure carburetor bowl is properly sealed.
  • Verify gaskets are correctly seated and not damaged.

If troubleshooting steps do not resolve the issue, it is recommended to consult the pressure washer's original service manual or seek professional assistance.

පිරිවිතර

වගකීම් සහ සහාය

Specific warranty information for this Generic brand product is not provided in the available data. For any support or warranty inquiries, please refer to the retailer or manufacturer's contact information provided at the time of purchase.
