Generic Carburetor Instruction Manual for Homelite String Trimmers

1. හැඳින්වීම

This manual provides essential information for the installation, operation, and basic maintenance of your new Generic carburetor. This carburetor is designed as a replacement part for specific Homelite string trimmer models. Please read this manual thoroughly before attempting any installation or maintenance to ensure safe and correct usage.

2 ආරක්ෂිත තොරතුරු

Always prioritize safety when working with power tools and fuel systems. Failure to follow these safety instructions may result in serious injury or property damage.

• ස්පාර්ක් ප්ලග් එක විසන්ධි කරන්න: Before beginning any work on the string trimmer, always disconnect the spark plug wire to prevent accidental starting.
• ඉන්ධන හැසිරවීම: Work in a well-ventilated area. Avoid open flames, sparks, or smoking near fuel. Use an approved fuel container.
• අක්ෂි ආරක්ෂාව: Wear safety glasses or goggles to protect your eyes from debris or fuel splashes.
• අත්වැසුම්: Wear appropriate gloves to protect your hands from fuel, oil, and sharp edges.
• මෙවලම් ආරක්ෂාව: Use the correct tools for the job. Ensure all fasteners are tightened securely.
• වෘත්තීය සහාය: ඔබට කිසියම් පියවරක් පිළිබඳව සැකයක් ඇත්නම්, සුදුසුකම් ලත් සේවා කාර්මිකයෙකුගෙන් විමසන්න.

3. පැකේජ අන්තර්ගතය

Carefully unpack the box and verify that all items listed below are present and undamaged. If any parts are missing or damaged, contact your supplier immediately.

• 1 x කාබ්යුරේටරය
• 3 x Primer Bulbs
• 2 x ගෑස්කට්
• 1 x ඉන්ධන පෙරහන
• 2 x වායු පෙරහන්
• 1 x Fuel Line
• 1 x ස්පාර්ක් ප්ලග්

4. ගැළපුම

This carburetor is compatible with the following Homelite string trimmer models:

• UT-20006, UT-20026, UT-20046, UT-21006, UT-29007, UT-21046, UT-2904
• UT-20004-A, UT-20004-B, UT-20024-A, UT-20024-B, UT-20044-A, UT-20044-B
• 25cc EZ Reach String Trimmer: UT-20042, UT-20042-A, UT-20043-A
• 25cc Trim 'N Edge String Trimmer: UT-20022, UT-20022-A, UT-20023-A
• 25cc TrimLite String Trimmer: UT-20002, UT-20002-A, UT-20003-A

Please verify your specific model number before installation to ensure proper fitment.

5. ස්ථාපනය (සැකසුම)

The following steps outline the general procedure for replacing a carburetor on a Homelite string trimmer. Specific steps may vary slightly depending on your trimmer model. Refer to your trimmer's original service manual for detailed instructions if available.

5.1 සකස් කිරීම

1. Ensure the string trimmer engine is cool.
2. අහම්බෙන් ආරම්භ වීම වැළැක්වීම සඳහා ස්පාර්ක් ප්ලග් වයරය විසන්ධි කරන්න.
3. Drain any fuel from the fuel tank into an approved container.
4. Clean the area around the carburetor to prevent dirt from entering the engine.

5.2 Removing the Old Carburetor

1. Locate the air filter cover and remove it. Then remove the air filter.
2. Identify and disconnect the fuel lines from the old carburetor. Note their positions for reinstallation.
3. Disconnect the throttle linkage and choke rod from the carburetor.
4. Unscrew the mounting bolts or nuts that secure the carburetor to the engine manifold.
5. Carefully remove the old carburetor and any old gaskets.

5.3 Installing the New Carburetor

රූපය 1: ඉදිරිපස view of the Generic Carburetor. This image shows the general appearance of the replacement carburetor, including the primer bulb and fuel line connections.

1. Place new gaskets between the carburetor and the engine manifold, ensuring they are correctly aligned.
2. Position the new carburetor onto the mounting studs/bolts.
3. Secure the carburetor with the mounting bolts/nuts. Tighten them evenly to prevent air leaks, but do not overtighten.
4. Reconnect the throttle linkage and choke rod to the new carburetor. Ensure they move freely.
5. Reconnect the fuel lines to their correct ports on the carburetor. Replace old fuel lines and fuel filter if necessary (included in package).
6. Install the new air filter (included in package) and replace the air filter cover.
7. Replace the spark plug with the new one provided, if desired.

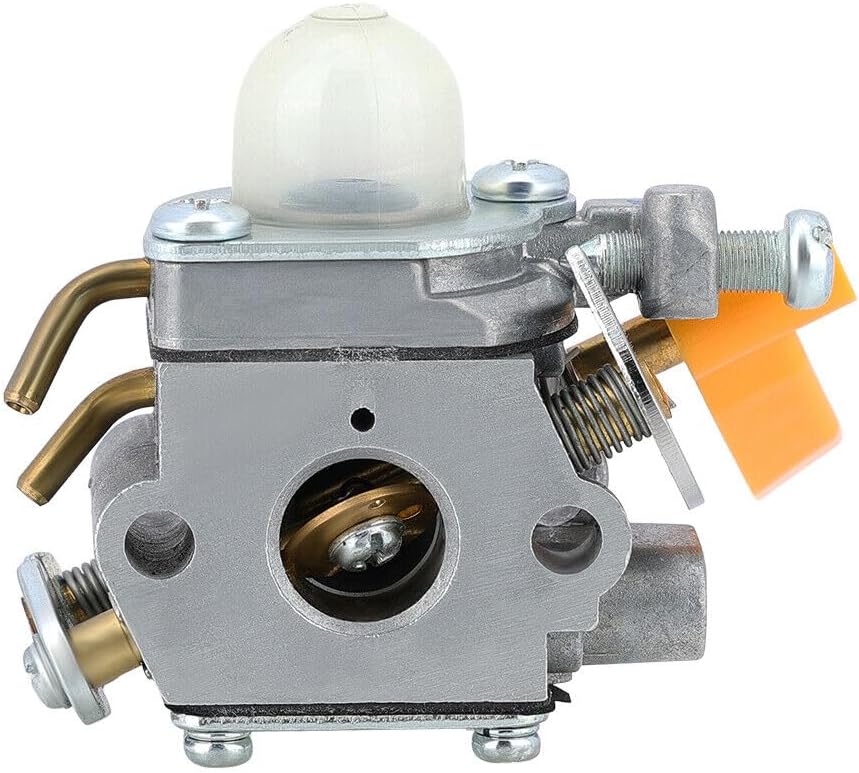

රූපය 2: පැත්ත view of the Generic Carburetor. This view highlights the choke lever and its connection point, crucial for proper engine starting.

රූපය 3: ප්‍රතිවිරුද්ධ පැත්ත view of the Generic Carburetor. This image provides a different perspective of the carburetor's body and adjustment screws.

5.4 පශ්චාත් ස්ථාපන පරීක්ෂාව

1. Refill the fuel tank with the appropriate fuel mixture for your trimmer.
2. Prime the carburetor by pressing the primer bulb until fuel is visible and flows freely.
3. ස්පාර්ක් ප්ලග් වයරය නැවත සම්බන්ධ කරන්න.
4. Attempt to start the engine according to your trimmer's starting procedure.
5. Check for any fuel leaks around the carburetor and fuel lines.

6. මෙහෙයුම

Once the carburetor is installed, the string trimmer should operate as designed. Refer to your string trimmer's original instruction manual for specific starting, operating, and stopping procedures. The carburetor's primary function is to mix air and fuel for combustion; it does not have user-adjustable operational controls beyond initial tuning.

7. නඩත්තු කිරීම

Proper maintenance of your carburetor and fuel system components will ensure optimal performance and longevity.

• ඉන්ධන පෙරහන: Regularly inspect and replace the fuel filter (included in package) to prevent contaminants from reaching the carburetor.
• වායු පෙරහන: Clean or replace the air filter (included in package) as recommended by your trimmer's manual. A dirty air filter can restrict airflow and affect carburetor performance.
• ඉන්ධන මාර්ග: Inspect fuel lines for cracks, hardening, or leaks. Replace them if any damage is observed.
• ඉන්ධන ගුණාත්මකභාවය: Always use fresh, clean fuel mixed with the correct oil ratio for 2-stroke engines. Stale fuel can cause carburetor issues.
• ගබඩා: Before long-term storage, drain the fuel tank and run the engine until it stops to clear the carburetor of fuel, or use a fuel stabilizer.

8. දෝශ නිරාකරණය

If you experience issues after installing the new carburetor, consider the following common problems and solutions:

සටහන: Carburetor tuning (adjusting high and low-speed mixture screws) should only be performed by experienced individuals or a qualified technician. Improper adjustment can damage the engine.

9. පිරිවිතර

• නිෂ්පාදන වර්ගය: Replacement Carburetor
• ගැළපුම: Homelite String Trimmers (various models, see Section 4)
• ද්රව්ය: Metal alloy, plastic
• බර: ආසන්න වශයෙන් අවුන්ස 9.6 (කිලෝග්‍රෑම් 0.27)
• මානයන්: ආසන්න වශයෙන් 8 x 8 x 8 අඟල් (20.3 x 20.3 x 20.3 සෙ.මී.) - Note: These dimensions refer to the packaging or overall product, not the carburetor itself.

10. වගකීම් සහ සහාය

As a Generic brand product, specific warranty details may vary. Please refer to the seller's return policy or contact the seller directly for information regarding warranty coverage, returns, or technical support.

For further assistance with your Homelite string trimmer, consult the original manufacturer's documentation or contact their customer service.
