හැඳින්වීම
The ButtKicker Gamer2 is an immersive haptic transducer system designed to provide powerful and accurate tactile feedback, enhancing your gaming, simulation, and entertainment experiences. Unlike traditional subwoofers that move air, the ButtKicker Gamer2 directly transfers low-frequency sound into physical vibrations, allowing you to feel the action without excessive noise. This manual provides comprehensive instructions for the proper installation, operation, and maintenance of your ButtKicker Gamer2 system.
The system includes a ButtKicker Gamer transducer unit and a 90-watt power amplifier, along with all necessary cables and mounting hardware for easy attachment to most chairs or sim rigs.
පෙට්ටියේ ඇති දේ
ඔබගේ පැකේජයේ සියලුම සංරචක ඇති බව තහවුරු කරගන්න:
- ButtKicker Gamer transducer with Easy Clamp™ ඇමුණුම් යාන්ත්රණය
- බට්කිකර් පවර් Amplifier BKA-130-C (120V Only)
- 13.5' cable with quick release, connecting ButtKicker Gamer to the Ampජීවිතාරක්ෂකයා
- RCA and mini "Y" adapters
- 5' RCA to RCA cable
- 5' RCA to mini cable
- Two Velcro® cable holders
Figure 1: Included components of the ButtKicker Gamer2 system.
සැකසුම් උපදෙස්
Follow these steps to properly set up your ButtKicker Gamer2 system:
1. Attaching the ButtKicker Gamer Transducer
The ButtKicker Gamer unit features an Easy-Clamp™ mounting arm designed for quick and secure attachment. It can be clamped to any center post up to 1.4 inches (3.5 cm) in diameter, commonly found on office chairs or sim racing cockpits.
- Identify a sturdy, central post on your chair or sim rig.
- Loosen the adjustment knob on the Easy-Clamp™ mechanism.
- cl ස්ථානගත කරන්නamp around the post and tighten the adjustment knob until the ButtKicker Gamer is securely fastened and does not wobble. Ensure the unit is positioned to allow for free movement and does not interfere with chair mechanisms.
Figure 2: Detail of the Easy-Clamp™ mounting arm.
Figure 3: ButtKicker Gamer2 mounted on an office chair.
Figure 4: ButtKicker Gamer2 mounted on a sim racing rig.
2. බලය සම්බන්ධ කිරීම Ampජීවිතාරක්ෂකයා
Place the ButtKicker Power Amplifier BKA-130-C in a convenient location, ensuring adequate ventilation. The amplifier is fanless for quiet operation.
- Connect the 13.5' cable from the ButtKicker Gamer transducer to the speaker output terminals on the amplifier. Ensure correct polarity if applicable (though typically not critical for transducers).
- සම්බන්ධ කරන්න amplifier's power cable to a standard 120V AC outlet.
රූපය 5: Amplifier placement in a typical setup.
3. ශ්රව්ය සම්බන්ධතා
The ButtKicker Gamer2 operates by converting low-frequency audio signals into vibrations. Connect the amplifier to your audio source (PC, gaming console, home theater receiver) using the provided cables.
- පරිගණක සම්බන්ධතාවය: Use the 5' RCA to mini cable and the mini "Y" adapter to split the audio output from your PC's sound card. One branch goes to your speakers/headphones, and the other to the ampලයිෆයර් ආදානය.
- කොන්සෝල සම්බන්ධතාවය: Use the RCA "Y" adapters with the 5' RCA to RCA cable to connect to your console's audio output (if available) or an audio extractor.
- Dedicated Subwoofer Output: For optimal performance, if your audio source has a dedicated subwoofer (LFE) output, connect the amplifier directly to this output using the appropriate RCA cable. This provides a cleaner low-frequency signal.
වැදගත් සටහන: Some users report static when using the 3.5mm Y-splitter directly from a PC's main audio output. If you experience this, consider using a separate audio output for the ButtKicker (e.g., a secondary sound card, a monitor's 3.5mm output, or an Xbox controller's 3.5mm input if applicable for console setups) to provide a dedicated signal to the ampජීවිතාරක්ෂකයා.
4. රැහැන්ගත දුරස්ථ පාලකය
Connect the wired remote control to the "Remote" port on the amplifier. This allows for convenient volume adjustment and power control from your seating position.
මෙහෙයුම් උපදෙස්
Once the system is set up, follow these steps to operate your ButtKicker Gamer2:
1. බලගැන්වීම
Press the "Power" button on the amplifier or the wired remote control. The power indicator light will illuminate.
2. Ampලයිෆයර් පාලන
Figure 6: ButtKicker Power Amplifier BKA-130-C front panel.
- Low Filter Cutoff: Adjusts the lowest frequency the ButtKicker will respond to. Typically set between 50-70 Hz for general use.
- High Cutoff Frequency: Adjusts the highest frequency the ButtKicker will respond to. Setting this lower (e.g., 70-110 Hz) can provide a more focused "kick" sensation, while higher settings (up to 160 Hz) can offer a broader range of tactile feedback.
- පරිමාව: Controls the intensity of the vibrations. Start with a low setting and gradually increase to your preferred level. Avoid setting it too high, which can lead to clipping.
- Clip/Signal Indicators: The "Signal" light indicates that an audio signal is being received. The "Clip" light indicates that the amplifier is being overdriven. If the "Clip" light flashes frequently, reduce the volume to prevent damage to the amplifier and transducer.
3. Adjusting for Optimal Experience
Experiment with the Low and High Cutoff Frequency settings to find the ideal tactile response for different games or media. For racing simulations, you might prefer a tighter, more impactful feel for engine RPMs and road textures. For explosions in action games, a broader frequency range might be desired.
වීඩියෝ නිරූපණය: For a visual guide on the ButtKicker Gamer2's capabilities and setup, please refer to the official product video below.
Video 1: Official ButtKicker video demonstrating the Gamer2's immersive haptic feedback in various gaming scenarios. This video showcases the product's ability to translate in-game audio into physical sensations, enhancing realism.
නඩත්තු කිරීම
The ButtKicker Gamer2 system is designed for durability and requires minimal maintenance.
- පිරිසිදු කිරීම: Use a soft, dry cloth to wipe down the transducer and amplifier. Avoid using liquid cleaners or abrasive materials.
- වාතාශ්රය: සහතික කරන්න amplifier has adequate airflow around it to prevent overheating, especially since it is convection-cooled (fanless).
- කේබල් කළමනාකරණය: Use the provided Velcro cable ties to keep cables organized and prevent them from being snagged or damaged.
- ගබඩා: If storing the unit for an extended period, disconnect it from power and store it in a dry, cool place.
දෝෂගවේෂණය
If you encounter issues with your ButtKicker Gamer2, refer to the following common problems and solutions:
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| කිරීමට බලයක් නැත ampජීවිතාරක්ෂකයා | Power cable disconnected; outlet not active; ampජීවිත කාලය ඉවතට. | Check power cable connection; test outlet with another device; ensure amplifier power button is pressed. |
| No haptic feedback | Audio input not connected; volume too low; transducer cable disconnected; amplifier not receiving signal. | Verify all audio connections; increase amplifier volume; check transducer cable connection; ensure audio source is playing low-frequency content. Check "Signal" light on ampජීවිතාරක්ෂකයා. |
| Weak or inconsistent feedback | Volume too low; filter settings incorrect; transducer not securely mounted; audio source lacking strong bass. | Increase volume; adjust Low/High Cutoff Frequency; tighten transducer clamp; ensure audio content has sufficient bass. |
| "Clip" light flashing frequently | Ampලිෆයර් අධික ලෙස ධාවනය වේ. | අඩු කරන්න amplifier's volume. Persistent clipping can damage the unit. |
| Static or unwanted noise in audio | Ground loop; audio Y-splitter interference. | සම්බන්ධ කිරීමට උත්සාහ කරන්න amplifier to a different audio output (e.g., a dedicated sound card output, or a monitor's audio out). Consider a ground loop isolator if the issue persists. |
පිරිවිතර
ButtKicker Gamer Transducer

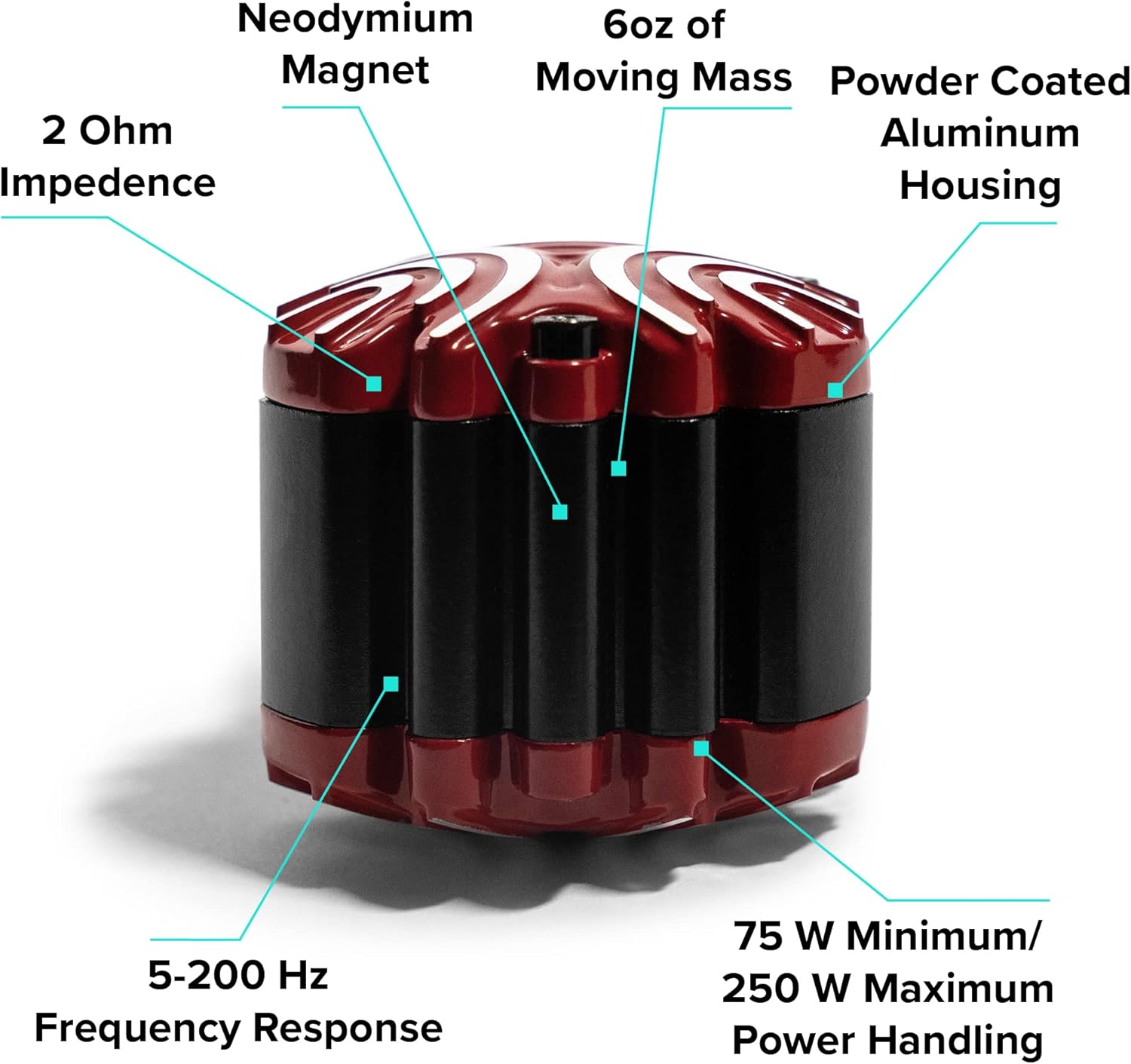

Figure 7: ButtKicker Gamer transducer key features.
- සම්බාධනය: 2 ඕම්
- සංඛ්යාත ප්රතිචාරය: 5-200 Hz
- බලය හැසිරවීම: 75 W Minimum / 250 W Maximum
- චලනය වන ස්කන්ධය: 6 අවුන්ස
- ඉදිකිරීම්: Powder Coated Aluminum Housing, Neodymium Magnet
- සවි කිරීම: Easy-Clamp™ mechanism for posts up to 1.4" diameter
බට්කිකර් පවර් Ampලයිෆයර් BKA-130-C
- බල ප්රතිදානය: ඕම් 90 ට වොට් 2 යි
- සිසිලනය: Fanless (convection-cooled)
- ආදාන වෙළුමtage: 120V AC පමණයි
- සංඛ්යාත ප්රතිචාරය: 10-300 Hz
- පාලන: Low Filter Cutoff, High Cutoff Frequency, Volume
- විශේෂාංග: Wired remote control port, Pass-through outlet for daisy-chaining multiple units
- ඉදිකිරීම්: ලෝහ නිවාස
සාමාන්ය නිෂ්පාදන තොරතුරු
- නිෂ්පාදන මානයන්: 12.2 x 10.83 x 16.14 අඟල් (ඇසුරුම් කර ඇත)
- අයිතමයේ බර: රාත්තල් 10.56 (ඇසුරුම් කළ)
- ආදර්ශ අංකය: BK-GR2
- ASIN: B000AOTLP6
වගකීම් තොරතුරු
ButtKicker products are manufactured to high standards. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your product or visit the official ButtKicker webවෙබ් අඩවිය. වගකීම් හිමිකම් සඳහා ඔබේ මිලදී ගැනීමේ සාක්ෂි තබා ගන්න.
සහාය
For technical assistance, troubleshooting beyond this manual, or customer service inquiries, please contact ButtKicker customer support. The manufacturer, Guitammer Company, is known for its responsive customer support.
Please visit the official ButtKicker webවඩාත්ම යාවත්කාලීන සම්බන්ධතා තොරතුරු සහ සහාය සම්පත් සඳහා අඩවිය.
