American International EU06

American International EU06 VW/Audio/BMW Antenna Adapter Instruction Manual

1. නිෂ්පාදන අවසන්view

The American International EU06 Antenna Adapter is designed to facilitate the installation of an aftermarket radio in select Volkswagen, Audi, and BMW vehicles. This adapter converts the vehicle's unique antenna lead to a standard Motorola male connector, ensuring compatibility with most aftermarket car stereos. It provides a reliable connection for optimal radio reception.

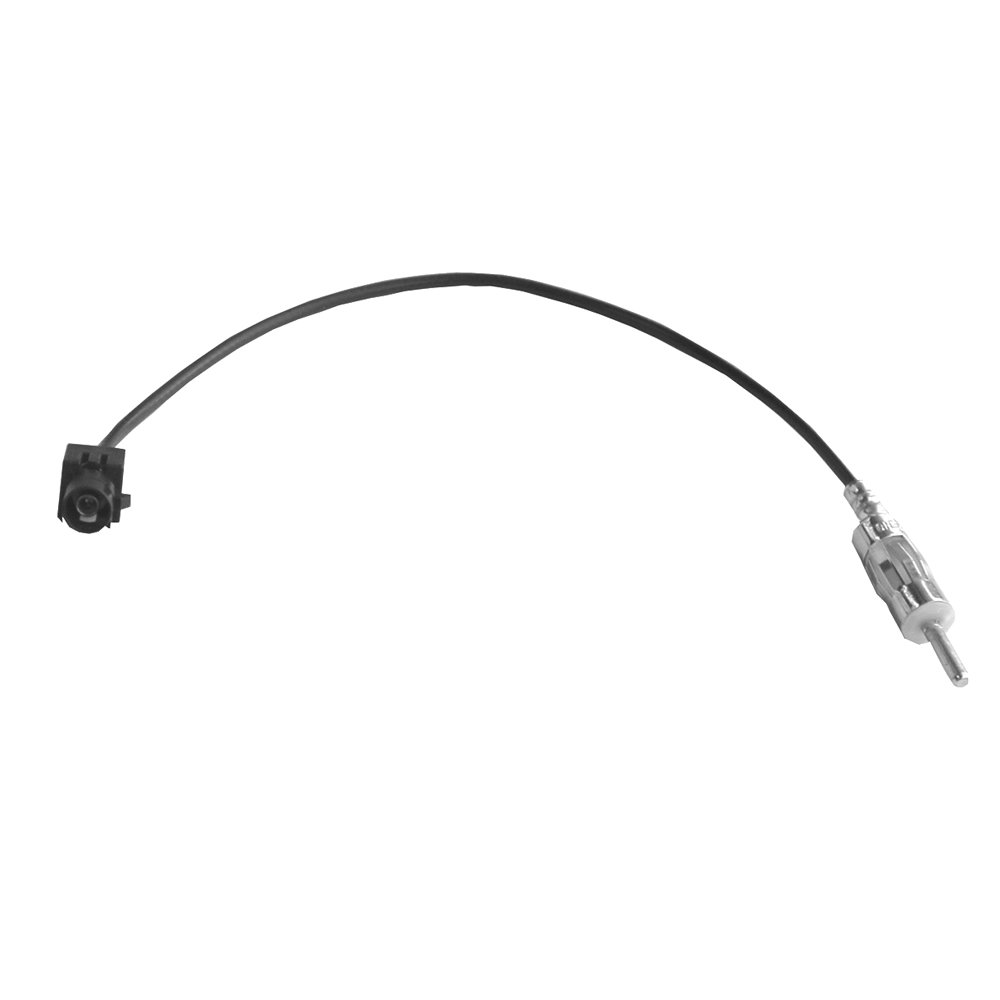

American International EU06 VW/Audio/BMW Antenna Adapter

Image showing the American International EU06 antenna adapter, typically a short cable with a specialized connector on one end and a standard Motorola male connector on the other.

2. නිෂ්පාදන ලක්ෂණ

  • Converts vehicle's antenna lead to standard Motorola male.
  • Essential for replacing factory radios with aftermarket units.
  • Expertly crafted from superior materials for durability.
  • Ensures long-lasting service life.
  • Provides exceptional reliability for antenna connection.

3. ගැළපුම

The EU06 antenna adapter is compatible with various Volkswagen, Audi, BMW, Chrysler, Dodge, and Jeep models from 2000-2010. Please verify your vehicle's specific antenna connector type before installation.

Vehicle Fit List (2000-2010):

  • Audi: A4, A6, A8, S4, S6, S8 (2002-2005)
  • BMW: 3 Series, 5 Series, X3, X5, Z4 (2000-2005)
  • Chrysler/Dodge/Jeep: (2002-2010 models, specific models not detailed in provided data, verify connector type)
  • ජගුවාර්: S-Type, X-Type (2000-2005)
  • Mercedes: CL Class, CLK Class, E Class, ML Class, Maybach, S Class, SLK Class (2001-2005)
  • Mini Cooper: All models (2002-2005)
  • Porsche: 911, Cayenne (2003-2004)
  • Volkswagen: Cabrio, Golf, GTI, Jetta, Passat, Touareg (2000-2004)

4. ස්ථාපනය සහ සැකසුම

Follow these steps to install the EU06 Antenna Adapter:

  1. සකස් කිරීම: ඕනෑම විදුලි වැඩක් ආරම්භ කිරීමට පෙර වාහනයේ ජ්වලනය නිවා දමා බැටරිය විසන්ධි කර ඇති බවට වග බලා ගන්න.
  2. ප්රවේශය: Carefully remove the factory radio to access the vehicle's antenna lead. Refer to your vehicle's service manual for specific instructions on radio removal.
  3. සම්බන්ධක ඇඩැප්ටරය: Locate the vehicle's antenna lead. Connect the specialized female end of the EU06 adapter to this lead. Ensure a firm and secure connection.
  4. අලෙවියෙන් පසු ගුවන් විදුලියට සම්බන්ධ වන්න: Connect the standard Motorola male end of the EU06 adapter to the antenna input on your new aftermarket radio.
  5. ආරක්ෂිත සම්බන්ධතා: Double-check all connections to ensure they are tight and properly seated to prevent signal loss or intermittent issues.
  6. පරීක්ෂණය: Reconnect the vehicle's battery and test the radio reception with the new aftermarket unit before fully reassembling the dashboard.

5. මෙහෙයුම් උපදෙස්

The EU06 Antenna Adapter is a passive component and requires no specific operation once installed. It functions automatically to provide the necessary antenna signal conversion for your aftermarket radio.

6. නඩත්තු කිරීම

The EU06 Antenna Adapter is designed for maintenance-free operation. To ensure continued performance:

  • Ensure all connections remain secure and free from physical stress.
  • Keep the adapter free from moisture and extreme temperatures.
  • Avoid bending or crimping the adapter cable excessively.

7. දෝශ නිරාකරණය

  • No Radio Signal:
    • Check all connections to ensure they are tight and properly seated.
    • Verify the adapter is correctly installed between the vehicle's antenna lead and the aftermarket radio.
    • Ensure the aftermarket radio's antenna input is functional.
  • දුර්වල ගුවන් විදුලි පිළිගැනීම:
    • Inspect the vehicle's antenna for damage or obstructions.
    • Ensure the adapter cable is not damaged or kinked.
    • Test the aftermarket radio with a known good antenna source if possible.

8. පිරිවිතර

වෙළඳ නාමයඇමරිකන් ඉන්ටර්නැෂනල්
මාදිලියේ නමEU06
සම්බන්ධක වර්ගයRCA (Note: This is likely an error in the source data for an antenna adapter, which typically uses a proprietary vehicle connector to Motorola male.)
කේබල් වර්ගයHDMI (Note: This is likely an error in the source data for an antenna adapter.)
ගැළපෙන උපාංගVW, Audi, BMW (and other listed compatible vehicles)
අයිතමයේ බරඅවුන්ස 0.6 (දළ වශයෙන් ග්‍රෑම් 17)
නිෂ්පාදන මානයන්6 x 0.7 x 9 අඟල් (ආසන්න වශයෙන් 15.2 x 1.8 x 22.9 සෙ.මී.)
වර්ණයකළු
සම්බන්ධක ලිංගභේදයපිරිමි-ගැහැණු

9. වගකීම් සහ සහාය

This American International EU06 Antenna Adapter comes with a වසර 1ක නිෂ්පාදක වගකීම. For warranty claims or technical support, please contact American International directly through their official support channels.

10. වැදගත් ආරක්ෂක තොරතුරු

අවවාදයයි: මෙම නිෂ්පාදනයේ පිළිකා සහ උපත් ආබාධ හෝ වෙනත් ප්‍රජනක හානි ඇති කිරීමට කැලිෆෝනියා ප්‍රාන්තය දන්නා රසායනික ද්‍රව්‍ය අඩංගු වේ.

Always follow proper safety procedures when working with vehicle electronics. Disconnect the battery before installation to prevent electrical shorts or damage.
