1. හැඳින්වීම
Sequence centrifugal pumps are engineered for high energy efficiency, delivering exceptional water volume (GPH) relative to power consumption. These pumps are specifically designed to meet the demanding requirements of ponds, waterscapes, aquaculture, and large hydroponic systems. Investing in a quality pump like the Sequence 1000 Series ensures years of reliable service and significant savings on electricity costs.
They are robust workhorses, providing substantial flow rates with sufficient pressure head to support biological filters and moderate height waterfalls. Their versatility also makes them ideal for transfer and re-circulation in filtration systems, water features, streams, fountains, and hydroponic setups.
Figure 1: Sequence 1000 Series Pump. This image displays the pump's overall design, featuring the robust black motor connected to the light grey pump housing, secured by multiple bolts. The inlet and outlet ports are visible, indicating its non-submersible design.
2. පිහිටුවීම සහ ස්ථාපනය
2.1 ඉවත් කිරීම සහ පරීක්ෂා කිරීම
Carefully remove the pump from its packaging. Inspect the pump for any signs of shipping damage. Ensure all components are present as listed in the packing slip (not provided here, but implied for a real manual).
2.2 ස්ථානගත කිරීම
The Sequence 1000 Series pumps are designed for out-of-pond construction සහ වේ NOT submersible. Place the pump on a stable, level surface in a dry, well-ventilated area, protected from direct sunlight and extreme weather conditions. Ensure adequate space around the pump for air circulation and future maintenance.
2.3 ජලනල සම්බන්ධතා
The pump features 1.5 FNPT suction and 1.5 FNPT discharge ports. Use appropriate plumbing fittings (preferably plastic, as indicated on some models) to connect the pump to your system's intake and output lines. Ensure all connections are watertight to prevent leaks and maintain prime. It is recommended to use unions for easy removal during maintenance.
රූපය 2: ඉදිරිපස view of the pump. This image highlights the pump's suction port and clearly visible text indicating to "USE PLASTIC FITTINGS ONLY" for optimal performance and longevity.
2.4 විදුලි සම්බන්ධතාවය
The units are pre-wired with an 8-foot cord and a molded 115V plug. Connect the pump to a properly grounded 115V electrical outlet. Ensure the circuit is protected by a Ground Fault Circuit Interrupter (GFCI) for safety, especially in outdoor or wet environments. Do not use extension cords unless absolutely necessary and ensure they are rated for outdoor use and the pump's power requirements.
3. මෙහෙයුම් මාර්ගෝපදේශ
3.1 පොම්පය ප්රාථමික කිරීම
Before initial startup, the pump must be primed. This involves filling the pump housing and suction line with water to remove any air. Refer to your system's specific priming procedure. Never run the pump dry, as this can cause severe damage to the mechanical seals.
3.2 ආරම්භ කිරීම සහ නැවැත්වීම
Once primed, connect the pump to the power supply. The pump should start immediately. To stop the pump, disconnect it from the power supply. For systems requiring frequent on/off cycles, consider using a timer or control panel.
3.3 කාර්ය සාධන ලක්ෂණ
Sequence pumps are known for their high flow rates and energy efficiency. The actual flow rate will depend on the total dynamic head (resistance from plumbing, filters, and elevation changes) of your system. Refer to the specifications section for maximum flow and head ratings for each model.

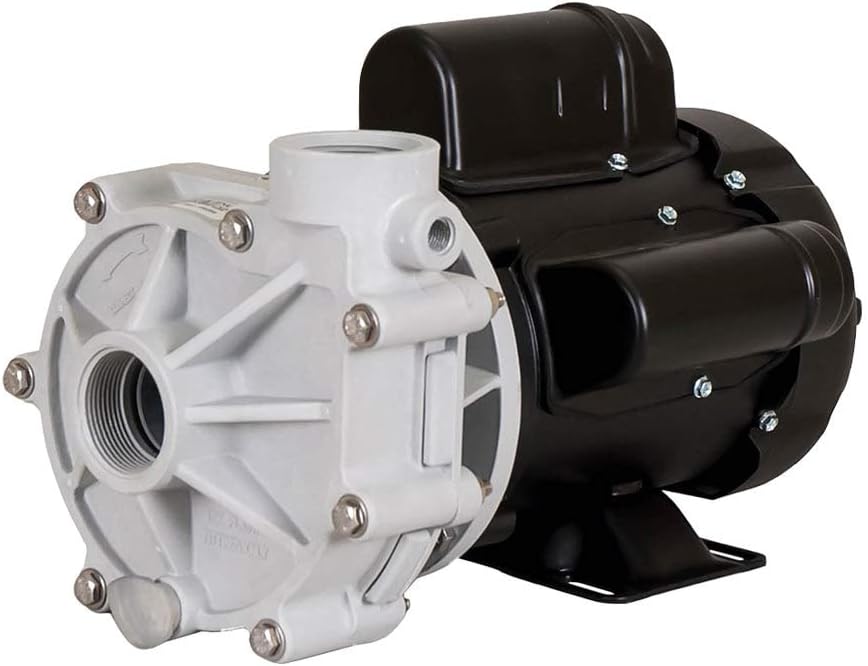

රූපය 3: පැත්ත view of the pump. This perspective provides a clear view of the motor's cooling fins and the robust construction of the pump housing, emphasizing its durability and design for continuous operation.
4 රැකවරණය සහ නඩත්තුව
4.1 නිතිපතා පරීක්ෂාව
Periodically inspect the pump for any signs of wear, leaks, or unusual noises. Check electrical connections for corrosion or damage. Ensure the area around the pump remains clear of debris to allow for proper ventilation.
4.2 පිරිසිදු කිරීම
The pump housing and motor can be wiped clean with a damp cloth. Do not use harsh chemicals or abrasive cleaners. For internal cleaning, such as clearing impeller blockages, disconnect power and follow proper disassembly procedures (consult a qualified technician if unsure).
4.3 ශීත ඍතුකරණය (අදාළ නම්)
In regions subject to freezing temperatures, the pump must be drained and stored in a frost-free environment during winter months to prevent damage from freezing water.
4.4 Mechanical Seals
The pump features dry run resistant mechanical seals, which offer enhanced durability. However, continuous dry running should be avoided as it can still lead to premature wear.
5. දෝශ නිරාකරණය
This section provides solutions to common issues. For problems not listed or if issues persist, contact customer support.
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| පොම්පය ආරම්භ නොවේ | No power; tripped GFCI/breaker; motor issue | Check power connection; reset GFCI/breaker; consult technician |
| අඩු ප්රවාහයක් හෝ ප්රවාහයක් නොමැති වීම | Pump not primed; clogged impeller/intake; air leak in suction line; excessive head pressure | Re-prime pump; clear obstructions; check all connections for leaks; verify system design |
| අධික ශබ්දය / කම්පනය | Cavitation (air in pump); foreign object in impeller; worn bearings | Ensure proper priming; inspect/clear impeller; contact technician for bearing issues |
| Water leak from pump | Loose fittings; damaged mechanical seal; cracked housing | Tighten fittings; replace mechanical seal; contact technician for housing damage |
6. තාක්ෂණික පිරිවිතර
The following table outlines the key specifications for the Sequence 1000 Series Pumps:
| පිරිවිතර | වටිනාකම |
|---|---|
| වෙළඳ නාමය | අනුපිළිවෙල |
| නිෂ්පාදකයා | එම්.ඩී.එම් |
| ද්රව්ය | Stainless Steel (hardware), Glass-filled Polypropylene (housing) |
| බලශක්ති ප්රභවය | 115V AC (pre-wired) |
| Suction Port Size | 1.5 එෆ්එන්පීටී |
| විසර්ජන තොට ප්රමාණය | 1.5 එෆ්එන්පීටී |
| මෝටර් වර්ගය | TEFC (සම්පූර්ණයෙන්ම සංවෘත විදුලි පංකා සිසිලනය) |
| නිවාස ද්රව්ය | High strength, glass filled polypropylene |
| යාන්ත්රික මුද්රා | Dry run resistant |
| රැහැන් දිග | අඩි 8 යි |
| අයිතමයේ බර | රාත්තල් 28.9 කි |
| පැකේජ මානයන් | අඟල් 18.98 x 11.1 x 10.75 |
| UPC | 850012080039 |
6.1 Model-Specific Performance Data
| ආකෘතිය | අශ්වබල | උපරිම හිස | Max Flow (USgph) | Max Draw (Watts) |
|---|---|---|---|---|
| 3200SEQ20 | 1/8 HP | 20 MAX HEAD | 3200 | 213 |
| 4300SEQ20 | 1/6 HP | 20 MAX HEAD | 4300 | 253 |
| 5000SEQ22 | 1/4 HP | 22 MAX HEAD | 5000 | 333 |
| 5800SEQ23 | 1/3 HP | 23 MAX HEAD | 5800 | 396 |
7. වගකීම් සහ සහාය
7.1 සීමිත වගකීම්
The Sequence 1000 Series Pumps come with a වසර තුනක සීමිත වගකීමක්. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, refer to the documentation included with your product or contact the manufacturer.
7.2 පාරිභෝගික සහාය
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Sequence customer support. Contact information can typically be found on the manufacturer's website or on the product packaging. When contacting support, please have your pump's model number and serial number ready.
