Einhell EINRTBS75 TE-BS 8540 Belt Sander

1. ආරක්ෂිත උපදෙස්

Always observe basic safety precautions when using electric tools to reduce the risk of fire, electric shock, and personal injury. Read all instructions carefully before operating this belt sander.

• වැඩ ප්රදේශයේ ආරක්ෂාව: වැඩ කරන ප්‍රදේශය පිරිසිදුව හා හොඳින් ආලෝකමත්ව තබා ගන්න. අවුල් සහගත හෝ අඳුරු ප්‍රදේශ අනතුරු වලට ආරාධනා කරයි. දැවෙන ද්‍රව, වායූන් හෝ දූවිලි වැනි පුපුරන සුලු වායුගෝලයන් තුළ බල මෙවලම් ක්‍රියාත්මක නොකරන්න.
• විදුලි ආරක්ෂාව: බල මෙවලම් පේනු අලෙවිසැලට ගැළපිය යුතුය. කිසි විටෙකත් ප්ලග් එක කිසිම ආකාරයකින් වෙනස් නොකරන්න. පයිප්ප, රේඩියේටර්, රේන්ජ් සහ ශීතකරණ වැනි පස් සහිත හෝ බිම් සහිත මතුපිට සමඟ ශරීර සම්බන්ධතා වළක්වා ගන්න.
• පුද්ගලික ආරක්ෂාව: Always wear eye protection. Use dust masks, non-skid safety shoes, hard hats, or hearing protection for appropriate conditions. Do not overreach. Keep proper footing and balance at all times.
• මෙවලම් භාවිතය සහ රැකවරණය: බල මෙවලමට බල නොකරන්න. ඔබගේ යෙදුම සඳහා නිවැරදි බල මෙවලම භාවිතා කරන්න. කිසියම් ගැලපීමක් කිරීමට, උපාංග වෙනස් කිරීමට හෝ බල මෙවලම් ගබඩා කිරීමට පෙර බල ප්‍රභවයෙන් ප්ලග් එක විසන්ධි කරන්න.
• දූවිලි නිස්සාරණය: This tool is equipped with an integrated dust extraction system and an adapter for external dust extraction. Always use dust collection to minimize exposure to harmful dust.

2. නිෂ්පාදන අවසන්view

The Einhell TE-BS 8540 is a high-performance belt sander designed for flexible and effective grinding tasks. It features variable speed control, precise belt tracking adjustment, and a quick, tool-free sanding belt change mechanism.

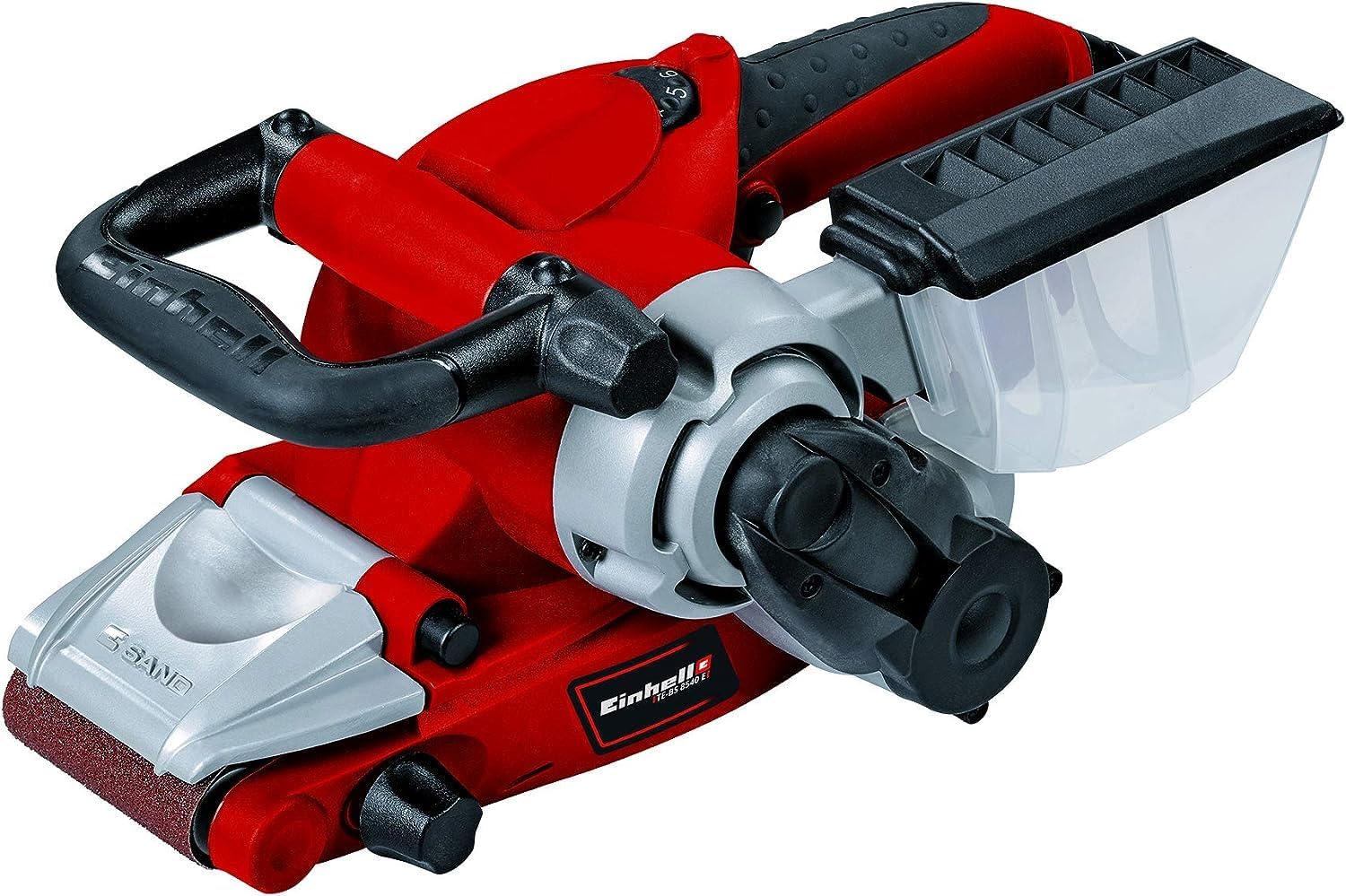

රූපය 2.1: සමස්තයක් වශයෙන් view of the Einhell TE-BS 8540 Belt Sander. This image displays the complete tool, highlighting its ergonomic design with the main handle and auxiliary handle, the sanding belt area, and the dust collection box.

ප්රධාන ලක්ෂණ:

• බලවත් මෝටරය: 850 W motor for efficient sanding on various surfaces.
• Large Sanding Surface: 75 mm x 140 mm grinding/sanding face for quick and precise results on large areas.
• ඉලෙක්ට්රොනික වේග පාලනය: Adjustable speed settings to match the material and application requirements.
• Precision Belt Adjustment: Ensures exact belt positioning for optimal performance.
• Hinged Front Cover: Allows for sanding close to edges.
• Ergonomic Design: Soft grip and tool-free adjustable additional handle for comfortable use.
• ඒකාබද්ධ දූවිලි නිස්සාරණය: Includes a dust collection box and an adapter for connecting an external dust extractor.
• Quick Belt Change: Tool-free sanding belt replacement via a locking lever.
• කේබල් ක්ලිප්: For tidy storage of the power cable.

3. පිහිටුවීම

3.1. Installing the Sanding Belt

1. Ensure the sander is disconnected from the power supply.
2. Locate the locking lever for the sanding belt (see Figure 3.1).
3. Pull the locking lever to release the tension on the sanding belt.
4. Remove the old sanding belt, if present.
5. Place the new sanding belt onto the rollers, ensuring the arrow on the inside of the belt matches the direction of rotation indicated on the sander (see Figure 3.2).
6. Push the locking lever back to tension the new sanding belt.

රූපය 3.1: The locking lever for quick and tool-free sanding belt changes. Pushing this lever releases tension, allowing for easy belt removal and installation.

රූපය 3.2: A typical sanding belt, showing the internal arrow indicating the correct direction of rotation for installation on the sander.

3.2. පටි ලුහුබැඳීම සකස් කිරීම

After installing a new belt, it is crucial to adjust the belt tracking to ensure the belt runs centrally on the rollers and does not rub against the housing.

1. Briefly switch on the sander (without touching the workpiece) and observe the belt's movement.
2. Use the belt tracking adjustment knob (see Figure 3.3) to fine-tune the belt's position. Turn the knob clockwise to move the belt in one direction and counter-clockwise to move it in the other until it runs centrally.
3. Repeat this process if the belt tracking shifts during operation.

රූපය 3.3: The knob used for precise adjustment of the sanding belt's tracking, ensuring it remains centered during operation.

3.3. දූවිලි එකතු කිරීම

The sander comes with an integrated dust collection box. For enhanced dust control, an adapter is provided to connect an external dust extractor.

• Attach the dust collection box to the designated port on the sander.
• Alternatively, connect a suitable external dust extractor hose to the adapter and then to the sander's dust port.
• Regularly empty the dust collection box or external extractor to maintain optimal performance and prevent clogging.

රූපය 3.4: පැත්ත view of the belt sander, showing the dust extraction port where the collection box or an external extractor can be attached.

3.4. සහායක හසුරුව සකස් කිරීම

The additional handle can be adjusted without tools to provide optimal grip and comfort for different working positions. Loosen the knob on the handle, adjust to the desired angle, and then tighten the knob securely.

4. මෙහෙයුම

4.1. බල ගැන්වීම / අක්රිය කිරීම

• Connect the sander to a suitable power outlet.
• To switch on, press the ON/OFF switch. For continuous operation, engage the lock-on button.
• To switch off, release the ON/OFF switch. If locked on, press the switch again briefly to release the lock.

4.2. විචල්‍ය වේග පාලනය

The electronic speed control allows you to adjust the sanding speed to suit the material and desired finish.

රූපය 4.1: Close-up of the variable speed control dial, allowing users to select the appropriate sanding speed for different materials and tasks.

• Rotate the speed control dial to select the desired speed setting (typically from 1 to 6).
• Lower speeds are suitable for delicate materials or fine finishing, while higher speeds are for rapid material removal.

4.3. වැලි දැමීමේ ශිල්පීය ක්‍රම

Always hold the sander firmly with both hands. Apply even, moderate pressure and move the sander smoothly across the workpiece. Avoid excessive pressure, which can lead to uneven sanding and premature belt wear.

රූපය 4.2: A user demonstrating the proper two-handed grip and technique for operating the belt sander on a flat surface.

• සාමාන්‍ය වැලි දැමීම: Move the sander in the direction of the wood grain for best results. Overlap each pass slightly to ensure uniform sanding.
• දාර වැලි දැමීම: The front cover of the sander can be folded up to allow sanding closer to edges and in confined spaces (see Figure 4.3).

රූපය 4.3: ඉදිරිපස view of the belt sander, illustrating the hinged cover that can be lifted to facilitate sanding in areas close to edges.

5. නඩත්තු කිරීම

Regular maintenance ensures the longevity and optimal performance of your belt sander. Always disconnect the tool from the power supply before performing any maintenance.

• පිරිසිදු කිරීම: After each use, clean the tool, especially the ventilation slots and the dust collection system, to prevent dust buildup. Use a soft brush or compressed air.
• වැලි පටි ආදේශනය: Replace worn or damaged sanding belts promptly following the instructions in Section 3.1.
• කේබල් පරීක්ෂාව: Regularly inspect the power cable for any signs of damage. If damaged, have it replaced by a qualified electrician.
• ගබඩා: Store the belt sander in a dry, secure place, out of reach of children. Use the integrated cable clip (see Figure 5.1) for tidy cable storage.

රූපය 5.1: පසුපස view of the belt sander, showing the practical cable clip for securing the power cord during storage.

6. දෝශ නිරාකරණය

7. පිරිවිතර

8. වගකීම් සහ සහාය

වගකීම් තොරතුරු සඳහා, කරුණාකර ඔබේ නිෂ්පාදනය සමඟ ඇතුළත් කර ඇති වගකීම් කාඩ්පත බලන්න හෝ නිල Einhell වෙත පිවිසෙන්න. webවෙබ් අඩවිය. තාක්ෂණික සහාය, අමතර කොටස් හෝ සේවා විමසීම් සඳහා, කරුණාකර Einhell පාරිභෝගික සේවය අමතන්න. මිලදී ගැනීමේ සාක්ෂියක් ලෙස ඔබේ මිලදී ගැනීමේ රිසිට්පත තබා ගන්න.

සබඳතා තොරතුරු: Please refer to the contact details provided in your product packaging or on the official Einhell webඔබේ කලාපය සඳහා අඩවිය.
