Samsung DA67-02270A Cap-Support Filter Instruction Manual

1. නිෂ්පාදන අවසන්view

The Samsung DA67-02270A Cap-Support Filter is an authorized OEM replacement part designed for various Samsung brand refrigerator models. This component functions as a bypass plug for the internal water filter housing. Its primary purpose is to allow the refrigerator's water dispensing and ice-making functions to operate without an installed internal water filter, which is often desired when an external water filtration system (such as a Reverse Osmosis system) is already in use.

ප්රධාන ලක්ෂණ:

• Authorized OEM part for Samsung refrigerators.
• Designed to fit various Samsung brand models.
• Enables operation of water dispenser and ice maker without an internal filter.

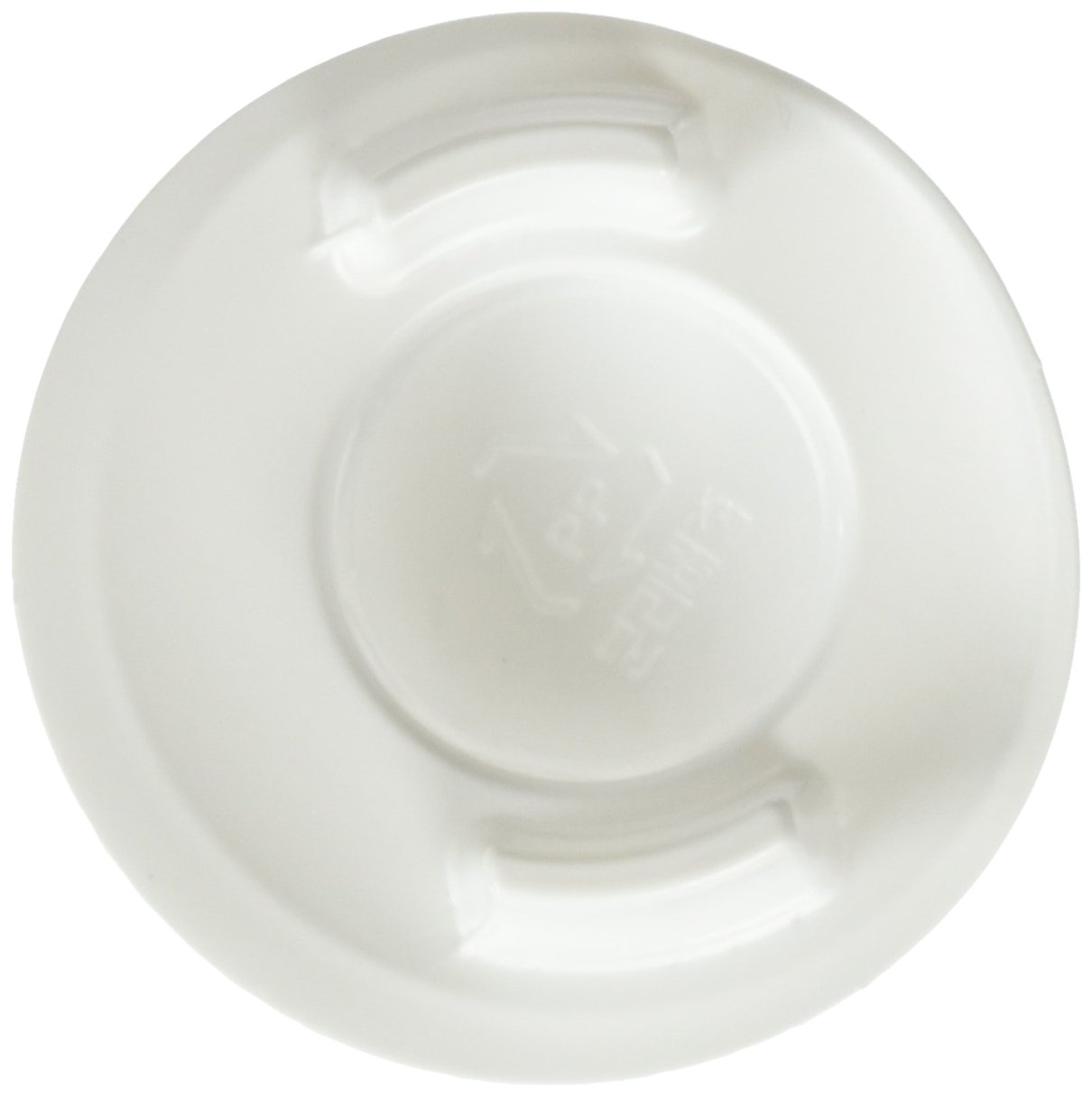

Figure 1: The Samsung DA67-02270A Cap-Support Filter, a white, circular plastic component designed to bypass the refrigerator's internal water filter.

Figure 2: The Samsung DA67-02270A Cap-Support Filter shown with approximate dimensions of 2.6 inches (6 cm) in diameter, indicating its compact size.

2. සැකසුම් උපදෙස්

Before installing the Cap-Support Filter, ensure your refrigerator's water supply is turned off to prevent any leaks or spills. Locate the water filter housing inside your refrigerator.

1. පවතින පෙරහන ඉවත් කරන්න (අදාළ නම්): If an old water filter is currently installed, twist it counter-clockwise until it disengages from the housing. Pull it straight out.
2. නිවාස සකස් කරන්න: Ensure the filter housing is clean and free of any debris.
3. Insert the Cap-Support Filter: Align the DA67-02270A Cap-Support Filter with the filter housing. Gently push it in and then twist it clockwise until it locks securely into place. You should feel a slight resistance and hear a click, indicating it is properly seated.
4. ආරක්ෂිත ගැළපීම සඳහා පරීක්ෂා කරන්න: Verify that the cap is firmly in place and does not feel loose. A proper seal is crucial to prevent leaks.
5. ජල සැපයුම යථා තත්ත්වයට පත් කිරීම: Turn the refrigerator's water supply back on.
6. කාන්දුවීම් සඳහා පරීක්ෂා කරන්න: Observe the filter housing area for a few minutes to ensure there are no leaks. If leaks occur, turn off the water supply and re-seat the cap.

3. මෙහෙයුම් උපදෙස්

Once the Samsung DA67-02270A Cap-Support Filter is correctly installed, your refrigerator's water dispenser and ice maker will function as usual, but without the internal water filtration. This means that any water dispensed or ice produced will not pass through the refrigerator's internal filter. If you are using an external filtration system, the water will be filtered by that system before reaching the refrigerator.

No specific operational steps are required for the Cap-Support Filter itself after installation. It acts as a passive bypass component.

4. නඩත්තු කිරීම

The DA67-02270A Cap-Support Filter requires minimal maintenance. It is not a consumable item like a water filter and does not need regular replacement unless damaged.

• වරින් වර පරීක්ෂා කිරීම: Periodically check the cap and its seating area for any signs of wear, cracks, or damage.
• කාන්දු පරීක්ෂාව: Occasionally inspect the area around the filter housing for any signs of water leakage.
• පිරිසිදු කිරීම: If necessary, the cap can be gently wiped clean with a damp රෙදි. දරුණු රසායනික ද්රව්ය හෝ උල්ෙල්ඛ පිරිසිදු කරන්නන් භාවිතා නොකරන්න.

If the cap becomes damaged or if persistent leaks occur despite proper re-installation, it should be replaced with a new authorized part.

5. දෝශ නිරාකරණය

If you encounter issues after installing the Cap-Support Filter, refer to the following troubleshooting guide:

• Issue: Water Leakage from Filter Housing
  විය හැකි හේතුව: The cap is not fully seated or is damaged.
  විසඳුම: Turn off the water supply to the refrigerator. Remove the Cap-Support Filter and inspect it for any visible damage (cracks, deformities). If damaged, replace it. If not damaged, re-insert the cap, ensuring it is pushed in firmly and twisted clockwise until it locks securely. Turn the water supply back on and check for leaks.
• Issue: Cap-Support Filter Does Not Fit or Feels Loose
  විය හැකි හේතුව: Incorrect model compatibility or improper alignment.
  විසඳුම: Double-check that your refrigerator model is compatible with the DA67-02270A part. Ensure the cap is aligned correctly with the housing grooves before pushing and twisting. Avoid forcing the cap, as this can cause damage.
• Issue: Water Dispenser or Ice Maker Not Functioning
  විය හැකි හේතුව: The Cap-Support Filter is not fully engaged, or there is an airlock in the water line.
  විසඳුම: Ensure the cap is fully inserted and locked. Dispense water for 2-3 minutes to purge any air from the system. If the issue persists, consult your refrigerator's main user manual or contact Samsung customer service.

6. පිරිවිතර

7. වගකීම් තොරතුරු

Specific warranty details for the Samsung DA67-02270A Cap-Support Filter are not provided in this document. As an authorized OEM replacement part, it may be covered under the warranty of the appliance it is installed in, or by a limited manufacturer's warranty for replacement parts. Please refer to your original refrigerator's warranty documentation or contact Samsung customer service for precise warranty information regarding replacement parts.

8. සහාය

For further assistance, technical support, or to inquire about replacement parts, please contact Samsung customer service. You can typically find contact information on the official Samsung website or in your refrigerator's user manual.
