Verbatim Acclaim 1TB USB 2.0 Portable External Hard Drive User Manual

1. නිෂ්පාදන අවසන්view

The Verbatim Acclaim 1TB USB 2.0 Portable External Hard Drive (Model 97393) is a compact and high-capacity storage solution designed for convenient data backup and transfer. This device offers 1 terabyte of storage and connects via a standard USB 2.0 interface, ensuring broad compatibility with various computer systems.

ප්රධාන ලක්ෂණ:

• 1 TB storage capacity.
• USB 2.0 High-Speed connectivity (up to 480 Mb/s), backward compatible with USB 1.1.
• සංයුක්ත සහ අතේ ගෙන යා හැකි නිර්මාණය.
• Compatible with Windows and Mac operating systems.
• Includes Nero BackItUp & Burn Essentials software for backup and restore functions.
• Includes a bonus Norton Online Backup (5GB) offer.
• වසර 7ක සීමිත වගකීමක් මගින් අනුබල දෙනු ලැබේ.

රූපය 1.1: ඉහළ view of the Verbatim Acclaim 1TB portable hard drive. This image displays the device's sleek piano black finish and the prominent Verbatim logo, highlighting its compact and minimalist design.

2. පිහිටුවීම සහ ස්ථාපනය

2.1. Connecting the Hard Drive

1. Locate an available USB port on your computer. The Verbatim Acclaim drive is compatible with both USB 2.0 and USB 1.1 ports. For optimal performance, use a USB 2.0 port.
2. Connect the small end of the provided USB cable to the USB port on the Verbatim Acclaim hard drive.
3. USB කේබලයේ විශාල කෙළවර ඔබේ පරිගණකයේ තිබෙන USB පෝට් එකකට සම්බන්ධ කරන්න.
4. The drive will automatically power on and be detected by your operating system. For Windows, drivers will typically install automatically. For Mac, the drive should appear on your desktop or in Finder.

රූපය 2.1: පැත්ත view of the Verbatim Acclaim hard drive. This image highlights the USB port located on the side of the device, indicating where the USB cable should be connected for power and data transfer.

2.2. Initial Formatting (Optional)

The drive comes pre-formatted, typically in FAT32, which is compatible with both Windows and Mac. However, FAT32 has a limitation on individual file size (maximum 4GB). If you plan to store files larger than 4GB (e.g., high-definition video files), it is recommended to reformat the drive to NTFS (for Windows) or HFS+ (for Mac).

අවවාදයයි: Reformatting the drive will erase all existing data. Ensure you back up any important fileඉදිරියට යාමට පෙර

වින්ඩෝස් සඳහා:

1. Open "Disk Management" (Right-click "My Computer" or "This PC" > "Manage" > "Disk Management").
2. Locate the Verbatim Acclaim drive (it will be listed as a removable disk).
3. Right-click on the drive's partition and select "Format".
4. Choose "NTFS" as the file system and click "OK".

Mac සඳහා:

1. "තැටි උපයෝගිතා" (යෙදුම් > උපයෝගිතා > තැටි උපයෝගිතා) විවෘත කරන්න.
2. Select the Verbatim Acclaim drive from the sidebar.
3. Click the "Erase" tab.
4. Choose "Mac OS Extended (Journaled)" (HFS+) as the format and click "Erase".

2.3. මෘදුකාංග ස්ථාපනය

The Verbatim Acclaim drive includes Nero BackItUp & Burn Essentials software and a bonus offer for Norton Online Backup. These software packages are typically located on the drive itself or can be downloaded from the Verbatim support webඅඩවිය.

1. Access the drive's contents via "My Computer" / "This PC" (Windows) or Finder (Mac).
2. Locate the installer files for Nero BackItUp & Burn Essentials. Follow the on-screen instructions to complete the installation.
3. Refer to the included documentation or the Verbatim website for details on activating the Norton Online Backup offer.

3. දෘඪ තැටිය ක්‍රියාත්මක කිරීම

3.1. මාරු කිරීම Files

Once connected, the Verbatim Acclaim drive functions like any other external storage device.

• ඇද දමන්න: සරලව ඇදගෙන යන්න files or folders from your computer to the drive's icon or an open folder on the drive.
• පිටපත් කර අලවන්න: මත දකුණු-ක්ලික් කරන්න files/folders on your computer, select "Copy," then navigate to the external drive, right-click in an empty area, and select "Paste."
• Backup Software: Utilize the included Nero BackItUp & Burn Essentials software for automated backups and system recovery.

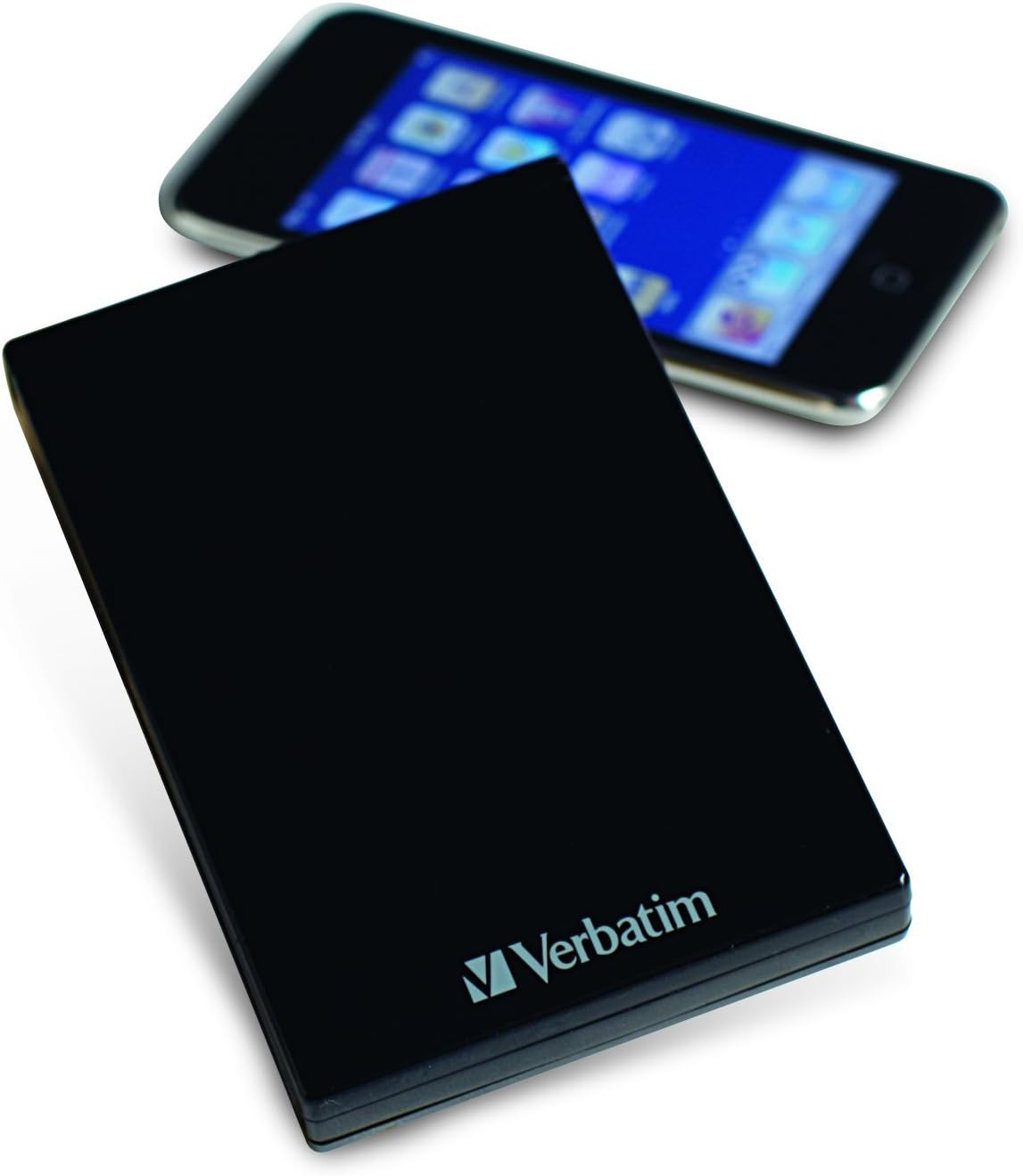

රූපය 3.1: The Verbatim Acclaim hard drive shown next to a smartphone. This image provides a visual reference for the drive's compact and portable dimensions, making it easy to carry.

3.2. ධාවකය ආරක්ෂිතව ඉවත් කිරීම

To prevent data corruption, always safely eject the hard drive before disconnecting it from your computer.

වින්ඩෝස් සඳහා:

1. Click the "Safely Remove Hardware and Eject Media" icon in the system tray (bottom-right corner).
2. Select the Verbatim Acclaim drive from the list.
3. Wait for the "Safe to Remove Hardware" notification before disconnecting the USB cable.

Mac සඳහා:

1. Drag the drive's icon from your desktop to the Trash icon in the Dock (the Trash icon will change to an Eject icon).
2. Alternatively, right-click (or Control-click) the drive icon on the desktop and select "Eject [Drive Name]".
3. Wait for the drive icon to disappear from your desktop before disconnecting the USB cable.

4. නඩත්තු කිරීම

Proper maintenance ensures the longevity and reliable performance of your Verbatim Acclaim hard drive.

• ශාරීරික සත්කාර: Handle the drive with care. Avoid dropping it or exposing it to excessive shock, as this can damage the internal components.
• පිරිසිදු කිරීම: Use a soft, dry, lint-free cloth to clean the exterior of the drive. Avoid using liquid cleaners or abrasive materials.
• උෂ්ණත්වය සහ පරිසරය: Store and operate the drive in a cool, dry environment, away from direct sunlight, extreme temperatures, and high humidity.
• නිතිපතා උපස්ථ: While the Acclaim drive is excellent for storing data, it is crucial to maintain multiple copies of important files. No single storage device is infallible.
• ආරක්ෂිත පිටකිරීම: Always follow the safe removal procedures outlined in Section 3.2 to prevent data corruption.

5. දෝශ නිරාකරණය

If you encounter issues with your Verbatim Acclaim hard drive, try the following troubleshooting steps:

• ධාවකය අනාවරණය නොවීය:
  • USB කේබලය ධාවකයට සහ පරිගණකයට ආරක්ෂිතව සම්බන්ධ වී ඇති බවට වග බලා ගන්න.
  • ඔබගේ පරිගණකයේ වෙනත් USB පෝට් එකකට ධාවකය සම්බන්ධ කිරීමට උත්සාහ කරන්න.
  • තිබේ නම්, වෙනත් USB කේබලයක් භාවිතයෙන් ධාවකය පරීක්ෂා කරන්න.
  • ඔබේ පරිගණකය නැවත ආරම්භ කර ධාවකය නැවත සම්බන්ධ කිරීමට උත්සාහ කරන්න.
• මන්දගාමී දත්ත හුවමාරුව:
  • Ensure you are connected to a USB 2.0 port for optimal speed. USB 1.1 ports will result in significantly slower transfers.
  • පද්ධති සම්පත් පරිභෝජනය කළ හැකි පසුබිමේ ක්‍රියාත්මක වන අනවශ්‍ය යෙදුම් වසා දමන්න.
  • Check your computer's disk for errors or fragmentation.
• File System Errors / Drive Unresponsive:
  • Always safely eject the drive before disconnecting. Abrupt disconnection can lead to file පද්ධතියේ දූෂණය.
  • Run a disk check utility (e.g., "Error Checking" in Windows or "First Aid" in Disk Utility on Mac) to scan and repair minor file පද්ධති දෝෂ.
  • If errors persist and data is backed up, consider reformatting the drive as described in Section 2.2.
• Drive Gets Warm:

  It is normal for the drive to generate some heat during operation, especially during prolonged data transfers. Ensure adequate airflow around the device.

6. පිරිවිතර

7. වගකීම් සහ සහාය

7.1. සීමිත වගකීම්

The Verbatim Acclaim 1TB USB 2.0 Portable External Hard Drive is backed by a වසර 7ක සීමිත වගකීමක්. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full terms and conditions of the warranty, please refer to the documentation included with your product or visit the official Verbatim webඅඩවිය.

7.2 තාක්ෂණික සහාය

For technical assistance, troubleshooting beyond the scope of this manual, or warranty inquiries, please contact Verbatim customer support.

• නිල Verbatim වෙත පිවිසෙන්න webසහාය සම්පත්, නිතර අසන ප්‍රශ්න සහ සම්බන්ධතා තොරතුරු සඳහා අඩවිය.
• Have your product model number (97393) and proof of purchase ready when contacting support.
