Morris 81686 Lexan Wall Plate User Manual

1. නිෂ්පාදන අවසන්view

The Morris 81686 Lexan Wall Plate is designed for electrical installations requiring a 2-gang configuration, accommodating two duplex receptacles and one single receptacle. Constructed from Lexan, this wall plate offers high resistance to impact, abrasion, oils, acids, and discoloration, making it suitable for various environments, including high-abuse areas.

ප්රධාන ලක්ෂණ ඇතුළත් වේ:

• Smooth, easy-to-clean surface.
• Rounded edges to help prevent injury and wall damage.
• Supplied with color-matching painted metal mounting screws, individually wrapped to protect the plate from scratches.
• Meets current Federal Specifications and conforms to NEMA & ANSI standards.
• UL Listed with a flammability rating of UL94V-2.

රූපය 1: ඉදිරිපස view of the Morris 81686 Lexan Wall Plate, showing two duplex openings and one single receptacle opening.

2. පිහිටුවීම සහ ස්ථාපනය

Installation of the Morris 81686 Lexan Wall Plate requires basic electrical knowledge and tools. Always ensure power is disconnected before beginning any electrical work.

අවශ්ය මෙවලම්:

• ඉස්කුරුප්පු නියනක් (ඉස්කුරුප්පු සවි කිරීම සඳහා සුදුසු)
• වෙළුමtage tester (recommended for safety)

ස්ථාපන පියවර:

1. ආරක්ෂාව පළමුව: Turn off the power to the electrical box at the circuit breaker or fuse box. Verify that the power is off using a voltagඊ පරීක්ෂක.
2. Remove Old Plate (if applicable): Carefully unscrew and remove any existing wall plate.
3. Position New Plate: Align the Morris 81686 wall plate over the electrical box, ensuring the openings match the installed receptacles.
4. ආරක්ෂිත තහඩුව: Use the provided color-matching mounting screws to attach the wall plate to the electrical box. Do not overtighten, as this can crack the plate.
5. බලය ප්‍රතිස්ථාපනය කරන්න: Once the wall plate is securely installed, restore power to the circuit at the breaker or fuse box.

අවවාදයයි: Always consult a qualified electrician if you are unsure about any electrical installation procedures.

3. මෙහෙයුම් උපදෙස්

The Morris 81686 Lexan Wall Plate functions as a protective and aesthetic cover for electrical receptacles. Once installed, it requires no operational steps. Ensure that all receptacles are properly seated within the plate openings for safe and intended use.

4. නඩත්තු කිරීම

Maintaining your Morris 81686 Lexan Wall Plate is simple due to its durable and easy-to-clean surface.

• පිරිසිදු කිරීම: මෘදු, ඩී සමග මතුපිට පිස දමන්නamp cloth. For stubborn marks, a mild, non-abrasive household cleaner can be used. Avoid harsh chemicals or abrasive scrubbers, as these may damage the Lexan material or its finish.
• පරීක්ෂාව: Periodically check the wall plate for any signs of damage, such as cracks or discoloration. While Lexan is highly resistant, extreme conditions or impacts can cause wear.
• ඉස්කුරුප්පු තද බව: Ensure mounting screws remain snug. If they become loose, gently tighten them to prevent the plate from shifting.

5. දෝශ නිරාකරණය

Most issues with a wall plate are related to installation or physical damage.

• Plate Does Not Fit Flush:
  • Ensure the electrical box is properly recessed in the wall.
  • Check that the receptacles are correctly installed and not protruding from the wall box.
  • Verify that the wall plate orientation is correct.
• ඉරිතලා හෝ හානි වූ තහඩුව:
  • Lexan is durable, but severe impact can cause damage. Replace any cracked or broken wall plates immediately to maintain safety and appearance.
  • Avoid overtightening mounting screws during installation, as this can stress the material.
• දුර්වර්ණ වීම:
  • While resistant, prolonged exposure to certain chemicals or extreme UV light might cause slight discoloration over time. Regular cleaning with mild solutions is recommended.

6. පිරිවිතර

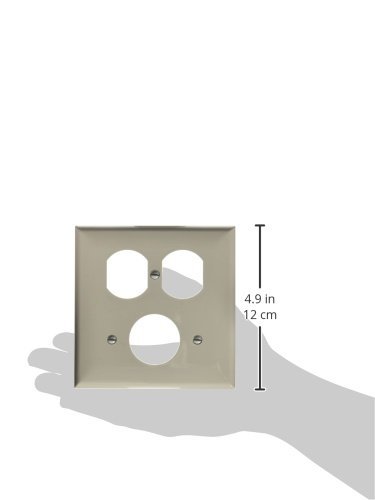

Figure 2: Morris 81686 Lexan Wall Plate showing approximate dimensions (4.9 inches / 12 cm height).

7. වගකීම් සහ සහාය

For information regarding product warranty or technical support, please refer to the official Morris Products webවෙබ් අඩවියට හෝ ඔවුන්ගේ පාරිභෝගික සේවයට සෘජුවම සම්බන්ධ වන්න. ඕනෑම වගකීම් හිමිකම් සඳහා ඔබේ මිලදී ගැනීමේ රිසිට්පත තබා ගන්න.

Morris Products Contact Information:

• Webඅඩවිය: Visit the Morris Store on Amazon (සාමාන්‍ය නිෂ්පාදන තොරතුරු සඳහා)
• Refer to product packaging or official Morris Products documentation for direct support contacts.
