Extech HDV600 High Definition VideoScope

1. හැඳින්වීම

The Extech HDV600 High Definition VideoScope is an advanced inspection camera designed for detailed visual inspections in various environments. This device features a large LCD screen, high-resolution imaging, and the capability to record images and video with audio annotations. Its robust design ensures reliable performance in demanding industrial settings.

ප්රධාන ලක්ෂණ ඇතුළත් වේ:

• 5.7-inch color LCD TFT display with 640 x 480 resolution.
• SD memory card for storing over 14,600 images or up to 4 hours of video.
• Video recording with voice annotation capability.
• AV output for external monitor viewing.
• Optional wireless transmitter (HDV-WTX) for remote video transmission up to 100ft (30m).

2 ආරක්ෂිත තොරතුරු

Please read and understand all safety instructions before operating the Extech HDV600 VideoScope. Failure to follow these instructions may result in injury or damage to the device.

• පුපුරන සුලු වායුගෝලයේ උපාංගය භාවිතා නොකරන්න.
• Ensure the device is clean and dry before connecting or disconnecting components.
• Avoid bending the camera probe beyond its specified flexibility limits.
• උපාංගය ශක්තිමත් චුම්බක ක්ෂේත්ර වලින් ඈත් කරන්න.
• අනුමත උපාංග සහ බල ඇඩැප්ටර පමණක් භාවිතා කරන්න.

3. නිෂ්පාදන අවසන්view

3.1 ප්‍රධාන සංදර්ශක ඒකකය

The main unit features a 5.7-inch LCD screen for clear viewing of inspections. It includes intuitive controls for navigation, image/video capture, and light adjustment. The unit is designed to be rugged, waterproof to IP67 standards, and drop-proof up to 2 meters.

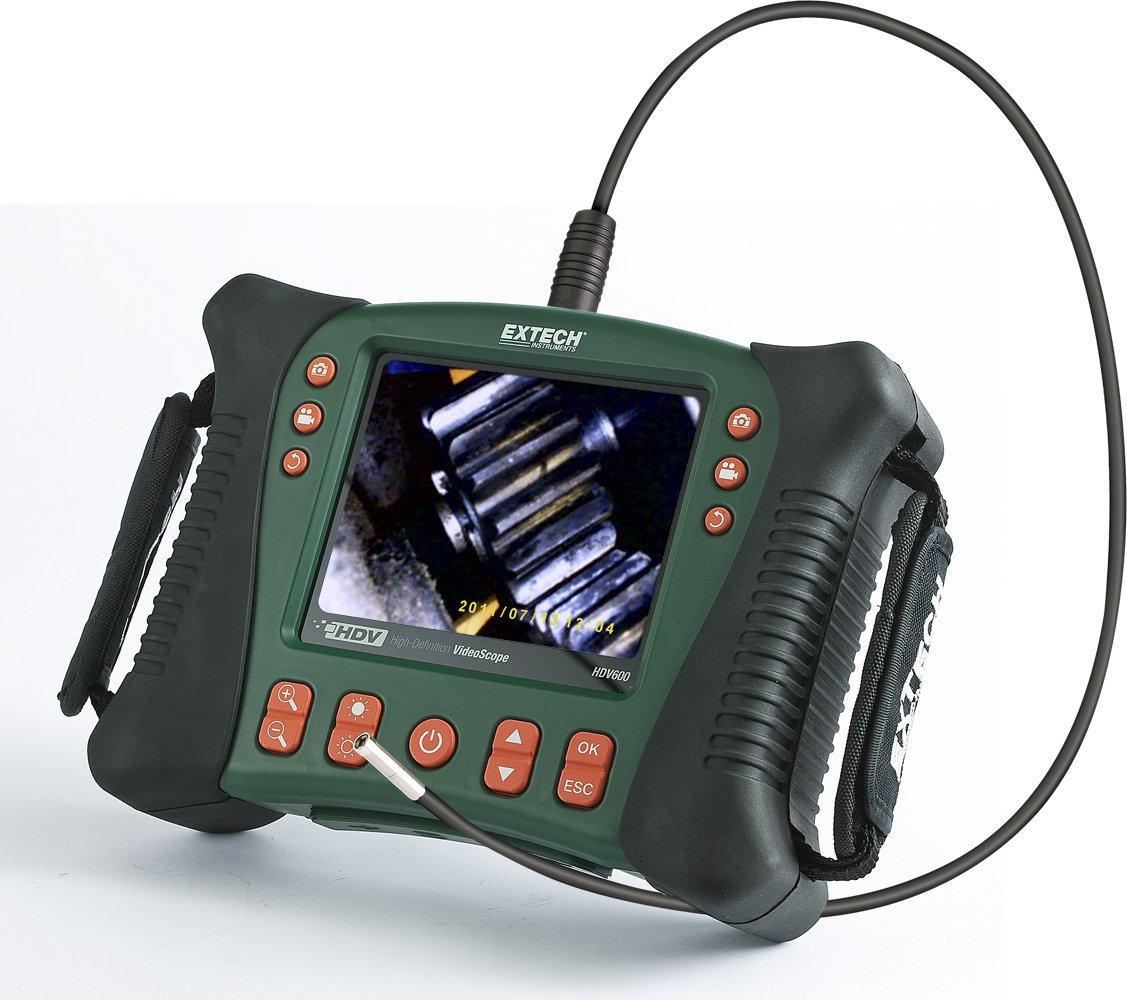

Image: The Extech HDV600 main display unit with a camera probe connected, displaying an inspection view.

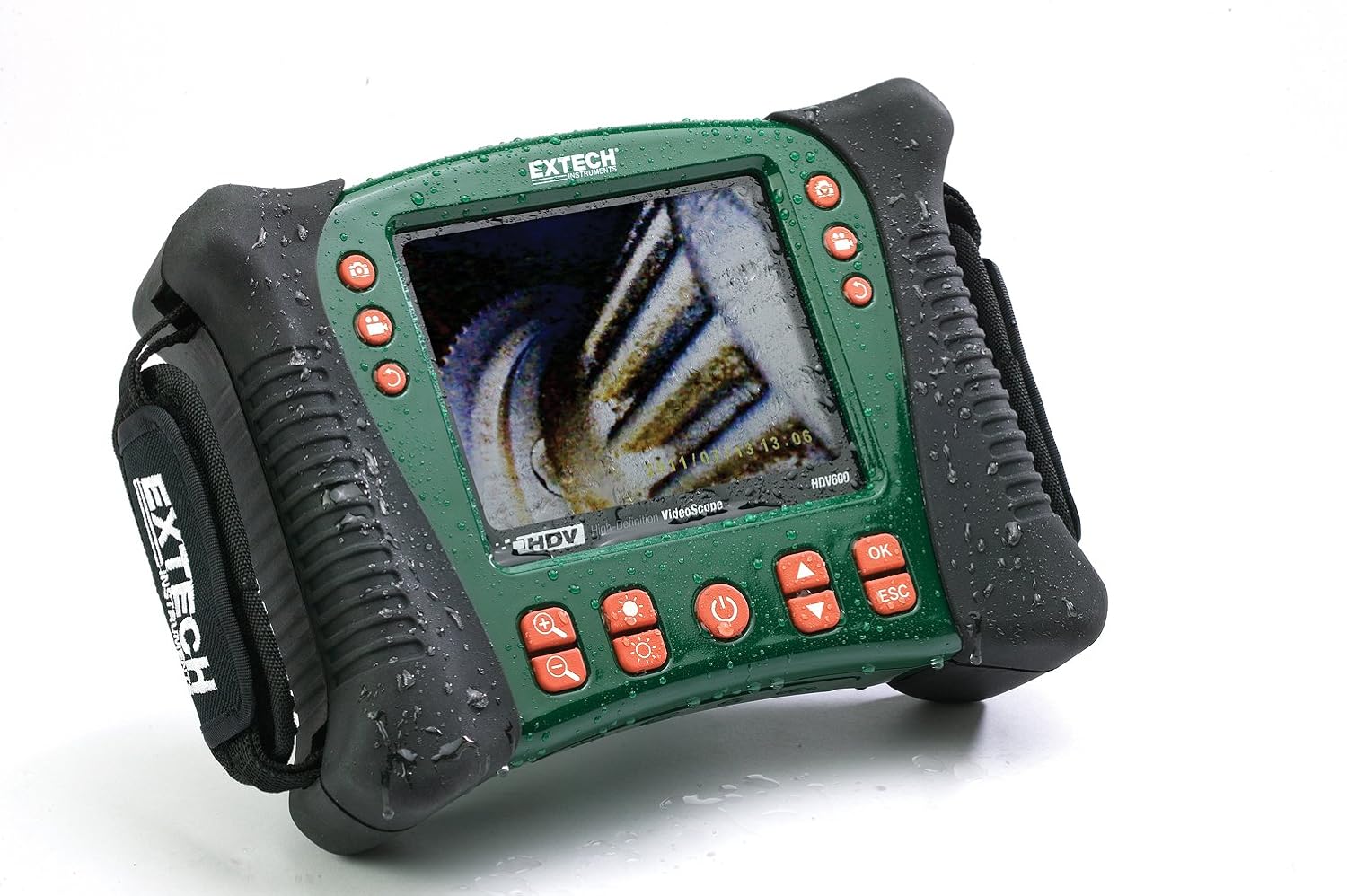

Image: The HDV600 main unit with water droplets, highlighting its waterproof and rugged construction.

3.2 වරායන් සහ සම්බන්ධතා

The main unit includes various ports for connectivity and data management:

• Mini-USB port for data transfer.
• ගබඩා කිරීම සඳහා SD කාඩ් පත.
• AV output for connecting to an external monitor.
• ආරෝපණය කිරීම සහ ක්‍රියාත්මක කිරීම සඳහා බල ආදානය.

රූපය: පැත්ත view of the HDV600 main unit, detailing the USB, SD card, AV output, and power ports.

3.3 Camera Probes and Handsets

The HDV600 supports various camera probes, including semi-rigid, flexible, and long-length fiberglass scopes. Articulated controller handsets are available with 6mm scopes and a glove-friendly articulation control knob for precise tip movement. All camera tips are equipped with bright, adjustable LED lighting.

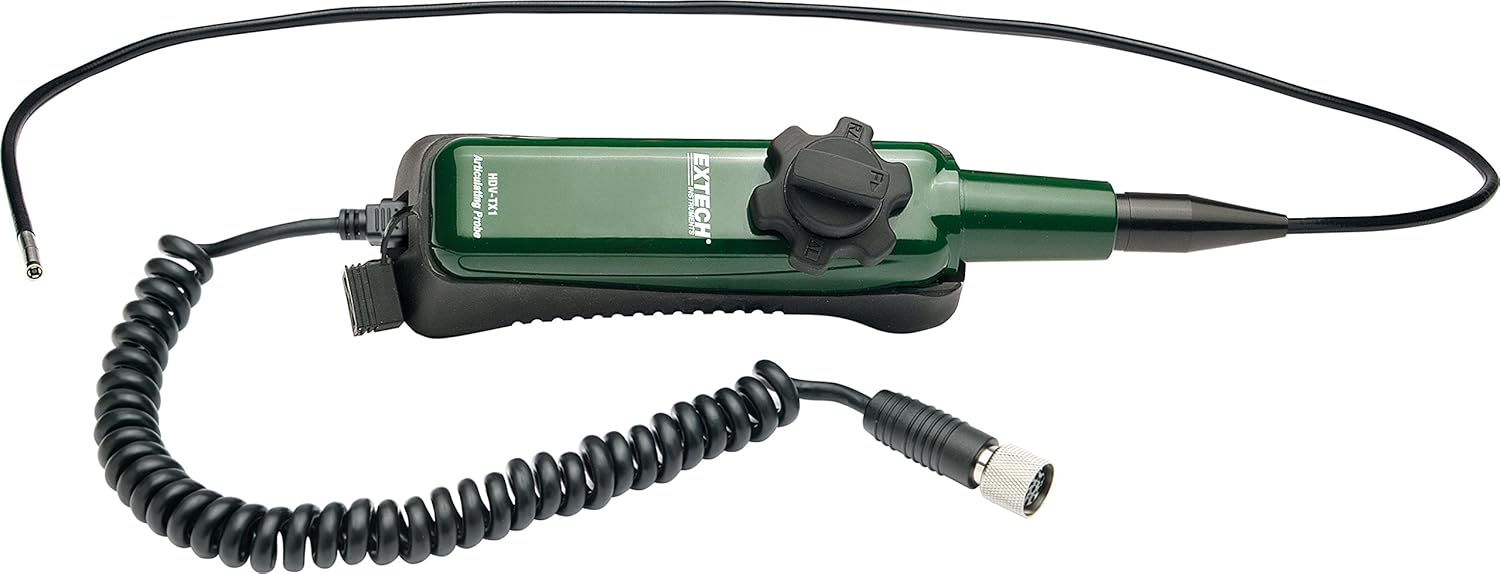

Image: A camera probe with a coiled cable, ready for connection to the main unit.

Image: Close-up of the camera probe tip, showing the integrated LED lighting for dark environments.

3.4 උපාංග

The HDV600 comes with an SD memory card. Additional accessories like mirror, magnet, and hook attachments for the camera tip are also included to assist in various inspection scenarios.

Image: Small accessories such as a mirror, magnet, and hook for attaching to the camera probe tip.

4. පිහිටුවීම

4.1 ඇසුරුම් ඉවත් කිරීම සහ මූලික පරීක්ෂාව

Carefully unpack all components and inspect for any damage. Ensure all items listed in the packing list are present.

4.2 බැටරි ස්ථාපනය සහ ආරෝපණය කිරීම

The HDV600 uses a Lithium Ion battery (included). Install the battery into the designated compartment. Connect the power adapter to charge the unit before first use.

4.3 Attaching the Camera Probe

Align the connector of the camera probe with the port on the main display unit or handset. Gently push and twist to secure the connection. Ensure a firm connection to prevent signal loss.

4.4 SD කාඩ්පත ඇතුළු කිරීම

Locate the SD card slot on the side of the main unit. Insert the provided SD card with the contacts facing down until it clicks into place.

5. මෙහෙයුම් උපදෙස්

5.1 බල ගැන්වීම සක්‍රිය / අක්‍රිය කිරීම

බල බොත්තම ඔබා අල්ලාගෙන සිටින්න (red circle with line) to turn the device on or off. The LCD screen will illuminate upon startup.

5.2 මූලික Viewing and Light Adjustment

Once powered on, the live video feed from the camera probe will appear on the screen. Use the brightness control buttons (sun icon) to adjust the intensity of the LED lights on the camera tip for optimal visibility.

5.3 Capturing Images and Recording Video

• To capture a still image, press the camera button (කැමරා නිරූපකය).
• To start video recording, press the video record button (වීඩියෝ කැමරා නිරූපකය). Press again to stop recording.

5.4 Audio Annotation

During video recording, the built-in microphone allows for audio annotations. This feature helps in documenting observations without the need for separate note-taking.

5.5 Using Articulated Probes

For articulated probes, use the control knob on the handset to precisely maneuver the camera tip. This allows for 320-degree articulation, enabling inspection around corners and in complex geometries.

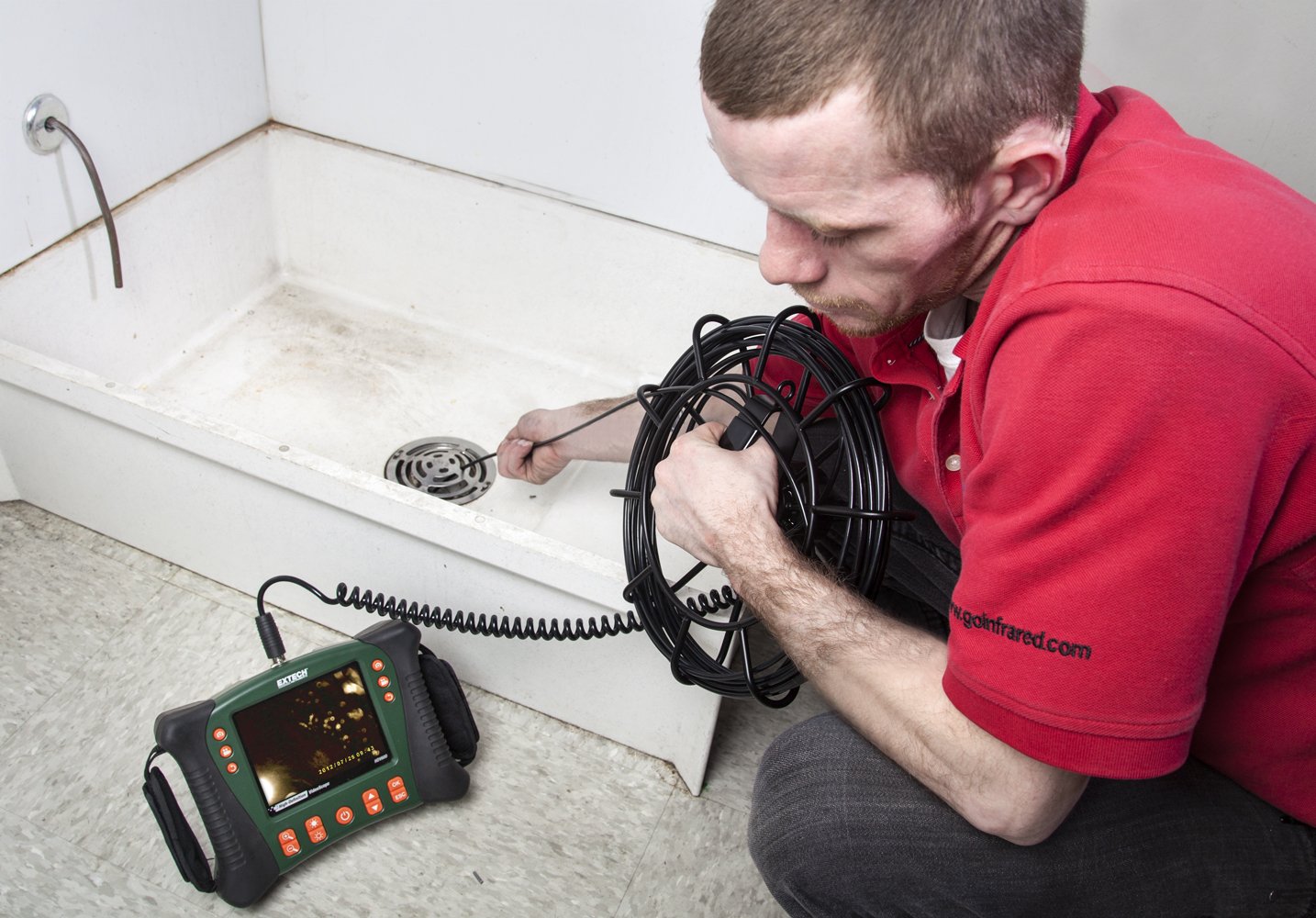

Image: A user inspecting a drain using the HDV600 with a long probe, demonstrating its application in confined spaces.

5.6 Data Transfer and Playback

Images and videos stored on the SD card can be reviewed directly on the HDV600's screen. For larger viewing, connect the device to an external monitor via the AV output. Data can also be transferred to a computer using the Mini-USB port.

6. නඩත්තු කිරීම

6.1 පිරිසිදු කිරීම

Wipe the main unit and camera probes with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the camera tip is free of debris for clear imaging.

6.2 ගබඩා කිරීම

Store the HDV600 and its accessories in the provided carrying case in a cool, dry place when not in use. Avoid extreme temperatures and direct sunlight.

6.3 බැටරි සත්කාර

To prolong battery life, charge the battery regularly and avoid fully discharging it. If storing for extended periods, charge the battery to approximately 50% capacity.

7. දෝශ නිරාකරණය

• බලය නැත: Ensure the battery is properly installed and charged. Check the power adapter connection.
• තිරයේ රූපයක් නැත: Verify the camera probe is securely connected. Check if the camera tip LEDs are illuminated.
• දුර්වල රූපයේ ගුණාත්මකභාවය: Clean the camera lens. Adjust the LED brightness. Ensure the focus is correct (if applicable to the probe type).
• Cannot Record/Store: Check if an SD card is inserted and has sufficient free space. Ensure the SD card is not write-protected.
• රැහැන් රහිත සම්බන්ධතා ගැටළු: Ensure the optional wireless transmitter is properly connected and within range. Check for interference.

8. පිරිවිතර

9. වගකීම් සහ සහාය

Extech Instruments provides a limited warranty for the HDV600 VideoScope. For detailed warranty information, technical support, or service inquiries, please refer to the official Extech Instruments webවෙබ් අඩවිය හෝ ඔවුන්ගේ පාරිභෝගික සේවා දෙපාර්තමේන්තුව අමතන්න.

වගකීම් හිමිකම් සඳහා කරුණාකර ඔබගේ මිලදී ගැනීමේ සාක්ෂි තබා ගන්න.
