හැඳින්වීම
The TC Helicon VoiceTone Single H1 Intelligent Harmony pedal is designed to add realistic vocal harmonies to your performance. This compact stompbox provides essential harmony effects, allowing you to enrich your vocal sound with ease. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance of your device.
ආරක්ෂිත උපදෙස්
උපාංගය ක්රියාත්මක කිරීමට පෙර කරුණාකර මෙම ආරක්ෂක උපදෙස් හොඳින් කියවන්න. අනාගත යොමුව සඳහා මෙම අත්පොත තබා ගන්න.
- බලශක්ති ප්රභවය: නිශ්චිත බල ඇඩැප්ටරය හෝ බැටරි පමණක් භාවිතා කරන්න. වෝල්ටීයතාවය සහතික කරන්න.tage උපාංග අවශ්යතා වලට ගැලපේ.
- ජලය සහ තෙතමනය: Do not expose the device to rain, moisture, or any liquids. Do not operate with wet hands.
- වාතාශ්රය: ඒකකය වටා ප්රමාණවත් වාතාශ්රයක් සහතික කරන්න. වාතාශ්රය විවරයන් අවහිර නොකරන්න.
- තාපය: රේඩියේටර්, තාප රෙජිස්ටර්, උදුන හෝ තාපය නිපදවන වෙනත් උපකරණ වැනි තාප ප්රභවයන්ගෙන් උපාංගය ඈත් කරන්න.
- සේවා: මෙම නිෂ්පාදනය ඔබම සේවය කිරීමට උත්සාහ නොකරන්න. සියලුම සේවා සුදුසුකම් ලත් සේවකයින් වෙත යොමු කරන්න.
- පිරිසිදු කිරීම: වියළි රෙද්දකින් පමණක් පිරිසිදු කරන්න.
පැකේජයේ අන්තර්ගතය
Upon unpacking your TC Helicon VoiceTone Single H1, please verify that all items are present:
- TC Helicon VoiceTone Single H1 Intelligent Harmony Pedal
- Footswitch (integrated)
- Power Adapter (typically included, check packaging)
- පරිශීලක අත්පොත (මෙම ලේඛනය)
නිෂ්පාදනය අවසන්view
The VoiceTone Single H1 features a robust metal and plastic construction, designed for durability on stage or in the studio. Its intuitive layout allows for quick adjustments to your vocal harmony effects.
රූපය 1: ඉදිරිපස View. This image displays the top panel of the VoiceTone Single H1, highlighting the 'MIC', 'OUT', and 'POWER' labels at the top. Three main rotary knobs are visible: one for harmony key (C, F, G), one for voice selection (BELOW, ABOVE, VOICES), and one for dry/wet mix. The central footswitch is prominent at the bottom.
Image 2: Angled Left View. මෙම කෝණික view shows the left side of the pedal, revealing additional controls such as 'MIC GAIN', 'GRND LIFT' (Ground Lift switch), and 'INST THRU' (Instrument Thru jack). The main top panel controls are also visible from this perspective.

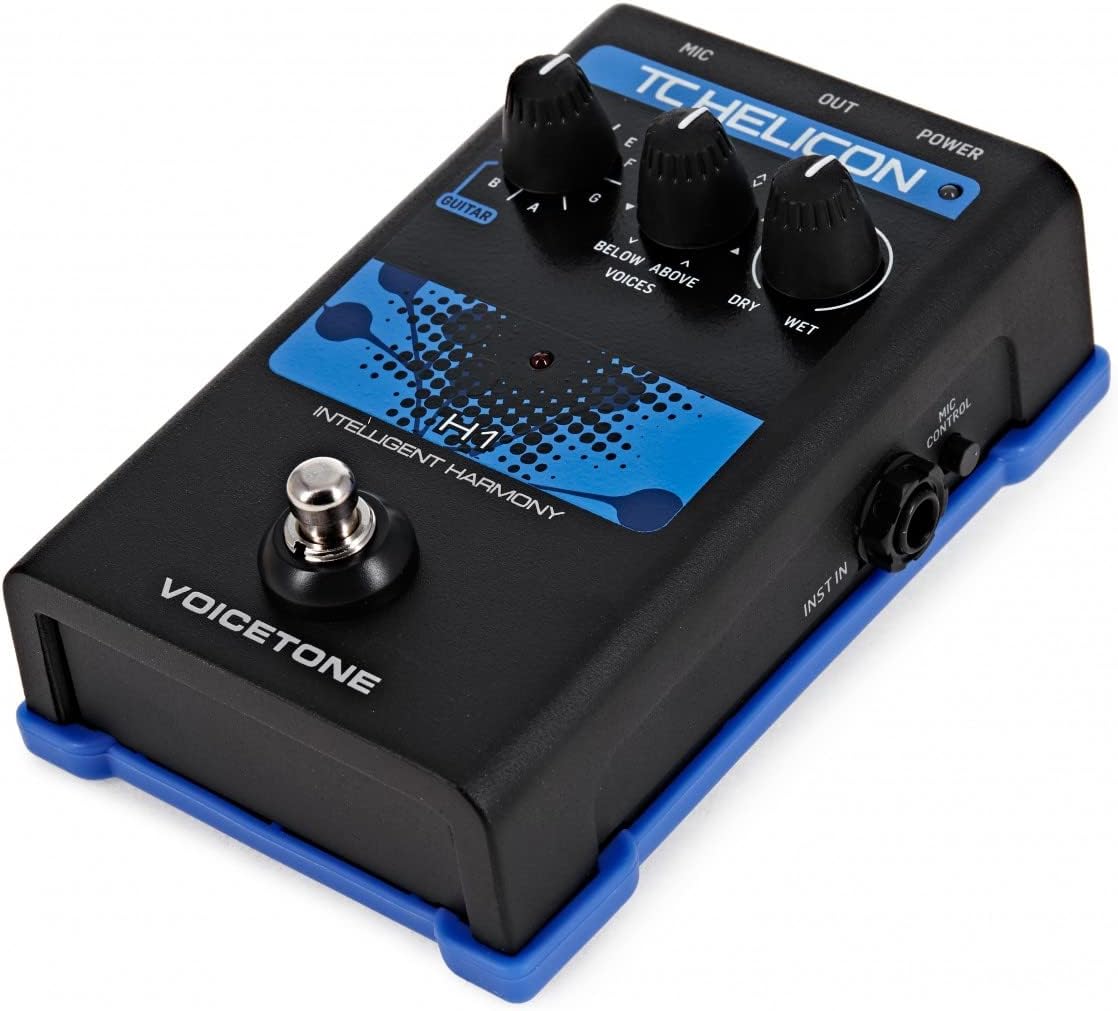

Image 3: Angled Right View. මෙම කෝණික view presents the right side of the pedal, showing the 'MIC CONTROL' input and 'INST IN' (Instrument Input jack). The top panel controls are also visible, providing a comprehensive view of the unit's interface.
රූපය 4: පසුපස View. This image focuses on the rear panel of the VoiceTone Single H1. It clearly shows the USB port, the DC power input jack, the 'OUT' (XLR output) port, and the 'MIC' (XLR input) port. These are the primary connectivity points for the device.
පාලන සහ සම්බන්ධක:
- MIC ආදානය (XLR): ඔබේ මයික්රෆෝනය මෙතැනට සම්බන්ධ කරන්න.
- OUT Output (XLR): Connect to your mixer or PA system.
- POWER Input (DC Jack): සපයන ලද බල ඇඩැප්ටරය සම්බන්ධ කරන්න.
- USB Port: For firmware updates and connection to VoiceSupport software.
- INST IN (1/4" Jack): Connect your guitar or other instrument for harmony key detection.
- INST THRU (1/4" Jack): Passes the instrument signal directly through to an ampජීවිත කාලය හෝ වෙනත් උපකරණයක්.
- MIC GAIN Knob: Adjusts the input level of your microphone.
- GRND LIFT Switch: Helps eliminate hum caused by ground loops.
- MIC CONTROL Input: For connecting an optional TC Helicon MP-75 or MP-76 microphone for remote control.
- Harmony Key Knob (C, F, G): Selects the musical key for the harmony voices.
- Voices Knob (BELOW, ABOVE, VOICES): Selects the harmony interval (e.g., third below, fifth above) and the number of voices.
- DRY/WET Mix Knob: Balances the level of your original (dry) vocal with the harmony (wet) effect.
- පා මාරුව: Engages or bypasses the harmony effect.
සැලසුම
Follow these steps to set up your VoiceTone Single H1 pedal:
- බල සම්බන්ධතාවය: Connect the provided power adapter to the POWER input jack on the rear of the pedal and then to a suitable power outlet.
- මයික්රොෆෝන සම්බන්ධතාවය: Connect your microphone to the MIC input (XLR) on the rear panel using a balanced XLR cable.
- ප්රතිදාන සම්බන්ධතාවය: Connect the OUT output (XLR) on the rear panel to an input on your mixer, audio interface, or PA system using a balanced XLR cable.
- Instrument Connection (Optional): If you are using a guitar or other instrument to guide the harmony, connect your instrument to the INST IN (1/4" jack) on the right side of the pedal. If you need to pass the instrument signal to an amplifier, connect the INST THRU (1/4" jack) on the left side to your ampලයිෆයර් ආදානය.
- බිම් සෝපානය: If you experience hum or noise, try flipping the GRND LIFT switch on the left side of the pedal.
- Mic Control (Optional): If using a TC Helicon MP-75 or MP-76 microphone, connect it to the MIC CONTROL input on the right side for remote control functionality.
ක්රියාත්මක වෙනවා
Once set up, you can begin using your VoiceTone Single H1:
- බල ගැන්වීම: Ensure all connections are secure. The pedal will power on automatically when connected to power.
- Adjust MIC GAIN: Sing into your microphone and adjust the MIC GAIN knob on the left side until the signal is strong but not clipping. The LED indicator on the pedal will help you monitor the input level.
- Select Harmony Key: Use the Harmony Key knob to select the musical key of your song (C, F, G are common starting points, but the pedal can detect other keys via instrument input).
- Choose Voices: Turn the Voices knob to select the desired harmony interval and number of voices. Options typically include harmonies below your voice, above your voice, or a combination.
- Mix Dry/Wet: Adjust the DRY/WET Mix knob to blend your original vocal with the generated harmony voices. Turn towards DRY for less harmony, towards WET for more prominent harmony.
- සම්බන්ධ වීම/බයිපාස්: Press the footswitch to toggle the harmony effect on or off. The LED will indicate the effect status.
- Instrument-Guided Harmony: If an instrument is connected to INST IN, the H1 will use its pitch to determine the harmony key, providing more accurate and dynamic harmonies. Ensure your instrument is in tune.
නඩත්තු කිරීම
Proper maintenance ensures the longevity and reliable performance of your VoiceTone Single H1.
- පිරිසිදු කිරීම: Use a soft, dry cloth to clean the exterior of the pedal. Do not use abrasive cleaners, solvents, or waxes.
- ගබඩා: When not in use, store the pedal in a cool, dry place, away from direct sunlight and extreme temperatures.
- කේබල් රැකවරණය: Regularly check all cables for signs of wear or damage. Replace faulty cables immediately.
- ස්ථිරාංග යාවත්කාලීන කිරීම්: Periodically check the TC Helicon website for firmware updates. Connect the pedal via USB to a computer and use the VoiceSupport software to perform updates.
දෝෂගවේෂණය
If you encounter issues with your VoiceTone Single H1, refer to the following common problems and solutions:
- ශබ්ද ප්රතිදානය නැත:
- Check all cable connections (microphone, output, instrument).
- Ensure the power adapter is securely connected and receiving power.
- Verify the MIC GAIN knob is adjusted appropriately.
- Check the DRY/WET Mix knob; if set fully to DRY, you will only hear your unprocessed vocal.
- Ensure the footswitch LED indicates the effect is engaged.
- හම් හෝ ශබ්දය:
- Engage the GRND LIFT switch on the left side of the pedal.
- Try using different power outlets or a power conditioner.
- සියලුම කේබල් හොඳ තත්ත්වයේ සහ නිසි ලෙස ආරක්ෂා කර ඇති බවට වග බලා ගන්න.
- Harmony Not Tracking Correctly:
- Ensure your microphone input level (MIC GAIN) is optimal, not too low or too high.
- If using instrument-guided harmony, ensure your instrument is in tune and playing clearly.
- Double-check the Harmony Key knob setting to match the song's key.
- Ensure your vocal pitch is clear and consistent.
- පැඩලය ප්රතිචාර නොදක්වයි:
- Disconnect and reconnect the power adapter.
- If issues persist, contact TC Helicon support.
පිරිවිතර
| විශේෂාංගය | විස්තරය |
|---|---|
| ආදර්ශ අංකය | 996012011 |
| අයිතමයේ බර | රාත්තල් 1.59 කි |
| ශරීර ද්රව්ය | ලෝහ, ප්ලාස්ටික් |
| වර්ණය | කළු |
| සංඥා ආකෘතිය | ඇනලොග් |
| ශ්රව්ය ප්රතිදාන ප්රයෝග | Pitch-Shifting |
| පාලන වර්ගය | Footswitch, Rotary Knobs |
| බලශක්ති ප්රභවය | DC Power Adapter (external) |
| සම්බන්ධතාවය | XLR Mic In, XLR Out, 1/4" Inst In, 1/4" Inst Thru, USB, Mic Control |
වගකීම් සහ සහාය
TC Helicon products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your product or visit the official TC Helicon website. For technical support, firmware updates, or additional resources, please visit www.tchelicon.com.
