1. හැඳින්වීම
This manual provides essential information for the safe and efficient use of your Mitsubishi Electric MR-C37T-B refrigerator. Please read these instructions thoroughly before installation and operation, and keep this manual for future reference. Proper installation, operation, and maintenance are crucial for optimal performance and longevity of your appliance.
2 ආරක්ෂිත තොරතුරු
Always adhere to the following safety precautions to prevent accidents, injury, or damage to the appliance.
- ශීතකරණය භූගත විදුලිබල අලෙවිසැලකට සම්බන්ධ කර ඇති බවට වග බලා ගන්න.
- ශීතකරණ පරිපථයට හානි නොකරන්න.
- වාතාශ්රය විවරයන් බාධාවකින් තොරව තබා ගන්න.
- නිෂ්පාදකයා විසින් නිර්දේශ කරන ලද ආකාරයේ ඒවා හැර ආහාර ගබඩා මැදිරි තුළ විදුලි උපකරණ භාවිතා නොකරන්න.
- පිරිසිදු කිරීමට හෝ නඩත්තු කිරීමට පෙර ශීතකරණය විසන්ධි කරන්න.
- Keep children away from packaging materials and the appliance itself.
3. පිහිටුවීම සහ ස්ථාපනය
Careful consideration of the installation location and process is vital for the refrigerator's performance and your safety.
3.1 Delivery and Unpacking
If purchased directly from Amazon.co.jp, unpacking, installation at the specified location, and packaging material collection are typically included. For purchases from other sellers, please confirm these services with your specific seller. Note that for express delivery, services like unpacking, installation, and packaging material collection may not be available, and delivery will be to the curb.
3.2 Access Route Verification
Before delivery, ensure there is sufficient access to the installation location. For refrigerator delivery, an additional 20 cm or more clearance is required in addition to the width of the refrigerator itself. As a guideline, check the width and height of your entrance door, the width of corridors, and the width and height of elevators and stairs. When measuring, pay attention to the width of handrails.
If the delivery route is complex, such as requiring the refrigerator to be rotated during delivery, space greater than the depth of the refrigerator will be required.
Delivery via stairs may not be possible in the following cases. Please also check for the presence of an elevator:
- Spiral staircases
- Winding stairs without a landing
- Narrow internal stairs
- Stairs less than 90 cm wide
Separate charges may apply for hoisting or crane delivery; please confirm with the delivery company.
3.3 ස්ථාපන අවකාශ අවශ්යතා
For refrigerator installation, in addition to the main unit size, space for heat dissipation and space for opening and closing the door are required. Please refer to the minimum required installation space in your product documentation for precise measurements.
After installation, wait a certain amount of time before plugging in the power cord. This allows the internal refrigerant gas to stabilize. Do not plug in the appliance immediately after moving it.

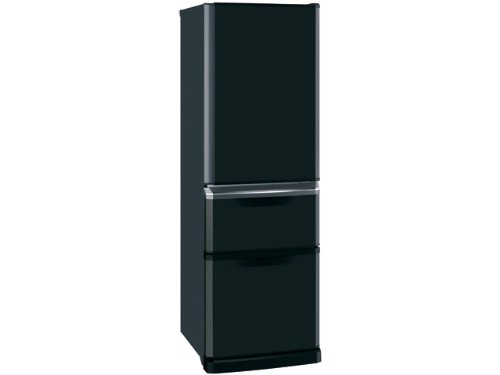

රූපය 1: ඉදිරිපස view of the Mitsubishi Electric MR-C37T-B Refrigerator. This model features a platinum black finish with a right-opening door configuration and three distinct compartments.
4. මෙහෙයුම් උපදෙස්
Your Mitsubishi Electric MR-C37T-B refrigerator is designed for ease of use and efficient food storage.
4.1 උෂ්ණත්ව පාලනය
Adjust the temperature settings for the refrigerator, vegetable, and freezer compartments using the control panel, typically located inside the refrigerator compartment or on the exterior door. Refer to the specific diagrams in your quick start guide for exact control locations.
4.2 දොර ක්රියාත්මක කිරීම
The refrigerator features a 'Free Access Design' and an 'Easy-to-open door' that can be opened from anywhere along the handle. Ensure doors are closed completely after each use to maintain optimal temperature and energy efficiency.
4.3 Big Freezer
The freezer compartment offers a large capacity of 81 liters, providing ample space for frozen goods. Organize items efficiently to maximize storage and air circulation.
4.4 ස්වයංක්රීය අයිස් සාදන්නා
This model includes a direct water supply automatic ice maker. For hygienic operation, both the pipe and pump components of the ice maker are washable. Refer to the maintenance section for cleaning instructions.
5. නඩත්තු කිරීම
නිතිපතා නඩත්තු කිරීම මඟින් ඔබේ ශීතකරණය කාර්යක්ෂමව සහ සෞඛ්යාරක්ෂිතව ක්රියාත්මක වන බව සහතික කෙරේ.
5.1 ඇතුළත සහ පිටත පිරිසිදු කිරීම
- Before cleaning, always unplug the refrigerator.
- මෘදු, d සමඟ බාහිර පෘෂ්ඨයන් පිස දමන්නamp රෙදි සහ මෘදු ඩිටර්ජන්ට්.
- Clean interior surfaces, shelves, and drawers with a solution of warm water and baking soda or a mild, food-safe cleaner. Rinse and dry thoroughly.
- Avoid abrasive cleaners, solvents, or harsh chemicals that could damage surfaces.
5.2 Ice Maker Maintenance
The direct water supply automatic ice maker's pipe and pump are designed to be washable. Periodically remove and clean these components according to the detailed instructions in your full product manual to prevent mold or bacterial growth and ensure fresh ice production.
6. දෝශ නිරාකරණය
If you encounter issues with your refrigerator, refer to the following common troubleshooting steps. If the problem persists, contact customer support.
6.1 Refrigerator Not Cooling
- විදුලි රැහැන ආරක්ෂිතව වැඩ කරන අලෙවිසැලකට සම්බන්ධ කර ඇත්දැයි පරීක්ෂා කරන්න.
- Ensure the temperature settings are appropriate.
- Verify that the doors are closing completely and not left ajar.
- Check for obstructions around the condenser coils (usually at the back or bottom).
6.2 අසාමාන්ය ශබ්ද
- Normal operating noises include humming from the compressor, gurgling from refrigerant, and clicking from the thermostat.
- Ensure the refrigerator is level and stable on the floor.
- ඇතුළත ඇති ඕනෑම අයිතමයක් එකිනෙකට හෝ ශීතකරණයේ බිත්තිවලට එරෙහිව කම්පනය වන්නේ දැයි පරීක්ෂා කරන්න.
6.3 ජල කාන්දුව
- කාණු පෑන් නිසි ලෙස ස්ථානගත කර ඇති අතර එය පිරී ඉතිරී නොයන බවට වග බලා ගන්න.
- Ensure the water supply line for the ice maker (if applicable) is securely connected and not leaking.
- Verify that the refrigerator is level.
7. පිරිවිතර
| විශේෂාංගය | පිරිවිතර |
|---|---|
| වෙළඳ නාමය | මිට්සුබිෂි විදුලි |
| ආදර්ශ අංකය | MR-C37T-B |
| වර්ණය | ප්ලැටිනම් කළු |
| සම්පූර්ණ ධාරිතාව | ලීටර් 370 |
| ශීතකරණ මැදිරි ධාරිතාව | ලීටර් 217 |
| එළවළු මැදිරි ධාරිතාව | ලීටර් 72 |
| අධිශීතකරණ මැදිරි ධාරිතාව | ලීටර් 81 |
| මාන (ගැඹුර x පළල x උස) | 65.6 x 60.0 x 179.8 සෙ.මී |
| නිෂ්පාදන බර | 67 kg (Main Unit), 74 kg (Shipping) |
| හර්ට්ස් | 50/60Hz Common |
| වාර්ෂික බලශක්ති පරිභෝජනය | 460 kWh/year (JIS C 9801-2006) |
| Energy Saving Standard Achievement Rate (2010) | 105% |
| මෙහෙයුම් ශබ්ද මට්ටම | Approx. 18 dB(A) (JIS C 9607, ambient 20°C, stable operation) |
| දොර විවෘත කිරීමේ වර්ගය | දකුණු-විවෘත කිරීම |
| ස්ථාපන වර්ගය | නිදහසේ හැසිරවීම |
| විශේෂ ලක්ෂණ | Free Access Design, Direct Water Supply Automatic Ice Maker (washable pipe/pump), Good Design Award Winner, Green Purchasing Law Compliant |
8. වගකීම් සහ සහාය
For warranty information, please refer to the warranty card included with your product. Mitsubishi Electric provides customer support for its products. For service, technical assistance, or to inquire about replacement parts, please contact Mitsubishi Electric customer service through their official webවෙබ් අඩවිය හෝ ඔබේ නිෂ්පාදන ලියකියවිලිවල සපයා ඇති සම්බන්ධතා තොරතුරු.
While a 10-year long-term protection plan may be available for purchase separately, the standard product warranty details are provided with the appliance at the time of purchase.
