1. හැඳින්වීම
This manual provides detailed instructions for the installation, operation, and maintenance of your Pioneer DEH-80PRS CD Receiver. Please read this manual thoroughly before using the product to ensure proper operation and to prevent damage.
The Pioneer DEH-80PRS is an advanced car audio CD receiver designed for superior sound quality, featuring a 3-Way Active Crossover Network, Auto EQ, Auto Time Alignment, Bluetooth connectivity, and HD Radio capabilities.
Figure 1: Pioneer DEH-80PRS CD Receiver
2 ආරක්ෂිත තොරතුරු
වැදගත් ආරක්ෂිත පූර්වාරක්ෂාවන්:
- Do not attempt to install or service this product yourself. Refer installation and service to qualified personnel.
- Do not operate this product in any way that distracts you from safe driving. Always observe traffic regulations.
- හදිසි වාහන සයිරන් වැනි බාහිර ශබ්ද ඔබට තවමත් ඇසෙන මට්ටමක ශබ්දය තබා ගන්න.
- ඒකකය තෙතමනය හෝ අධික උෂ්ණත්වයන්ට නිරාවරණය වීමෙන් වළකින්න.
යෝජනාව 65 අවවාදයයි:
මෙම නිෂ්පාදනයේ පිළිකා සහ උපත් ආබාධ හෝ වෙනත් ප්රජනක හානි ඇති කිරීමට කැලිෆෝනියා ප්රාන්තය දන්නා රසායනික ද්රව්ය අඩංගු වේ.
3. පැකේජ අන්තර්ගතය
Verify that all items are present in the box before proceeding with installation:
- Pioneer DEH-80PRS CD Receiver
- දුරස්ථ පාලකය
- External Microphone for Auto EQ/Time Alignment
- රැහැන් පටි
- USB දිගු කේබල්
- RCA Cables (for pre-outs)
- Installation Hardware (screws, mounting cage)
- හිමිකරුගේ අත්පොත (මෙම ලේඛනය)
Figure 2: Included accessories for the DEH-80PRS
4. නිෂ්පාදන අවසන්view
4.1 ඉදිරිපස පැනල් පාලන
The front panel features a large rotary volume knob, various function buttons for source selection, menu navigation, and audio adjustments, and a multi-line display. The display provides information on the current source, track, radio station, and audio settings.
Figure 3: Front panel of the DEH-80PRS and remote control
4.2 පසුපස පැනල් සම්බන්ධතා
The rear panel provides connections for power, speakers, external amplifiers (RCA pre-outs), USB devices, and the external microphone. It also includes a fuse for protection.

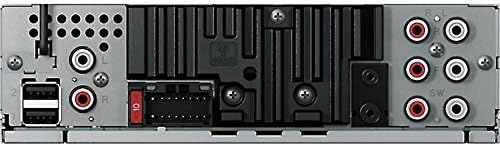

Figure 4: Rear panel showing power, speaker, and RCA connections
5. පිහිටුවීම සහ ස්ථාපනය
Professional installation is recommended for optimal performance and to avoid damage to your vehicle's electrical system. Ensure the vehicle's battery is disconnected before starting installation.
5.1 රැහැන් සම්බන්ධතා
- Connect the wiring harness to the vehicle's power, ground, and speaker wires according to the wiring diagram provided in the separate installation guide.
- Connect the RCA pre-out cables to your external ampඉදිරිපස, පසුපස සහ සබ් වූෆර් නාලිකා සඳහා ලිෆයර්.
- Connect the external microphone to the designated input for Auto EQ and Auto Time Alignment functions.
- Connect any USB devices or storage via the USB extension cable.
5.2 මූලික සැකසුම්
After installation, reconnect the vehicle's battery. The unit will power on. Follow the on-screen prompts for initial setup, including language selection and clock settings.
වැදගත්: The DEH-80PRS features a switch on the chassis to select between Standard (STD) mode and Network (NW) mode for the 3-Way Active Crossover. Ensure this switch is set correctly for your speaker configuration before performing audio adjustments. Changing this switch requires a system reset.
6. මෙහෙයුම් උපදෙස්
6.1 මූලික මෙහෙයුම
- බලය සක්රිය / අක්රිය: ඒකකය ක්රියාත්මක කිරීමට SRC (මූලාශ්රය) බොත්තම ඔබන්න. එය ක්රියා විරහිත කිරීමට SRC ඔබා අල්ලාගෙන සිටින්න.
- ශබ්ද පාලනය: Rotate the large rotary knob to adjust the volume.
- මූලාශ්ර තේරීම: Press the SRC button repeatedly to cycle through available sources (CD, Tuner, USB, SD, Bluetooth Audio, AUX).
6.2 සීඩී නැවත ධාවනය
Insert a CD into the disc slot. Playback will begin automatically. Use the track skip buttons to navigate between tracks. Press the BAND button to switch between CD text display modes.
6.3 Tuner Operation (AM/FM/HD Radio)
Select the Tuner source. Press the BAND button to switch between FM1, FM2, FM3, and AM bands. Use the seek buttons to find stations. For HD Radio, the unit will automatically detect and tune to HD Radio broadcasts where available.
6.4 බ්ලූටූත් සම්බන්ධතාවය
The DEH-80PRS supports Bluetooth for audio streaming and hands-free calling.
- යුගල කිරීම: Enable Bluetooth on your mobile device. On the DEH-80PRS, navigate to the Bluetooth menu and select 'Pairing'. Select 'Pioneer DEH-80PRS' from your device's Bluetooth list. Enter the PIN if prompted (default is '0000').
- ශ්රව්ය ප්රවාහය: Once paired, select 'Bluetooth Audio' as the source to stream music from your device.
- හෑන්ඩ්ස්-ෆ්රී ඇමතීම: When a call comes in, the unit will display the caller ID. Press the phone button to answer or end a call.
6.5 USB/SD නැවත ධාවනය
Insert a USB device into the USB port or an SD card into the SD card slot. The unit will automatically detect and begin playback of compatible audio files. Use the navigation buttons to browse folders and tracks.
6.6 Advanced Audio Settings
The DEH-80PRS offers extensive audio customization for audiophile-grade sound.
- 3-Way Active Crossover Network: This feature allows precise control over the frequency ranges sent to your tweeters, mid-range speakers, and subwoofers. Access this in the Audio menu to set crossover points and slopes for each channel. This is especially powerful in Network mode.
- Auto EQ: Use the supplied microphone to automatically equalize the sound output to your vehicle's acoustics. Place the microphone in the listening position (e.g., driver's headrest), ensure the car is quiet with windows closed, and initiate the Auto EQ process from the Audio menu.
- Auto Time Alignment: This feature measures the distance from each speaker to the listening position and adjusts the sound output timing to ensure all sound reaches the listener simultaneously, creating a more focused soundstage. Use the same microphone placement as Auto EQ and initiate from the Audio menu.
- Manual EQ/Sound Adjustments: For further fine-tuning, the unit provides a 16-band graphic equalizer, listening position selector, and other manual sound controls.
7. නඩත්තු කිරීම
7.1 ඒකකය පිරිසිදු කිරීම
Wipe the front panel with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners. For stubborn dirt, lightly dampජලය සමග රෙදි en.
7.2 දුරස්ථ පාලක බැටරි
If the remote control stops responding, replace the lithium coin cell battery (CR2025). Refer to the remote control's specific instructions for battery replacement.
8. දෝශ නිරාකරණය
ඔබට ගැටළු ඇති වුවහොත්, පොදු ගැටළු සහ විසඳුම් සඳහා පහත වගුව බලන්න.
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| බලය නැත | Blown fuse; incorrect wiring | Check the fuse; verify wiring connections. |
| ශබ්දයක් නැත | Volume too low; incorrect source; speaker wiring issue | Increase volume; select correct source; check speaker connections. |
| බ්ලූටූත් සම්බන්ධ නොවේ | Device not in pairing mode; unit not discoverable | Ensure both devices are in pairing mode; delete previous pairings and try again. |
| CD error | Dirty or scratched disc; disc inserted incorrectly | Clean the disc; ensure it is inserted correctly. |
If the problem persists after trying these solutions, contact Pioneer customer support or a qualified service technician.
9. පිරිවිතර
- නිෂ්පාදන මානයන්: අඟල් 11.7 x 6.4 x 8.9
- අයිතමයේ බර: රාත්තල් 2.64 (කිලෝග්රෑම් 1.2)
- අයිතම ආදර්ශ අංකය: DEH80PRS
- බැටරි: 1 Lithium Metal battery required (for remote)
- රැහැන් රහිත සන්නිවේදන තාක්ෂණය: බ්ලූටූත්
- සම්බන්ධතා තාක්ෂණය: රැහැන්ගත
- විශේෂ ලක්ෂණ: CD Player, 3-Way Active Crossover Network, Auto EQ, Auto Time Alignment
- ගැළපෙන උපාංග: ස්පීකර්, ස්මාර්ට්ෆෝන්
- සම්බන්ධක වර්ගය: 3.5mm ජැක්, USB
- ශ්රව්ය ප්රතිදාන ප්රකාරය: ස්ටීරියෝ
- සරවුන්ඩ් සවුන්ඩ් චැනල් වින්යාසය: 5.1 (via pre-outs)
- නිෂ්පාදකයා: පුරෝගාමියා
- පළමු ලබා ගත හැකි දිනය: 16 ජනවාරි 2012
10. වගකීම් සහ සහාය
වගකීම් තොරතුරු සඳහා, කරුණාකර ඔබේ නිෂ්පාදනය සමඟ ඇතුළත් කර ඇති වෙනම වගකීම් කාඩ්පත බලන්න හෝ නිල Pioneer වෙත පිවිසෙන්න. website. For technical support, product registration, or to find authorized service centers, please contact Pioneer customer service directly.
You can typically find support contact details on the official Pioneer webඅඩවිය: www.pioneerelectronics.com
