1. හැඳින්වීම
This manual provides essential information for the installation, operation, and maintenance of your Schellenberg 20620 MAXI Standard Roller Shutter Motor. This tubular motor is designed for MAXI roller shutter systems with 60 mm octagonal shafts, offering a powerful 20 Nm torque suitable for roller shutter surfaces up to 8.5 m² and a maximum pulling force of 34 kg. It features a mechanical limit position setting for precise control.
2. ආරක්ෂිත උපදෙස්
- විදුලි ආරක්ෂාව: Installation and electrical connection must be performed by a qualified electrician in accordance with local regulations. Disconnect power before any installation or maintenance work.
- චලනය වන කොටස්: Keep hands, clothing, and other objects clear of the roller shutter and motor during operation to prevent injury.
- අපේක්ෂිත භාවිතය: This motor is designed exclusively for operating roller shutters. Do not use it for other purposes.
- ළමුන් සහ සුරතල් සතුන්: Ensure children and pets are kept away from the operating roller shutter. Control devices should be installed out of reach of children.
- හානිය: Do not operate the motor if it is damaged. Contact customer support for assistance.

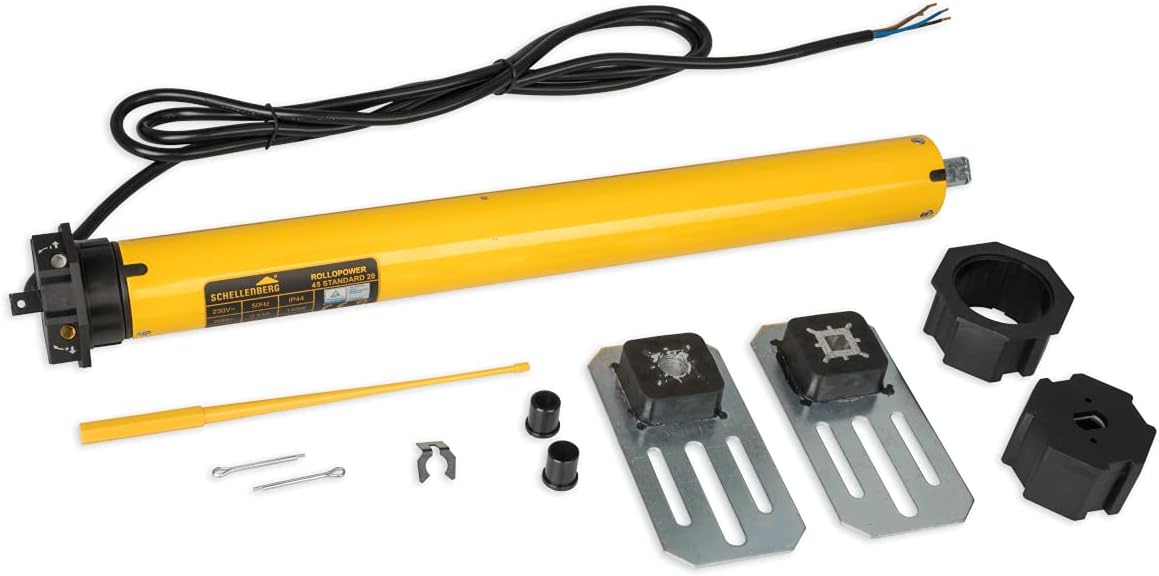

3. පැකේජ අන්තර්ගතය
සියලුම සංරචක පැකේජයේ ඇති බව තහවුරු කර ගන්න:
- 1x MAXI Standard Tubular Motor 20 Nm with cable
- 1x බිත්ති වරහන
- 1x Adjustment tool
4. පිහිටුවීම සහ ස්ථාපනය
4.1 මෝටරය සවි කිරීම
- Ensure the power supply to the roller shutter system is disconnected.
- Remove the existing roller shutter shaft and any old winding mechanisms.
- Insert the tubular motor into the 60 mm octagonal shaft. Ensure it is securely seated and aligned.
- Mount the shaft with the motor into the roller shutter box using the provided wall bracket.
4.2 විදුලි සම්බන්ධතාවය
The electrical connection must be carried out by a qualified electrician. Connect the motor's electrical cable to the appropriate power supply and control switch according to the wiring diagram provided with the product and local electrical codes.
4.3 Setting Mechanical Limit Positions
The motor features mechanical limit switches to define the upper and lower end positions of the roller shutter. Use the supplied adjustment tool to set these limits.
- ඉහළ සීමාව: Rotate the upper adjustment screw (often marked with an 'up' arrow or '+' sign) with the adjustment tool until the roller shutter reaches the desired upper position and stops.
- පහළ සීමාව: Rotate the lower adjustment screw (often marked with a 'down' arrow or '-' sign) with the adjustment tool until the roller shutter reaches the desired lower position and stops.
5. මෙහෙයුම් උපදෙස්
Once installed and the limit positions are set, the roller shutter motor can be operated via a connected wall switch or an optional wireless control system.

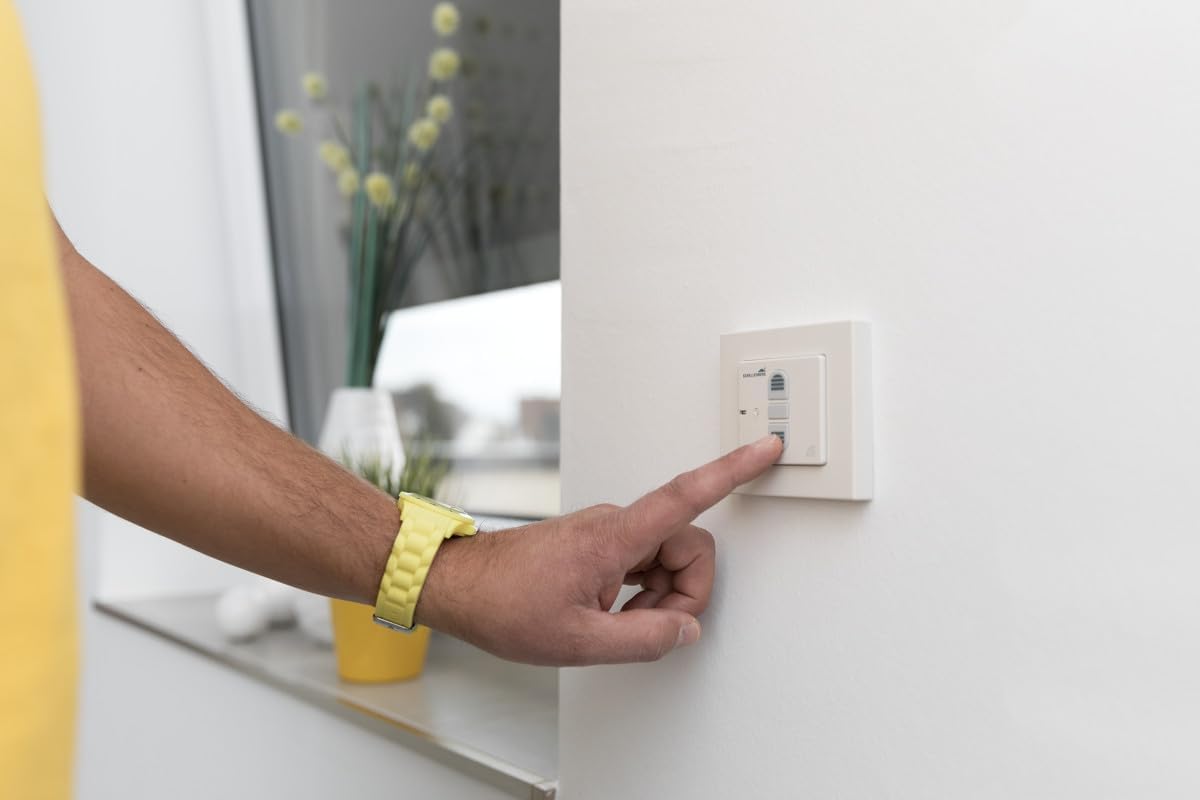

- Standard Operation (Wall Switch): Press the 'Up' button on your wall switch to raise the roller shutter. Press the 'Down' button to lower it. The shutter will stop automatically at the set limit positions.
- Stopping Mid-Position: Press the opposite direction button briefly while the shutter is moving to stop it at any desired intermediate position.
- Optional Wireless Control: This motor can be retrofitted with wireless control. If you have installed a Schellenberg wireless switch, timer, or remote control, refer to the specific instructions for that device for pairing and operation.
6. නඩත්තු කිරීම
The Schellenberg MAXI Standard Roller Shutter Motor is designed to be maintenance-free. No lubrication or internal adjustments are required.
- පිරිසිදු කිරීම: Keep the visible parts of the motor and roller shutter system clean from dust and debris. Use a soft, dry cloth. Do not use abrasive cleaners or solvents.
- පරීක්ෂාව: Periodically check the roller shutter system for any signs of wear or damage to the shaft, suspension, or motor cable. If any damage is observed, discontinue use and contact customer support.
7. දෝශ නිරාකරණය
If you encounter issues with your roller shutter motor, refer to the following common problems and solutions:
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| මෝටරය ප්රතිචාර නොදක්වයි | No power supply; loose wiring; faulty switch | Check power circuit breaker; verify wiring connections (by a qualified electrician); test switch functionality. |
| Roller shutter stops prematurely or does not reach limits | Limit positions incorrectly set; obstruction in the roller shutter path | Re-adjust mechanical limit positions (refer to Section 4.3); check for and remove any obstructions. |
| මෙහෙයුම අතරතුර අසාමාන්ය ශබ්ද | Obstruction; motor or shaft damage | Check for obstructions; if noise persists, discontinue use and contact support. |
If the problem persists after attempting these solutions, please contact Schellenberg customer support.
8. පිරිවිතර
| පිරිවිතර | වටිනාකම |
|---|---|
| ආදර්ශ අංකය | 20620 |
| ව්යවර්ථය | 20 Nm |
| Max. Roller Shutter Area (Plastic) | 8.5 m² |
| Max. Pulling Force | කිලෝ ග්රෑම් 34 කි |
| පතුවළ විෂ්කම්භය | 60 mm (Octagඔනල්) |
| වෙළුමtage | වෝල්ට් 230 |
| බලය | වොට් 147.2 |
| ආරක්ෂණ පන්තිය | IP44 |
| නිෂ්පාදන මානයන් (L x W x H) | 58 x 10.5 x 7.5 සෙ.මී |
| බර | කිලෝ ග්රෑම් 2.45 කි |
| ද්රව්ය | ප්ලාස්ටික් |
| මෙහෙයුම් ආකාරය | සක්රියයි |
9. වගකීම් සහ සහාය
Specific warranty details for this product may vary by region and retailer. Please refer to your purchase documentation or contact your point of sale for warranty information.
For any questions regarding your Schellenberg products, including selection, installation, or replacement, our customer support team is available to assist you.
සබඳතා තොරතුරු: Please visit the official Schellenberg website or refer to the contact details provided with your product for support.
