Marcy Pro PM4400 Leverage Home Gym Weight Bench User Manual

නිෂ්පාදනය අවසන්view

The Marcy Pro PM4400 Leverage Home Gym is designed to provide a comprehensive strength training experience in a home setting. Its unique leverage system allows users to train to muscle failure safely, as the weight can be easily returned to the starting position without the risk of dropping barbells or dumbbells. This design promotes confidence and allows for heavier lifting.

Key features include an adjustable bench that can pivot to the side, creating an open workout area suitable for exercises like squats, rows, and shoulder raises. The bench also moves forward and backward on a boom, ensuring optimal positioning for various exercises to effectively isolate target muscle groups.

The unit is constructed with industrial-grade steel components, ensuring durability and stability for long-term use. It supports a maximum user weight of 158 kg and features weight plate storage posts with a capacity of up to 90 kg each, designed for 50mm Olympic weights.

Figure 1: The Marcy Pro PM4400 Leverage Home Gym, showcasing its robust frame and integrated weight storage. Weights are shown loaded on the leverage arms and storage posts.

සැකසීම සහ එකලස් කිරීම

Your Marcy Pro PM4400 Leverage Home Gym is delivered in two separate boxes. Please ensure you have received both packages before beginning assembly. An assembly instruction manual is included with the product. While the manual may not be available in all languages, the diagrams are comprehensive and should guide you through the process.

Assembly typically requires approximately 4 hours for a single person. It is recommended to have adequate space for assembly and to lay out all components before starting. Ensure all bolts, nuts, and washers are accounted for as per the parts list in the manual.

Figure 2: Illustration demonstrating the pivoting mechanism of the bench, allowing it to move out of the way for exercises like squats.

During assembly, pay close attention to the adjustable components, such as the seat and backrest. Do not overtighten the height locking mechanism for the backrest, as this can impede its smooth adjustment. The unit is designed for 50mm Olympic weight plates. Adapters for 30mm and 28mm plates are included, but these may require additional securing (e.g., with tape) to prevent them from sliding off when removing weight plates.

මෙහෙයුම් උපදෙස්

The Marcy Pro PM4400 offers a versatile range of exercises due to its unique leverage system and adjustable components. Always ensure the equipment is on a stable, level surface before use.

විනිසුරු ම ch ුල්ල සකස් කිරීම

The bench features a 4-angle seat and a 10-position backrest for optimal exercise positioning. To adjust the backrest, release the locking pin and slide it to the desired incline or decline. For the seat, adjust its angle using the designated mechanism. The entire bench can also pivot to the side, creating an open space for standing exercises. This pivot function is crucial for exercises such as squats and shrugs.

Figure 3: The adjustable backrest of the Marcy Pro PM4400, showing its range of motion for various incline and decline positions.

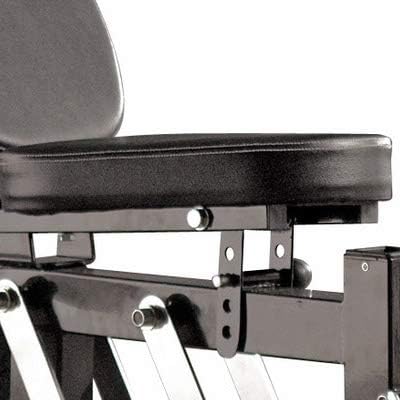

රූපය 4: සවිස්තරාත්මක view of the seat adjustment mechanism, highlighting the secure locking pin for angle selection.

බර පැටවීම

The front lever arm has a maximum load capacity of 226 kg, suitable for exercises like bench press, incline press, and shoulder raises. The rear lever arm has a maximum load capacity of 181 kg, ideal for rowing and triceps exercises. Always use 50mm Olympic weight plates for optimal fit and stability. Six quick-release clamps are provided for securing 50mm plates.

Performing Exercises

The leverage system ensures a precise and safe movement path, mimicking free weight exercises without the need for a spotter. The lever arm is designed to be relatively balanced with two counterweights, providing a smooth and effective resistance curve. The machine supports a wide array of exercises targeting various muscle groups:

• පපුව: Bench Press, Incline Press
• උරහිස්: Shoulder Press, Shoulder Raises
• ආපසු: පේළි
• ආයුධ: බයිසෙප් සීurls, Triceps Extensions
• කකුල්: Squats (with bench pivoted away)

Figure 5: A visual guide demonstrating multiple exercises possible with the Marcy Pro PM4400, highlighting the versatility of the machine for a full-body workout.

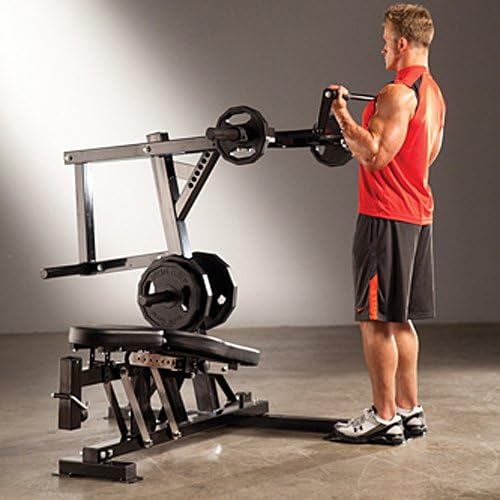

Figure 6: A user demonstrating bicep curls using the leverage arm, showcasing the machine's capability for isolated arm exercises.

Always start with a lighter weight to familiarize yourself with the movement path and ensure proper form. Gradually increase the weight as your strength improves.

නඩත්තු කිරීම

Regular maintenance will ensure the longevity and safe operation of your Marcy Pro PM4400.

• පිරිසිදු කිරීම: රාමුව සහ උඩු මහල දැන්වීමකින් පිස දමන්නamp එක් එක් භාවිතයෙන් පසු දහඩිය සහ දූවිලි ඉවත් කිරීම සඳහා රෙදි සෝදන්න. උල්ෙල්ඛ පිරිසිදු කරන්නන්ගෙන් වළකින්න.
• Inspecting Bolts and Connections: Periodically check all bolts, nuts, and connections to ensure they are tight. Retighten as necessary. Loose connections can affect stability and safety.
• ලිහිසි තෙල්: Apply a small amount of silicone-based lubricant to moving parts, such as the pivot points of the bench and the lever arm, every few months or as needed to ensure smooth operation and prevent squeaking.
• උඩු මහලේ රැකවරණය: Inspect the seat and backrest upholstery for any tears or excessive wear. Minor tears can be repaired with a vinyl repair kit to prevent further damage.
• Weight Plate Storage: Ensure weight plates are stored securely on the designated posts when not in use.

දෝෂගවේෂණය

This section addresses common issues you might encounter with your Marcy Pro PM4400.

• Wobbly Seat/Backrest: If the seat or backrest feels wobbly, check all connecting bolts and the adjustment locking pin. Ensure they are securely tightened. During assembly, avoid overtightening the backrest height locking mechanism, as this can make adjustment difficult.
• Noisy Lever Arm: The lever arm may make noise when it hits its arrest points. To reduce this, consider attaching rubber pads to the contact points on both the lower and upper parts of the arm. The exercises themselves should be quiet and smooth.
• Weight Plate Adapters Sliding: If the 30mm or 28mm weight plate adapters slide off the bar when removing plates, you can secure them with strong adhesive tape (e.g., electrical tape or duct tape) around the base of the adapter where it meets the bar. The 50mm adapters have a set screw for secure fastening.
• පසුපස කොටස සකස් කිරීමේ අපහසුතාව: If the backrest is difficult to move up or down, check if the height locking mechanism was overtightened during assembly. Loosen it slightly to allow for smoother movement.

If you encounter an issue not listed here or require further assistance, please contact customer support.

තාක්ෂණික පිරිවිතර

වගකීම් සහ සහාය

The Marcy Pro PM4400 Leverage Home Gym comes with a වසර 2ක වගකීමක්. This warranty covers manufacturing defects and ensures the quality of the product's components.

Spare parts for this model are available in the EU for up to අවුරුදු 7 ක් from the date of purchase, ensuring long-term usability and repairability of your equipment.

For warranty claims, technical support, or to order replacement parts, please refer to the contact information provided in your product packaging or visit the official MARCY website. When contacting support, please have your model number (PM4400) and proof of purchase readily available.
