SINGER Monami Delight SP-70G Computerized Sewing Machine User Manual

හැඳින්වීම

The SINGER Monami Delight SP-70G is a computerized sewing machine designed for ease of use and versatility. This manual provides essential information for setting up, operating, and maintaining your sewing machine to ensure optimal performance and longevity.

Figure 1: SINGER Monami Delight SP-70G Computerized Sewing Machine. This image displays the overall design of the sewing machine, highlighting its compact and user-friendly appearance.

සැලසුම

1. ඇසුරුම් ඉවත් කිරීම සහ ස්ථානගත කිරීම

• යන්ත්‍රය එහි ඇසුරුම් වලින් ප්‍රවේශමෙන් ඉවත් කරන්න.
• යන්ත්රය ස්ථාවර, පැතලි මතුපිටක් මත තබන්න.
• සුවපහසු ක්‍රියාකාරිත්වය සඳහා ප්‍රමාණවත් ආලෝකකරණයක් සහ ඉඩක් සහතික කරන්න.

2. බල සම්බන්ධතාවය

• විදුලි රැහැන යන්ත්‍රයට සම්බන්ධ කර පසුව සුදුසු විදුලි අලෙවිසැලකට සම්බන්ධ කරන්න.
• Turn on the power switch, usually located on the side of the machine.

3. බොබින් වංගු කිරීම

The SP-70G features an automatic bobbin winding stop function to prevent over-winding.

1. Place a bobbin onto the bobbin winder spindle.
2. Guide the thread from the spool through the tension disc and around the bobbin.
3. බොබින් වින්ඩර් ස්පින්ඩලය දකුණට තල්ලු කරන්න.
4. Press the foot controller or start/stop button to begin winding. The machine will stop automatically when the bobbin is full.

4. Threading the Machine (News Threading System)

The News Threading System simplifies upper thread threading regardless of the needle position.

1. පීඩන පාදය ඔසවන්න.
2. නූල් ස්පූල් එක ස්පූල් පින් එක මත තබන්න.
3. යන්ත්‍රයේ දක්වා ඇති අංකිත නූල් දැමීමේ මාර්ගය අනුගමනය කරන්න.
4. Use the automatic needle threader by lowering the lever to easily pass the thread through the needle eye. (Note: This feature is generally not suitable for household sewing machine needles smaller than size 11 or larger than size 16).

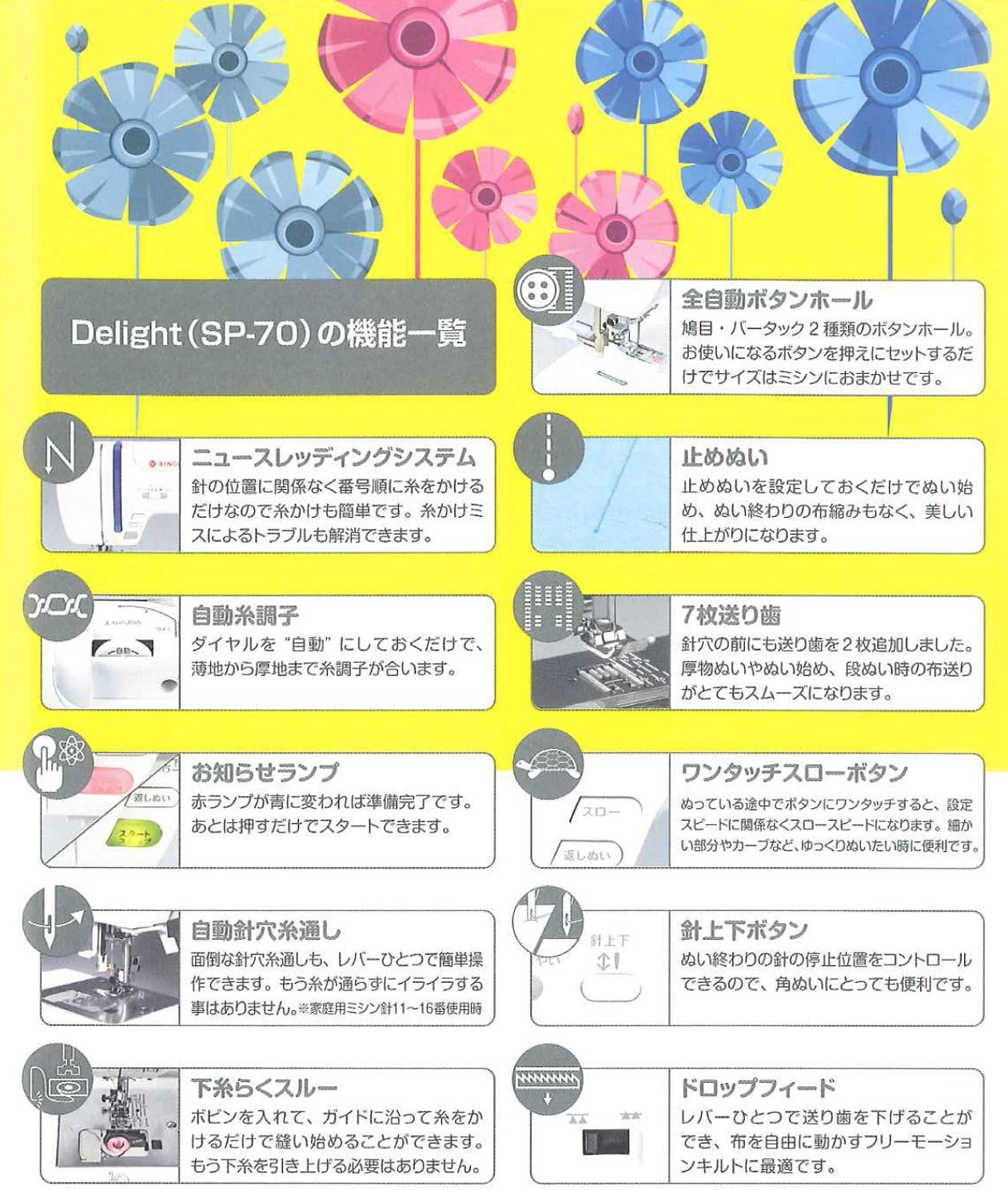

Figure 2: Key features of the SINGER Monami Delight SP-70G. This diagram illustrates various components and functions such as the News Threading System, Automatic Thread Tension, and Needle Up/Down button.

මෙහෙයුම් උපදෙස්

1. Stitch Selection (Pattern Direct Selection)

The machine offers 12 practical stitch patterns, which can be directly selected using the dedicated buttons.

• Refer to the stitch pattern chart on the machine or in this manual.
• Press the button corresponding to your desired stitch pattern.

Figure 3: The 12 practical stitch patterns available on the SINGER Monami Delight SP-70G. This image displays various utility and decorative stitches, including straight stitch, zigzag, and buttonhole options.

2. Automatic Thread Tension

Set the thread tension dial to "Auto" for automatic adjustment. The machine will optimize tension for various fabric thicknesses, from thin to thick materials.

3. Needle Up/Down Button

Use the Needle Up/Down button to control the needle's stopping position. This is particularly useful for pivoting fabric at corners or when removing the fabric from the machine.

4. Stop Stitch / Backstitch

To secure your seams, the machine can automatically perform a stop stitch (backstitch) at the beginning and end of your sewing. This feature ensures a neat and durable finish.

5. One-Touch Slow Button

Activate the One-Touch Slow Button for precise control when sewing intricate details, curves, or starting a seam. This reduces the sewing speed for enhanced accuracy.

6. Drop Feed

Lower the feed dogs using the Drop Feed mechanism to engage in free-motion sewing, darning, or embroidery. This allows you to move the fabric freely under the needle.

7. Free Arm

Remove the accessory storage compartment to reveal the free arm. This feature is ideal for sewing cylindrical items such as sleeves, pant hems, and small openings.

8. Presser Foot Lift Button

The Presser Foot Lift Button helps keep the presser foot horizontal, which is beneficial when starting to sew on thick fabrics or multiple layers, ensuring a smooth start.

9. මැහුම් දිග සහ පළල ගැලපීම

Adjust the stitch length and width according to your fabric type and desired sewing effect. This applies to various patterns including straight stitches, zigzags, and buttonholes.

රූපය 4: අවසන්view of additional useful features of the SINGER Monami Delight SP-70G. This image highlights features like the Horizontal Full Rotary Hook, LED Hand Lamp, Wide Sewing Base, and Quiet Design.

නඩත්තු කිරීම

1 පිරිසිදු කිරීම

• පිරිසිදු කිරීමට පෙර සෑම විටම යන්ත්රය විසන්ධි කරන්න.
• Regularly remove lint and dust from the bobbin case area and feed dogs using a small brush.
• Wipe the exterior of the machine with a soft, dry cloth. Do not use harsh chemicals.

2. ඉඳිකටු ආදේශ කිරීම

• Replace the needle frequently, especially after 8-10 hours of sewing or if it becomes bent or dull.
• Use only SINGER-approved needles appropriate for your fabric type.

දෝෂගවේෂණය

මෙම කොටසින් ඔබට මුහුණ දීමට සිදුවිය හැකි පොදු ගැටළු සාකච්ඡා කෙරේ. වඩාත් සංකීර්ණ ගැටළු සඳහා, සුදුසුකම් ලත් සේවා කාර්මිකයෙකුගෙන් විමසන්න.

1. Skipped Stitches

• ඉඳිකටුව නිවැරදිව ඇතුළු කර ඇති බවත් එය නැමී හෝ අඳුරු නොවන බවත් සහතික කර ගන්න.
• Check that the machine is threaded properly, both upper and bobbin threads.
• Verify that the correct needle type and size are being used for the fabric.

2. Thread Jamming

• යන්ත්රය අක්රිය කර එය විසන්ධි කරන්න.
• Remove the bobbin case and clear any tangled threads from the bobbin area.
• Re-thread the machine completely, ensuring the presser foot is raised during upper threading.

3. Uneven Stitches

• Check the thread tension settings. While the machine has automatic tension, manual adjustment may sometimes be necessary for specific fabrics.
• Ensure the fabric is fed evenly and not pulled or pushed excessively.

පිරිවිතර

වගකීම් සහ සහාය

වගකීම් තොරතුරු

For detailed information regarding the warranty coverage for your SINGER Monami Delight SP-70G sewing machine, please refer to the warranty card included with your product or visit the official SINGER webවෙබ් අඩවිය. වගකීම් නියමයන් සහ කොන්දේසි කලාපය අනුව වෙනස් විය හැකිය.

පාරිභෝගික සහාය

If you require technical assistance, have questions about your machine's operation, or need to arrange for service, please contact SINGER customer support. Contact details can typically be found on the SINGER official webවෙබ් අඩවිය හෝ ඔබේ මිලදී ගැනීම සමඟ සපයා ඇති ලියකියවිලි වල.
