GROHE 23352000 Start Loop Single-Lever Bidet Mixer User Manual

1. හැඳින්වීම

This manual provides detailed instructions for the installation, operation, and maintenance of your GROHE 23352000 Start Loop Single-Lever Bidet Mixer. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.

Figure 1: GROHE 23352000 Start Loop Single-Lever Bidet Mixer. This image shows the complete bidet mixer with its single lever handle and chrome finish, designed for modern bathroom aesthetics.

2 ආරක්ෂිත තොරතුරු

• ඕනෑම ස්ථාපනයක් හෝ නඩත්තු කටයුත්තක් ආරම්භ කිරීමට පෙර සෑම විටම ප්‍රධාන ජල සැපයුම අක්‍රිය කරන්න.
• කාන්දුවීම් වැළැක්වීම සඳහා සියලුම සම්බන්ධතා ආරක්ෂිත බව සහතික කර ගන්න.
• ස්ථාපන ක්‍රියාවලියේ කිසියම් කොටසක් පිළිබඳව ඔබට සැකයක් ඇත්නම්, සුදුසුකම් ලත් ජලනල කාර්මිකයෙකුගෙන් විමසන්න.
• නිෂ්පාදිතය හිම වලින් ආරක්ෂා කරන්න.
• Use only genuine GROHE spare parts for repairs.

3. පැකේජ අන්තර්ගතය

Verify that all components are present before starting installation. The package typically includes:

• GROHE Start Loop Single-Lever Bidet Mixer
• Pop-up waste set (1 1/4")
• දෘඪාංග සවිකිරීම
• Flexible connection hoses (G3/8)
• උපදෙස් අත්පොත

4. පිහිටුවීම සහ ස්ථාපනය

The GROHE 23352000 bidet mixer is designed for single-hole installation. The GROHE QuickFix design facilitates faster and easier installation.

4.1. සකස් කිරීම

1. Turn off the main water supply to the bidet.
2. ස්ථාපන ප්‍රදේශය හිස් කර අවශ්‍ය සියලු මෙවලම් ඇති බවට වග බලා ගන්න.
3. Refer to the dimension diagram for precise measurements and clearances.

4.2. ස්ථාපන පියවර

1. Insert the bidet mixer into the single mounting hole on the bidet.
2. Secure the mixer from underneath the bidet using the provided mounting hardware. Ensure it is firmly tightened but do not overtighten.
3. Connect the flexible G3/8 connection hoses to the hot and cold water supply lines. Ensure proper sealing with washers.
4. Install the pop-up waste set. The waste set is designed for easy operation when filling or draining the basin. Connect the pull rod from the mixer to the pop-up mechanism.
5. සියලුම සම්බන්ධතා ඇති කළ පසු, ප්‍රධාන ජල සැපයුම සෙමින් ක්‍රියාත්මක කර කාන්දුවීම් තිබේදැයි පරීක්ෂා කරන්න.
6. Test the mixer's function by operating the lever and checking water flow and temperature control.

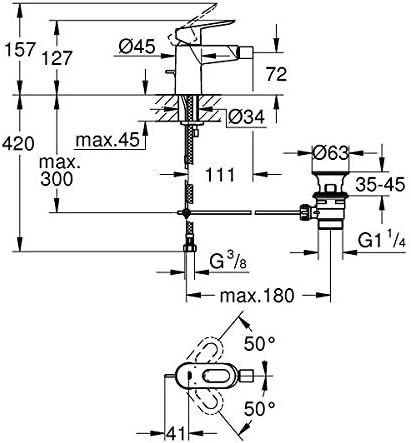

Figure 2: Installation Dimensions. This diagram illustrates key measurements for installation. The overall height from the deck to the top of the mixer is 157mm, with the spout outlet at 127mm. The total height from the bottom of the connection to the top of the mixer is 420mm, with a maximum deck thickness of 45mm. The required mounting hole diameter is Ø34mm. The flexible connection hoses are G3/8. The pop-up waste connection is G1 1/4, with a waste diameter of Ø63mm and adjustable height between 35-45mm. The single lever handle has a movement range of 50 degrees in both directions.

5. මෙහෙයුම් උපදෙස්

Your GROHE Start Loop Single-Lever Bidet Mixer is equipped with advanced technologies for comfort and efficiency.

• ජල ප්‍රවාහය සහ උෂ්ණත්ව පාලනය: The single lever allows for precise control over both water flow and temperature. Move the lever up to increase flow and down to decrease it. Move the lever left for hot water and right for cold water. The GROHE SilkMove technology ensures smooth and effortless handle movement.
• ජල ඉතිරිකිරීම්: The integrated GROHE EcoJoy technology helps reduce water consumption without compromising performance, providing a perfect flow while saving water.
• Pop-Up Waste: Operate the pop-up waste by pulling or pushing the small rod located at the back of the mixer.

6. නඩත්තු කිරීම

To maintain the pristine appearance and functionality of your GROHE bidet mixer, follow these maintenance guidelines:

• පිරිසිදු කිරීම: Clean the chrome surfaces regularly with a soft cloth and a mild, non-abrasive cleaner. Avoid using harsh chemicals, abrasive sponges, or cleaners containing alcohol, acid, or ammonia, as these can damage the GROHE StarLight chrome coating.
• වායු සමීකරණ නඩත්තුව: Periodically unscrew and clean the aerator (spout tip) to remove any mineral deposits or debris that may affect water flow.
• සාමාන්‍ය රැකවරණය: Ensure no heavy objects are placed on the mixer and avoid any impacts that could damage the finish or internal components.

7. දෝශ නිරාකරණය

If you encounter any issues with your bidet mixer, refer to the following common troubleshooting steps:

• අඩු ජල ප්රවාහය: Check if the main water supply is fully open. Clean the aerator for any blockages. Inspect the supply hoses for kinks.
• කාන්දුවීම්: Ensure all connections are tightly secured. Check the condition of washers and O-rings. If leaks persist, professional assistance may be required.
• උෂ්ණත්ව පාලන ගැටළු: Verify that both hot and cold water supplies are active. If the issue persists, the cartridge may need inspection or replacement by a qualified technician.

For problems not resolved by these steps, please contact GROHE customer support or a certified plumber.

8. පිරිවිතර

9. වගකීම් සහ සහාය

Your GROHE 23352000 Start Loop Single-Lever Bidet Mixer comes with a වසර 5ක නිෂ්පාදකයාගේ වගකීමක්, සාමාන්‍ය භාවිතය සහ සේවාව යටතේ ද්‍රව්‍ය හා වැඩ කිරීමේ දෝෂ ආවරණය කිරීම.

For warranty claims, technical assistance, or to purchase genuine GROHE spare parts, please contact GROHE customer support through their official website or authorized service centers. Always provide your model number (23352000) when seeking support.

Visit the official GROHE webවැඩි විස්තර සඳහා වෙබ් අඩවිය.
