Aputure Amaran HR672S LED Video Light Panel Instruction Manual

1. හැඳින්වීම

The Aputure Amaran HR672S is a high-performance LED video light panel designed for professional photography and videography. Featuring a high Color Rendering Index (CRI) of 95+, it ensures accurate and vibrant color reproduction. This light panel operates at a fixed color temperature of 5500K, providing a daylight-balanced output. It includes a wireless remote control for convenient adjustments and can be powered by either an AC adapter or NP-F series batteries.

2 ආරක්ෂිත තොරතුරු

• Do not operate the light panel with wet hands or in damp පරිසරයන්.
• බල සැපයුම් පරිමාව සහතික කරන්නtage matches the product's requirements (110-240V).
• LED ආලෝකයට ඇස් සෘජුව නිරාවරණය වීමෙන් වළකින්න, මන්ද එය අපහසුතාවයක් හෝ හානියක් ඇති කළ හැකිය.
• Keep the light panel away from flammable materials.
• Do not disassemble or modify the product. Refer servicing to qualified personnel.
• Always use the provided power adapter and recommended batteries.
• අධික උනුසුම් වීම වැළැක්වීම සඳහා මෙහෙයුම අතරතුර නිසි වාතාශ්රය සහතික කිරීම.

3. පැකේජ අන්තර්ගතය

පහත ලැයිස්තුගත කර ඇති සියලුම අයිතම ඔබේ පැකේජයට ඇතුළත් කර ඇති බව තහවුරු කරගන්න:

• 1 x Aputure Amaran HR672S LED Light Panel
• 1 x රැහැන් රහිත දුරස්ථ පාලකය
• 1 x Power Adapter (AC 110-240V to DC 15V)
• 1 x Light Bracket with 1/4 to 3/8 Screw
• 1 x White Diffusion Filter
• 1 x Orange Diffusion Filter
• 1 x රැගෙන යන බෑගය
• 1 x පරිශීලක අත්පොත (ඉංග්‍රීසි)
• 2 x NP-F970 Batteries (if included in specific kit)

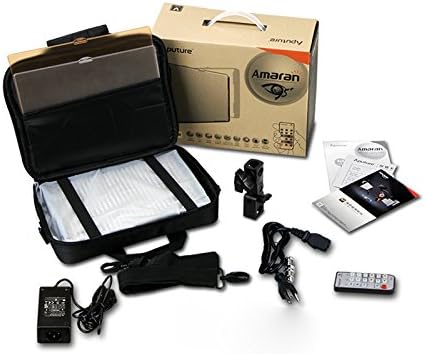

Image: All components included in the Aputure Amaran HR672S LED Video Light Panel package, neatly arranged.

4. නිෂ්පාදන අවසන්view

4.1 ඉදිරිපස View

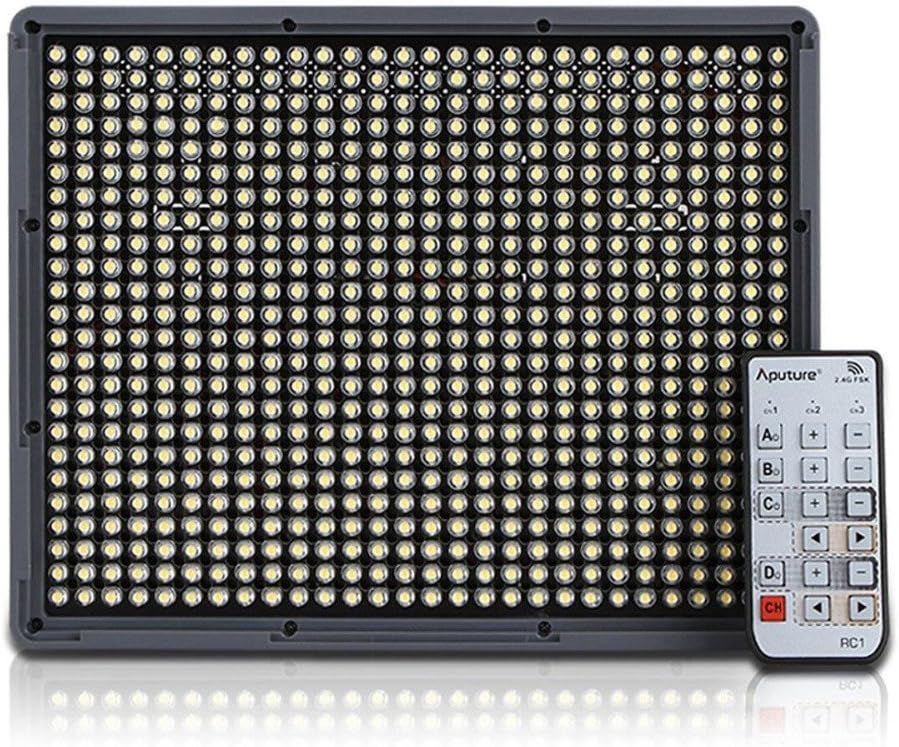

Image: The front face of the Aputure Amaran HR672S LED light panel, showing the array of 672 LED bulbs.

4.2 Back Panel Controls and Battery Slots

Image: The rear of the light panel, displaying the digital display, power switch, dimmer knob, channel/group buttons, and dual NP-F battery slots.

4.3 Diffusion Filter Installation

Image: A hand demonstrating the process of sliding a diffusion filter into the designated slot on the light panel.

5. පිහිටුවීම

5.1 ආලෝක පුවරුව සවි කිරීම

1. Attach the provided light bracket to the 1/4-inch screw thread at the bottom of the HR672S light panel.
2. Secure the light bracket onto a standard light stand or tripod using the 1/4-inch or 3/8-inch screw adapter. Tighten securely.
3. Adjust the angle of the light panel using the tilt mechanism on the bracket.

5.2 Powering the Light Panel

The HR672S can be powered in two ways:

• AC බලය: Connect the DC 15V power adapter to the DC input port on the back of the light panel. Plug the adapter into a suitable wall outlet (110-240V).
• බැටරි බලය: Insert two fully charged NP-F series batteries (e.g., NP-F970) into the battery slots on the back of the light panel. Ensure they click into place. The light will automatically draw power from the batteries when AC power is not connected or is interrupted.

5.3 Attaching Diffusion Filters

Slide either the white or orange diffusion filter into the grooves on the front of the light panel. The white filter provides softer light, while the orange filter can be used for color correction or creative effects.

6. මෙහෙයුම

6.1 බලය සක්රිය / අක්රිය

Locate the power switch on the back of the light panel. Flip it to the 'ON' position to power on the device. Flip it to 'OFF' to power off.

6.2 දීප්තිය සකස් කිරීම

Rotate the dimmer knob on the back panel to adjust the light intensity. The brightness level will be displayed on the digital screen.

6.3 රැහැන් රහිත දුරස්ථ පාලකය භාවිතා කිරීම

The HR672S comes with a 2.4GHz wireless remote control for convenient operation.

1. Setting Channels: Press the 'Channel' button on the light panel to cycle through available channels (1-3). Ensure the remote control is set to the same channel.
2. කණ්ඩායම් සැකසීම: Press the 'Group' button on the light panel to assign it to a group (A, B, C, D). The remote control can then control lights assigned to specific groups or all groups simultaneously.
3. දුරස්ථ මෙහෙයුම: Use the corresponding buttons on the remote to power on/off, adjust brightness, and select channels/groups.

6.4 වර්ණ උෂ්ණත්වය

The Aputure Amaran HR672S has a fixed color temperature of 5500K. No adjustment is needed or possible for color temperature on this model.

7. නඩත්තු කිරීම

• පිරිසිදු කිරීම: ආලෝක පුවරුව පිරිසිදු කිරීම සඳහා මෘදු වියළි රෙද්දක් භාවිතා කරන්න. උල්ෙල්ඛ පිරිසිදු කරන්නන් හෝ ද්‍රාවක භාවිතා නොකරන්න.
• ගබඩා: When not in use, store the light panel in its carrying bag in a cool, dry place, away from direct sunlight and moisture.
• බැටරි සත්කාර: If using batteries, remove them if the light will not be used for an extended period. Store batteries in a cool, dry place.
• කේබල් පරීක්ෂාව: Regularly inspect power cables and connections for any signs of damage. Replace damaged cables immediately.

8. දෝශ නිරාකරණය

9. පිරිවිතර

10. වගකීම් සහ සහාය

Aputure products are covered by a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Aputure website. For technical support, troubleshooting assistance, or service inquiries, please contact Aputure customer support through their official channels.

සබැඳි සම්පත්:

• Official Aputure Webඅඩවිය: www.aputure.com
• Product Support Page: Refer to the official webනිශ්චිත නිෂ්පාදන සහාය පිටු සඳහා අඩවිය.
