1. හැඳින්වීම
This manual provides essential information for the safe and effective use of your Newmowa LP-E6/LP-E6N Battery (2 Pack) and Smart LCD Display Dual USB Charger. Please read these instructions carefully before use and retain them for future reference.
2. පැකේජ අන්තර්ගතය
පහත ලැයිස්තුගත කර ඇති සියලුම අයිතම ඔබේ පැකේජයට ඇතුළත් කර ඇති බව තහවුරු කරගන්න:
- 2 x Newmowa LP-E6/LP-E6N Replacement Batteries
- 1 x Smart LCD Display Dual USB Charger
- 1 x මයික්රෝ USB කේබලය
3. අනුකූල කැමරා ආකෘති
The Newmowa LP-E6/LP-E6N batteries and charger are compatible with the following Canon EOS camera models:
- Canon EOS 5D Mark IV
- කැනන් EOS 5D මාර්ක් III
- Canon EOS 6D
- Canon EOS 7D
- කැනන් EOS 7D මාර්ක් II
- Canon EOS 60D
- Canon EOS 70D
- Canon EOS 80D
- Canon XC10
Figure 3.1: Compatible Canon EOS camera models.
4. Setup and Charging Instructions
Follow these steps to set up your charger and begin charging your batteries:
- බැටරි ඇතුළු කරන්න: Carefully insert one or two LP-E6/LP-E6N batteries into the designated charging slots (CH1 and CH2) on the dual USB charger. Ensure the battery contacts align correctly with the charger pins.
- සම්බන්ධක බලය: Connect the provided Micro USB cable to the charger's input port. Connect the other end of the Micro USB cable to a compatible USB power source.
Figure 4.1: Steps for inserting batteries and connecting the charger.

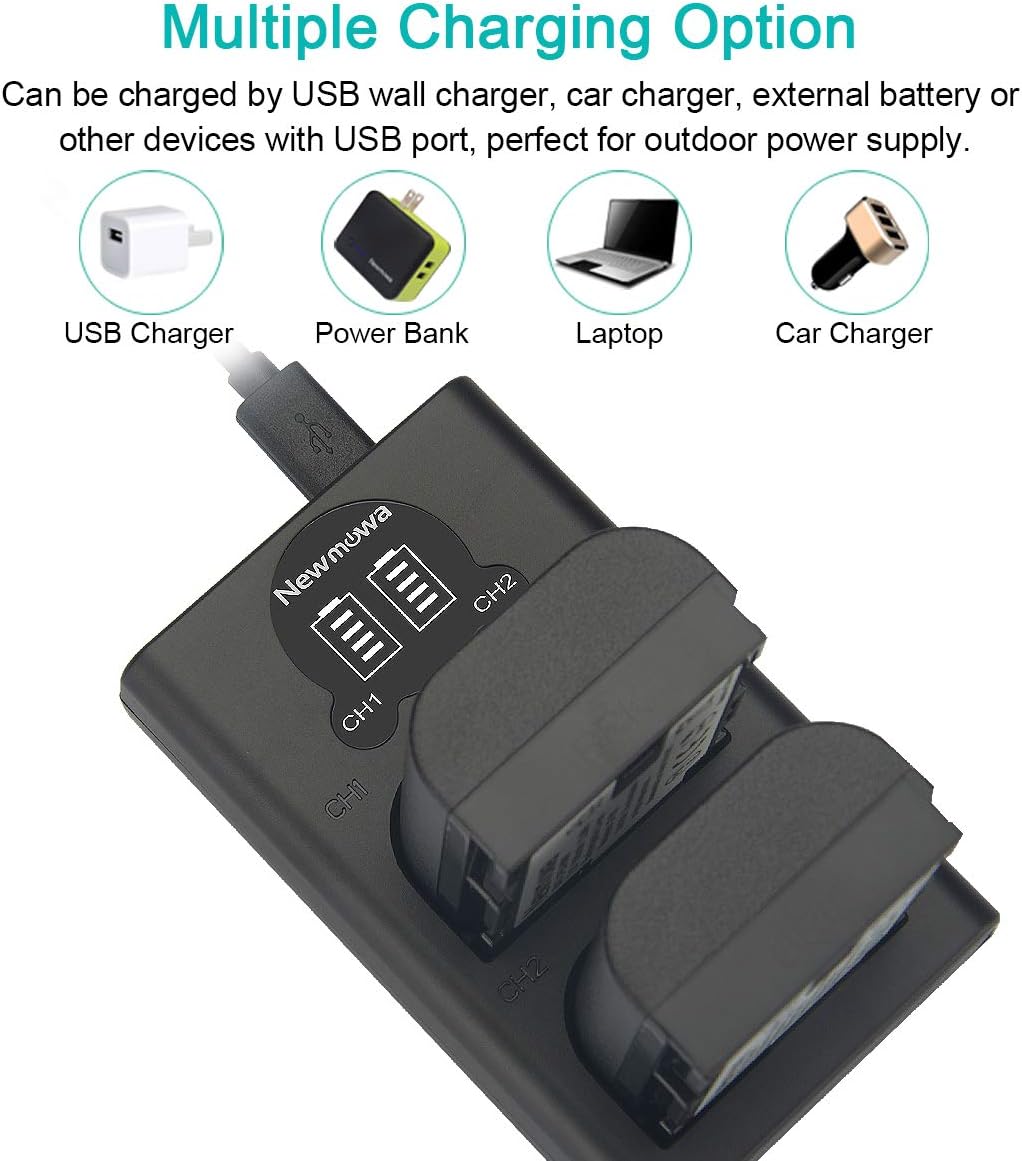

4.1 ආරෝපණ විකල්ප
The charger supports various USB power sources for convenience:
- USB වෝල් චාජර්
- බලශක්ති බැංකුව
- Laptop/Computer USB Port
- කාර් චාජර්
Figure 4.2: Multiple charging options for the Newmowa dual USB charger.

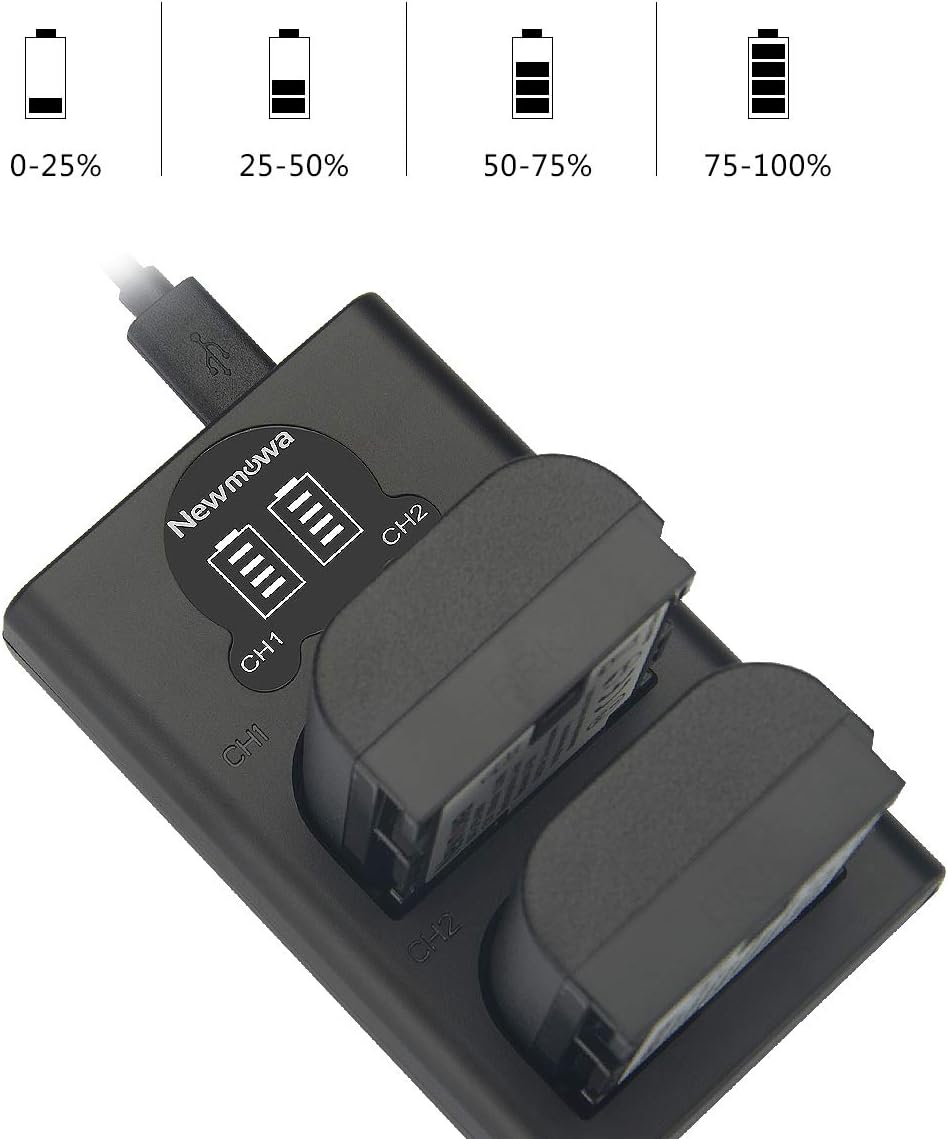

4.2 LCD දර්ශන දර්ශක
The Smart LCD Display provides real-time charging status for each battery:
- One Grid Flashing: බැටරි මට්ටම 0-25% අතර වේ.
- Two Grids Flashing: බැටරි මට්ටම 25-50% අතර වේ.
- Three Grids Flashing: බැටරි මට්ටම 50-75% අතර වේ.
- Four Grids Flashing: බැටරි මට්ටම 75-100% අතර වේ.
- Four Grids Solid: බැටරිය සම්පූර්ණයෙන්ම ආරෝපණය කර ඇත.
Figure 4.3: LCD display showing battery charge levels.
5. මෙහෙයුම් මාර්ගෝපදේශ
Once batteries are charged, remove them from the charger. Insert the charged batteries into your compatible Canon EOS camera according to the camera's instruction manual. The batteries are ready for use.
රූපය 5.1: උදාample of product use in an outdoor setting.
6. නඩත්තු කිරීම හා ගබඩා කිරීම
Proper maintenance and storage will extend the lifespan of your batteries and charger:
- පිරිසිදු කිරීම: Use a dry, soft cloth to clean the charger and battery contacts. Do not use liquid cleaners.
- ගබඩා: Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, it is recommended to store batteries with a partial charge (around 50%).
- ආරක්ෂාව: Utilize protective cases for batteries when not in use to prevent damage and short circuits.
Figure 6.1: Recommended battery storage in protective cases.
7. Safety Information and Protections
Your Newmowa charger and batteries are designed with multiple safety features:
- පරිපථ ආරක්ෂාව: Built-in protection against over-charging, short-circuiting, high-temperature, and power surges.
- Fire-Resistant Construction: High-quality, fire-resistant materials are used in the product's construction.
- සාමාන්ය ආරක්ෂාව: Do not expose batteries to high temperatures, disassemble, or short circuit them. Keep out of reach of children.
Figure 7.1: Integrated safety protection features.
8. දෝශ නිරාකරණය
ඔබට ගැටළු ඇති වුවහොත්, පහත පොදු විසඳුම් වෙත යොමු වන්න:
- චාජරය ක්රියාත්මක නොවේ: Ensure the USB cable is securely connected to both the charger and the power source. Try a different USB port or power adapter.
- බැටරි ආරෝපණය නොවේ: Verify that batteries are inserted correctly into the charger slots. Check for any debris on battery or charger contacts. Ensure the power source is active.
- මන්දගාමී ආරෝපණය: Ensure your USB power source provides sufficient current. Using a higher amperage USB adapter (e.g., 2A) can speed up charging.
9. පිරිවිතර
| විශේෂාංගය | පිරිවිතර |
|---|---|
| ආදර්ශ අංකය | VBD58-SB |
| බැටරි ධාරිතාව | 1800 mAh |
| බැටරි වෙළුමtage | 7.2V |
| බැටරි සෛල සංයුතිය | ලිතියම් අයන |
| චාජර් ආදානය | Micro USB / Type-C (Type-C cable not included) |
| අයිතමයේ බර | 8 ounces (approx. for entire package) |
| පැකේජ මානයන් | අඟල් 4.7 x 3.6 x 2.1 |
10. වගකීම් සහ සහාය
Newmowa products are designed for reliability and performance. For any questions, technical support, or warranty claims, please contact Newmowa customer service through the retailer's platform or the official Newmowa website. Please have your product model number (VBD58-SB) and purchase information ready.
