EBARA LPD Type Line Pump

1. හැඳින්වීම

This manual provides essential information for the safe and efficient installation, operation, and maintenance of the EBARA LPD Type Line Pump, Model 25LPD5.15. Please read this manual thoroughly before using the product and keep it for future reference.

2 ආරක්ෂිත තොරතුරු

වැදගත් ආරක්ෂක උපදෙස්:

• ඕනෑම නඩත්තුවක් හෝ පරීක්ෂණයක් සිදු කිරීමට පෙර සෑම විටම විදුලිය විසන්ධි කරන්න.
• විදුලි කම්පනය වැළැක්වීම සඳහා නිසි බිම් සැකසීම සහතික කරන්න.
• Do not operate the pump with damaged wiring or components.
• ස්ථාපනය සහ නඩත්තු කිරීමේදී සුදුසු පුද්ගලික ආරක්ෂක උපකරණ (PPE) පළඳින්න.
• Refer to local electrical codes and regulations for installation.

3. නිෂ්පාදන අවසන්view

The EBARA LPD Type Line Pump 25LPD5.15 is a compact and lightweight inline pump designed for various industrial and commercial applications. Its inline configuration allows for direct installation within existing piping systems, minimizing the required installation space. The design also facilitates easy disassembly and inspection without the need to remove the entire piping.

ප්රධාන ලක්ෂණ:

• සංයුක්ත සහ සැහැල්ලු: Inline design saves space.
• පහසු නඩත්තු: Disassembly and inspection possible without removing piping.
• බහුකාර්ය යෙදුම්: Suitable for cold/hot water circulation, various machine sets, and general water supply.

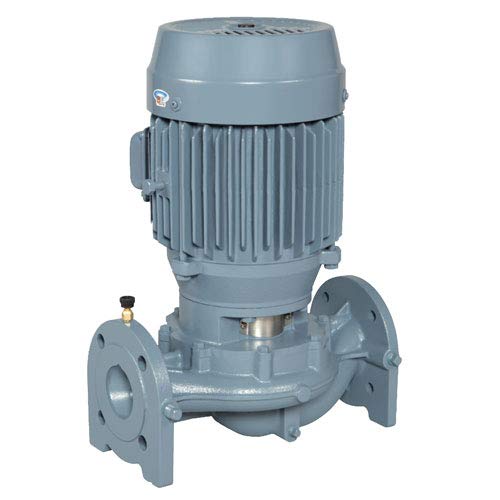

Figure 1: EBARA LPD Type Line Pump 25LPD5.15. This image shows the compact, inline design of the pump, highlighting its integration capability within a piping system.

4. පිහිටුවීම සහ ස්ථාපනය

4.1 ඉවත් කිරීම සහ පරීක්ෂා කිරීම

• Carefully remove the pump from its packaging.
• Inspect the pump for any visible damage that may have occurred during transit.
• ඇසුරුම් ලැයිස්තුවේ ලැයිස්තුගත කර ඇති සියලුම සංරචක පවතින බව තහවුරු කරන්න.

4.2 සවි කිරීම

• The LPD type pump is designed for inline installation directly into the piping system.
• Ensure the mounting location is stable, level, and can support the weight of the pump and associated piping when filled with liquid.
• Allow sufficient space around the pump for ventilation and future maintenance access.

4.3 Piping Connections

• Connect the pump to the piping system, ensuring all connections are tight and leak-free.
• Use appropriate sealing materials for pipe threads.
• Ensure the piping is properly supported to prevent strain on the pump casing.

4.4 විදුලි සම්බන්ධතා

• Connect the pump to a three-phase 200/220V power supply, matching the frequency of 50Hz.
• All electrical work must be performed by a qualified electrician in accordance with local codes.
• Ensure correct wiring for motor rotation.

5. මෙහෙයුම් උපදෙස්

5.1 පූර්ව මෙහෙයුම් පරීක්ෂාවන්

• Confirm all piping connections are secure and there are no leaks.
• පොම්පය සහතික කරන්න casing is filled with the liquid to be pumped (priming).
• Check that the power supply matches the pump's requirements.

5.2 පොම්පය ආරම්භ කිරීම

• Open the discharge valve gradually after starting the pump.
• Monitor for unusual noises or vibrations. If detected, shut down immediately and investigate.

5.3 පොම්පය නතර කිරීම

• Close the discharge valve gradually.
• පොම්පයට බල සැපයුම අක්රිය කරන්න.

5.4 ද්‍රව හැසිරවීම

This pump is designed to handle clean water within a temperature range of 0°C to 100°C. Do not use it for liquids outside this specification or for corrosive/abrasive fluids unless specifically approved by EBARA.

6. නඩත්තු කිරීම

Regular maintenance is crucial for the longevity and optimal performance of your EBARA pump. Always disconnect power before beginning any maintenance procedures.

6.1 සාමාන්‍ය පරීක්ෂාව

• Check for leaks around the shaft seal and piping connections.
• Listen for unusual noises or vibrations during operation.
• Monitor motor temperature.

6.2 Disassembly and Inspection (without removing piping)

A key feature of the LPD pump is the ability to disassemble and inspect internal components without detaching the pump from the main piping. Refer to the detailed exploded view diagram (not provided in this document, refer to official EBARA service manual) for specific steps. This typically involves:

1. Shutting down the pump and isolating it from the power supply.
2. Draining the pump casing.
3. Removing the motor and impeller assembly from the casing while the casing remains inline.
4. Inspecting the impeller, mechanical seal, and bearings for wear or damage.
5. Replacing worn parts as necessary.
6. Reassembling the pump, ensuring all seals are correctly seated.

6.3 Mechanical Seal Replacement

The pump uses a mechanical seal. If leaks persist from the shaft seal, the mechanical seal may need replacement. This is a precision component and should be handled with care. Consult a qualified technician for replacement if you are unfamiliar with the procedure.

7. දෝශ නිරාකරණය

This section provides solutions to common issues. For problems not listed here, contact EBARA technical support.

8. පිරිවිතර

9. වගකීම් සහ සහාය

For warranty information, technical support, or to order replacement parts, please contact your authorized EBARA distributor or visit the official EBARA website. Keep your purchase receipt and product model number (25LPD5.15) handy when contacting support.
