1. හැඳින්වීම සහ අවසන්view
The MARCY SM4000 Deluxe Smith Machine is a robust and versatile strength training system designed for comprehensive home gym workouts. This unit integrates a guided Smith bar, a cable pulley system, and an adjustable utility bench, providing a wide array of exercise options for a full-body workout. Its heavy-duty construction ensures stability and safety during intensive training sessions.
Image 1.1: The Marcy SM4000 Deluxe Smith Machine, highlighting its comprehensive design including the Smith bar, cable system, and adjustable bench.
Image 1.2: The Marcy SM4000 Smith Machine integrated into a home gym setting, demonstrating its compact yet complete footprint.
ප්රධාන ලක්ෂණ:
- Guided Smith Barbell System with smooth bushings and 9 safety catches.
- Integrated High and Low Cable Pulley System.
- Independent Adjustable Utility Bench with commercial-grade adjustments (upright, incline, flat, decline).
- Pec Dec (Butterfly) System.
- Leg Developer and Preacher Curl Pad attachments.
- Heavy-duty 2mm steel construction for durability.
- Compatible with both 25mm and 50mm Olympic weight plates (adapter included).
- Aircraft cable with 900kg tensile strength for lasting performance.
- 100mm nylon pulleys with sealed ball bearings for smooth operation.
2 ආරක්ෂිත තොරතුරු
Before operating the Marcy SM4000, it is crucial to read and understand all safety instructions. Failure to do so may result in serious injury or damage to the equipment.
- වෛද්යවරයෙකුගෙන් විමසන්න: Before starting any exercise program, consult with a healthcare professional to ensure it is appropriate for your physical condition.
- වැඩිහිටි අධීක්ෂණය: This equipment is designed for adult use. Keep children and pets away from the machine during operation.
- නිසි එකලස් කිරීම: භාවිතයට පෙර උපදෙස් අනුව සියලුම සංරචක නිවැරදිව එකලස් කර තද කර ඇති බවට සහතික වන්න.
- ස්ථාවර මතුපිට: Place the machine on a flat, stable surface to prevent tipping or instability.
- නිෂ්කාශන ප්රදේශය: Maintain adequate clearance around the machine (at least 0.6 meters or 2 feet) for safe operation and movement.
- භාවිතයට පෙර පරීක්ෂා කරන්න: Before each workout, inspect the machine for any loose parts, worn cables, or damaged components. Do not use if any damage is present.
- බර සීමාවන්: Do not exceed the maximum weight capacities:
- Smith Machine Bar/Safety Catches: 135 kg (300 lbs)
- User Weight on Bench: 135 kg (300 lbs)
- නිසි පෝරමය: Always use proper exercise form to prevent injury. If you experience pain or discomfort, stop immediately.
- Spotter: While the Smith machine offers inherent safety, consider using a spotter for heavy lifts, especially when pushing your limits.
- Secure Weights: Always secure weight plates with collars on the Smith bar and weight storage pegs.
3. එකලස් කිරීම සහ සැකසීම
Assembly of the Marcy SM4000 requires careful attention to detail and is best performed with two people. The approximate assembly time is 6 to 10 hours.
3.1 ඇසිරීම සහ ඉන්වෙන්ටරි
Carefully unpack all components from the boxes. Verify that all parts listed in the included assembly manual are present and undamaged. Report any missing or damaged parts to customer service immediately.
3.2 අවශ්ය මෙවලම්
While some basic tools may be included, it is recommended to have the following tools readily available for assembly:
- Adjustable Wrench Set
- සොකට් රෙන්ච් සෙට්
- ඇලන් යතුරු කට්ටලය
- රබර් මල්ලට්
- මිනුම් පටිය
3.3 එකලස් කිරීමේ පියවර
Refer to the detailed step-by-step instructions and diagrams provided in the separate assembly manual included with your product. Follow each step precisely to ensure proper and safe construction of the unit.
3.4 ස්ථානගත කිරීම සහ මානයන්
Choose a suitable location for your Smith Machine, ensuring sufficient space for operation and movement. The assembled dimensions of the unit (including the bench) are approximately:
- උස: 210 cm (අඟල් 82.7)
- Width (at Smith press station): 198 cm (78 inches)
- Length (including bench): 254 cm (100 inches)

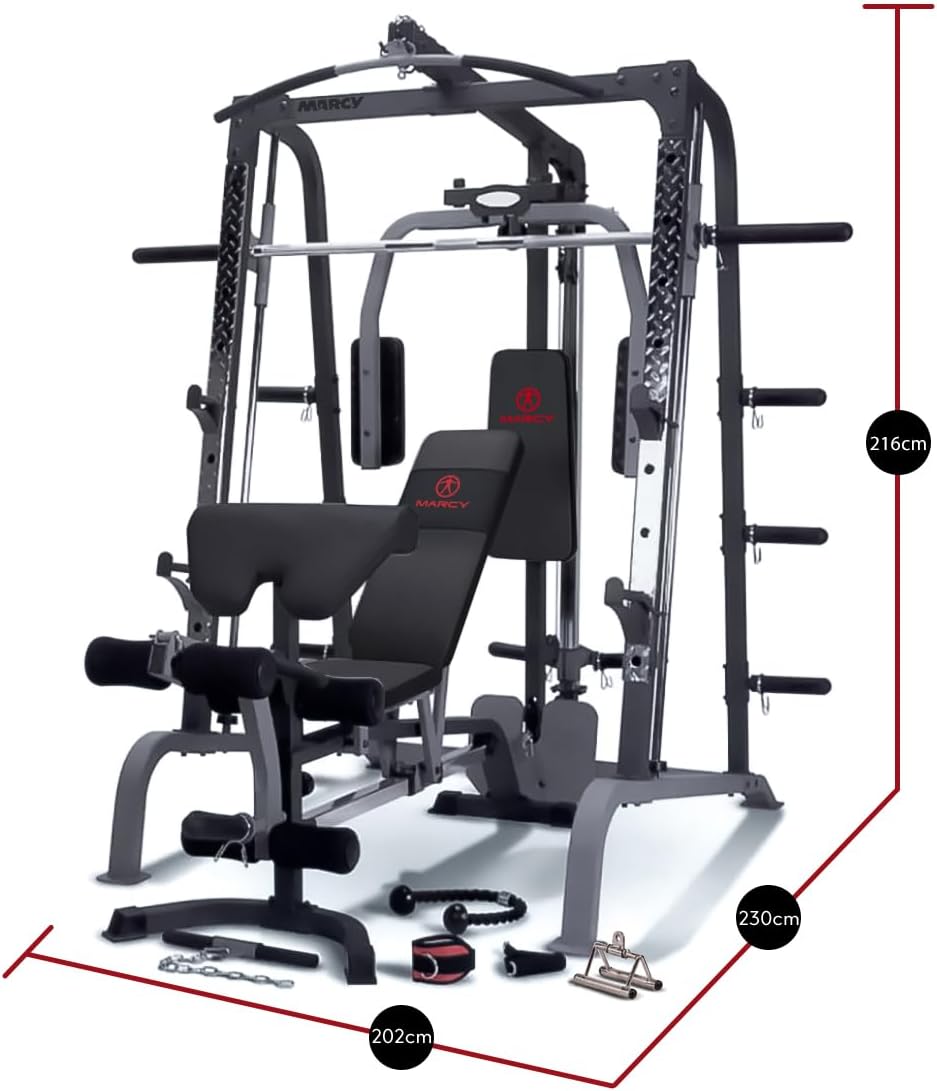

රූපය 3.1: මානයන් සහිත උඩින්view of the Marcy SM4000, indicating its height, width, and length for space planning.
4. මෙහෙයුම් උපදෙස්
The Marcy SM4000 offers a variety of exercise possibilities. Familiarize yourself with each component before beginning your workout.
4.1 Smith Machine Bar Operation
The guided Smith bar moves vertically along the main frame. To unrack the bar, rotate it slightly to disengage from the safety catches. To re-rack, lift the bar slightly and rotate it back into the catches. Always ensure the bar is securely re-racked after each set.

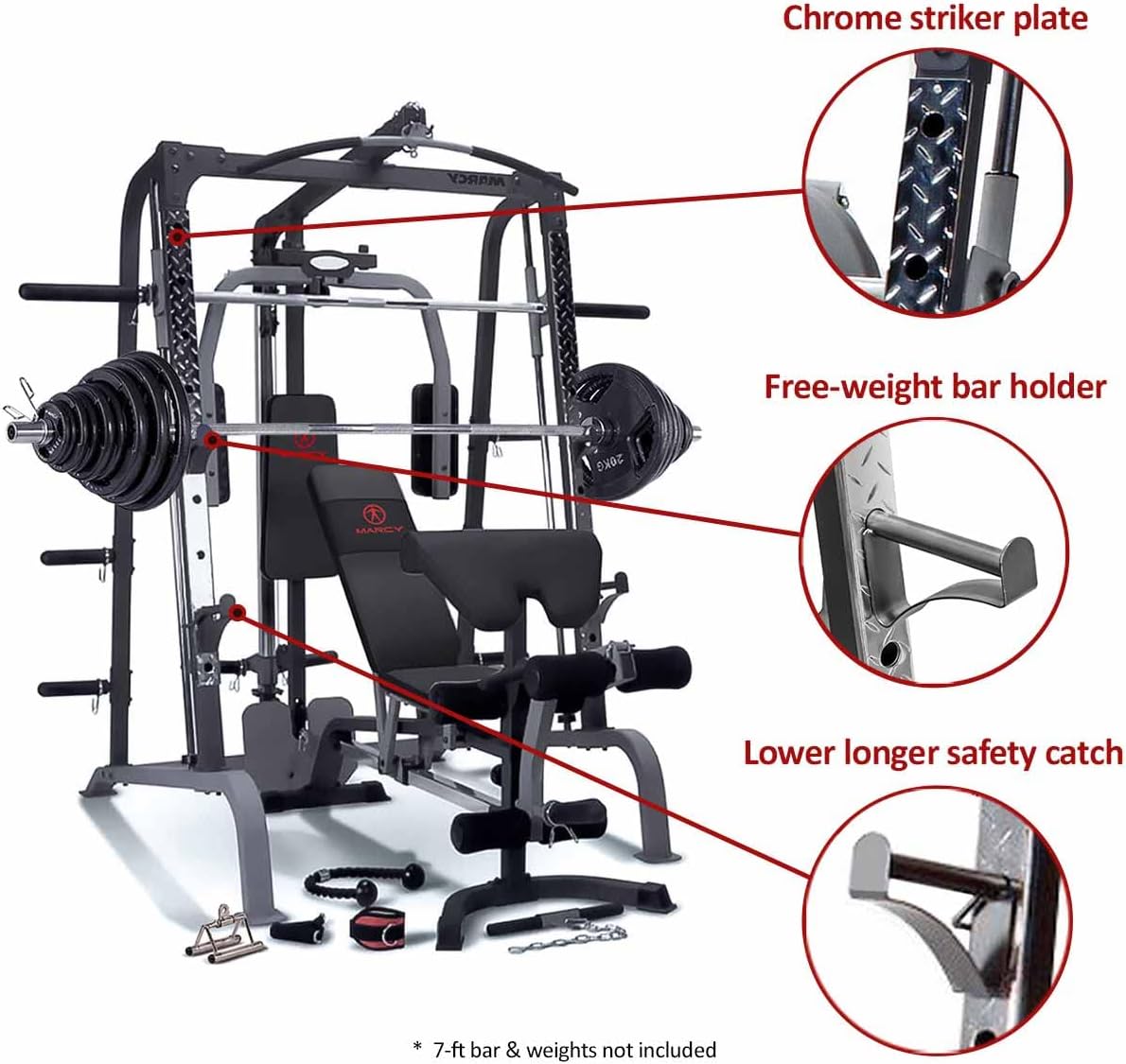

රූපය 4.1: විස්තරාත්මක view of key Smith Machine components, including the chrome striker plate for smooth bar movement, the free-weight bar holder, and the extended safety catch for enhanced security.
4.2 Adjustable Utility Bench
The independent utility bench can be adjusted to multiple positions: upright, incline, flat, and decline. Use the chrome slide track and quick-release pin to adjust the backrest and seat angle. Ensure the bench is securely locked in position before use.
Image 4.2: Features of the adjustable utility bench, showing the removable biceps handle, the chrome slide track with 7 adjustment points for varied angles, and the robust commercial-grade cantilever system for stability.
4.3 Cable Pulley System
The machine features both high and low cable pulleys. Attach the desired accessory (e.g., lat bar, triceps rope, single handle) to the carabiner. Ensure weight plates are securely loaded onto the weight pegs before performing exercises.
4.4 ඇතුළත් උපාංග
The SM4000 comes with various accessories to enhance your workout:
- Lat Pull Down Bar
- Biceps/Triceps Handle
- ට්රයිසෙප්ස් කඹය
- තනි හස්තයක්
- Parallel Grip Handle
- වළලුකර පටිය
- Olympic Plate Adapter (for 50mm plates)
4.5 අභ්යාස උදා.amples
The Marcy SM4000 allows for a wide range of exercises targeting different muscle groups. Below are some examples:
රූපය 4.3: උදාamples of exercises possible with the SM4000, including Pectoral Dec flyes, guided Smith bar chest press, and leg developer curls.
Image 4.4: A comprehensive visual guide to various exercises that can be performed on the Marcy SM4000, targeting chest, back, shoulders, legs, triceps, biceps, and abdominals.
- පපුව: Flat Press, Incline Press, Decline Press (using Smith bar or free weights with bench), Pectoral Dec.
- ආපසු: Lat Pulldown, Seated Row (using low pulley), Rear Flyes.
- Shoulders: Front Raise (cable), Shoulder Press (Smith bar or free weights).
- කකුල්: පාද දිගුව, පාදය Curl (using leg developer), Squats (Smith bar).
- ආයුධ: බයිසෙප් සීurls (Preacher Curl Pad or cable), Tricep Pushdown (cable), Tricep Kickbacks (cable).
- හරය: High Cable Crunch.
Always start with light weights to master the form before increasing resistance. A workout chart may be included with your product for additional guidance.
5. නඩත්තු කිරීම
Regular maintenance ensures the longevity and safe operation of your Marcy SM4000.
- පිරිසිදු කිරීම: දැන්වීම සමඟ යන්ත්රය පිස දමන්නamp එක් එක් භාවිතයෙන් පසු දහඩිය සහ දූවිලි ඉවත් කිරීම සඳහා රෙදි සෝදන්න. උල්ෙල්ඛ පිරිසිදු කරන්නන්ගෙන් වළකින්න.
- ලිහිසි තෙල්: Periodically lubricate the guided Smith bar and pulley system components (e.g., with WD-40 or silicone spray) to ensure smooth operation and prevent friction. Pay attention to the plastic bushings on the Smith bar and the sealed ball bearings in the pulleys.
- කේබල් පරීක්ෂාව: සියලුම කේබල් දිරාපත් වීම, ඇඹරීම හෝ ගෙවී යාම සඳහා නිතිපතා පරීක්ෂා කරන්න. හානියට පත් කේබල් වහාම ප්රතිස්ථාපනය කරන්න.
- බෝල්ට් තද බව: Check all nuts and bolts periodically and tighten them as necessary. Vibrations from use can cause fasteners to loosen over time.
- උඩු මහලේ රැකවරණය: Clean the bench upholstery with a mild soap and water solution. Avoid harsh chemicals that could damage the material.
6. දෝශ නිරාකරණය
This section addresses common issues you might encounter with your Marcy SM4000.
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| Smith bar feels sticky or rough. | Lack of lubrication on guide rods; dust/debris on rods. | Clean guide rods thoroughly. Apply a silicone-based lubricant or WD-40 to the rods and bushings. |
| Pulleys are noisy or not smooth. | Lack of lubrication; debris in pulley mechanism; worn bearings. | Inspect pulleys for debris and clean. Apply lubricant to the pulley axles. If noise persists, bearings may need replacement (contact support). |
| Machine wobbles or feels unstable. | Loose bolts; uneven floor surface. | Check and tighten all assembly bolts. Ensure the machine is on a flat, level surface. Use shims if necessary. |
| Cable system feels stiff or catches. | Cable fraying; misaligned pulleys; lack of lubrication. | Inspect cables for damage and replace if necessary. Check pulley alignment. Lubricate cables and pulleys. |
If you encounter a problem not listed here, or if the suggested solutions do not resolve the issue, please contact Marcy customer support.
7. පිරිවිතර
Detailed technical specifications for the Marcy SM4000 Deluxe Smith Machine:
| පිරිවිතර | වටිනාකම |
|---|---|
| ආදර්ශ අංකය | SM4000 |
| මානයන් (L x W x H) | 254 cm x 198 cm x 210 cm (100 in x 78 in x 82.7 in) |
| නිෂ්පාදන බර | 85 kg (රාත්තල් 187) |
| Maximum Weight Capacity (Smith Rack/Safety Catches) | 135 kg (රාත්තල් 300) |
| Maximum User Weight (Bench) | 135 kg (රාත්තල් 300) |
| ප්රධාන ද්රව්ය | Heavy-duty 2mm Steel |
| කේබල් වර්ගය | Aircraft Cable (900 kg tensile strength) |
| පුලිස් | 100mm Nylon Pulleys with Sealed Ball Bearings |
| වර්ණය | කළු |
| ආරක්ෂිත ප්රමිතිය | EN-957 Certified |
8. වගකීම් සහ සහාය
Marcy provides support and spare parts availability for the SM4000 Deluxe Smith Machine.
8.1 අමතර කොටස් ලබා ගැනීමේ හැකියාව
Spare parts for this product are available for a period of 7 years from the date of purchase within the EU.
8.2 පාරිභෝගික සහාය
For any questions regarding assembly, operation, maintenance, or troubleshooting, please contact Marcy customer support. Refer to the contact information provided in your purchase documentation or on the official Marcy webඅඩවිය.
