AGPTEK HDMI KVM Extender Receiver Instruction Manual

1. හැඳින්වීම

This manual provides detailed instructions for the AGPTEK HDMI KVM Extender Receiver. This device is designed to extend HDMI video and KVM (Keyboard, Video, Mouse) signals over a single Cat 5/5e/6/7 Ethernet cable, supporting resolutions up to 1080p at 60Hz. Please note that this product is the receiver unit only and requires a compatible AGPTEK HDMI KVM Extender transmitter unit (sold separately) for operation.

රූපය 1.1: ඉහළට view of the AGPTEK HDMI KVM Extender Receiver, showing the 'HDMI KVM EXTENDER RX Receiver' label.

2. නිෂ්පාදන ලක්ෂණ

• High-Definition Transmission: Transmits Ultra HD picture signals up to 1080p at 60Hz.
• Ethernet Cable Compatibility: Supports STP & UTP compliant CAT5/5e/6/7 cables.
• විස්තීරණ පරාසය: Signal extension up to 120 meters (365 feet) over a single Ethernet cable.
• EDID Functionality: Copy EDID function to ensure compatibility with various display devices.
• ජාල සම්මත: Supports standard 802.3 Ethernet 10/100/1000Mbps.
• KVM ක්‍රියාකාරීත්වය: Transmits keyboard and mouse data via LAN.
• තත්ව දර්ශක: LED indicators for power and USB connection status.
• කල් පවතින නිර්මාණය: Aluminum alloy housing for port stability and durability.
• ආරක්ෂාව: Built-in ESD protection system for safer transmission.
• බහු-ග්‍රාහක සහාය: A single transmitter can connect to multiple receivers via a router or network switch for multi-screen display.

Image 2.1: Visual representation of key features including TCP/IP agreement, KVM support, 120m extension, concise design, and 1080p HD support.

3. පැකේජ අන්තර්ගතය

සියලුම අයිතම පවතින බව සහතික කර ගැනීම සඳහා විවෘත කිරීමේදී පැකේජයේ අන්තර්ගතය පරීක්ෂා කරන්න:

• 1 x AGPTEK HDMI KVM Extender (Receiver Unit)
• 1 x CD (USB Driver Software)
• 1 x බල ඇඩැප්ටරය (DC 5V)
• 1 x පරිශීලක අත්පොත (මෙම ලේඛනය)

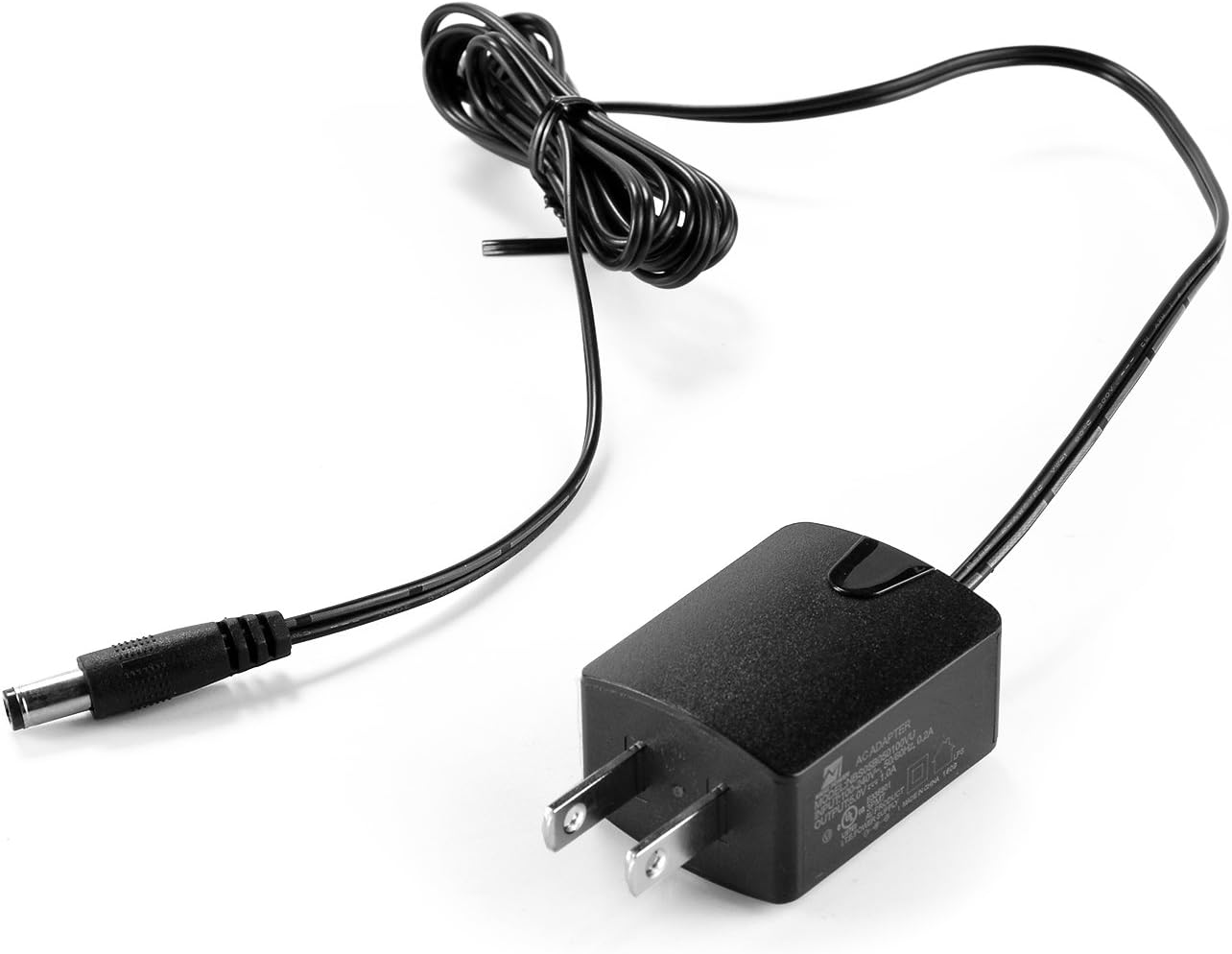

Image 3.1: The included DC 5V power adapter.

4. ස්ථාපන අවශ්යතා

Before proceeding with the setup, ensure you have the following:

• සම්ප්රේෂක ඒකකය: A compatible AGPTEK HDMI KVM Extender transmitter unit. This receiver unit cannot function independently.
• මූලාශ්ර උපාංගය: A PC or other device with an HDMI graphics card (connected to the transmitter).
• සංදර්ශක උපාංගය: A monitor, HDTV, or SDTV with an HDMI input port (connected to the receiver).
• ජාල කේබල්: UTP/STP CAT5E/6 network cables, compliant with the IEEE-568B standard. Recommended cable lengths for optimal performance: CAT5 up to 80m, CAT5E up to 100m, CAT6 up to 120m.

5. සැකසුම් උපදෙස්

Follow these steps to set up your AGPTEK HDMI KVM Extender Receiver:

1. සම්බන්ධක සංදර්ශකය: Connect an HDMI cable from your display device (monitor, TV) to the HDMI පිටතට port on the receiver unit.
2. Connect KVM Devices: Connect your USB keyboard and/or mouse to the USB ports on the receiver unit.
3. ඊතර්නෙට් කේබලය සම්බන්ධ කරන්න: Connect a CAT5/5e/6/7 Ethernet cable from your network switch/router (or directly from the transmitter unit) to the LAN RX port on the receiver unit. Ensure the cable is securely seated.
4. සම්බන්ධක බලය: Plug the provided DC 5V power adapter into the DC 5V port on the receiver unit, then plug the adapter into a power outlet.
5. Power On Transmitter: Ensure your AGPTEK HDMI KVM Extender transmitter unit is also powered on and correctly connected to your source device and the network.
6. Verify Status: Check the LED indicators on the receiver unit. The power LED should be lit, and the LAN RX LED should indicate an active network connection.

Image 5.1: Diagram showing the HDMI Output, USB ports for mouse/keyboard, signal light, Ethernet cable input (LAN RX), and Reset button on the receiver unit.

රූපය 5.2: සමීප රූපය view of the receiver unit with a USB mouse and keyboard connected, illustrating the KVM functionality.

System Diagram for Multiple Receivers:

Image 5.3: System diagram illustrating how a computer (source) connects to a transmitter (TX), which then connects to a router or switch. Multiple receiver units (RX) can connect to the same router/switch via Ethernet cables, each displaying the signal on a separate monitor.

6. මෙහෙයුම

Once all connections are made and both the transmitter and receiver units are powered on, the system should automatically detect and extend the HDMI and KVM signals. The display connected to the receiver will show the video output from the source device connected to the transmitter. The keyboard and mouse connected to the receiver will control the source device.

• සංඥා සම්ප්රේෂණය: The video and audio signals, along with keyboard and mouse data, are transmitted over the Ethernet cable.
• Multi-Screen Display: If you have multiple receiver units connected to the same network (via a router or switch) as the transmitter, each receiver will display the same source content, allowing for a multi-screen setup.
• USB Driver: If your keyboard or mouse is not recognized, install the USB driver software from the included CD on your source computer.

7. දෝශ නිරාකරණය

If you encounter issues, refer to the following troubleshooting tips:

• සංදර්ශකය/සංඥාව නැත:
  • Ensure both the transmitter and receiver units are powered on and their respective power LEDs are lit.
  • Verify all HDMI and Ethernet cables are securely connected and not damaged.
  • Check that the Ethernet cable type (CAT5/5e/6/7) and length are within the recommended specifications (max 120m for CAT6).
  • Confirm the display device is set to the correct HDMI input.
  • Test the HDMI source and display directly without the extender to rule out issues with those components.
• Keyboard/Mouse Not Working:
  • Ensure the USB cables from the keyboard/mouse are firmly connected to the receiver's USB ports.
  • Install the USB driver software from the provided CD on the source computer.
  • Try connecting the keyboard/mouse directly to the source computer to confirm they are functional.
• Intermittent Signal/Disconnections:
  • Check the quality and integrity of your Ethernet cable. A damaged or low-quality cable can cause instability.
  • Ensure the power adapters for both transmitter and receiver are providing stable power.
  • If using a network switch/router, ensure it is functioning correctly and not overloaded.
  • Reduce the cable length if it is close to the maximum recommended distance.
• දුර්වල පින්තූර ගුණාත්මකභාවය:
  • Ensure you are using high-quality HDMI and Ethernet cables.
  • Check the resolution settings on your source device.

8. පිරිවිතර

9. නඩත්තු කිරීම

To ensure the longevity and optimal performance of your AGPTEK HDMI KVM Extender Receiver, follow these maintenance guidelines:

• පිරිසිදු කිරීම: උපාංගයේ බාහිර පෙනුම පිරිසිදු කිරීම සඳහා මෘදු වියළි රෙද්දක් භාවිතා කරන්න. දියර පිරිසිදු කරන්නන් හෝ එයරොසෝල් භාවිතා නොකරන්න.
• පරිසරය: Keep the device in a cool, dry place, away from direct sunlight, heat sources, and excessive moisture.
• වාතාශ්රය: Ensure proper airflow around the unit to prevent overheating. Do not block ventilation openings.
• කේබල් කළමනාකරණය: Avoid bending or kinking cables sharply, as this can damage them and affect signal quality.
• විදුලිය විසන්ධි කිරීම: Disconnect the power adapter when the device is not in use for extended periods.

10. වගකීම් සහ සහාය

AGPTEK products are designed for reliability and performance. This product comes with a manufacturer's warranty. For specific warranty details, please refer to the warranty card included in your package or visit the official AGPTEK webඅඩවිය.

If you require technical assistance, encounter issues not covered in this manual, or need to inquire about warranty service, please contact AGPTEK customer support through their official channels. Have your product model number (COMINU051167) and purchase information ready when contacting support.
