හැඳින්වීම
This manual provides essential information for the safe and effective use of your KMC 8-Outlet Metal Power Strip Surge Protector. Please read these instructions carefully before installation and operation, and retain them for future reference.
ආරක්ෂිත තොරතුරු
To reduce the risk of electric shock, fire, or injury, always follow basic safety precautions:
- Do not exceed the electrical ratings of 125V/15A/1875W.
- මෙම උපාංගය ගෘහස්ථ භාවිතය සඳහා පමණක් අදහස් කෙරේ. තෙතමනයට නිරාවරණය නොවන්න.
- Do not disassemble or modify the unit. There are no user-serviceable parts inside.
- විදුලි රැහැන සම්පූර්ණයෙන්ම භූගත අලෙවිසැලකට ඇතුළු කර ඇති බවට වග බලා ගන්න.
- දරුවන් විදුලි තීරුවෙන් ඈත් කරන්න.
- Do not use in conjunction with aquariums or other water-related products.
- If the circuit breaker trips, reduce the load by unplugging some devices before resetting.
නිෂ්පාදන විශේෂාංග
The KMC 8-Outlet Metal Power Strip Surge Protector is designed for reliable power distribution and protection.
- 8 AC අලෙවිසැල්: Provides power to multiple devices simultaneously.
- 1800 ජූල්ස් සර්ජ් ආරක්ෂණය: Shields connected electronics from power surges.
- 15A Resettable Circuit Breaker: Protects against overloads.
- කල් පවතින ලෝහ නිවාස: Ensures longevity and suitability for various environments.
- Integrated Mounting Brackets: Allows for secure installation on racks, walls, or under desks.
- අඩි 6 විදුලි රැහැන්: Offers flexible placement options.
- UL/ETL Certified: Meets safety standards.
සැලසුම
සවිකිරීමේ උපදෙස්
The power strip features integrated metal mounting brackets for versatile installation. It can be mounted to server racks, walls, desks, cabinets, or workbenches.
- Identify a suitable mounting location that is dry, stable, and within reach of the power cord.
- Use appropriate screws or bolts (not included) to secure the mounting brackets to the desired surface. Ensure the mounting hardware is strong enough to support the power strip and any connected devices.
- The brackets allow for 180-degree flexible mounting orientation, enabling you to position the power strip as needed.
Image: Close-up of the metal mounting brackets, illustrating their design for flexible installation.

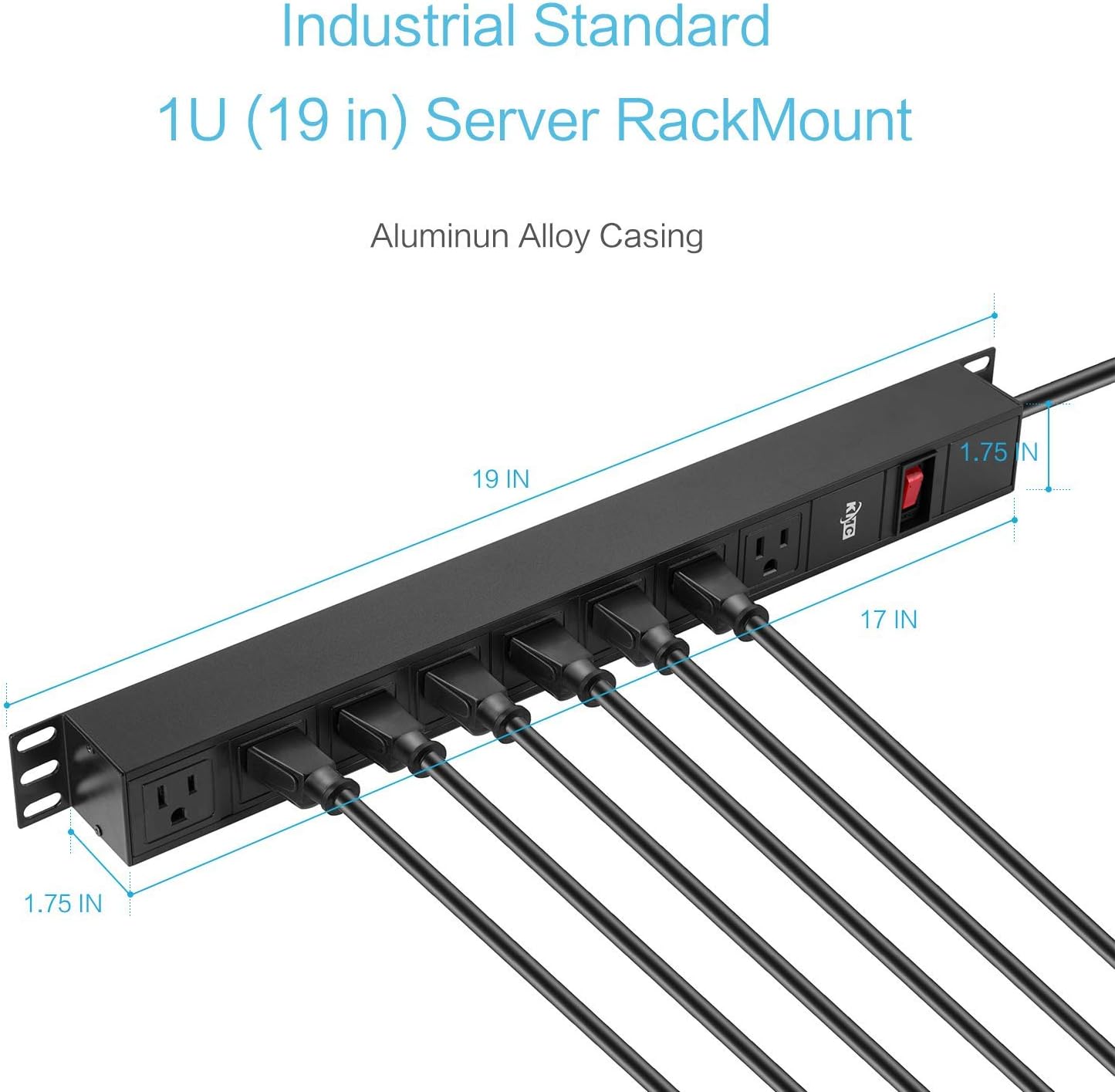

Image: Diagram illustrating the dimensions of the power strip and its industrial standard 1U (19 inch) server rack mount compatibility.
උපාංග සම්බන්ධ කිරීම
Once mounted, plug your electronic devices into the 8 AC outlets on the power strip. Ensure all plugs are fully inserted.
රූපය: සමීප රූපය view of the 8 AC outlets on the power strip.
විදුලි රැහැන්
The power strip comes with a 6-foot SJT insulated 14 AWG extension cord. Plug this cord into a standard 125V grounded wall outlet.
මෙහෙයුම් උපදෙස්
බල ගැන්වීම / අක්රිය කිරීම
The power strip features a master ON/OFF switch. Press the switch to the 'ON' position to supply power to the outlets and to the 'OFF' position to cut power.
Image: Close-up of the power strip's ON/OFF switch and integrated 15A resettable circuit breaker.
Surge සහ Overload ආරක්ෂාව
This power strip provides 1800 Joules of surge protection to safeguard your electronics from voltage spikes. It also includes a 15A resettable circuit breaker. If the total current draw from connected devices exceeds 15 amps, the circuit breaker will trip, cutting power to prevent overload. To reset, unplug some devices and then press the circuit breaker button.
නඩත්තු කිරීම
To ensure optimal performance and longevity of your power strip:
- Keep the unit clean and free of dust. Use a dry cloth for cleaning.
- Avoid placing the power strip in areas with high humidity or extreme temperatures.
- Regularly inspect the power cord and plugs for any signs of damage. Do not use if damaged.
දෝෂගවේෂණය
- අලෙවිසැල් වලට විදුලිය නැත:
- Check if the power strip's ON/OFF switch is in the 'ON' position.
- Verify that the power strip's cord is securely plugged into a working wall outlet.
- Check if the circuit breaker has tripped. If so, reduce the load and press the reset button.
- Ensure the wall outlet itself is receiving power by testing it with another device.
- Devices Not Charging/Powering On:
- Ensure the device's power cord is fully inserted into the power strip outlet.
- Test the device by plugging it directly into a wall outlet to rule out device malfunction.
පිරිවිතර
| විශේෂාංගය | පිරිවිතර |
|---|---|
| ආදර්ශ අංකය | 8541545282 |
| නිෂ්පාදන මානයන් | අඟල් 19 x 1.75 x 1.75 |
| ශ්රේණිගත කළ වෙළුමtage | 125V ~ / 60Hz |
| උපරිම ධාරාව | 15A |
| මැක්ස් වොට්tage | 1875W |
| Surge ආරක්ෂාව | ජූල් 1800 |
| මුළු විදුලි බලාගාර | 8 |
| විදුලි රැහැන් දිග | අඩි 6 යි |
| සහතික | ETL සහතිකය |
| මෙහෙයුම් උෂ්ණත්වය | -10℃ සිට +40℃ දක්වා |
| ගබඩා උෂ්ණත්වය | -10℃ සිට +60℃ දක්වා |
| වැඩ කරන ආර්ද්රතාවය | 5% (0℃) ~ 90% (40℃) |
වගකීම් තොරතුරු
This KMC Power Strip Surge Protector is backed by a Lifetime Warranty. For warranty claims or further details, please contact KMC Customer Support.
පාරිභෝගික සහාය
For any questions, technical assistance, or support regarding your KMC product, please contact our US-based Customer Support team. Refer to the product packaging or the KMC official webවත්මන් සම්බන්ධතා තොරතුරු සඳහා අඩවිය.
