LSLYA Dual 2 Din 7-inch Bluetooth Car Stereo with GPS Navigation

හැඳින්වීම

This manual provides detailed instructions for the installation, operation, and maintenance of your LSLYA Dual 2 Din 7-inch Bluetooth Car Stereo with GPS Navigation. Please read this manual thoroughly before using the product to ensure proper function and to prevent damage.

ආරක්ෂිත තොරතුරු

• වෘත්තීය ස්ථාපනය නිර්දේශ කෙරේ: Installation of this car stereo requires professional guidance. Incorrect installation can lead to a short circuit or damage to the unit and vehicle. If you are unsure, seek professional assistance.
• බල සැපයුම: This car stereo operates on a 12V DC power supply. Verify your vehicle's voltage before installation. Connecting to an incompatible voltage will cause a short circuit.
• රැහැන් සම්බන්ධතා: Always confirm the positive and negative terminals of your car's power supply. Connect wires according to the provided wiring diagram to ensure correct operation and prevent damage.
• No CD/DVD Player: This unit is not equipped with a CD/DVD player.
• Non-Removable Faceplate: The faceplate of this car stereo is not removable.

සැකසුම සහ ස්ථාපනය

රැහැන් සටහන

Refer to the following diagram for proper wiring connections. Ensure all connections are secure and insulated.

This comprehensive wiring diagram provides instructions for connecting the LSLYA car stereo to the vehicle's electrical system. It details connections for all four speakers (front/rear, left/right), the rear camera, steering wheel control, constant power (+12V B+), ignition switch (+12V ACC), ground (B-), auto antenna, and headlight detection line. Proper installation according to this diagram is crucial for correct operation.

Physical Installation and Connections

The unit is designed for a standard Dual 2 Din opening. Ensure adequate space and secure mounting. Connect all necessary cables to the rear of the unit as shown in the diagram below.

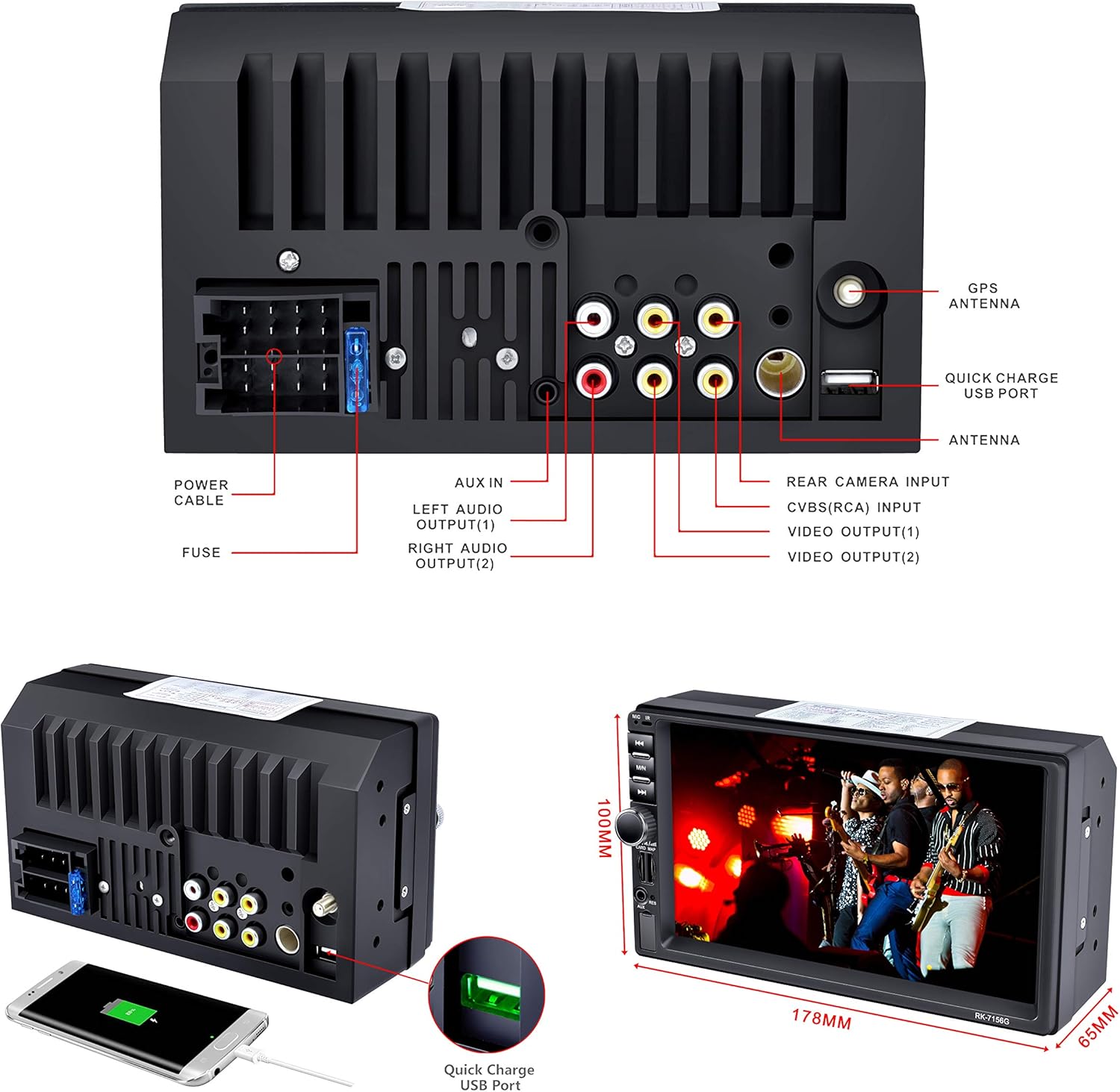

මෙම රූපය සවිස්තරාත්මක පසුපස දර්ශනයක් සපයයි view of the LSLYA car stereo, illustrating all available input and output ports. These include connections for the GPS antenna, quick charge USB, radio antenna, rear camera, video outputs, left and right audio outputs, AUX input, power cable, and fuse. The physical dimensions of the unit are also indicated.

• ජීපීඑස් ඇන්ටෙනාව: Connect the GPS antenna to the designated port for navigation functionality.
• ගුවන්විදුලි ඇන්ටනා: ඔබේ වාහනයේ රේඩියෝ ඇන්ටනාව සම්බන්ධ කරන්න.
• පසුපස කැමරා ආදානය: Connect a compatible rear view camera for parking assistance.
• USB Ports: Utilize the USB ports for media playback and device charging.
• Audio/Video Outputs: බාහිර සම්බන්ධ කරන්න amplifiers or monitors as needed.

මෙහෙයුම් උපදෙස්

මූලික පාලන සහ අතුරුමුහුණත

The unit features a 7-inch touchscreen for primary control, supplemented by physical buttons on the left side for quick access to essential functions.

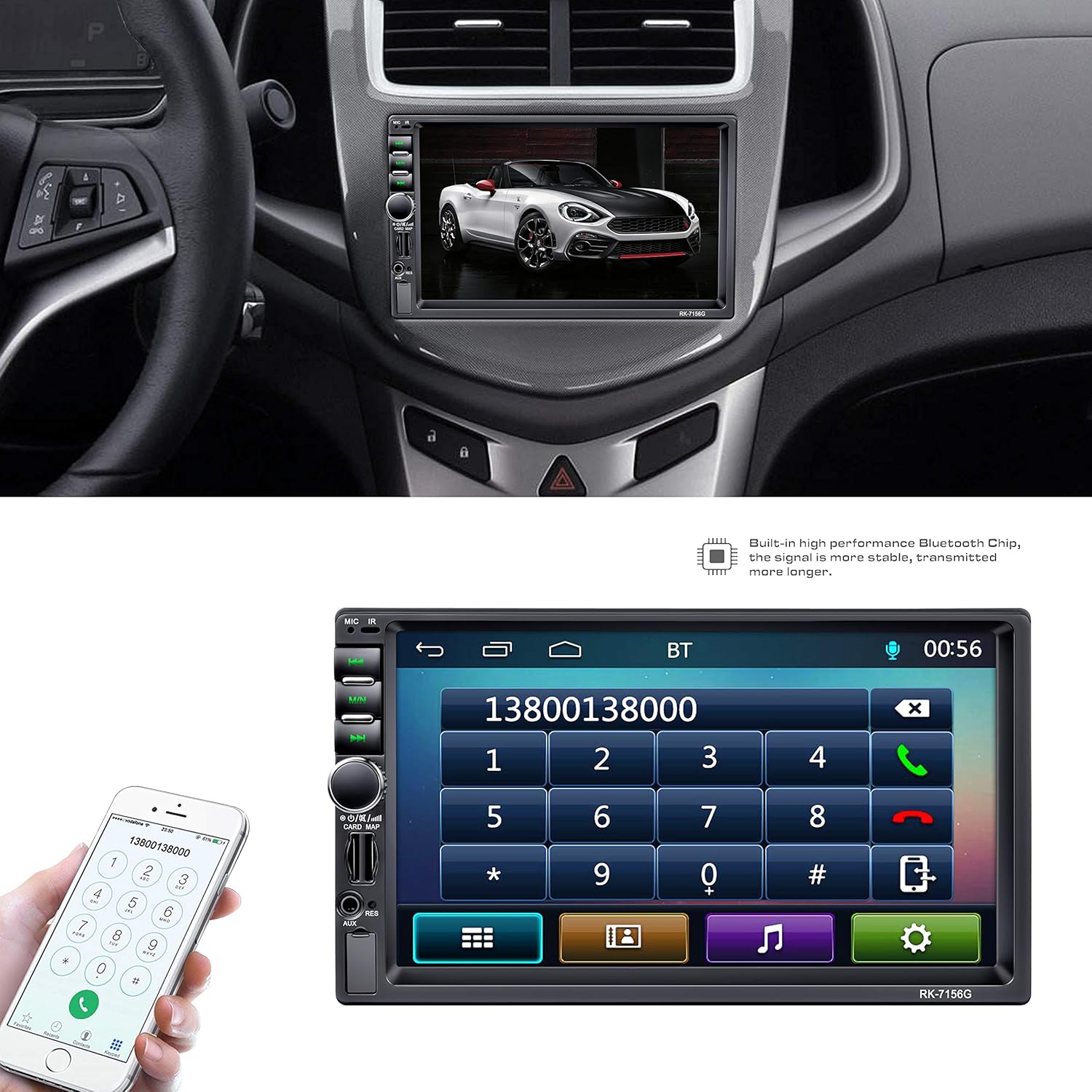

This image illustrates the LSLYA Dual 2 Din Car Stereo integrated into a vehicle's dashboard. The 7-inch touchscreen displays the Bluetooth phone call interface, allowing users to dial numbers directly from the unit. A smartphone is also shown, indicating the Bluetooth connectivity feature for hands-free communication.

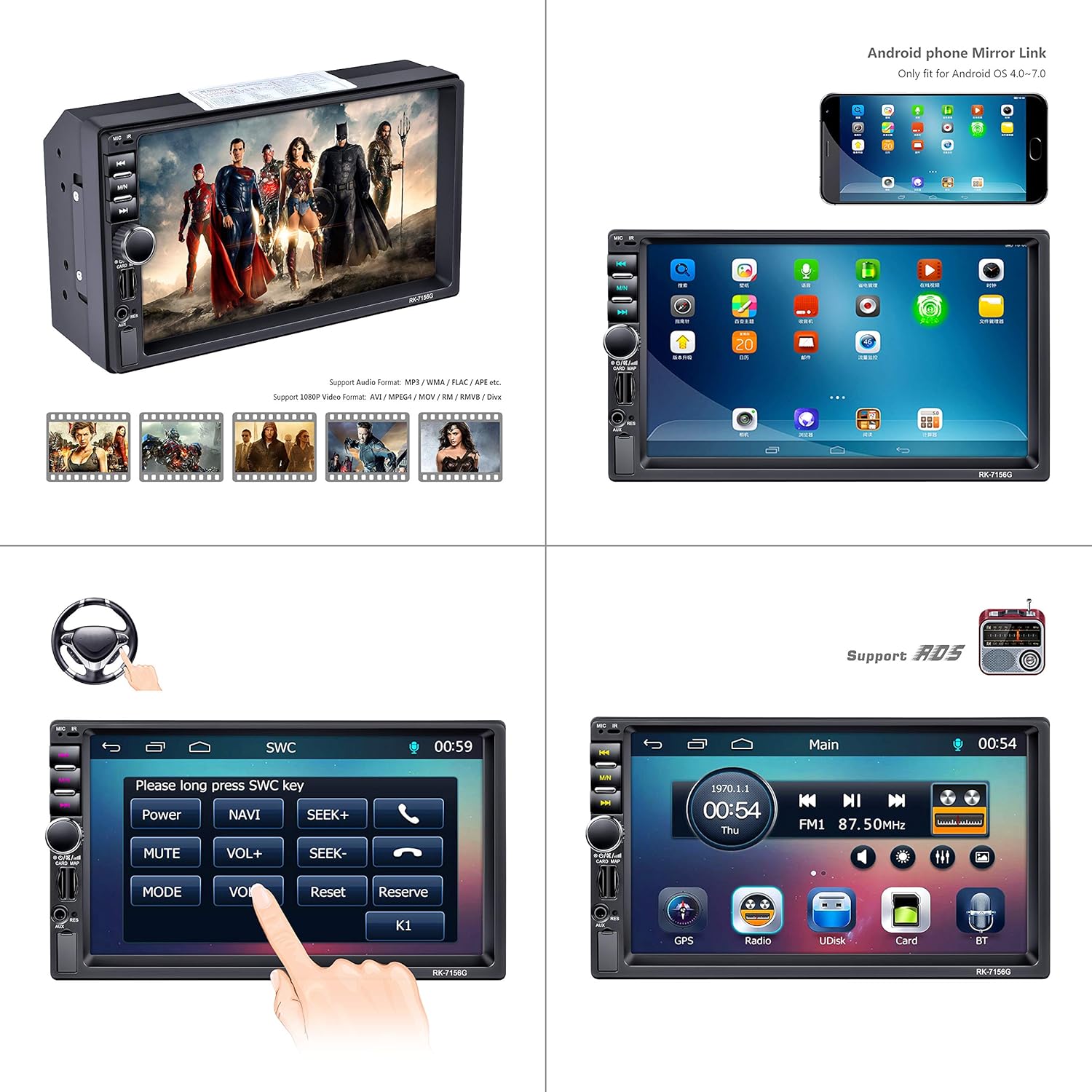

This composite image demonstrates several key functions of the LSLYA car stereo. It shows the unit's ability to play various video formats, an example of the Android phone mirror link feature (for OS 4.0-7.0), the interface for setting up steering wheel controls, and the main menu screen providing access to GPS, Radio, USB (UDisk), SD Card, and Bluetooth functions.

බ්ලූටූත් යුගලනය

ඔබගේ ස්මාර්ට් ජංගම දුරකථනය යුගල කිරීමට:

1. Access the Bluetooth menu on the stereo's touchscreen.
2. ඔබගේ ස්මාර්ට් ජංගම දුරකතනයේ බ්ලූටූත් සබල කර පවතින උපාංග සොයන්න.
3. Select the car stereo (usually named 'BT' or similar) from your phone's list.
4. විමසන්නේ නම් යුගල කිරීමේ කේතය තහවුරු කරන්න.

යුගල කළ පසු, ඔබට හෑන්ඩ්ස්-ෆ්‍රී ඇමතුම් ලබා ගැනීමට සහ ශ්‍රව්‍ය ප්‍රවාහ කිරීමට හැකිය.

GPS Navigation

The unit features a built-in GPS navigation module. To use:

1. Tap the 'GPS' icon on the main menu.
2. ස්පර්ශ තිර යතුරු පුවරුව භාවිතයෙන් ඔබේ ගමනාන්තය ඇතුළත් කරන්න.
3. Follow the on-screen directions and voice prompts for route guidance.

The car stereo's 7-inch screen displays the integrated GPS navigation system. The map shows a route with turn-by-turn directions, including a prompt to '230 meters ahead turn to the left'. This highlights the built-in navigation capabilities of the unit.

Media Playback (USB, SD, MP5)

The stereo supports various media formats via USB, TF/SD card slots. Insert your storage device into the appropriate slot and select the 'UDisk' (USB) or 'Card' (TF/SD) option from the main menu to browse and play media files.

Radio (FM/AM/RDS)

Select the 'Radio' icon from the main menu. Use the touchscreen to scan for stations, save presets, and access RDS information where available.

සුක්කානම් රෝද පාලනය (SWC)

If your vehicle supports steering wheel controls, you can configure them through the stereo's settings menu. Access the SWC setup interface to map your vehicle's steering wheel buttons to the stereo's functions.

පසුපස කැමරා ආදානය

When a rear camera is connected and the vehicle is put into reverse gear, the stereo automatically displays the camera feed on the screen, often with parking guidelines.

This image showcases the audio and visual capabilities of the LSLYA car stereo. It features the sound balance adjustment screen, allowing users to fine-tune audio output. The bottom left highlights the 7-inch HD LCD display (800x480 resolution) with a vibrant image. The bottom right demonstrates the rear view camera input, displaying a clear image with parking guidelines for safe reversing.

දර්පණ සබැඳිය

The unit supports Android phone mirror link for Android OS 4.0-7.0. Connect your compatible Android smartphone via USB to mirror its screen onto the stereo display.

නඩත්තු කිරීම

• පිරිසිදු කිරීම: තිරය ​​සහ ඒකකයේ බාහිර කොටස පිරිසිදු කිරීමට මෘදු, වියළි රෙද්දක් භාවිතා කරන්න. උල්ෙල්ඛ පිරිසිදු කරන්නන් හෝ ද්‍රාවක භාවිතා කිරීමෙන් වළකින්න.
• මෘදුකාංග යාවත්කාලීන: නිෂ්පාදකයා පරීක්ෂා කරන්න website periodically for any available software updates to ensure optimal performance and new features.
• ෆියුස් ආදේශනය: If the unit loses power, check the fuse located at the rear of the unit. Replace with a fuse of the same rating if blown.

දෝෂගවේෂණය

• බලය නැත:
  • Check all power connections (B+, ACC, Ground) as per the wiring diagram.
  • Verify the fuse is intact and not blown.
  • වාහනයේ බැටරිය ප්‍රමාණවත් ආරෝපණයක් ඇති බවට වග බලා ගන්න.
• ශබ්දයක් නැත:
  • Check speaker wire connections.
  • Verify volume levels and mute settings.
  • Ensure audio output mode is correctly selected.
• GPS Not Working/Inaccurate:
  • GPS ඇන්ටෙනාව නිසි ලෙස සම්බන්ධ වී ඇති බවත් පැහැදිලි එකක් ඇති බවත් සහතික කර ගන්න view අහසින්.
  • Check GPS settings within the unit.
• බ්ලූටූත් සම්බන්ධතා ගැටළු:
  • Ensure Bluetooth is enabled on both the stereo and your smartphone.
  • Delete previous pairings and attempt to re-pair.
  • Move closer to the unit if experiencing signal issues.
• සුක්කානම් රෝද පාලන ප්‍රතිචාර නොදක්වයි:
  • Verify SWC wiring connections.
  • Re-calibrate the steering wheel controls through the unit's settings menu.

පිරිවිතර

වගකීම් සහ සහාය

For warranty information or technical support, please refer to the documentation included with your purchase or contact LSLYA customer service through their official channels. Keep your purchase receipt as proof of purchase.
