M-Wave Carry All 20 Inch Bicycle Trailer User Manual

1. හැඳින්වීම

Thank you for choosing the M-Wave Carry All 20 Inch Bicycle Trailer. This versatile trailer is designed to provide a secure and convenient solution for transporting goods by bicycle or as a standalone trolley. Featuring a durable aluminum frame, a 100% waterproof hard luggage box, and easy-to-use quick-release wheels, it offers reliability and ease of use for various transport needs. Please read this manual thoroughly before assembly and operation to ensure safe and optimal performance.

2 ආරක්ෂිත තොරතුරු

Your safety and the safety of others are paramount. Adhere to all safety guidelines to prevent injury or damage.

• උපරිම පැටවීමේ ධාරිතාව: Do not exceed the maximum load of 25 kg (55 lbs) for the main compartment and 3 kg (6.6 lbs) for the lid luggage rack. Overloading can compromise stability and control.
• ආරක්ෂිත ඇමුණුම: Always ensure the trailer is securely attached to your bicycle using the universal quick release connector. Verify the connection before each use.
• බර බෙදා හැරීම: Distribute cargo evenly within the trailer to maintain balance and stability during towing. Heavy items should be placed at the bottom and centered.
• දෘශ්‍යතාව: Ensure the safety deflector is properly installed and visible. Consider adding additional reflective tape or lights for enhanced visibility, especially during low-light conditions.
• තිරිංග දුර: Be aware that towing a trailer increases your overall braking distance. Adjust your speed and maintain a safe distance from other vehicles and obstacles.
• උපාමාරු: Practice turning and maneuvering with the trailer in an open, safe area before using it in traffic. The trailer will affect the turning radius of your bicycle.
• ටයර් පීඩනය: Maintain correct tire pressure for optimal performance and safety. Refer to the tire sidewall for recommended pressure.
• නිතිපතා පරීක්ෂා කිරීම: Periodically inspect all components, including wheels, tires, frame, and attachment points, for wear, damage, or loose parts. Do not use the trailer if any damage is found.

3. පැකේජ අන්තර්ගතය

පැකේජය විවෘත කිරීමෙන් පසු, සියලුම සංරචක පවතින බවත් හානි වී නොමැති බවත් තහවුරු කර ගන්න.

• M-Wave Carry All Trailer Unit with Hard Luggage Box
• 20-inch Wheels with Air Tyres (2x)
• Quick Release Axles for Wheels (2x)
• Universal Quick Release Connector for Bicycle Attachment
• Safety Deflector
• Keys for Luggage Box Lock
• උපදෙස් අත්පොත (මෙම ලේඛනය)

4. පිහිටුවීම

4.1. රෝද සවි කිරීම

1. Locate the wheel axles on the trailer frame.
2. Insert the 20-inch wheels onto the axles.
3. Secure the wheels using the quick-release mechanisms. Ensure they are firmly seated and the quick-release levers are fully closed and tightened.

රූපය 1: Fully assembled M-Wave Carry All 20 Inch Bicycle Trailer, showing the main unit, wheels, and tow arm.

4.2. Attaching to Your Bicycle

1. Identify the universal quick release connector. This connector typically attaches to the rear axle of your bicycle.
2. Follow the instructions provided with your bicycle's quick release axle for proper installation of the connector. Ensure it is securely fastened and does not interfere with braking or gear shifting.
3. Connect the tow arm of the M-Wave trailer to the universal quick release connector. Ensure the connection is secure and the safety pin (if applicable) is engaged.
4. Verify that the safety deflector is positioned correctly and visible from the rear.

4.3. Converting to Trolley Mode

The M-Wave Carry All trailer can also be used as a standalone trolley.

1. Disconnect the trailer from your bicycle.
2. The tow arm is designed to pivot or detach and reattach to form a handle for manual pulling. Refer to the specific mechanism on your unit to convert the tow arm into a trolley handle.
3. Ensure the handle is securely locked in the upright position for comfortable pulling.

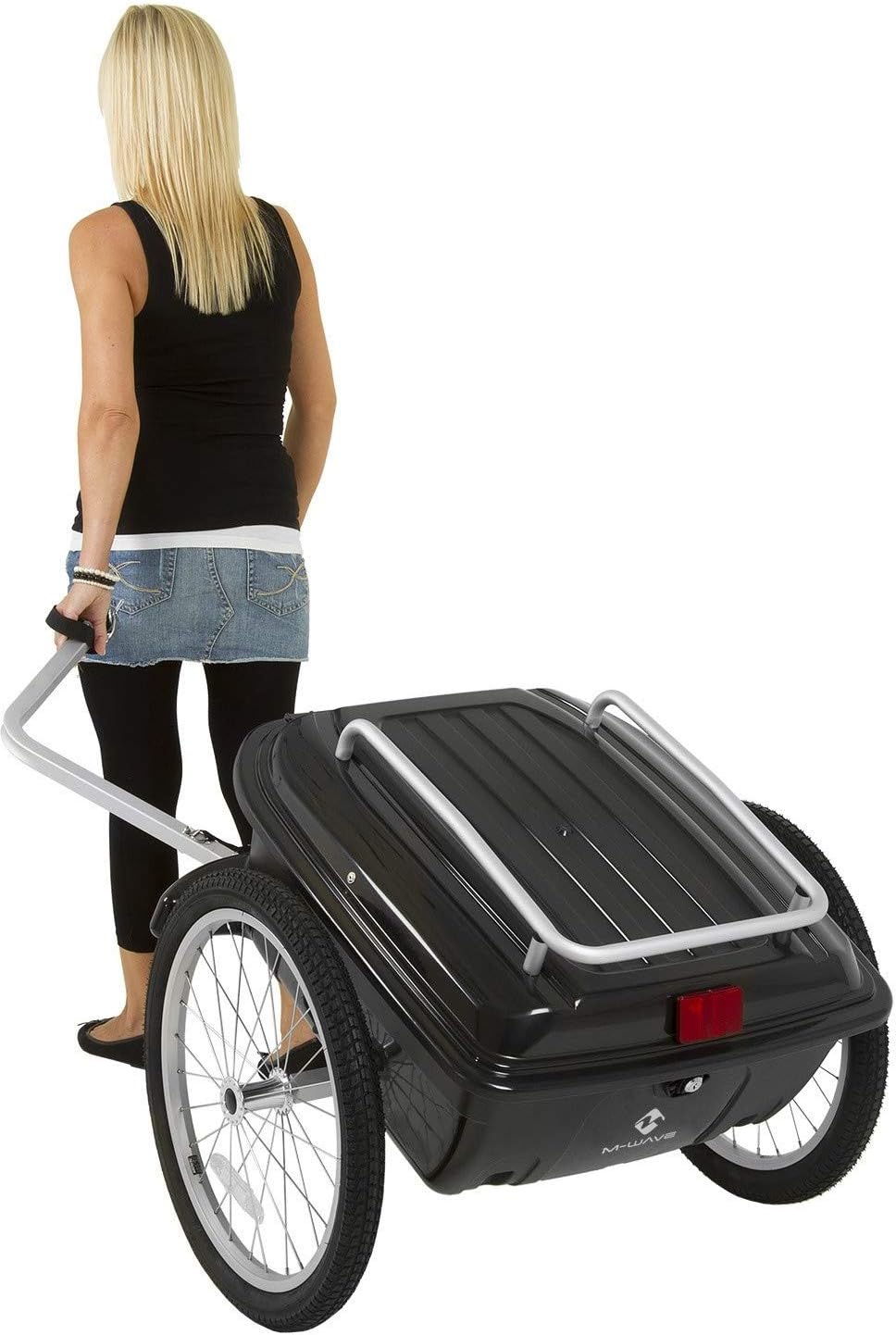

රූපය 2: The M-Wave Carry All trailer being used in trolley mode, demonstrating its versatility.

5. මෙහෙයුම් උපදෙස්

5.1. Loading and Unloading Cargo

• පියන විවෘත කිරීම: The lid features a hydraulic opening rod for comfortable and safe loading/unloading. Gently lift the lid, and the rod will assist in holding it open.
• Cargo Placement: Place items inside the hard luggage box. Ensure heavy items are at the bottom and centered to maintain the trailer's balance.
• භාණ්ඩ සුරක්ෂිත කිරීම: While the box is waterproof, consider securing loose items to prevent shifting during transit.
• Using the Luggage Rack: The lid includes a luggage rack for additional items, up to 3 kg. Secure items firmly with straps (not included) to prevent them from falling off.
• පියන වසා දැමීම: Gently push the lid down until it clicks securely into place.

රූපය 3: The hard luggage box with its lid open, showcasing the internal storage capacity and hydraulic opening rod.

5.2. Locking the Luggage Box

The hard luggage box is lockable for security.

• Insert the provided key into the lock mechanism located on the front of the box.
• Turn the key to lock the lid securely.
• යතුර ඉවත් කර ආරක්ෂිතව ගබඩා කරන්න.

රූපය 4: පසුපස view of the trailer, highlighting the integrated lock mechanism and the M-Wave branding.

6. නඩත්තු කිරීම

Regular maintenance will extend the life of your M-Wave Carry All trailer.

• පිරිසිදු කිරීම: The hard luggage box is 100% waterproof. Clean the exterior with a damp රෙදි සහ මෘදු ඩිටර්ජන්ට්. උල්ෙල්ඛ පිරිසිදු කරන්නන්ගෙන් වළකින්න.
• Wheel and Tire Care:
  • Check tire pressure regularly and inflate to the recommended PSI (found on the tire sidewall).
  • Inspect tires for wear, punctures, or damage. Replace if necessary.
  • Ensure quick-release mechanisms are clean and functioning smoothly.
• රාමු පරීක්ෂාව: Periodically check the aluminum frame for any signs of bending, cracks, or corrosion.
• සම්බන්ධතා ලකුණු: Regularly inspect the universal quick release connector and the trailer's tow arm for wear or damage. Ensure all bolts and fasteners are tight.
• ගබඩා: Store the trailer in a dry place away from direct sunlight when not in use to prevent material degradation.

7. දෝශ නිරාකරණය

8. පිරිවිතර

9. වගකීම් සහ සහාය

Specific warranty details for the M-Wave Carry All 20 Inch Bicycle Trailer are not provided in this manual. For warranty information, technical support, or to inquire about replacement parts, please contact M-Wave customer service or refer to the official M-Wave webඅඩවිය.

ඔබට ද පැමිණිය හැකිය M-Wave Store on Amazon for additional product information or to contact the seller.
