LECO Tonnelle Milena Garden Gazebo

1. හැඳින්වීම

Thank you for choosing the LECO Tonnelle Milena Garden Gazebo. This elegant 3.3 x 3.3 meter gazebo is designed to provide a comfortable and protected outdoor space, perfect for family gatherings or relaxing. It features a stable structure and lockable side panels for enhanced versatility. This manual provides essential information for the safe assembly, operation, and maintenance of your gazebo.

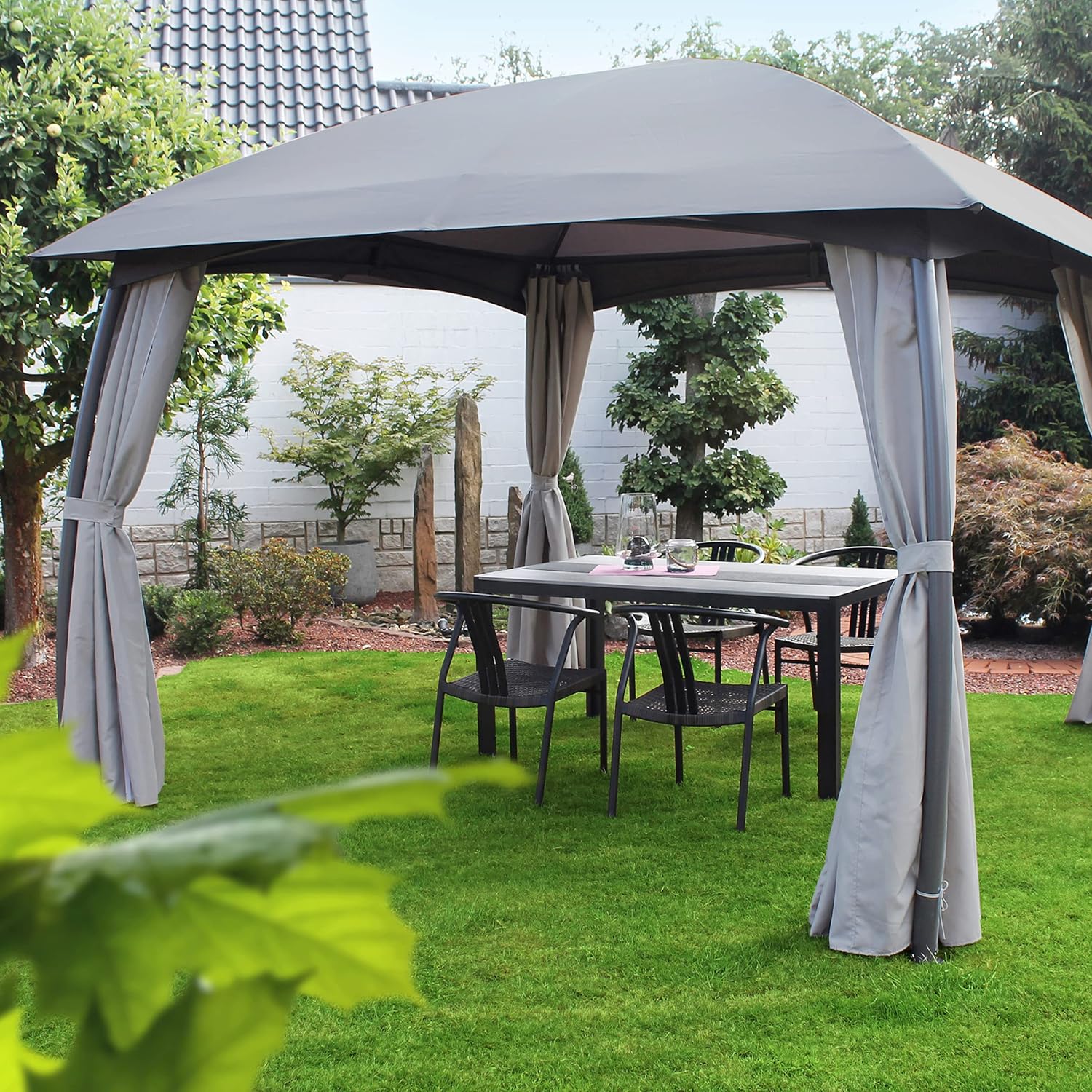

Image 1.1: The LECO Tonnelle Milena Garden Gazebo providing a shaded area in a garden setting.

2. ආරක්ෂිත උපදෙස්

• ආරක්ෂිත නැංගුරම් දැමීම: Ensure the gazebo is securely anchored to a stable base to protect it from wind or other external forces. Failure to do so may result in damage to the gazebo or personal injury.
• එකලස් කිරීම සහ විසුරුවා හැරීම: Follow all assembly and disassembly instructions carefully to prevent injuries. It is recommended to have at least two adults for assembly.
• කාලගුණික තත්ත්වයන්: While the materials are weather-resistant, it is recommended to disassemble and store the gazebo during prolonged periods of non-use or in anticipation of severe weather conditions such as strong winds, heavy rain, or snow.
• Textile Care: Keep all textile components (roof and side panels) dry and protected when not in use or during storage to prolong their lifespan.
• ළමුන් සහ සුරතල් සතුන්: අනතුරු වළක්වා ගැනීම සඳහා ළමයින් සහ සුරතල් සතුන් එකලස් කරන ස්ථානයෙන් ඈත් කර තබන්න.

3. පැකේජ අන්තර්ගතය

එකලස් කිරීම ආරම්භ කිරීමට පෙර, පහත ලැයිස්තුගත කර ඇති සියලුම සංරචක ඔබේ පැකේජයේ ඇති බව තහවුරු කර ගන්න:

• 1 x Gazebo Frame (powder-coated steel tubes)
• 1 x Roof Textile (100% grey polyester, 180 g/m², waterproof coating)
• 4 x Side Panels (100% light grey polyester, 140 g/m², with zippers)
• 1 x එකලස් කිරීමේ අත්පොත (මෙම ලේඛනය)
• Necessary hardware for assembly (screws, connectors, etc.)

4. සැකසීම සහ එකලස් කිරීම

The LECO Tonnelle Milena gazebo is designed for easy assembly. Please follow the detailed step-by-step instructions provided in the included assembly manual. Ensure you have adequate space and any required tools before starting.

1. සංරචක ඉවත් කරන්න: Carefully unpack all parts and lay them out on a clean, flat surface. Verify against the package contents list.
2. රාමුව එකලස් කරන්න: Connect the powder-coated steel tubes according to the diagrams in the assembly manual. Ensure all connections are secure.
3. Attach Roof Textile: Carefully place the roof textile over the assembled frame. Ensure it is properly aligned and secured at all attachment points.
4. පැති පැනල් ස්ථාපනය කරන්න: Attach the four side panels using the integrated zippers and any other fastening mechanisms (e.g., hook-and-loop fasteners).
5. Anchor Gazebo: Securely anchor the gazebo to the ground using appropriate stakes or weights to prevent movement, especially in windy conditions.

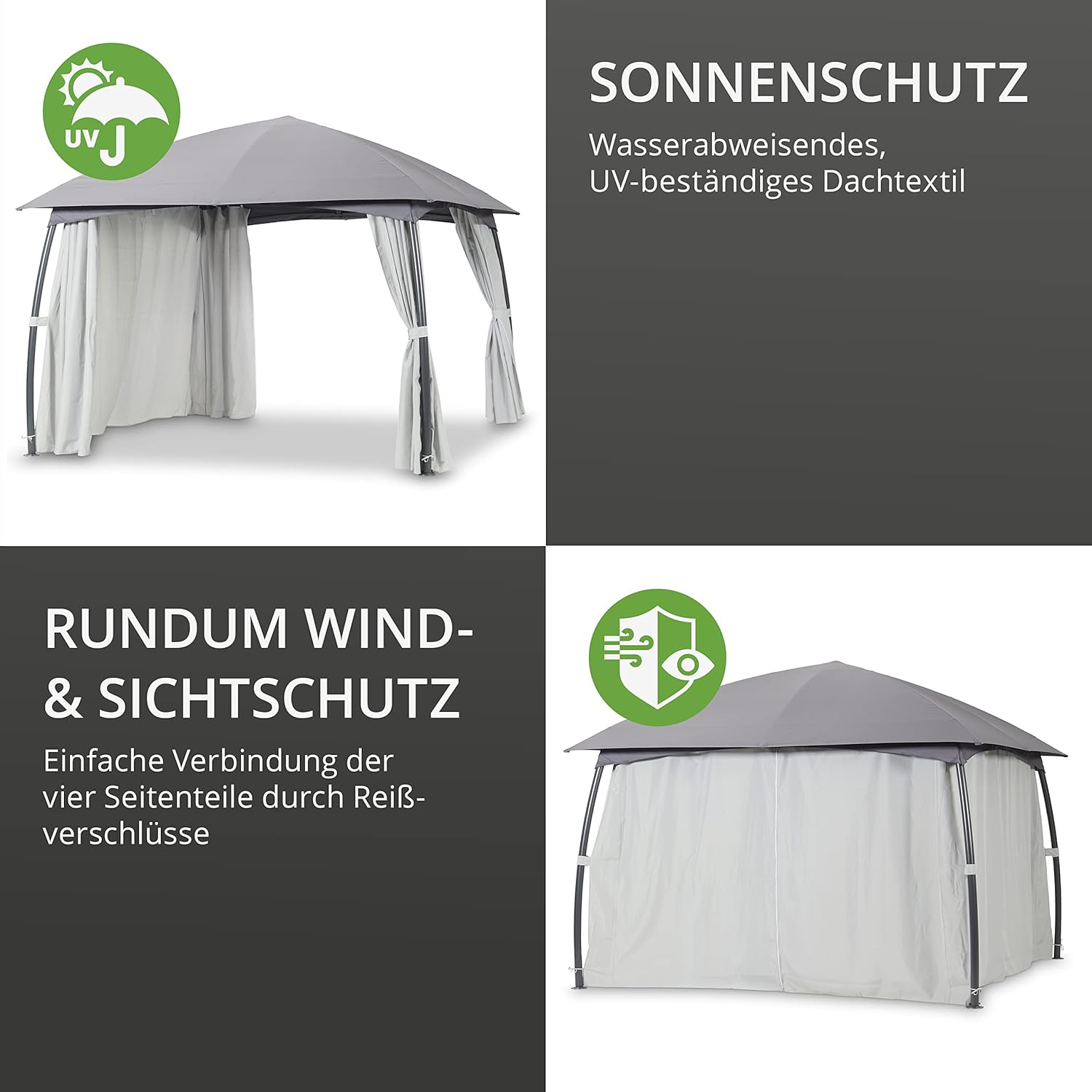

Image 4.1: Visual representation of the gazebo's sun protection and wind/privacy features.

Image 4.2: Detail of the stable roof structure and the foot plate designed for secure anchoring.

5. මෙහෙයුම් උපදෙස්

The LECO Tonnelle Milena gazebo is designed for straightforward use, offering flexibility for various outdoor conditions.

• පැති පුවරු: The four side panels can be easily opened or closed using their integrated zippers. This allows you to adjust for privacy, wind protection, or to create an open-air environment. When not needed, the side panels can be tied back to the posts using the provided straps.
• හිරු ආරක්ෂාව: The waterproof polyester roof textile provides shade and protection from UV rays, making your outdoor experience more comfortable.
• ස්ථාවරත්වය: Always ensure the gazebo is properly anchored to maintain stability, especially when side panels are open and catching wind.

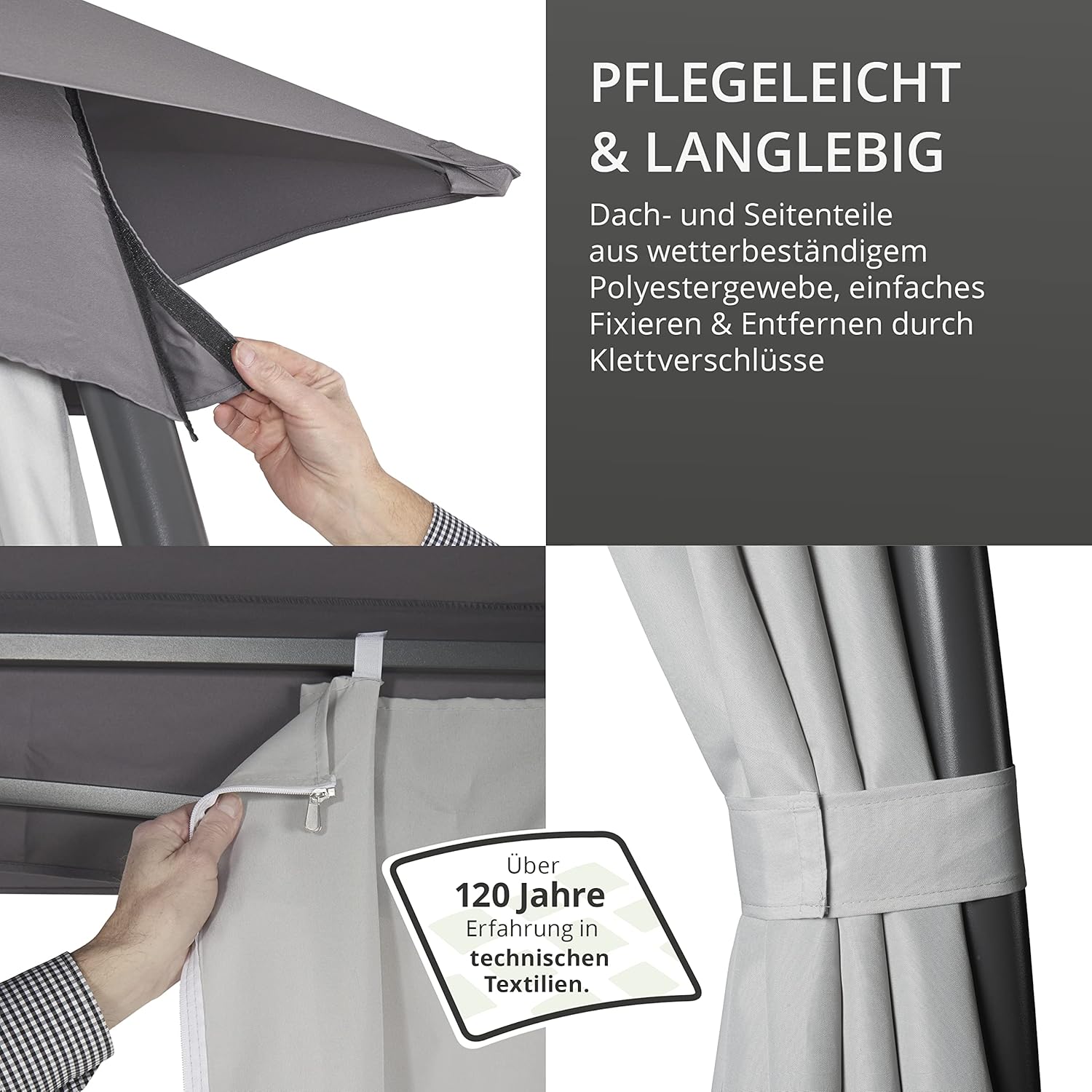

Image 5.1: Detail of the side panel attachment mechanism, including zippers and hook-and-loop fasteners for easy fixing and removal.

6. නඩත්තු කිරීම

Proper maintenance will extend the life and appearance of your LECO Tonnelle Milena gazebo.

• පිරිසිදු කිරීමේ රාමුව: Clean the powder-coated steel frame with a damp රෙදි සහ මෘදු සබන්. නිමාවට හානි කළ හැකි උල්ෙල්ඛ පිරිසිදු කරන්නන් හෝ රළු රසායනික ද්‍රව්‍ය වලින් වළකින්න.
• Cleaning Textiles: The polyester roof and side panels can be cleaned with a soft brush or cloth and mild soapy water. Rinse thoroughly with clean water and allow to air dry completely before storage. Do not machine wash or tumble dry.
• ගබඩා: During prolonged periods of non-use, especially in winter or severe weather, disassemble the gazebo and store all components in a dry, protected area. Ensure textiles are completely dry before folding and storing to prevent mold and mildew.
• නිතිපතා පරීක්ෂා කිරීම: Periodically check all connections, screws, and anchoring points to ensure they remain tight and secure. Replace any worn or damaged parts immediately.

7. දෝශ නිරාකරණය

ඔබේ ගැසෙබෝ සමඟ ගැටළු ඇති වුවහොත්, පහත සඳහන් පොදු විසඳුම් සලකා බලන්න:

• ගැසෙබෝ අස්ථාවරත්වය: Ensure all frame connections are fully tightened and the gazebo is properly anchored to the ground. Check that the ground surface is level.
• වහලය මත ජලය එක්රැස් වීම: Ensure the roof textile is taut and correctly installed to allow water to run off. Sagging fabric can lead to water pooling.
• සිපර් සමඟ ඇති දුෂ්කරතා: If zippers are stiff, apply a small amount of silicone spray or zipper lubricant. Ensure fabric is not caught in the zipper teeth.
• නැතිවූ කොටස්: If any parts were missing upon delivery, please contact LECO customer support with your model number and purchase details.

8. පිරිවිතර

Image 8.1: Dimensional diagram of the LECO Tonnelle Milena gazebo.

9. වගකීම් සහ සහාය

For warranty information, spare parts availability, or technical support, please refer to the documentation included with your purchase or contact LECO customer service directly. Keep your proof of purchase and model number (15160114) handy when contacting support.
