1. හැඳින්වීම
This manual provides detailed instructions for the installation, operation, and maintenance of the MCZ Control Panel RED HYDRO, model 41451200600. This control panel is designed for use with various MCZ and RED pellet stoves, ensuring efficient and reliable performance. Please read this manual thoroughly before attempting any installation or operation to ensure safe and correct usage.
The control panel allows users to manage stove functions such as power, temperature settings, programming, and monitoring operational status. Proper understanding of its features will optimize your stove's performance and longevity.
2 ආරක්ෂිත තොරතුරු
Always adhere to the following safety guidelines to prevent injury, damage to the product, or property damage:
- බලය විසන්ධි කරන්න: Always ensure the main power supply to the stove is disconnected before performing any installation, maintenance, or wiring procedures on the control panel.
- සුදුසුකම් ලත් පිරිස්: Installation and complex maintenance should only be performed by qualified and authorized technical personnel.
- අත්පොත කියවන්න: Read and understand all instructions in this manual before operating the control panel.
- මුල් කොටස්: Use only original MCZ spare parts and accessories. Use of non-original parts may void the warranty and compromise safety.
- පාරිසරික තත්ත්වයන්: Do not expose the control panel to extreme temperatures, humidity, or direct water contact.
3. පැකේජ අන්තර්ගතය
ඇසුරුම් ඉවත් කිරීමෙන් පසු සියලුම අයිතම පවතින බවත් හානි නොවී ඇති බවත් තහවුරු කර ගන්න:
- MCZ Control Panel RED HYDRO (Model 41451200600)
- සවිකරන ඉස්කුරුප්පු (ප්රමාණය වෙනස් විය හැක)
- පරිශීලක අත්පොත (මෙම ලේඛනය)
කිසියම් අයිතමයක් අස්ථානගත වී හෝ හානි වී ඇත්නම්, වහාම ඔබේ සැපයුම්කරු අමතන්න.
4. පිහිටුවීම සහ ස්ථාපනය
This section outlines the general steps for installing the control panel. Refer to your specific stove's manual for detailed wiring diagrams and mounting instructions.
4.1 පාලක පැනලය සවි කිරීම
- ස්ථානය තෝරන්න: Choose a suitable location on the stove or an adjacent surface, ensuring it is easily accessible and protected from excessive heat or moisture.
- විවෘත කිරීම සූදානම් කරන්න: If replacing an existing panel, ensure the opening matches the dimensions of the new MCZ 41451200600 panel. If installing new, carefully cut an opening according to the provided template (if applicable, or measure the panel dimensions).
- ආරක්ෂිත පැනලය: Insert the control panel into the opening and secure it using the provided mounting screws. Do not overtighten.
4.2 රැහැන් සම්බන්ධතා
අවවාදයයි: Ensure the main power supply to the stove is disconnected before making any electrical connections.
- සම්බන්ධක හඳුනා ගන්න: Locate the appropriate wiring harness from your stove that connects to the control panel. The panel typically has clearly labeled ports for power, sensors, and communication.
- සම්බන්ධක වයර්: Carefully connect the wiring harness to the corresponding ports on the back of the control panel. Ensure all connections are secure and correctly oriented. Refer to the wiring diagram in your stove's specific manual.
- සම්බන්ධතා තහවුරු කරන්න: Double-check all connections before restoring power. Incorrect wiring can cause damage to the control panel or the stove.

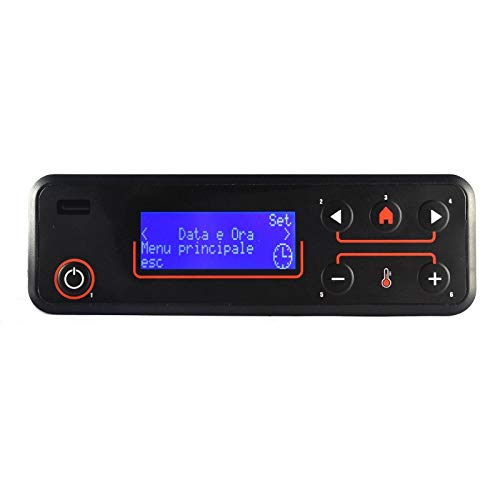

රූපය 1: ඉදිරිපස view of the MCZ Control Panel RED HYDRO, model 41451200600. This image shows the display screen and control buttons, illustrating the user interface for managing stove operations.
5. මෙහෙයුම් උපදෙස්
This section describes the basic functions and operation of the MCZ Control Panel. The exact menu structure and available options may vary slightly depending on the specific MCZ or RED stove model it is connected to.
5.1 Compatible Stove Models
This control panel is compatible with a wide range of MCZ and RED pellet stoves, including but not limited to:
- RED365 Althea MULTIAIR, Camelia Air Ceramic, Camelia Air Metal, Compact 14 (2015), Compact 18 (2012, 2015), Compact 24 (ver.2012), Compact 35, Compact 45, Compact Slim 15, Compact Slim 15 High Efficiency
- Dalia AIR (2014), Dalia AIR 6 S1, Dalia OYSTER AIR (2015), Edera MULTIAIR (2014), Erica Flora
- Gardenia AIR (2014), Gardenia HYDRO High Efficiency, Gardenia HYDRO (ver. 2012)
- Loto HYDRO 16, Loto HYDRO 23, Loto HYDRO 23/S, Loto MULTIAIR, Lotus
- Malva HYDRO 12, Malva MULTIAIR, Malva MULTIAIR 10 UP! S1
- Margherita AIR (2014), Margherita HYDRO High Efficiency, Margherita HYDRO (ver. 2012)
- Minta AIR 8 S1, Orchidea AIR (2014), Orchidea HYDRO High Efficiency, Orchidea HYDRO (ver. 2012), Orchidea MULTIAIR (2014)
- Primula AIR (2014), Primula HYDRO High Efficiency, Primula HYDRO (ver. 2012), Primula MULTIAIR (2014), Tulip
5.2 මූලික කාර්යයන්
- බලය සක්රිය / අක්රිය: Press and hold the power button (usually marked with a circle and a vertical line) to turn the stove on or off. The display will show the current status.
- මෙනු සංචාලනය: Use the arrow buttons (up/down or left/right) to navigate through the menu options. The 'OK' or 'Enter' button confirms selections, and the 'Esc' or 'Back' button returns to the previous screen.
- උෂ්ණත්ව ගැලපීම: In the main screen or temperature setting menu, use the up/down arrows to increase or decrease the desired room temperature.
- Fan Speed/Power Level: Some models allow adjustment of fan speed or heating power level directly from the control panel. Navigate to the relevant menu and adjust as needed.
- වැඩසටහන්කරණය: Access the 'Program' or 'Timer' menu to set daily or weekly operating schedules for your stove. Follow the on-screen prompts to set start/stop times and desired temperatures.
6. නඩත්තු කිරීම
The MCZ Control Panel requires minimal maintenance. Regular cleaning and occasional checks will ensure its longevity and proper function.
6.1 පාලක පැනලය පිරිසිදු කිරීම
- බලය විසන්ධි කරන්න: Always disconnect the main power supply to the stove before cleaning.
- මතුපිට පිසදමන්න: මෘදු, වියලි හෝ තරමක් d භාවිතා කරන්නamp cloth to gently wipe the display and buttons.
- රසායනික ද්රව්ය වලින් වළකින්න: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the display or plastic components.
6.2 නිතිපතා චෙක්පත්
- දෘශ්ය පරීක්ෂාව: Periodically check the panel for any signs of physical damage, loose connections, or unusual wear.
- ක්රියාකාරීත්ව පරීක්ෂණය: Ensure all buttons respond correctly and the display is clear and legible.
7. දෝශ නිරාකරණය
This section provides solutions to common issues you might encounter with your MCZ Control Panel. For more complex problems, consult a qualified technician.
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| පැනලය ක්රියාත්මක නොවේ. | No power supply to the stove; Loose wiring connection; Faulty panel. | Check main power supply to the stove. Verify all wiring connections are secure. If problem persists, contact technical support. |
| සංදර්ශකය හිස් හෝ කියවිය නොහැකි ය. | Power issue; Display damage; Extreme temperature. | Check power. Ensure panel is not exposed to extreme heat or cold. If damaged, replacement may be necessary. |
| බොත්තම් ප්රතිචාර නොදක්වයි. | Software glitch; Physical damage; Dirt/debris under buttons. | Try restarting the stove (power cycle). Clean around buttons. If physical damage, contact support. |
| Stove not responding to panel commands. | Communication error; Incorrect settings; Stove fault. | Verify wiring connections between panel and stove. Check stove's own error codes. Consult stove manual. |
8. පිරිවිතර
| විශේෂාංගය | විස්තර |
|---|---|
| ආකෘතිය | MCZ Control Panel RED HYDRO |
| කොටස අංකය | 41451200600 |
| ගැළපුම | Various MCZ and RED pellet stove models (refer to section 5.1) |
| සංදර්ශක වර්ගය | LCD (specifics may vary by production batch) |
| මෙහෙයුම් උෂ්ණත්වය | Typically 0°C to 50°C (32°F to 122°F) |
| බල සැපයුම | Provided by the connected stove (specific voltage details in stove manual) |
9. වගකීම් සහ සහාය
MCZ products are manufactured to high-quality standards and are covered by a limited warranty against manufacturing defects. The specific terms and duration of the warranty may vary by region and purchase date. Please retain your proof of purchase for warranty claims.
For technical assistance, warranty service, or to purchase original spare parts, please contact your authorized MCZ dealer or visit the official MCZ website. When contacting support, please have your product model number (41451200600) and the serial number of your stove readily available.
MCZ Official Webඅඩවිය: www.mcz.it
