1. නිෂ්පාදන අවසන්view
The SMONET 5MP Security Camera System (Model: SN-VBUS-T885M2T-RS) is a comprehensive wired surveillance solution designed for indoor and outdoor use. This system includes 5MP (2560TVL) CCTV cameras and an 8-channel DVR with a 2TB hard drive, offering high-resolution video recording, motion detection, and night vision capabilities. It is built to provide reliable security monitoring for homes and businesses.
රූපය: අවසන්view of the SMONET 5MP Security Camera System components, including the DVR, cameras, and cables.

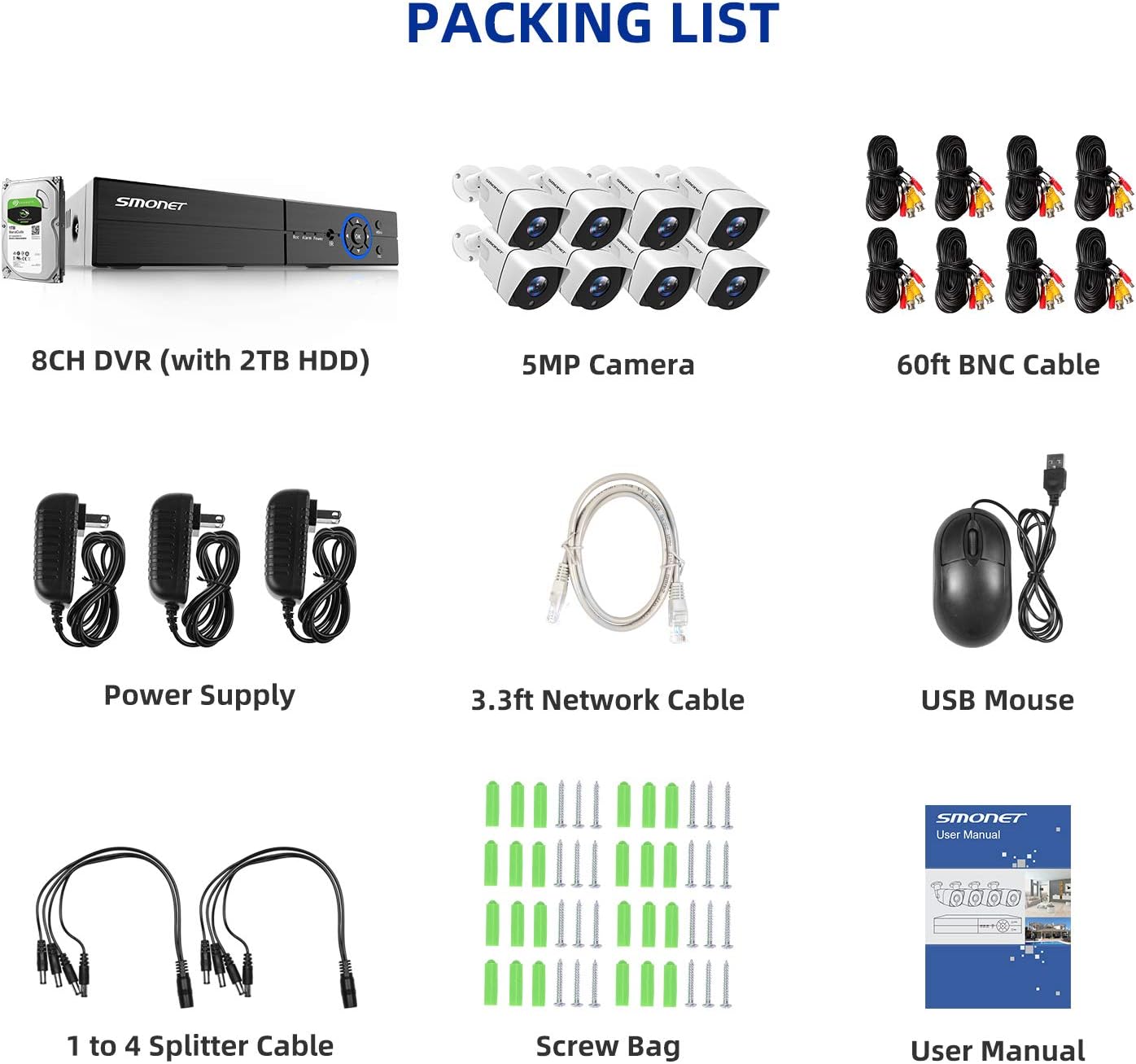

2. පැකේජ අන්තර්ගතය
Before beginning installation, verify that all components listed below are present in your package:
Image: Visual comparison demonstrating the clarity of 5MP UltraHD (2560x1920) versus 2MP FullHD (1920x1080) resolution, highlighting the enhanced detail of the 5MP system.
- 8-Channel DVR with 2TB HDD
- 5MP CCTV Cameras (Quantity as per package)
- 60ft BNC Cables (Quantity as per package)
- Power Supply for DVR
- Power Supply for Cameras
- 3.3ft Network Cable
- USB මූසිකය
- 1 to 4 Splitter Cable (for camera power)
- Screw Bag (for mounting)
- පරිශීලක අත්පොත (මෙම ලේඛනය)
3. පද්ධති සැකසුම
Follow these steps to set up your SMONET Security Camera System:
3.1 මූලික සම්බන්ධතා
- මොනිටරය සම්බන්ධ කරන්න: Connect a PC or TV monitor to the DVR using a VGA or HDMI cable. Ensure you use a dedicated PC or TV monitor; laptops or all-in-one computers are not compatible for direct connection.
- Power and Mouse: Plug in the power supply for the DVR. Connect the included USB mouse to a USB port on the DVR.
- ජාල සම්බන්ධතාවය: Connect the Router LAN Port to the DVR Ethernet port using the provided network cable. The router must be configured as a WAN (Wide Area Network) device for remote access.
- කැමරා බලය: Connect the 1-to-4 splitter adapter cable to the camera power supply.
- Camera Video Connection: Connect one end of the BNC cable to the splitter and the other end to a DVR port (VIDEO IN). Repeat for all cameras.
- කැමරා බල සම්බන්ධතාවය: Connect the camera's power input to the splitter cable.

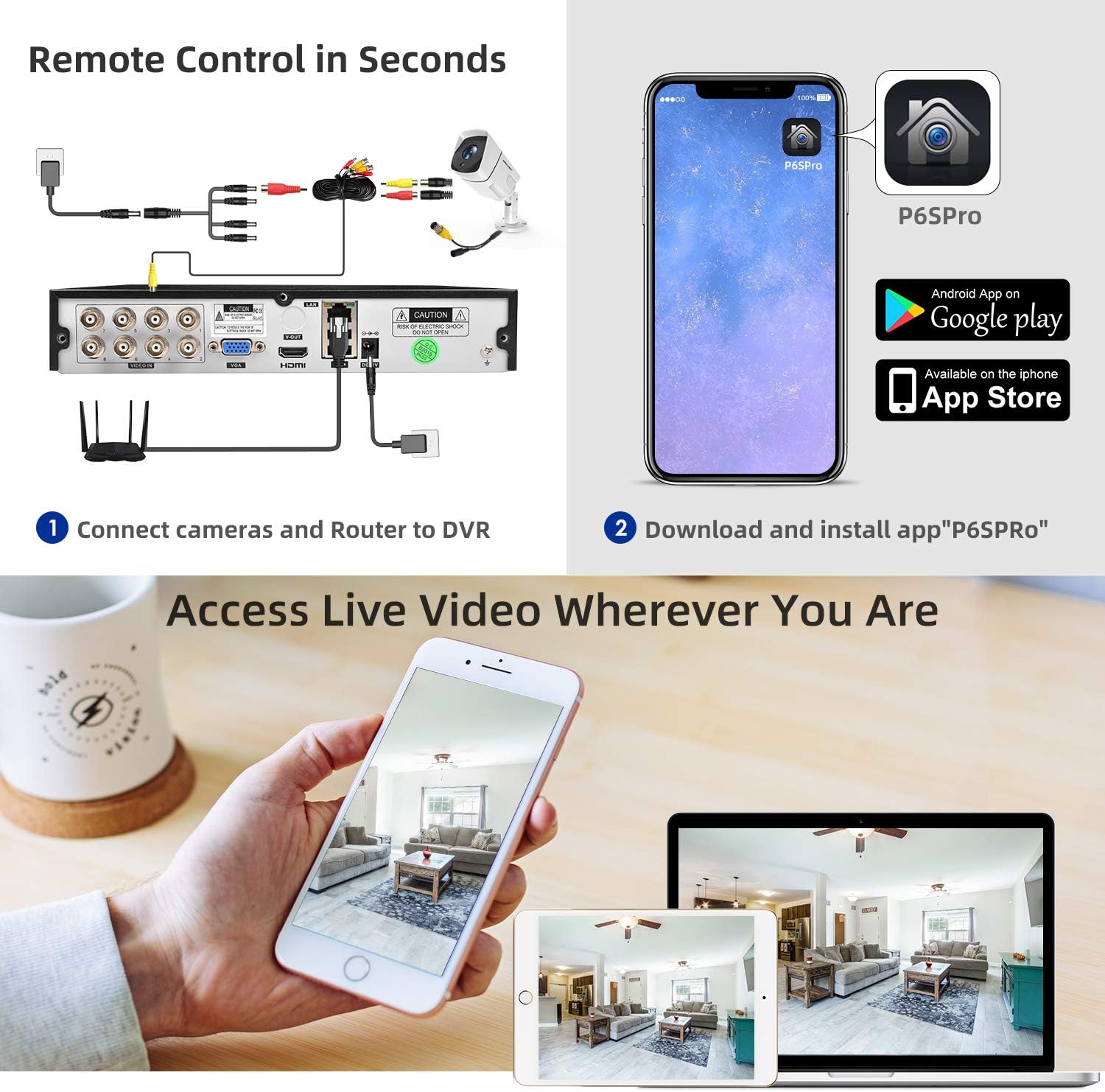

Image: A visual guide illustrating the step-by-step connection process for the DVR, cameras, monitor, power supplies, and network router.
3.2 වීඩියෝ මාර්ගෝපදේශය සකසන්න
Video: A detailed guide on connecting the SMONET security camera system components, including the DVR, cameras, monitor, and network.
4. පද්ධතිය ක්රියාත්මක කිරීම
4.1 Motion Detection Configuration
The system features customizable motion detection. You can define specific areas within the camera's view to trigger alerts and recordings, adjust sensitivity, and set recording schedules.
Video: Instructions on how to set up and configure motion detection settings for your SMONET 5MP Security Camera System.
4.2 Remote Access and Alerts
Access live video feeds and receive alerts directly on your smartphone or other compatible devices. The system supports email and phone app notifications for motion detection events.

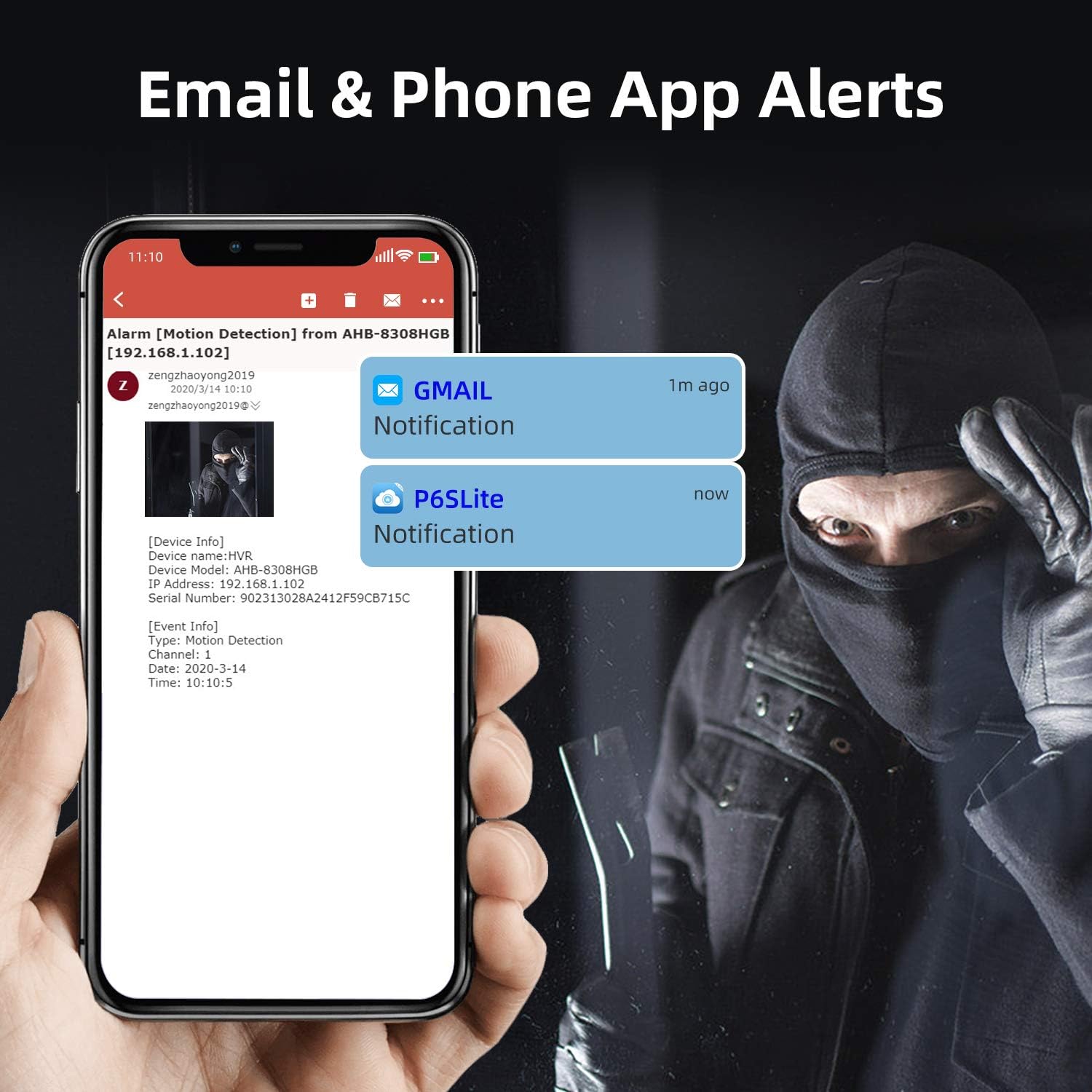

Image: A visual representation of email and phone application alerts triggered by motion detection events, showing notification details.
Image: Various devices (smartphone, tablet, laptop) displaying live video feeds from the security cameras, demonstrating remote access capabilities.
4.3 දිවා රාත්රී දර්ශනය
The cameras provide clear, colorful images during the day and automatically switch to infrared night vision for monitoring in low-light or dark conditions, with a range of up to 65 feet.
Image: A split image showing the camera's performance in daylight with full color and its clear infrared night vision capability in darkness, extending up to 65 feet.
4.4 Indoor and Outdoor Monitoring
The cameras are designed for versatile placement, suitable for both indoor and outdoor environments. Their waterproof housing ensures durability against various weather conditions.
Image: A collage showing the security cameras installed in various settings, including indoor offices, outdoor building exteriors, and highlighting their waterproof design.
5. නඩත්තු කිරීම
නිතිපතා නඩත්තු කිරීම ඔබේ ආරක්ෂක පද්ධතියේ ප්රශස්ත ක්රියාකාරිත්වය සහ කල්පැවැත්ම සහතික කරයි:
- කැමරා පිරිසිදු කිරීම: Periodically clean camera lenses with a soft, dry cloth to remove dust and smudges that may affect image clarity.
- කේබල් පරීක්ෂාව: Check all cables (power, video, network) for any signs of wear, damage, or loose connections. Secure or replace as needed.
- මෘදුකාංග යාවත්කාලීන: Regularly check for and install firmware updates for the DVR to ensure the system has the latest features and security patches. Refer to the manufacturer's website for update instructions.
- දෘඪ තැටි සෞඛ්යය: Monitor the DVR's hard drive status through the system menu to ensure it is functioning correctly and has sufficient storage space.
- බල සැපයුම් පරීක්ෂාව: Ensure power adapters are securely connected and free from damage.
6. දෝශ නිරාකරණය
If you encounter issues with your SMONET Security Camera System, refer to the following common troubleshooting steps:
- වීඩියෝ සංදර්ශකයක් නොමැත:
- Verify that the monitor is powered on and correctly connected to the DVR via HDMI or VGA.
- Check if the DVR is powered on and its power indicator light is active.
- Ensure all camera BNC cables are securely connected to both the cameras and the DVR.
- Confirm that cameras are receiving power. Check power adapters and splitter cables.
- චලන අනාවරණය ප්රේරණය නොවේ:
- Access the DVR's motion detection settings (refer to Section 4.1) and ensure it is enabled for the desired channels.
- Adjust the sensitivity level. A lower sensitivity might miss subtle movements, while a higher sensitivity might trigger false alarms.
- Check the motion detection area settings to ensure the relevant zones are selected.
- Verify the recording schedule for motion detection is correctly configured.
- දුරස්ථ ප්රවේශ ගැටළු:
- Ensure the DVR is connected to the internet via the network cable and the router is functioning correctly.
- Check network settings on the DVR to confirm it has a valid IP address.
- Verify that the mobile application is installed correctly and you are using the correct login credentials.
- Confirm that your mobile device has a stable internet connection.
- දුර්වල රූපයේ ගුණාත්මකභාවය:
- Clean the camera lens for any obstructions or dirt.
- කැමරාව ආරක්ෂිතව සවි කර ඇති බවත් කම්පනය නොවන බවත් සහතික කර ගන්න.
- Check cable connections for any interference or damage.
- Verify the camera's resolution settings in the DVR menu.
7. පිරිවිතර
| විශේෂාංගය | පිරිවිතර |
|---|---|
| වෙළඳ නාමය | SMONET |
| ආදර්ශ අංකය | SN-VBUS-T885M2T-RS |
| සම්බන්ධතා තාක්ෂණය | රැහැන්ගත |
| වීඩියෝ ග්රහණ විභේදනය | 5 MP (2560TVL) |
| නාලිකා ගණන | 8 |
| මතක ගබඩා ධාරිතාව | 2 TB |
| බලශක්ති ප්රභවය | රැහැන්ගත විදුලි |
| අයිතම මානයන් (L x W x H) | අඟල් 16 x 11 x 12.4 |
| ගැළපෙන උපාංග | කැමරා, ස්මාර්ට්ෆෝන් |
| අනෙකුත් කැමරා විශේෂාංග | ඉදිරිපස |
| රාමු අනුපාතය | 30 fps |
| පටිගත කිරීමේ මාදිලිය | චලන හඳුනාගැනීම |
| දෘඩාංග අතුරුමුහුණත | ඊතර්නෙට් |
| කාච වර්ගය | විශාලනය කරන්න |
| වීඩියෝ ආදානය | BNC |
| අයිතමයේ බර | රාත්තල් 17.71 කි |
| පළමු දිනය තිබේ | අප්රේල් 8, 2019 |
8. වගකීම් සහ සහාය
SMONET products are designed for reliability and performance. For specific warranty details, please refer to the warranty card included with your product or visit the official SMONET website. If you require technical assistance, product support, or have questions regarding your system, please contact SMONET customer service through the channels provided on the official webවෙබ් අඩවිය හෝ ඔබේ මිලදී ගැනීමේ වේදිකාව.
When contacting support, please have your product model number (SN-VBUS-T885M2T-RS) and purchase information readily available to expedite assistance.
