STANLEY STHT77588-0 Stud Sensor S160 Instruction Manual

හැඳින්වීම

The STANLEY STHT77588-0 Stud Sensor S160 is designed to detect wood and metal studs, as well as live AC wires, behind common wall materials. This device provides visual and audible indications to help you locate framing members and electrical hazards before drilling or cutting into walls. Its slim profile and intuitive design make it suitable for various home improvement and construction tasks.

ප්රධාන ලක්ෂණ:

• Detects wood and metal studs up to 1-1/2 inches (38 mm) deep.
• Features a center finder and center marker for precise location of studs.
• Detects the presence of live AC wires up to 2 inches (50 mm) deep.
• Equipped with directional LED indicators and an audible alert for clear guidance.
• Ideal for tasks such as mounting televisions, hanging pictures, and installing shelves.

සැලසුම

1. බැටරි ස්ථාපනය

The STHT77588-0 Stud Sensor S160 requires two AAA batteries (included) for operation. To install or replace batteries:

1. උපාංගයේ පිටුපස බැටරි මැදිරි කවරය සොයා ගන්න.
2. කවරය විවෘත කරන්න.
3. මැදිරිය තුළ දක්වා ඇති පරිදි නිවැරදි ධ්‍රැවීයතාව (+/-) සහතික කරමින් AAA බැටරි දෙකක් ඇතුළු කරන්න.
4. බැටරි මැදිරි කවරය ආරක්ෂිතව වසා දමන්න.

රූපය 1: ඉදිරිපස view of the STANLEY STHT77588-0 Stud Sensor S160, showing its compact design.

2 මූලික ක්රමාංකනය

For accurate readings, the stud sensor must be calibrated against the wall surface before each use. This process ensures the device adapts to the wall's density and material.

1. Place the stud sensor flat against the wall in an area where you are certain there are no studs or AC wires.
2. Press and hold the power button (usually located on the side or front). The device will emit an audible beep and/or illuminate LEDs during calibration.
3. Keep the device stationary against the wall until the calibration process is complete (typically indicated by a steady light or a change in sound).
4. Release the power button. The device is now calibrated and ready for use.

සටහන: If the device is calibrated over a stud or AC wire, it may provide inaccurate readings. Always calibrate over a clear section of the wall.

මෙහෙයුම් උපදෙස්

1. Powering On and Scanning

To begin scanning, press and hold the power button. The device will perform a quick self-calibration. Once calibrated, slowly slide the device horizontally across the wall surface.

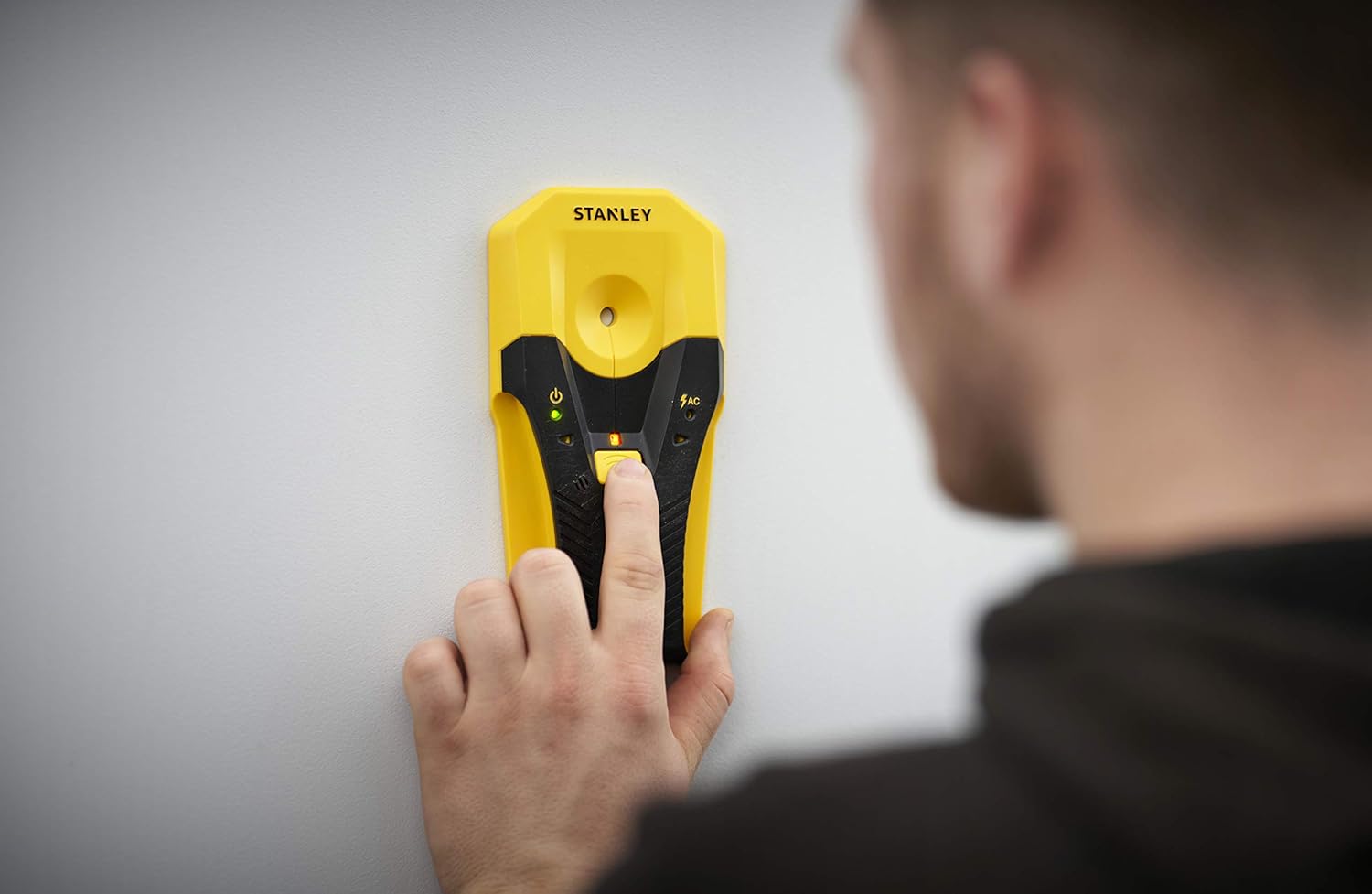

Figure 2: A hand pressing the power button to activate the stud sensor.

2. Stud Detection

As the sensor moves over a stud, the directional LED indicators will light up sequentially, guiding you towards the center of the stud. An audible beep will also sound, increasing in frequency as you approach the center.

1. Start scanning from a point where you are certain there is no stud.
2. Slowly slide the sensor horizontally across the wall.
3. When the device detects the edge of a stud, the LEDs will begin to illuminate.
4. Continue sliding until the center LED illuminates and the audible tone becomes continuous. This indicates the center of the stud.
5. Mark this spot. To confirm, scan the area from the opposite direction and mark the center again.

Figure 3: A user scanning a wall to locate studs or AC wires.

3. AC Wire Detection

The STHT77588-0 Stud Sensor S160 continuously monitors for live AC wires during stud detection. If a live AC wire is detected, a dedicated AC warning LED will illuminate, and a distinct audible alert will sound.

Figure 4: The AC detection light illuminated, indicating the presence of a live electrical wire.

අවවාදයයි: Always exercise extreme caution when live AC wires are detected. Disconnect power to the area if possible before proceeding with any work.

4. Marking Stud Locations

Once the center of a stud is identified, use the integrated center marker or a pencil to mark the location directly on the wall. The device often has a small notch or hole for precise marking.

Figure 5: A user marking the detected stud center on the wall.

නඩත්තු කිරීම

Proper maintenance ensures the longevity and accuracy of your stud sensor.

• පිරිසිදු කිරීම: උපාංගය මෘදු, ඩී සමඟ පිස දමන්නamp cloth. Do not use abrasive cleaners or solvents, as these can damage the casing හෝ ඉලෙක්ට්‍රොනික සංරචක.
• ගබඩා: Store the stud sensor in a dry, cool place, away from direct sunlight and extreme temperatures. If storing for extended periods, remove the batteries to prevent leakage.
• බැටරි ආදේශනය: Replace batteries promptly when the low battery indicator appears or if the device behaves erratically.

දෝෂගවේෂණය

If you encounter issues with your STANLEY STHT77588-0 Stud Sensor S160, refer to the following common problems and solutions:

පිරිවිතර

ආරක්ෂිත තොරතුරු

Please read and understand all safety instructions before using the STANLEY STHT77588-0 Stud Sensor S160.

• Always assume live AC wires are present until confirmed otherwise. Disconnect power to the area if possible before drilling or cutting.
• Do not rely solely on the stud sensor for critical applications. Use other methods (e.g., blueprints, tapping) to confirm findings when necessary.
• උපාංගය ජලයෙන් හා තෙතමනයෙන් ඈත් කරන්න.
• උපාංගය විවෘත කිරීමට හෝ වෙනස් කිරීමට උත්සාහ නොකරන්න. ඇතුළත පරිශීලක-සේවා කළ හැකි කොටස් නොමැත.
• දේශීය රෙගුලාසි වලට අනුව වගකීමෙන් යුතුව බැටරි බැහැර කරන්න.

වගකීම් සහ සහාය

STANLEY products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your product or visit the official STANLEY webඅඩවිය.

For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact STANLEY customer support through their official channels. Keep your purchase receipt and model number (STHT77588-0) handy when contacting support.

You can often find support information and FAQs on the STANLEY brand store on Amazon හෝ ඔවුන්ගේ නිල webඅඩවිය.
