RYOBI ONE+ Cordless Compact Power Scrubber Instruction Manual

1. නිෂ්පාදන අවසන්view

The RYOBI ONE+ Cordless Compact Power Scrubber is engineered for efficient, heavy-duty cleaning in various tight spaces. Its robust 18V motor delivers 210 rotations per minute (RPM), effectively removing dirt and grime with minimal user effort. Designed for durability and versatility, this tool boasts an IPX7 waterproof rating, allowing it to be fully submerged in water up to 1 meter for up to 30 minutes. Please note that this product is sold as a 'bare tool', meaning the battery and charger are not included and must be purchased separately. It is fully compatible with all batteries and chargers within the RYOBI 18V ONE+ system.

ප්රධාන ලක්ෂණ:

• Ideal for heavy-duty cleaning in confined areas such as car alloys, garden furniture, and shower enclosures.
• Powerful 18V motor provides 210 RPM for effective dirt removal.
• IPX7 waterproof design allows submersion in water up to 1 meter.
• Part of the versatile 18V ONE+ system; battery and charger sold separately.

2. පැකේජ අන්තර්ගතය

ඇසුරුම් ඉවත් කිරීමෙන් පසු, පහත ලැයිස්තුගත කර ඇති සියලුම අයිතම එහි ඇති බවට වග බලා ගන්න:

• RYOBI ONE+ Cordless Compact Power Scrubber (Bare Tool)
• Medium Bristle Nylon Brush Head
• උපදෙස් අත්පොත

සටහන: බැටරි සහ චාජරය ඇතුළත් නොවන අතර වෙන වෙනම මිලදී ගත යුතුය.

3. පිහිටුවීම

බුරුසු හිස ඇමිණීම

1. Align the brush head with the drive shaft on the scrubber.
2. Push the brush head onto the shaft and twist clockwise until it locks securely into place.

Image: The RYOBI ONE+ Cordless Compact Power Scrubber with its battery compartment open, illustrating where the battery is inserted.

බැටරිය ඇතුල් කිරීම

1. Open the clear battery compartment cover by unlatching the clips.
2. Insert a fully charged RYOBI 18V ONE+ battery into the battery slot, ensuring it clicks into place.
3. Close the battery compartment cover and secure the clips to ensure a watertight seal.

4. මෙහෙයුම් උපදෙස්

බල ගැන්වීම / අක්රිය කිරීම

• To turn the scrubber ON, press the power button located on the handle. The brush will begin to rotate.
• To turn the scrubber OFF, press the power button again.

Using the Scrubber

1. Prepare the surface by applying your preferred cleaning solution.
2. භ්‍රමණය වන බුරුසුව සක්‍රිය කිරීමට බල බොත්තම ඔබන්න.
3. Gently guide the scrubber over the surface, allowing the brush to do the work. Avoid excessive pressure, as this can reduce efficiency and potentially damage surfaces.
4. For optimal cleaning, move the scrubber in overlapping passes.
5. After scrubbing, rinse the cleaned surface thoroughly with water.

Image: A man using the RYOBI ONE+ Cordless Compact Power Scrubber to clean a car wheel, demonstrating its use in tight spaces.

Image: A man cleaning a shower door with the RYOBI ONE+ Cordless Compact Power Scrubber, highlighting its effectiveness on bathroom surfaces.

Image: A man cleaning the hull of a boat with the RYOBI ONE+ Cordless Compact Power Scrubber, showcasing its outdoor application.

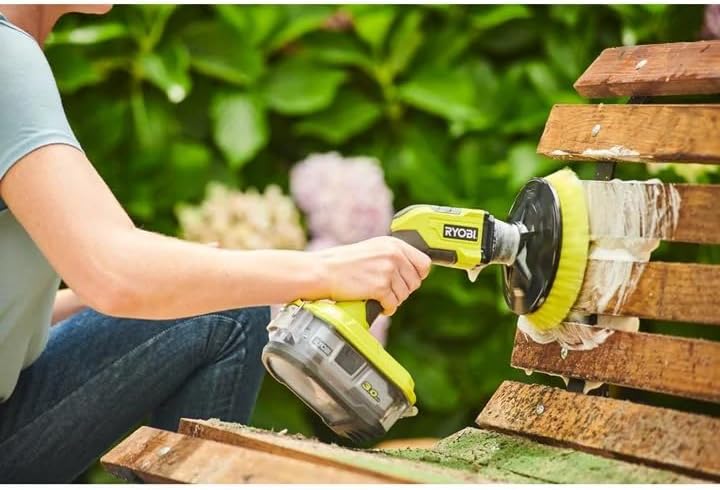

Image: A woman using the RYOBI ONE+ Cordless Compact Power Scrubber to clean garden furniture, demonstrating its use on various outdoor items.

Image: A man cleaning the side of a caravan or RV with the RYOBI ONE+ Cordless Compact Power Scrubber, showing its utility for larger vehicles.

Water and Soap Dispensing

The scrubber features a dial to select between water-only or soap+water dispensing modes. Adjust the dial according to your cleaning needs.

Submersion Capability

Thanks to its IPX7 rating, the tool can be fully submerged in water up to 1 meter for a maximum of 30 minutes. Always ensure the battery compartment is securely sealed before submersion.

Adjusting Brush Angle

The scrubber features a 6-position articulating head, allowing you to adjust the brush angle for optimal reach and cleaning effectiveness in different areas.

5. නඩත්තු කිරීම

බුරුසු හිස පිරිසිදු කිරීම

• එක් එක් භාවිතයෙන් පසු, ස්ක්රබර් එකෙන් බුරුසු හිස ඉවත් කරන්න.
• Rinse the brush head thoroughly under clean running water to remove any cleaning solution residue or debris.
• Allow the brush head to air dry completely before storing.

මෙවලම පිරිසිදු කිරීම

• Wipe down the main unit of the scrubber with a damp cloth to remove any dirt or moisture.
• Do not use harsh chemicals or abrasive cleaners, as these may damage the tool's finish.

බැටරි රැකවරණය සහ ගබඩා කිරීම

• Always remove the battery from the scrubber when the tool is not in use or during maintenance.
• Store the battery and charger in a cool, dry place, away from direct sunlight and extreme temperatures.

සාමාන්‍ය ගබඩාව

Store the RYOBI ONE+ Cordless Compact Power Scrubber and its accessories in a clean, dry, and secure location, out of reach of children.

6. දෝශ නිරාකරණය

Tool Not Turning On

• Ensure a compatible RYOBI 18V ONE+ battery is fully charged and properly inserted into the battery compartment.
• Verify that the battery compartment cover is securely closed and latched.

දුර්වල පිරිසිදු කිරීමේ කාර්ය සාධනය

• Check the brush head for wear or damage. Replace if bristles are flattened or missing.
• Ensure an appropriate cleaning solution is being used for the surface and type of grime.
• Confirm the brush head is securely attached and rotating freely.

Water Leakage from Battery Compartment

• Immediately power off the tool and remove the battery.
• Inspect the rubber seal around the battery compartment for any damage or debris. Clean or replace the seal if necessary.
• Ensure the compartment cover is correctly aligned and all latches are fully engaged.

7. පිරිවිතර

8. වගකීම් සහ සහාය

වගකීම් තොරතුරු

The RYOBI ONE+ Cordless Compact Power Scrubber is covered by a 3-year manufacturer's warranty. Please retain your proof of purchase for warranty claims.

පාරිභෝගික සහාය

For technical assistance, troubleshooting, or warranty inquiries, please contact RYOBI customer service. Refer to the contact information provided on the product packaging or the official RYOBI webඅඩවිය.
