iFAM Combination Padlock 000612V 20 mm Instruction Manual

හැඳින්වීම

The iFAM Col Combi combination padlock offers a secure and lightweight solution for various applications. Featuring an aluminum body and a chrome steel shackle, this padlock provides 1,000 possible combinations for enhanced security. It is suitable for school lockers, gyms, suitcases, backpacks, and briefcases.

This manual provides instructions on how to set your personal combination, operate the padlock, and perform basic maintenance.

නිෂ්පාදනය අවසන්view

The iFAM Col Combi 20 padlock is designed for ease of use and portability. It features a 3-roller combination system, allowing you to set a personalized 3-digit code.

This image shows the iFAM Combination Padlock in green, highlighting its compact design.

සැකසුම: ඔබේ සංයෝජනය සැකසීම

Your iFAM combination padlock comes with a factory preset combination, typically 0-0-0. To set your personal combination, follow these steps:

1. Ensure the padlock is open and set to the current combination (factory default 0-0-0).
2. Rotate the shackle 90 degrees counter-clockwise from the locked position.
3. Press the shackle down firmly into the body of the lock.
4. While holding the shackle down, set your desired 3-digit combination by rotating the dials. Choose a memorable number.
5. Release the shackle and return it to the original locked position.
6. Scramble the dials to lock the padlock. Test your new combination to ensure it opens correctly before securing any items.

වැදගත්: Do not forget your combination. There is no master key or override function to reset a forgotten combination.

This image illustrates the iFAM combination padlock in use, securing a zipper on a bag.

Operating the Padlock

To open the padlock:

1. Align the three dials to your set combination.
2. Pull the shackle upwards to release it from the lock body.

To close and lock the padlock:

1. අගුළු සිරුරට විලංගුව ඇතුල් කරන්න.
2. Scramble the three dials to a random number. The padlock is now locked.

නඩත්තු කිරීම

The iFAM combination padlock requires minimal maintenance to ensure its longevity and smooth operation.

• Keep the padlock clean and dry to prevent dirt and debris from affecting the dials or shackle mechanism.
• Avoid exposing the padlock to extreme temperatures or harsh chemicals, which can damage the materials.
• If the dials become stiff or difficult to turn, a small amount of graphite lubricant can be applied. Avoid oil-based lubricants as they can attract dirt.

දෝෂගවේෂණය

Padlock will not open with the correct combination:

• Ensure each number on the dials is precisely aligned with the indicator marks.
• Double-check that you are using the correct combination. If you recently changed it, try the old combination as well, in case the change was not fully registered.
• Gently wiggle the shackle while entering the combination to ensure no internal components are stuck.

Dials are stiff or difficult to turn:

• Clean any visible dirt or grime from the dials and the gaps around them.
• Apply a small amount of graphite powder lubricant to the dials and rotate them to distribute it.

වැදගත්: If you have forgotten your combination, the padlock cannot be opened without knowing the correct sequence. iFAM does not provide a recovery service for forgotten combinations.

පිරිවිතර

This technical drawing provides detailed dimensions for the iFAM Col Combi 20 padlock, including shackle diameter and height.

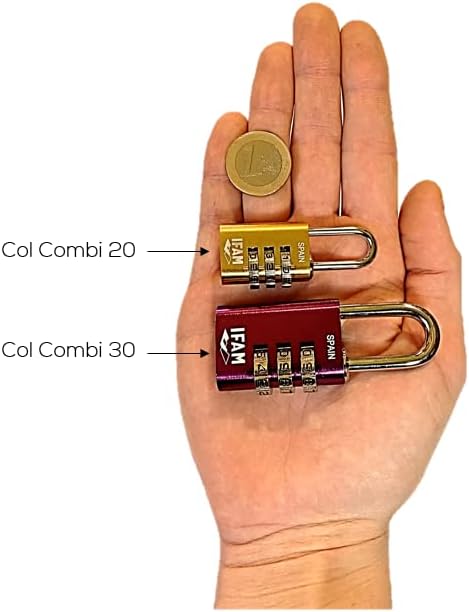

This image shows a size comparison between the iFAM Col Combi 20 and Col Combi 30 padlocks, held in a hand for scale.

This image displays a range of iFAM combination padlocks, showcasing different colors and sizes available in the Col Combi series.

වගකීම් සහ සහාය

For any questions regarding your iFAM Combination Padlock or for support, please contact the manufacturer directly through their official webභාණ්ඩය මිලදී ගත් ස්ථානය හෝ සිල්ලර වෙළෙන්දා. වගකීම් හිමිකම් සඳහා කරුණාකර ඔබේ මිලදී ගැනීමේ සාක්ෂි තබා ගන්න.
