Browning Dark Ops HD Pro X Trail Camera (Model BTC-6HDPX)

1. නිෂ්පාදන අවසන්view

The Browning BTC-6HDPX Dark Ops HD Pro X Trail Camera is designed for outdoor surveillance, offering advanced detection capabilities for both day and night use. It captures high-resolution images and videos, making it suitable for monitoring wildlife or property.

This camera features a 20-megapixel image resolution and records 1600x900p HD videos with sound. A 1.5-inch color view screen allows for immediate review of captured media. The Dark Ops HD Pro X supports multiple operating modes, including Still Pictures, TimeLapse Plus, and Video mode. The TimeLapse Plus Mode captures images during the day and activates motion detection at night, ensuring comprehensive coverage.

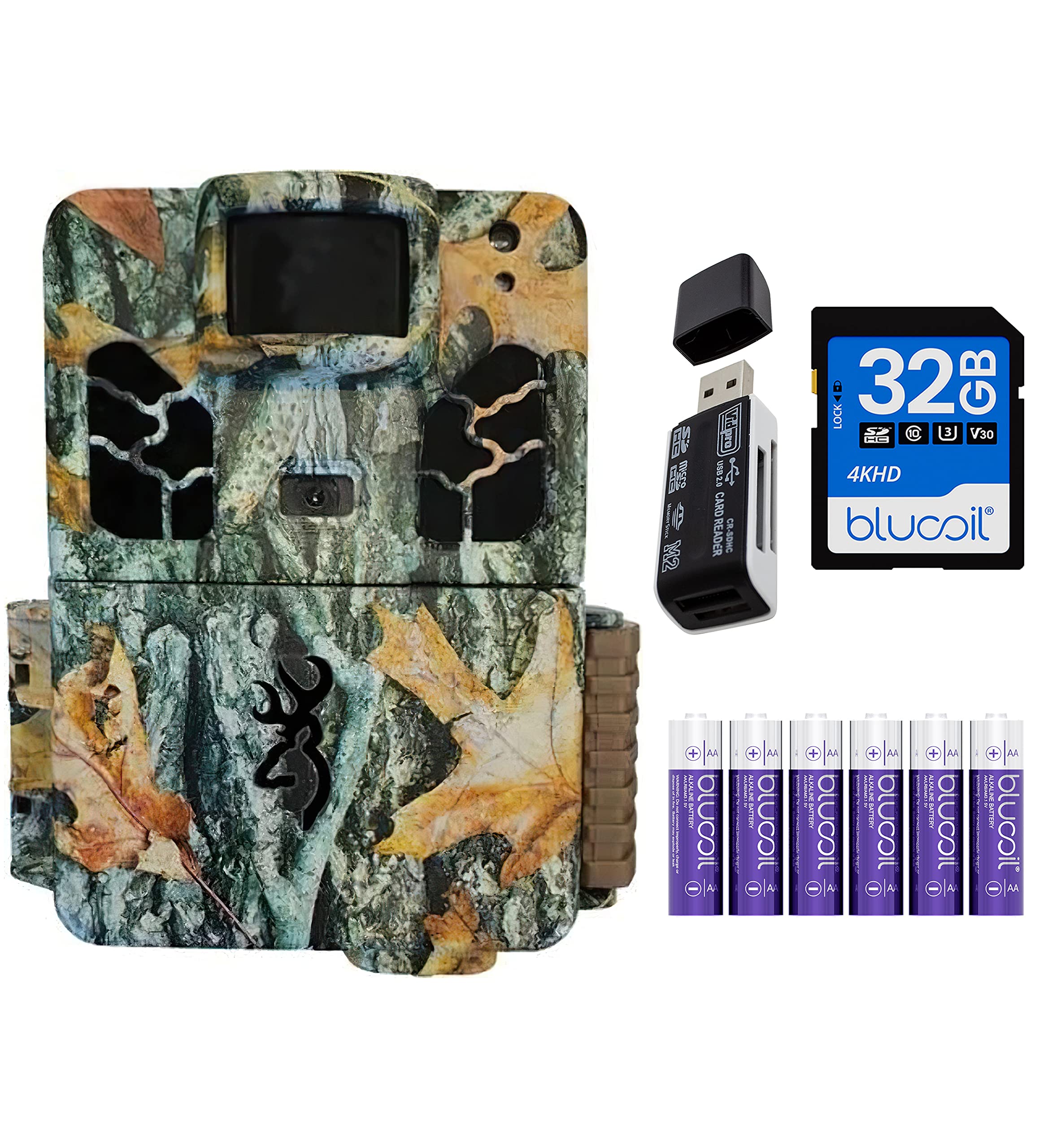

රූපය 1.1: ඉදිරිපස view of the Browning Dark Ops HD Pro X Trail Camera in its closed state.

2. සැකසුම් මාර්ගෝපදේශය

2.1. බැටරි ස්ථාපනය

The BTC-6HDPX camera requires 6 AA alkaline batteries for operation. For optimal performance, especially in cold weather, lithium batteries are recommended.

1. Open the camera housing latch.
2. බැටරි මැදිරිය සොයා ගන්න.
3. මැදිරිය තුළ දක්වා ඇති පරිදි නිවැරදි ධ්‍රැවීයතාව (+/-) සහතික කරමින් AA බැටරි 6ක් ඇතුළු කරන්න.
4. බැටරි මැදිරිය ආරක්ෂිතව වසා දමන්න.

Figure 2.1: The camera opened, showing the internal display, control buttons, and battery compartment.

රූපය 2.2: උදාample of AA alkaline batteries suitable for the camera.

2.2. SD කාඩ් ස්ථාපනය

A memory card is required to store images and videos. The camera supports SD cards up to 512GB.

1. කැමරා නිවාසය විවෘතව තිබියදී, SD කාඩ් පත සඳහා ස්ථානය සොයා ගන්න.
2. Insert the SD card into the slot with the label facing up until it clicks into place.
3. ඉවත් කිරීමට, කාඩ්පත පිටතට එන තුරු මෘදු ලෙස ඔබන්න.

2.3. කැමරාව සවි කිරීම

The camera comes with a 6-foot tree strap for secure mounting.

1. Select a suitable location, such as a tree or post, that provides a clear view අපේක්ෂිත නිරීක්ෂණ ප්‍රදේශයේ.
2. Thread the tree strap through the mounting brackets on the back of the camera.
3. Securely fasten the strap around the mounting surface, ensuring the camera is stable and pointed correctly.

රූපය 2.3: පසුපස view of the camera, highlighting the mounting bracket for the tree strap.

3. මෙහෙයුම් මාතයන්

The BTC-6HDPX offers several operating modes to suit different surveillance needs.

3.1. බල ගැන්වීම / අක්රිය කිරීම

To power on the camera, slide the ON/OFF switch to the 'ON' position. The camera will perform a self-check and enter setup mode or the last used operating mode. To power off, slide the switch to 'OFF'.

3.2. Still Pictures Mode

In this mode, the camera captures still images when motion is detected. You can configure settings such as image resolution (up to 20 MP), multi-shot (up to 8 images), and rapid fire (up to 8 images).

3.3. TimeLapse Plus Mode

This mode combines time-lapse photography during the day with motion-activated capture at night. It is ideal for monitoring large areas over extended periods.

3.4. වීඩියෝ මාදිලිය

The camera records high-definition videos with sound. Video resolution is 1600x900p, and clip lengths can be set from 5 seconds to 2 minutes.

3.5. Viewරූප සහ වීඩියෝ උඩුගත කිරීම

ඔයාට පුළුවන් view captured media directly on the camera's 1.5-inch color view screen or by transferring the SD card to a computer.

1. කැමරාවේ: Navigate through the menu using the control buttons to access the image/video gallery.
2. පරිගණකයේ: Remove the SD card from the camera and insert it into your computer's SD card reader. Alternatively, use the included VidPro USB 2.0 Card Reader for efficient data transfer.

Figure 3.1: The VidPro USB 2.0 Card Reader for transferring files from the SD card to a computer.

4. නඩත්තු කිරීම

4.1. බැටරි ප්රතිස්ථාපනය

Regularly check battery levels. Replace all batteries simultaneously to ensure consistent power. If using alkaline batteries in cold conditions, be aware that performance may degrade below 35% charge or 30 degrees Fahrenheit.

4.2. SD කාඩ් කළමනාකරණය

Periodically format your SD card using the camera's menu option to maintain optimal performance and prevent data corruption. Back up important fileහැඩතල ගැන්වීමට පෙර s.

4.3 පිරිසිදු කිරීම

Keep the camera lens and PIR sensor window clean from dirt, dust, and debris. Use a soft, dry cloth for cleaning. Avoid abrasive materials or harsh chemicals.

5. දෝශ නිරාකරණය

• කැමරාව ක්‍රියාත්මක නොවේ: Ensure batteries are correctly installed and fully charged. Check the ON/OFF switch position.
• දුර්වල රූප/වීඩියෝ ගුණාත්මකභාවය: Verify lens is clean. Check camera settings for resolution and focus. Ensure adequate lighting for daytime shots.
• චලන අනාවරණයක් නැත: Confirm the PIR sensor window is clear. Adjust camera placement and sensitivity settings. Ensure the detection range (80-FT) is appropriate for the area.
• SD කාඩ් දෝෂ: Reformat the SD card using the camera's menu. Try a different SD card if errors persist.
• Short Night Videos: The camera is designed to conserve battery life at night, resulting in shorter video clips (e.g., 20 seconds). This is normal operation.

6. තාක්ෂණික පිරිවිතර

7. වගකීම් සහ සහාය

For warranty information and technical support, please refer to the official Browning Trail Cameras webවෙබ් අඩවියට පිවිසෙන්න හෝ ඔවුන්ගේ පාරිභෝගික සේවය කෙලින්ම අමතන්න. මිලදී ගැනීමේ සාක්ෂියක් ලෙස ඔබේ මිලදී ගැනීමේ රිසිට්පත තබා ගන්න.
