1. හැඳින්වීම
This manual provides essential instructions for the safe and efficient use of your ST 36V 2A Li-ion Battery Charger (Model STC-8101LC). This charger is designed to provide a 42V 2A output, making it suitable for charging 36V Lithium-ion battery packs commonly found in e-bikes, hoverboards, and electric scooters equipped with a DC2.1 charging port. Please read this manual thoroughly before first use and retain it for future reference.
2. ආරක්ෂිත උපදෙස්
අවවාදයයි: මෙම ආරක්ෂක උපදෙස් අනුගමනය කිරීමට අපොහොසත් වීමෙන් විදුලි කම්පනය, ගින්නක් හෝ බරපතල තුවාල සිදුවිය හැකිය.
- ගෘහස්ථ භාවිතය පමණි: This charger is designed for indoor use in dry conditions. Do not expose it to rain, moisture, or extreme temperatures.
- Correct Battery Type: Only use this charger with 36V Lithium-ion battery packs. Using it with other battery types (e.g., lead-acid, NiMH) can cause damage to the battery and charger, and may lead to fire or explosion.
- වෙළුමtagඊ ගැළපුම: Ensure the battery pack's voltage matches the charger's output (42V for 36V Li-ion).
- නිසි වාතාශ්රය: Always place the charger in a well-ventilated area during use. Do not cover the charger.
- හානි වළක්වන්න: Do not operate the charger if the power cord, plug, or charger casing හානි වී ඇත. සහාය සඳහා පාරිභෝගික සහාය අමතන්න.
- භාවිතයේ නොමැති විට විසන්ධි කරන්න: Disconnect the charger from the power outlet and the device when not in use or during cleaning.
- දරුවන්ගෙන් ඈත් වන්න: මෙම නිෂ්පාදනය සෙල්ලම් බඩුවක් නොවේ. එය දරුවන්ට ළඟා විය නොහැකි ලෙස තබා ගන්න.
- විසුරුවා හැරීමක් නැත: චාජරය විවෘත කිරීමට හෝ වෙනස් කිරීමට උත්සාහ නොකරන්න. ඇතුළත පරිශීලක-සේවා කළ හැකි කොටස් නොමැත.
3. නිෂ්පාදන ලක්ෂණ
The STC-8101LC charger is designed for convenience and safety, incorporating several protective features:
- සංයුක්ත නිර්මාණය: Its small size makes it highly portable and easy to store.
- අධික වත්මන් ආරක්ෂාව: අධික ධාරා ප්රවාහයකින් සිදුවන හානිය වළක්වයි.
- අධික වෙළුමtagඊ ආරක්ෂාව: වෝල්ටීයතාවයට එරෙහිව ආරක්ෂණ ක්රමtagඊ ඉහළ යයි.
- කෙටි පරිපථ ආරක්ෂණය: කෙටි පරිපථයක් ඇති වූ විට ස්වයංක්රීයව ක්රියා විරහිත වේ.
- ප්රතිලෝම ධ්රැවීයතා ආරක්ෂාව: Protects against incorrect connection.
- අධික උෂ්ණත්ව ආරක්ෂණය: Prevents overheating during operation.
Image: The charger features multiple protection mechanisms including over-current, over-voltage, short circuit, reverse polarity, and over-temperature protection, indicated by corresponding icons.

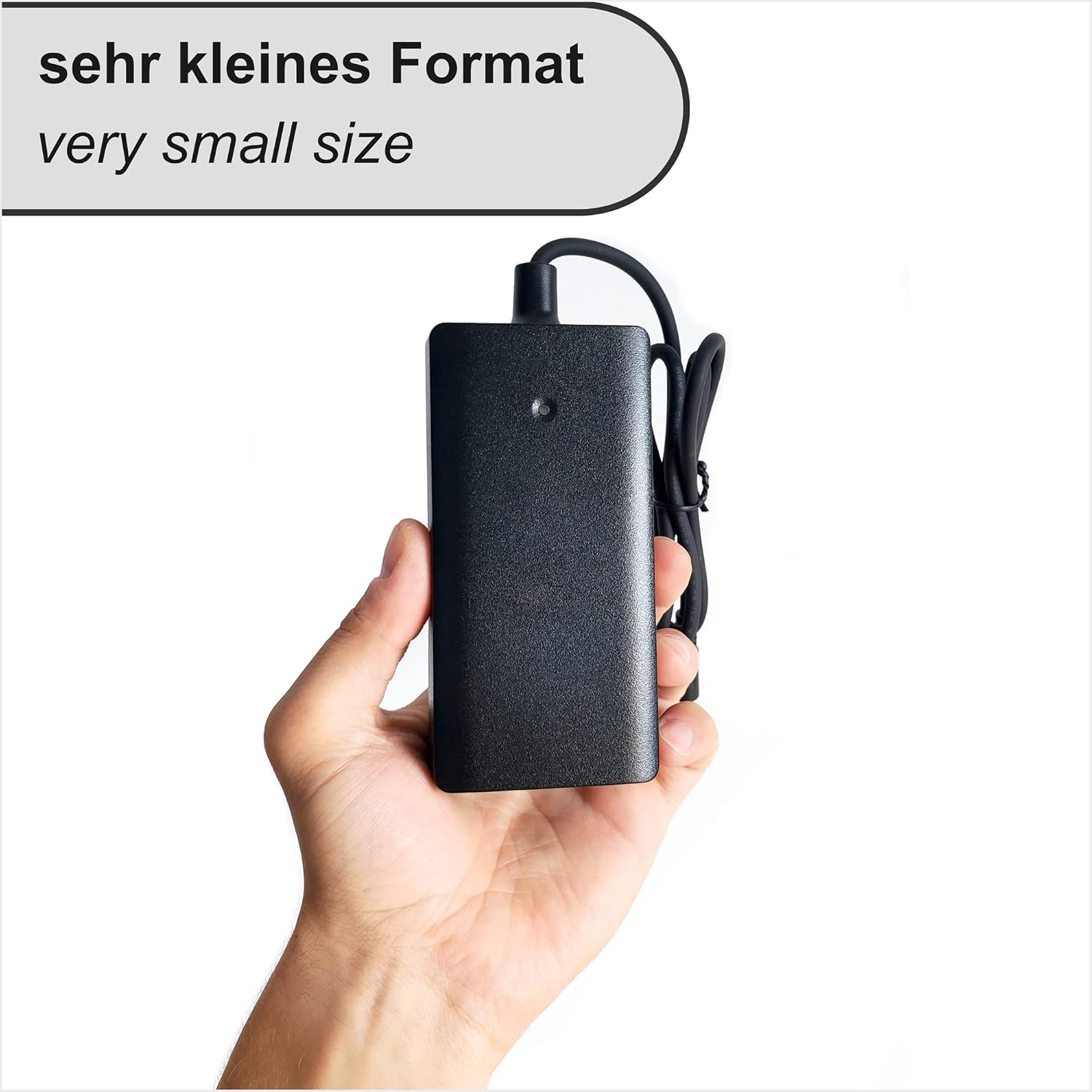

Image: A hand holding the charger, demonstrating its compact and portable design.
4. පිහිටුවීම
- ඇසුරුම්: Carefully remove the charger and power cable from its packaging. Inspect for any visible damage.
- බල කේබලය සම්බන්ධ කරන්න: Insert the 2-pole power cable into the charger's AC input port.
- Connect to Outlet: Plug the other end of the power cable into a standard wall outlet (100-240V AC).
- උපාංගයට සම්බන්ධ කරන්න: Insert the DC2.1 charging plug into the charging port of your e-bike, hoverboard, scooter, or battery pack. Ensure the connection is secure.
රූපය: විස්තරාත්මක view of the DC2.1 charging port (5.5mm outer, 2.1mm inner diameter) and the 1.5m 2-pole power cable.
5. මෙහෙයුම් උපදෙස්
The charger features an LED indicator to show its status:
- රතු LED: බැටරිය දැනට ආරෝපණය වන බව දක්වයි.
- කොළ LED: Indicates that the battery is fully charged or the charger is powered on but not connected to a battery.
- Once connected as per the 'Setup' section, the LED indicator will turn රතු, signifying that charging has begun.
- When the battery is fully charged, the LED indicator will turn කොළ පාටයි.
- After charging is complete, first disconnect the charger from the device, then unplug it from the wall outlet.
Image: Visual guide to the charger's LED indicators: Red for 'Charging' and Green for 'On / Charged'.
6. යෙදුම්
This charger is compatible with various devices that use 36V Lithium-ion battery packs and a DC2.1 charging port. Common applications include:
- E-bikes (Electric Bicycles)
- E-scooters (Electric Scooters)
- Hoverboards
- General 36V Li-ion Battery Packs with DC2.1 input

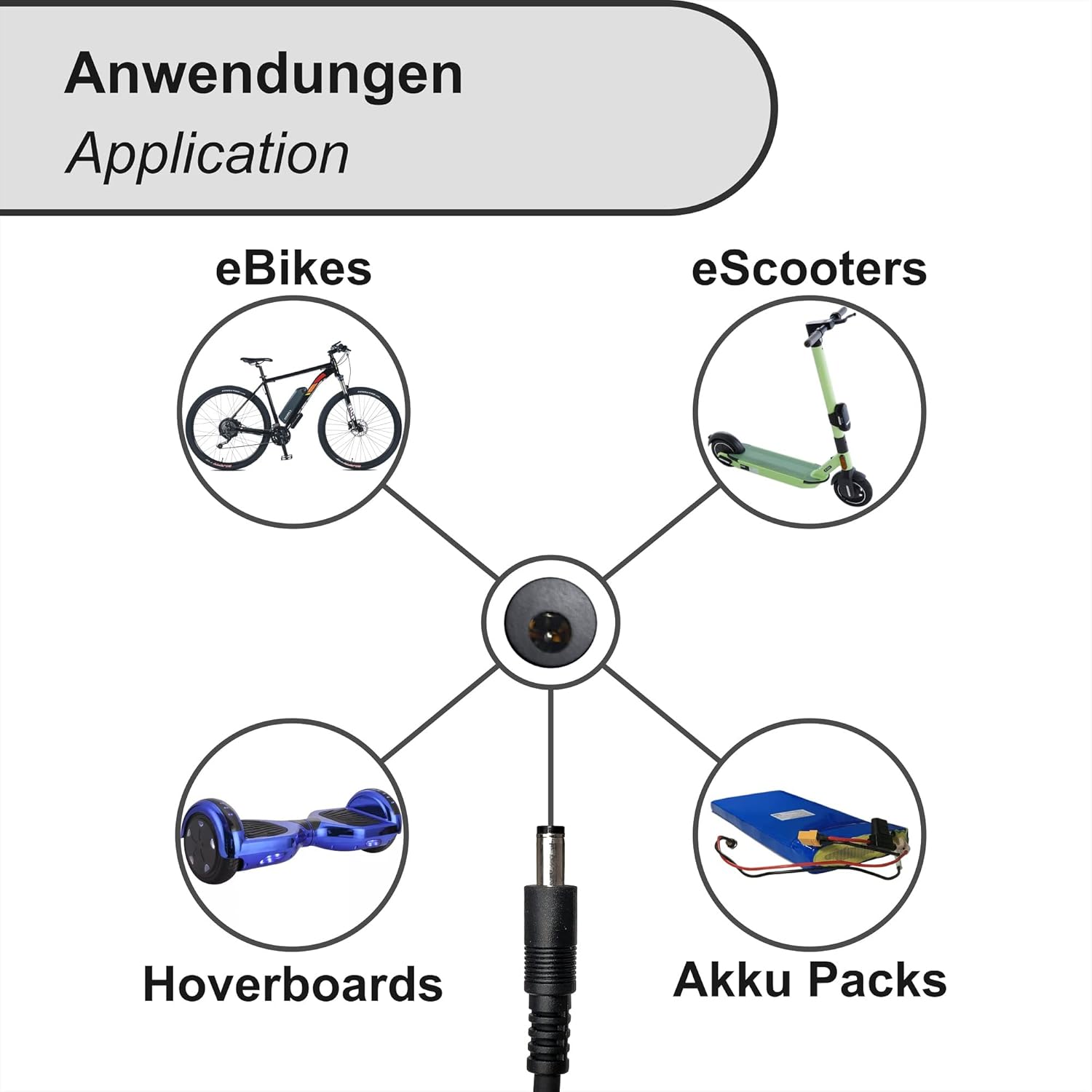

Image: The charger is suitable for various applications including e-bikes, e-scooters, hoverboards, and general battery packs.
7. නඩත්තු කිරීම
- පිරිසිදු කිරීම: Disconnect the charger from all power sources before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or solvents.
- ගබඩා: Store the charger in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the cables are not kinked or tangled.
- පරීක්ෂාව: Periodically inspect the charger, power cord, and connectors for any signs of wear or damage.
8. දෝශ නිරාකරණය
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| Charger LED not lighting up. | No power from outlet; loose connection; damaged charger. | Check power outlet with another device. Ensure all connections are secure. If still no light, the charger may be faulty. |
| LED is Green but battery is not charging. | Battery already full; incorrect battery type/voltage; faulty battery; loose connection to device. | Verify battery charge level. Confirm battery compatibility. Ensure DC2.1 plug is fully inserted. Test with another compatible battery if possible. |
| Charger feels excessively hot. | Poor ventilation; prolonged use; internal fault. | Unplug immediately. Allow to cool in a well-ventilated area. Ensure charger is not covered during use. If overheating persists, discontinue use and contact support. |
9. පිරිවිතර
| විශේෂාංගය | විස්තර |
|---|---|
| වෙළඳ නාමය | ST |
| ආදර්ශ අංකය | STC-8101LC |
| ප්රතිදාන වෙළුමtage | වෝල්ට් 42 |
| ප්රතිදාන ධාරාව | 2 Ampකලින් |
| ගැළපෙන බැටරි වර්ගය | 36V ලිතියම්-අයන |
| සම්බන්ධක වර්ගය | DC2.1 (5.5mm outer, 2.1mm inner diameter) |
| නිෂ්පාදන මානයන් (L x W x H) | 12.5 x 6.2 x 3.6 සෙ.මී |
| අයිතමයේ බර | ග්රෑම් 350 යි |
Image: Dimensions of the charger, measuring 125mm in length, 60mm in width, and 35mm in height.
10. වගකීම් සහ සහාය
For warranty information or technical support, please refer to the documentation provided with your purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
