YIHUA 862BD+ Professional Soldering & Rework Station

1. හැඳින්වීම

This manual provides essential information for the safe and effective operation, setup, and maintenance of your YIHUA 862BD+ Professional Soldering & Rework Station. This 2-in-1 station combines a hot air rework station and a soldering iron, designed for various electronic repair and assembly tasks. Please read this manual thoroughly before using the device.

2. ආරක්ෂිත උපදෙස්

To prevent injury or damage to the equipment, always observe the following safety precautions:

• විදුලි ආරක්ෂාව: This unit is designed to operate on 110-127V US mains electricity. DO NOT use the product on mains electricity at 220V. Ensure the power outlet is properly grounded.
• තාප අවදානම: The soldering iron tip and hot air nozzle reach very high temperatures. Always use caution and avoid direct contact with skin or flammable materials. Allow components to cool before handling.
• වාතාශ්රය: Use the station in a well-ventilated area to avoid inhaling solder fumes, which can be harmful. Consider using a fume extractor.
• අක්ෂි ආරක්ෂාව: පෑස්සුම් ඉසීමෙන් හෝ පියාඹන සුන්බුන් වලින් ඔබේ ඇස් ආරක්ෂා කර ගැනීම සඳහා සැමවිටම ආරක්ෂිත කණ්නාඩි පළඳින්න.
• වැඩ කරන ප්රදේශය: Keep your work area clean and free of clutter. Ensure no flammable liquids or gases are near the station.
• ළමුන් සහ සුරතල් සතුන්: උපාංගය ළමයින්ට සහ සුරතල් සතුන්ට ළඟාවිය නොහැකි ලෙස තබා ගන්න.
• නඩත්තු: Disconnect the power cord before performing any maintenance or cleaning.

3. පැකේජ අන්තර්ගතය

පහත ලැයිස්තුගත කර ඇති සියලුම අයිතම ඔබේ පැකේජයට ඇතුළත් කර ඇති බව තහවුරු කරගන්න:

• YIHUA 862BD+ Professional Soldering & Rework Station Main Unit
• උණුසුම් වායු තුවක්කුව
• පෑස්සුම් යකඩ
• පෑස්සුම් යකඩ රඳවනය
• උණුසුම් වායු තුවක්කු රඳවනය
• 50g 0.8mm Lead-Free Solder Wire
• 5 x Assorted Soldering Iron Tips
• 4 x Assorted Hot Air Nozzles (#2300 bundle: 3 round-shape, 1 square-shape)
• ස්පොන්ජ් පිරිසිදු කිරීම
• 1 x Pair ESD-Safe Tweezers
• 1 x Solder Sucker
• 1 x Cleaning Kit (Brass Ball)
• 1 x IC Extractor

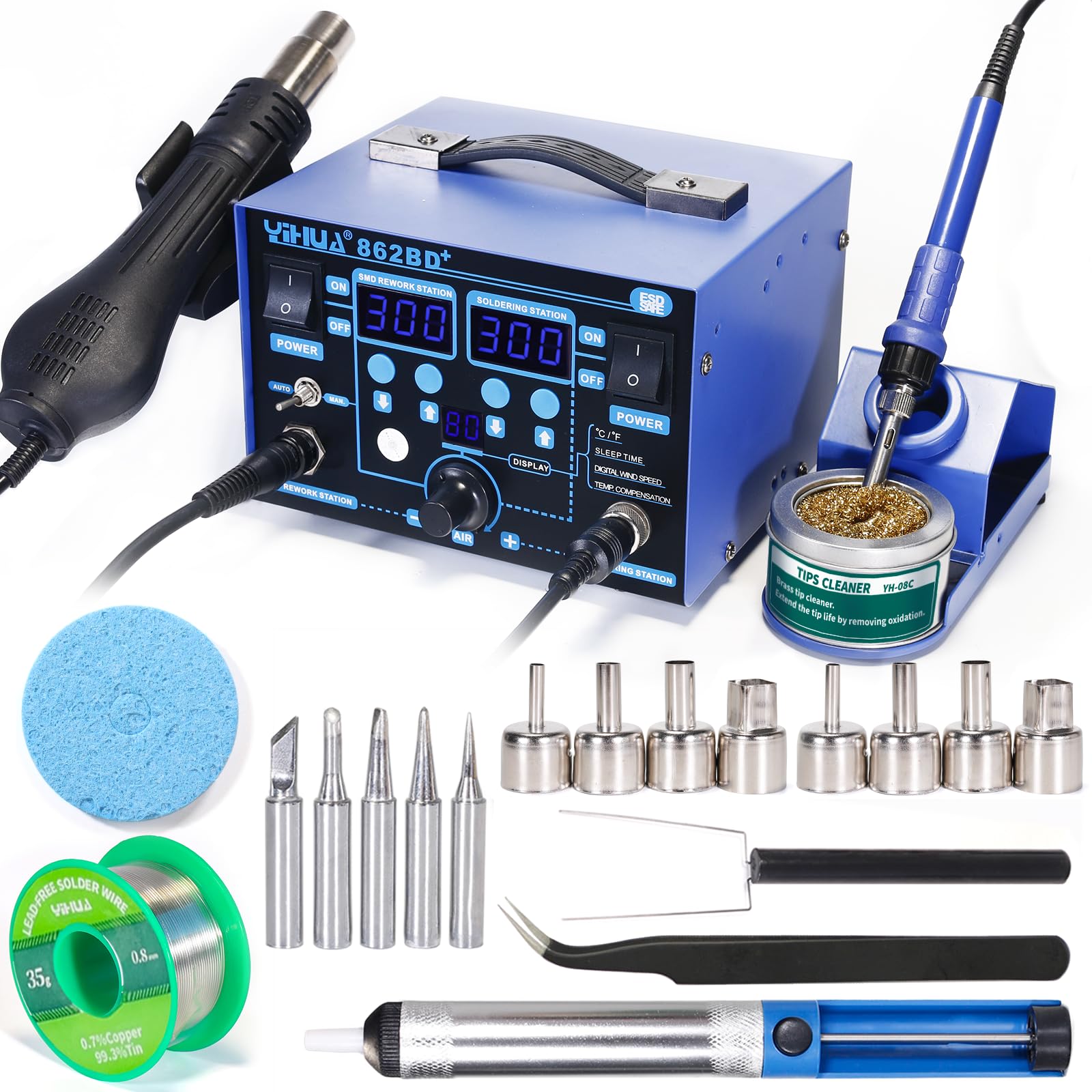

Figure 3.1: YIHUA 862BD+ Soldering & Rework Station with all included accessories.

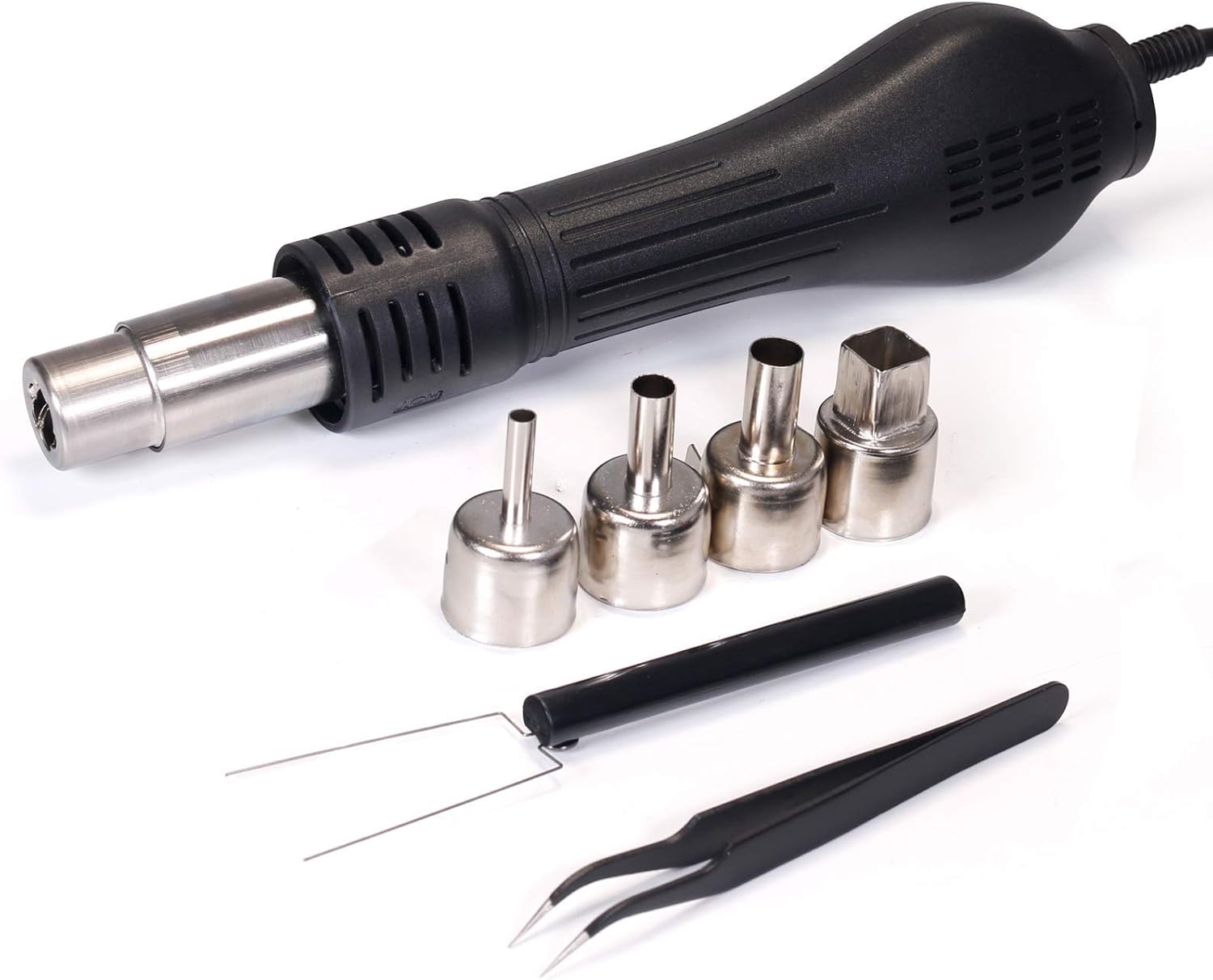

Figure 3.2: Assorted hot air nozzles for various applications.

Figure 3.3: Spool of lead-free solder wire.

Figure 3.4: Soldering iron with its stand and brass tip cleaner.

4. පිහිටුවීම

මූලික සැකසුම සඳහා මෙම පියවර අනුගමනය කරන්න:

1. ඇසිරීම: ඇසුරුම්කරණයෙන් සියලුම සංරචක ප්‍රවේශමෙන් ඉවත් කර කිසියම් හානියක් සඳහා පරීක්ෂා කරන්න.
2. ස්ථානගත කිරීම: Place the main unit on a stable, heat-resistant surface in a well-ventilated area. Ensure adequate space around the unit for airflow.
3. උණුසුම් වායු තුවක්කුව සම්බන්ධ කරන්න: Plug the hot air gun connector into the designated port on the main unit. Secure it if necessary. Place the hot air gun in its holder.
4. පෑස්සුම් යකඩ සම්බන්ධ කරන්න: Plug the soldering iron connector into the designated port on the main unit. Place the soldering iron in its stand.
5. බල සම්බන්ධතාවය: Ensure both the SMD Rework Station and Soldering Station power switches are in the OFF position. Connect the power cord to the main unit and then to a 110-127V AC grounded power outlet.

5. මෙහෙයුම් උපදෙස්

5.1. සාමාන්ය මෙහෙයුම

1. බල ගැන්වීම: Flip the respective power switches (SMD Rework Station and/or Soldering Station) to the ON position. The digital displays will illuminate.
2. උෂ්ණත්ව ගැලපීම: Use the temperature control knobs or buttons for each station to set the desired temperature. The unit features temperature stabilization to maintain the set temperature steadily.
3. විදුලිය විසන්ධි කිරීම: After use, turn off both power switches and allow the hot air gun and soldering iron to cool down completely before storing.

5.2. Temperature Display Unit (°F/°C) Conversion

To switch between Fahrenheit (°F) and Celsius (°C) temperature display:

1. Turn on the SMD rework station power switch only.
2. Simultaneously press and hold the REWORK STATION ▲ (up) button and the SOLDERING STATION ▼ (down) button for 2 seconds.
3. Press the SOLDERING STATION ▲ (up) button to display °C or ▼ (down) button to display °F.
4. Stop operating for 4 seconds to exit the setting and save your selection.

Figure 5.1: Guide for converting temperature display between Fahrenheit and Celsius.

5.3. Hot Air Rework Station

• උෂ්ණත්ව පරාසය: 212-896°F (100-480°C).
• තුණ්ඩ තේරීම: Choose an appropriate nozzle from the #2300 set (round or square) for your specific component size and application. Attach it securely to the hot air gun.
• වායු ප්‍රවාහ ගැලපීම: Use the airflow control knob to adjust the air volume. Start with lower airflow for delicate components and increase as needed.
• මෙහෙයුම: Direct the hot air stream evenly over the component to be reworked. Avoid concentrating heat on one spot for too long.

5.4. Soldering Station

• උෂ්ණත්ව පරාසය: 392-896°F (200-480°C).
• Tip Selection: Select an appropriate soldering iron tip for your task. Ensure it is securely fastened.
• ඉඟිය ටින් කිරීම: Before first use and periodically during operation, tin the tip by applying a small amount of solder to it. This helps prevent oxidation and improves heat transfer.
• පෑස්සුම්: Apply the heated tip to both the component lead and the PCB pad simultaneously. Feed solder onto the joint, not directly onto the iron tip. Remove the solder, then the iron, allowing the joint to cool naturally.

6. නඩත්තු කිරීම

Regular maintenance ensures optimal performance and longevity of your station:

• Soldering Iron Tip Cleaning: Regularly clean the soldering iron tip using the brass ball cleaner or a damp sponge. This removes oxidation and old solder, maintaining efficient heat transfer.
• Hot Air Nozzle Cleaning: Ensure hot air nozzles are free from debris or solder residue. Clean them gently with a brush or appropriate tool when cool.
• ඒකක පිරිසිදු කිරීම: Wipe the main unit and handles with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• ගබඩා: Store the station in a dry, dust-free environment when not in use. Ensure all components are cool before storage.

7. දෝශ නිරාකරණය

ඔබට ගැටළු ඇති වුවහොත්, පහත පොදු ගැටළු සහ විසඳුම් වෙත යොමු වන්න:

8. පිරිවිතර

9. වගකීම් සහ සහාය

YIHUA provides a 12-month US-exclusive manufacturer technical coverage for this product. For any technical assistance or support, please utilize the 24/7 professional assistance available on Amazon. Refer to your purchase documentation for specific contact details or visit the official YIHUA store on Amazon.
