නිෂ්පාදනය අවසන්view
The VANBAR Wildlife Camera D500 is a high-performance trail camera designed for capturing images and videos of wildlife, for home security, or for monitoring farm areas. It features a 20-megapixel camera for clear still images and records full HD 1080P video. Equipped with advanced night vision capabilities and a rapid 0.2-second trigger speed, it ensures you capture every moment. Its IP66 waterproof design makes it suitable for various outdoor environments.
රූපය: ඉදිරිපස view of the VANBAR Wildlife Camera D500, showcasing its robust, camouflage design and sensor layout.
පැකේජයේ අන්තර්ගතය
පැකේජය විවෘත කිරීමෙන් පසු, පහත සඳහන් සියලු අයිතම ඇතුළත් කර ඇති බවට වග බලා ගන්න:
- VANBAR Wildlife Camera D500
- සවිකරන පටිය
- සකස් කළ හැකි සවි කිරීමේ වරහන
- USB කේබලය
- සවි කරන ඉස්කුරුප්පු සහ බිත්ති ප්ලග්
- පරිශීලක අත්පොත
Image: The VANBAR Wildlife Camera D500 and its included accessories laid out, showing the camera, box, mounting strap, bracket, USB cable, and manual.
ප්රධාන ලක්ෂණ
- 0.2s Trigger Speed: The camera activates in less than 0.2 seconds upon detecting movement, ensuring minimal delay in capturing events. The trigger distance extends up to 20 meters (65 feet).
Image: A fox captured mid-movement, demonstrating the camera's fast 0.2-second trigger speed.
- 20MP Images & 1080P Video: Captures high-resolution 20-megapixel still images and full HD 1080P videos, providing clear and detailed recordings.
Image: Two deer in a natural setting, illustrating the camera's ability to capture high-resolution images and videos.
- 120° Wide Detection Angle & Night Vision: Features three passive infrared (PIR) sensors for a 120° wide detection range. 850nm infrared technology provides clear night vision up to 65 feet (20m) without disturbing wildlife.
Image: A visual representation of the camera's 120-degree wide detection angle, capturing a broad area.
Image: Bears in a nighttime forest, demonstrating the camera's advanced infrared night vision capabilities.
- IP66 Waterproof & Durable: Built with an IP66 waterproof rating, making it resistant to rain, dust, and fog, ensuring reliable operation in challenging outdoor conditions.

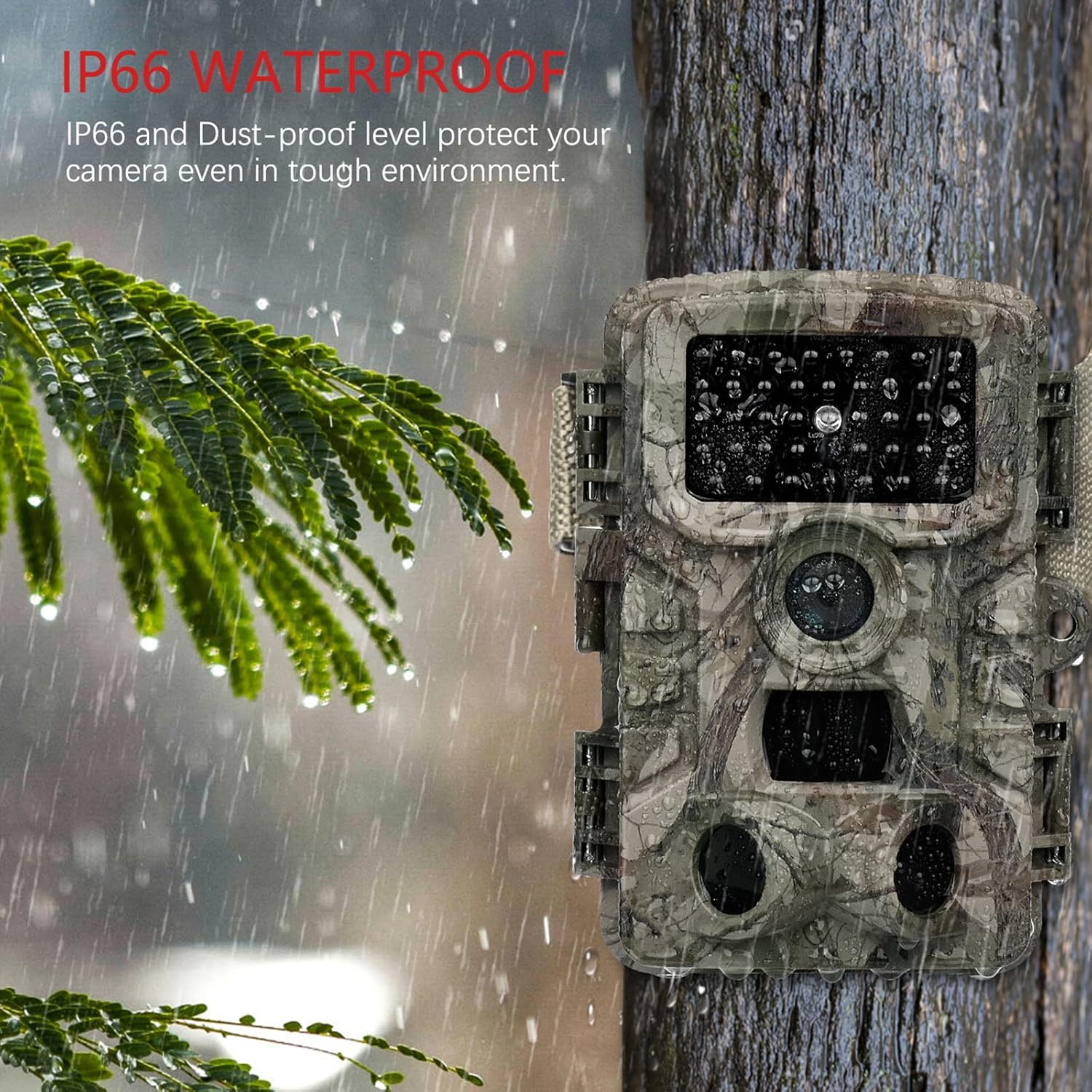

Image: The camera mounted on a tree during rainfall, showcasing its IP66 waterproof protection.
- බහුකාර්ය යෙදුම්: Suitable for various uses including hunting, home security, farm monitoring, and general wildlife observation.
රූපය: උදාamples of the camera's diverse applications, including hunting, home security, farm surveillance, and wildlife monitoring.
සැකසුම් මාර්ගෝපදේශය
1. බැටරි ස්ථාපනය
The VANBAR Wildlife Camera requires 8 x 1.5V Alkaline AA LR6 batteries for optimal performance and maximum battery life. Batteries are not included with the camera.
- කැමරාව විවෘත කරන්න casinපැති ක්ලිප් අගුළු ඇරීමෙන් g.
- බැටරි මැදිරිය සොයා ගන්න.
- මැදිරිය තුළ දක්වා ඇති පරිදි නිවැරදි ධ්රැවීයතාව (+/-) සහතික කරමින් AA බැටරි 8ක් ඇතුළු කරන්න.
- බැටරි මැදිරිය ආරක්ෂිතව වසා දමන්න.
2. Micro SD Card Installation and Formatting
A Micro SD card (Class 10, up to 32GB capacity) is required for storing images and videos. The Micro SD card is not included.
- With the camera casing open, locate the Micro SD card slot.
- මයික්රෝ SD කාඩ්පත නිසි තැනට ක්ලික් වන තුරු ස්ලොට් එකට ඇතුළු කරන්න.
- වැදගත්: Before first use, format the Micro SD card using the camera's menu. Refer to the "Operating Instructions" section for menu navigation. Formatting ensures compatibility and proper function.
3. කැමරාව සවි කිරීම
The camera can be mounted using the included strap or the adjustable mounting bracket.
- පටිය භාවිතා කිරීම: Thread the strap through the slots on the back of the camera and secure it around a tree or pole.
- Using the Mounting Bracket: Attach the bracket to a wall or flat surface using the provided screws. Then, attach the camera to the bracket.
Ensure the camera is positioned to capture the desired area, considering the 120° detection angle and night vision range of 65 feet.
මෙහෙයුම් උපදෙස්
1. බලගැන්වීම සක්රිය/අක්රිය කිරීම සහ මාදිලි තේරීම
The camera typically has a mode switch (OFF/TEST/ON).
- අක්රියයි: Powers down the camera.
- පරීක්ෂණය: Allows access to the camera's menu, settings, and manual photo/video capture. The internal screen will be active.
- මත: Activates the camera for automatic motion-triggered recording. The screen will turn off after a few seconds to conserve power.
2. මෙනු සංචාලනය සහ සැකසුම්
In TEST mode, use the navigation buttons (usually Up, Down, Left, Right, OK/Menu) to browse and adjust settings. Key settings include:
- මාදිලිය: Select Photo, Video, or Photo + Video.
- ඡායාරූප විභේදනය: Set to 20MP for highest quality.
- වීඩියෝ විභේදනය: Set to 1080P for highest quality.
- PIR සංවේදීතාව: Adjust for desired motion detection range (High, Medium, Low).
- ප්රේරක පරතරය: අනුප්රාප්තික ප්රේරක අතර ප්රමාදය සකසන්න.
- කාල පරතරය: Configure for periodic captures.
- දිනය/වේලාව: Set the current date and time for accurate timestampපටිගත කිරීම් මත s.
- SD කාඩ් ආකෘතිය: Essential for new or problematic SD cards.
3. Viewing සහ මාරු කිරීම Files
Files විය හැක viewed directly on the camera's screen in TEST mode or transferred to a computer.
- සෘජු Viewing: In TEST mode, navigate to the playback option to review අල්ලා ගත් ඡායාරූප සහ වීඩියෝ.
- USB කේබලය හරහා: Connect the camera to your computer using the provided USB cable. The camera should appear as a removable disk, allowing you to copy files.
- Via SD Card Reader: Remove the Micro SD card from the camera and insert it into a compatible card reader connected to your computer or mobile device for faster file මාරු.
- Using Mobile App (if applicable): Some models may support a mobile application for wireless connection and file management. Refer to the camera's display or packaging for app details.
නඩත්තු කිරීම
- Cleaning the Lens and PIR Sensors: Gently wipe the camera lens and the three PIR sensors with a soft, lint-free cloth. Avoid touching the PIR sensors directly with fingers, as this can cause scratches that may affect performance.
- බැටරි සත්කාර: Replace all 8 AA batteries when the low battery indicator appears. For prolonged periods of inactivity, remove the batteries to prevent leakage.
- ජල ආරක්ෂිත මුද්රාව: Regularly inspect the rubber seal around the camera casing to ensure it is clean and free from debris. A clean, intact seal is crucial for maintaining the IP66 waterproof rating.
- ගබඩා: භාවිතයේ නොමැති විට, කැමරාව සෘජු හිරු එළියෙන් සහ අධික උෂ්ණත්වයන්ගෙන් ඈත්ව සිසිල් වියළි ස්ථානයක ගබඩා කරන්න.
දෝෂගවේෂණය
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| කැමරාව ක්රියාත්මක නොවේ. | බැටරි අඩුයි හෝ වැරදි ලෙස ඇතුළත් කර ඇත. | නිවැරදි ධ්රැවීයතාව සහතික කරමින් නව AA බැටරි සමඟ ප්රතිස්ථාපනය කරන්න. |
| Camera not recording images/videos. | SD card not formatted, full, or faulty. Camera in wrong mode. | Format the SD card in the camera menu. Check SD card capacity. Ensure camera is in ON mode. |
| Poor image/video quality at night. | Subject too far from camera. PIR sensors obstructed. | Ensure subject is within 65ft (20m) night vision range. Clean PIR sensors. |
| Excessive blank recordings. | PIR sensitivity too high. Camera pointed at moving branches/grass. | Reduce PIR sensitivity. Reposition camera to avoid false triggers. |
| පරිගණකයට සම්බන්ධ විය නොහැක. | USB cable faulty. Camera not in correct mode. | Try a different USB cable. Ensure camera is in TEST mode when connecting. Use an SD card reader as an alternative. |
පිරිවිතර
| විශේෂාංගය | විස්තර |
|---|---|
| ආදර්ශ අංකය | D500 |
| රූප විභේදනය | 20 MP |
| වීඩියෝ විභේදනය | 1080P Full HD |
| ප්රේරක වේගය | තත්පර 0.2 යි |
| හඳුනාගැනීමේ කෝණය | අංශක 120 |
| රාත්රී දැක්ම පරාසය | අඩි 65 (මීටර් 20) |
| ජල ආරක්ෂිත ශ්රේණිගත කිරීම | IP66 |
| බලශක්ති ප්රභවය | 8 x AA ක්ෂාරීය බැටරි (ඇතුළත් නොවේ) |
| ගබඩා කිරීම | Micro SD Card (Class 10, up to 32GB, not included) |
| මානයන් (L x W x H) | 50 x 80 x 60 මි.මී |
| බර | 530 ග්රෑම් |
| ද්රව්ය | ප්ලාස්ටික් |
වගකීම් සහ සහාය
VANBAR offers comprehensive customer support for its products:
- ආපසු ගෙවීමේ ප්රතිපත්තිය: A 30-day refund policy is available.
- නිෂ්පාදන සේවාව: Enjoy 24 months of free product service.
- Professional After-Sales Service: Our dedicated customer service team is available to assist you with any product-related inquiries or issues.
For any product problems or questions regarding wildlife protection and observation, please do not hesitate to contact the VANBAR Customer Service Team. We are committed to providing satisfactory solutions and support.
