YIHUA Replacement Pyrography Pen (Solid-Tip Type) Instruction Manual

1. නිෂ්පාදන අවසන්view

This document provides instructions for the YIHUA Replacement Pen, a solid-tip type designed for use with YIHUA 939D-II and 939D-VII Wood Burning Pyrography Stations. This pen is intended as a direct replacement for the original solid-tip pen that came with your station. It is crucial to verify compatibility before use.

වැදගත් අනුකූලතා සටහන:

This solid-tip pen is not interchangeable with wire-nib pens. Do not attempt to use this pen with stations originally equipped with wire-nib pens, or if your original unit did not come with a solid-tip pen. Incorrect usage may damage the pen or the pyrography station.

Image 1.1: Multi-view of the YIHUA Solid-Tip Replacement Pyrography Pen, showing various components like the tip, handle, and connector.

2. පැකේජ අන්තර්ගතය

පැකේජයට පහත අයිතමය ඇතුළත් වේ:

• One (1) YIHUA Replacement Pen (Solid-Tip Type) with attached cable and connector.

3. පිහිටුවීම සහ ස්ථාපනය

Follow these steps to properly install the replacement pen onto your compatible YIHUA pyrography station:

1. විදුලිය විසන්ධි කර ඇති බව සහතික කර ගන්න: Before connecting or disconnecting any components, ensure your YIHUA 939D-II or 939D-VII pyrography station is powered off and unplugged from the main power supply. Allow the station and any previously used pen to cool completely.
2. Remove Old Pen (if applicable): If replacing an existing pen, carefully unscrew and disconnect the old pen's connector from the station's output port.
3. Inspect New Pen: Examine the new replacement pen for any visible damage to the tip, handle, or connector.
4. Connect the Pen: Align the 5-pin connector of the replacement pen with the corresponding port on your YIHUA pyrography station. Gently push the connector in and then screw the outer ring clockwise until it is finger-tight. Do not overtighten.


Image 3.1: The 5-pin connector of the replacement pen, ready for connection to the pyrography station.

5. ඉඟිය සුරක්ෂිත කරන්න: Ensure the solid tip is securely fastened to the pen body. Some models may have a threaded connection for the tip.

රූපය 3.2: සමීප රූපය view of the solid tip securely attached to the pen body.
6. භාවිතයට සූදානම්: Once connected, you can plug in and power on your pyrography station according to its own instruction manual.

4. මෙහෙයුම් උපදෙස්

This replacement pen functions identically to the original solid-tip pen provided with your YIHUA 939D-II or 939D-VII station. Refer to your station's primary instruction manual for detailed operating procedures, temperature settings, and safety guidelines.

• උෂ්ණත්ව පාලනය: Adjust the temperature on your pyrography station to achieve the desired burning effect on your chosen material.
• ද්රව්ය අනුකූලතාව: Use the pen on appropriate materials such as wood, leather, or gourds. Always test on a scrap piece first.
• ආරක්ෂිත පූර්වාරක්ෂාවන්: Always work in a well-ventilated area. Use appropriate safety gear, including heat-resistant gloves and eye protection. Avoid touching the hot tip.

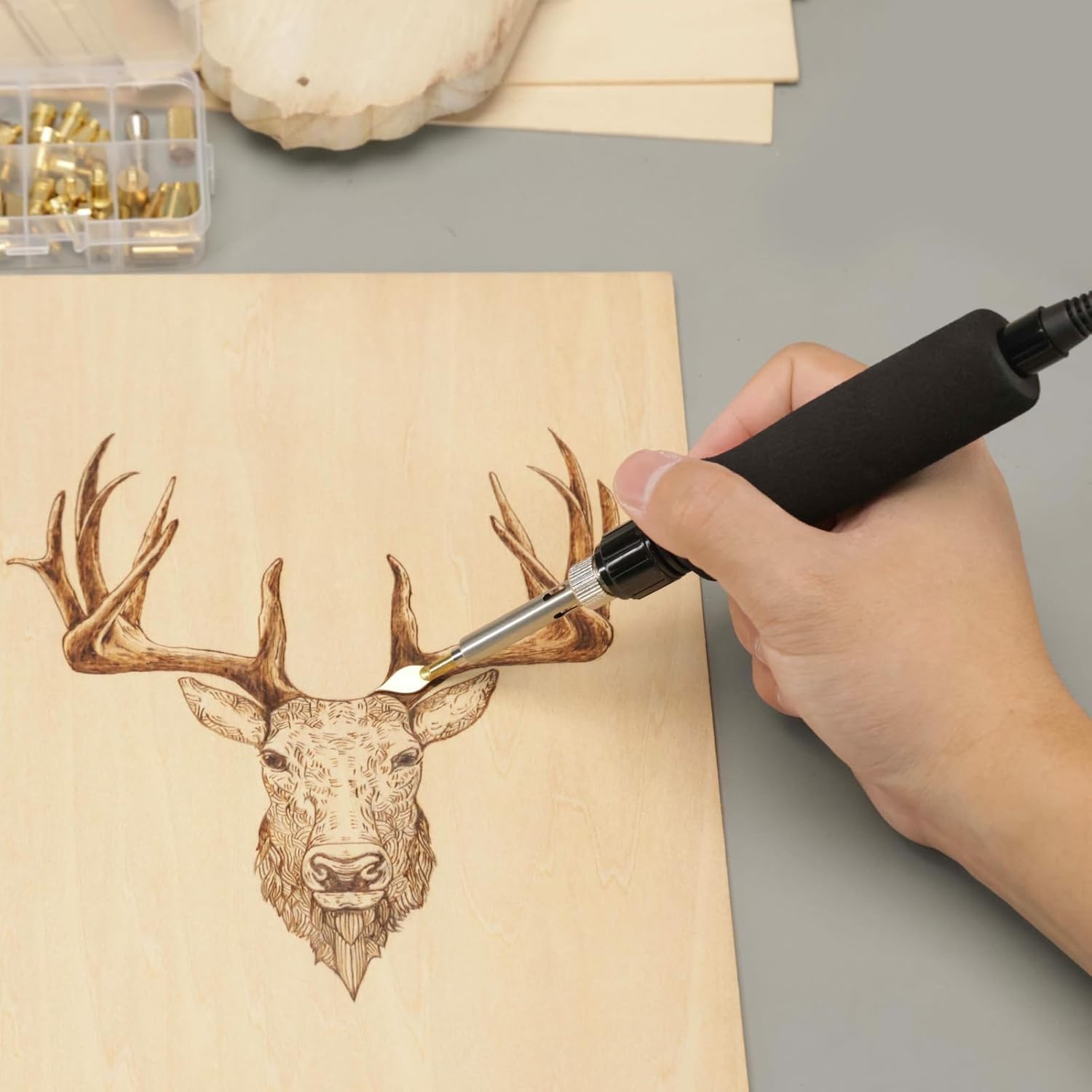

Image 4.1: The pyrography pen being used to create designs on a piece of wood.

5. නඩත්තු කිරීම

Proper maintenance ensures the longevity and optimal performance of your pyrography pen:

• ඉඟිය පිරිසිදු කිරීම: Regularly clean the solid tip using a brass brush or fine-grit sandpaper while the tip is warm (but not glowing hot). This removes carbon buildup and ensures efficient heat transfer.
• සිසිල් වීම: Always allow the pen to cool completely before storing it.
• ගබඩා: Store the pen in a dry, safe place, away from dust and moisture.
• කේබල් පරීක්ෂාව: Periodically inspect the cable and connector for any signs of wear, cuts, or damage. If damage is observed, discontinue use and replace the pen.

6. දෝශ නිරාකරණය

If you encounter issues with your replacement pen, consider the following:

• Pen Not Heating:
  • Ensure the pen's connector is fully and securely plugged into the pyrography station.
  • Verify the pyrography station is powered on and set to an appropriate temperature.
  • Check the station's power cable and fuse.
  • Confirm the pen is compatible with your specific station model (939D-II or 939D-VII solid-tip version).
• Inconsistent Heat / Poor Burning:
  • Clean the pen tip to remove any carbon buildup.
  • Ensure the tip is securely fastened to the pen body.
  • Adjust the temperature setting on your pyrography station.
  • Verify the material you are burning is suitable for pyrography.
• ලිහිල් සම්බන්ධතාවය:
  • Tighten the threaded ring on the pen's connector to the station.
  • Avoid excessive pulling or bending of the cable near the connector.

If problems persist after following these steps, contact YIHUA customer support.

7. පිරිවිතර

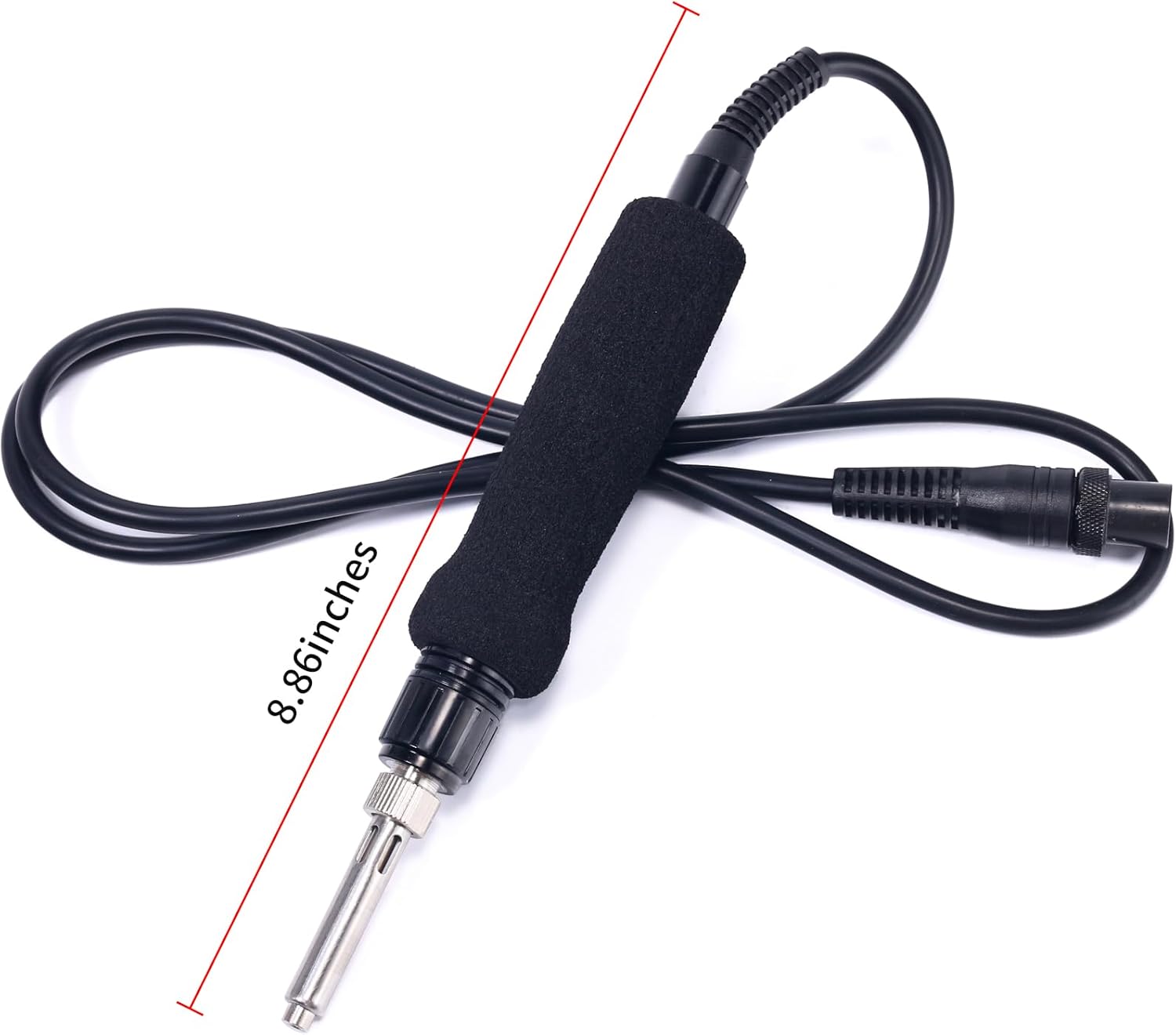

Image 7.1: The pyrography pen shown with its approximate length dimension (8.86 inches).

8. වගකීම් සහ සහාය

For warranty information and technical support, please refer to the documentation provided with your YIHUA 939D-II or 939D-VII pyrography station, or visit the official YIHUA website. You may also contact YIHUA customer service directly via the Buyer-Seller Messaging System on the platform where the product was purchased for compatibility verification or assistance.
