1. හැඳින්වීම
ස්තූතියි, උදව් කළාටasing the LuFun Flush Mount Ceiling Light. This modern LED fixture offers dimmable lighting with adjustable color temperatures (3000K-6500K) and convenient remote control operation. Designed for easy installation and energy efficiency, it provides versatile lighting for various indoor spaces.

Figure 1.1: LuFun Flush Mount Ceiling Light and its adjustable color temperatures.
2 ආරක්ෂිත තොරතුරු
- Always turn off the power at the circuit breaker before installation, cleaning, or servicing.
- මෙම නිෂ්පාදනය ගෘහස්ථ භාවිතය සඳහා පමණක් නිර්මාණය කර ඇත. තෙතමනය හෝ අධික උෂ්ණත්වයන්ට නිරාවරණය නොවන්න.
- Ensure all electrical connections are secure and comply with local electrical codes. If unsure, consult a qualified electrician.
- Do not attempt to modify the light fixture. Any modifications may void the warranty and pose a safety risk.
- Keep the remote control and small parts out of reach of children.
3. පැකේජ අන්තර්ගතය
- LuFun Flush Mount Ceiling Light Fixture (1)
- දුරස්ථ පාලනය (1)
- Mounting Hardware Kit (screws, wire nuts)
- උපදෙස් අත්පොත (මෙම ලේඛනය)
4. ස්ථාපනය
The LuFun Flush Mount Ceiling Light is designed for quick and easy installation. Please follow these steps carefully:
- ස්ථාපනය සඳහා සූදානම් වන්න: Turn off power at the main circuit breaker. Ensure the mounting surface is clean and stable.
- සවි කිරීමේ වරහන අමුණන්න: Secure the mounting bracket to the junction box in your ceiling using the provided screws.
- රැහැන් සම්බන්ධ කරන්න: Connect the household electrical wires to the fixture's wires using the wire nuts. Typically, black to black (live), white to white (neutral), and green/bare copper to green/bare copper (ground).
- සවිකිරීම සවි කරන්න: Carefully align the light fixture with the mounting bracket and secure it with the provided screws. Ensure the fixture is flush against the ceiling.
- බලය ප්රතිස්ථාපනය කරන්න: සවිකෘත ආරක්ෂිතව ස්ථාපනය කළ පසු, පරිපථ කඩනයෙහි බලය නැවත සක්රිය කරන්න.

රූපය 4.1: එල්amp body dimensions.

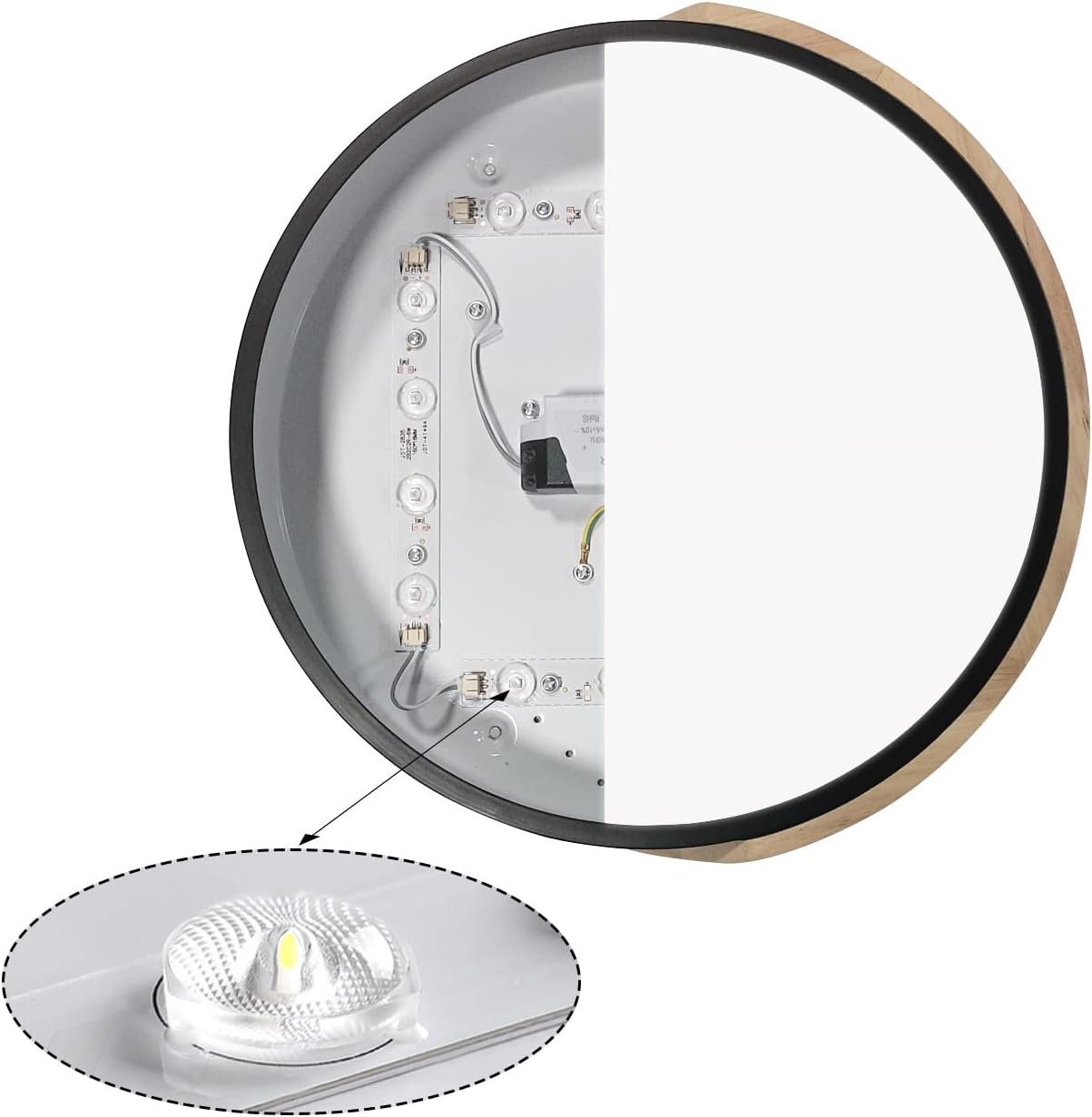

Figure 4.2: Internal LED lens and wiring.
For a visual guide on installation and features, please watch the official product video:
වීඩියෝ 4.1: අවසන්view of the LuFun Flush Mount Ceiling Light in a room setting, demonstrating its modern design and illumination.
5. මෙහෙයුම් උපදෙස්
The LuFun Ceiling Light can be controlled via a standard wall switch or the included remote control. The remote allows for advanced functions.
5.1. Wall Switch Operation
The light has a memory function. If controlled by a normal wall switch, it will cycle through three color temperatures (Cool White 6000K, Natural Light 4000K, Warm White 3000K) with each toggle of the switch.
5.2. දුරස්ථ පාලන කාර්යයන්
The remote control provides full control over the light's features:

රූපය 5.1: දුරස්ථ පාලක කාර්යයන්.
- සක්රිය/අක්රිය: ආලෝකය සක්රිය හෝ අක්රිය කරයි.
- ප්රමාද කාල සටහන: Sets the light to turn off after 5, 30, or 60 minutes.
- රාත්රී ආලෝක ප්රකාරය: Activates a low-brightness setting.
- වර්ණ උෂ්ණත්ව ගැලපුම: Gradually changes the color temperature from warm white (3000K) to cool white (6500K).
- දීප්තිය ගැලපීම: Adjusts brightness from 10% to 100%.
- Light Transform: Cycles through preset light modes.
- තරඟය: Used for pairing the remote with the light fixture (see Troubleshooting for details).

Figure 5.2: Color Temperature Adjustment Options.
6. නඩත්තු කිරීම
To ensure the longevity and optimal performance of your LuFun Ceiling Light, follow these simple maintenance guidelines:
- පිරිසිදු කිරීම: Before cleaning, ensure the power is turned off. Use a soft, dry cloth to wipe the surface of the fixture. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or acrylic shade.
- පරීක්ෂාව: Periodically check the fixture for any loose connections or signs of damage. If any issues are found, turn off the power and consult a qualified electrician.
- LED ආයු කාලය: ඒකාබද්ධ LED ආලෝක ප්රභවය දිගුකාලීන භාවිතය සඳහා නිර්මාණය කර ඇති අතර බල්බ ප්රතිස්ථාපනය අවශ්ය නොවේ.
7. දෝශ නිරාකරණය
7.1. Remote Control Not Working / Pairing
If the remote control does not work or needs to be re-paired with the light fixture, follow these steps:
- Ensure the remote control has working batteries (this product does not include batteries).
- Turn off the light switch on the wall.
- Turn the wall switch ON, and within 3 seconds, press and hold the "1" button (bottom left) on the remote control.
- Hold the button for about 3-5 seconds until the light flashes once.
- Release the "1" button to complete the pairing process.
To reset (clear the memory) the remote, remove the batteries for 2 minutes, then re-install them. To clear the light fixture's memory, turn off the wall switch for 15 seconds.
7.2. ආලෝකය දැල්වී නොයෑම
- පරිපථ කඩනයේ විදුලිය ක්රියාත්මක දැයි පරීක්ෂා කරන්න.
- සියලුම විදුලි සම්බන්ධතා ආරක්ෂිත දැයි තහවුරු කර ගන්න.
- Ensure the wall switch is in the ON position.
7.3. Light Flickers or Dims Unexpectedly
- Ensure the light is not connected to an incompatible dimmer switch. This fixture is dimmable via its remote control, not necessarily all external dimmers.
- ලිහිල් රැහැන් සම්බන්ධතා තිබේදැයි පරීක්ෂා කරන්න.
8. පිරිවිතර
| විශේෂාංගය | පිරිවිතර |
|---|---|
| වෙළඳ නාමය | ලුෆුන් |
| මාදිලියේ නම | LuFun Ceiling Light |
| අයිතම ආදර්ශ අංකය | AMZ0036 |
| වර්ණය | Black/Round/Dimmable |
| ද්රව්ය | Acrylic, Metal, Wood |
| නිෂ්පාදන මානයන් | 15.75"L x 15.75"W x 1.97"H (Ø40*5 CM) |
| ආලෝක ප්රභවයේ වර්ගය | LED |
| වට්tage | වොට් 30 යි |
| දීප්තිය | 2400 Lumen |
| වෙළුමtage | Volts 110 (AC) |
| වර්ණ උෂ්ණත්වය | 3000K - 6500K (අඳුරු කළ හැකි) |
| පාලන ක්රමය | දුරස්ථ පාලකය |
| ස්ථාපන වර්ගය | ෆ්ලෂ් කන්ද |
| ගෘහස්ථ / එළිමහන් භාවිතය | ගෘහස්ථ භාවිතය පමණි |
| අයිතමයේ බර | රාත්තල් 3.3 (කිලෝග්රෑම් 1.5) |
9. වගකීම් සහ සහාය
This LuFun Flush Mount Ceiling Light comes with a වසර 1ක වගකීමක් මිලදී ගත් දින සිට නිෂ්පාදන දෝෂ ආවරණය කරමින්, වගකීම් හිමිකම් සඳහා කරුණාකර ඔබේ මිලදී ගැනීමේ සාක්ෂි තබා ගන්න.
For technical support, troubleshooting assistance, or warranty inquiries, please contact our customer service team:
- විද්යුත් තැපෑල: support@lufunlighting.com (exampඊමේල්)
- දුරකථනය: 1-800-XXX-XXXX (උදාample phone number)
- Webඅඩවිය: www.lufunlighting.com (උදාample webඅඩවිය)
Our support team is available Monday to Friday, 9:00 AM to 5:00 PM (EST).
