1. හැඳින්වීම
This manual provides detailed instructions for the installation, operation, and maintenance of your VPFET HDMI Extender. This device allows you to extend 1080p HDMI signals up to 200 feet (60 meters) over a single Cat5e/6/7 Ethernet cable. It supports Power over Cable (POC) technology, requiring power only at the Transmitter (TX) unit.
2 ආරක්ෂිත තොරතුරු
- Ensure all cables are connected securely before powering on the device.
- Use only the provided 5V DC power adapter.
- උපාංගය තෙතමනය හෝ අධික උෂ්ණත්වයට නිරාවරණය නොකරන්න.
- ඒකකය විසුරුවා හැරීමෙන් වළකින්න; සුදුසුකම් ලත් පුද්ගලයින් වෙත සේවා සැපයීම යොමු කරන්න.
- Use high-quality oxygen-free copper Cat5e/6/7 cables for optimal performance and transmission distance.
3. පැකේජ අන්තර්ගතය
ඔබගේ පැකේජයේ සියලුම අයිතම ඇති බව තහවුරු කරගන්න:
- 1 x HDMI Transmitter (TX) Unit
- 1 x HDMI Receiver (RX) Unit
- 1 x 5V DC බල සැපයුම
- 1 x පරිශීලක අත්පොත
Image: Contents of the VPFET HDMI Extender package, showing the transmitter, receiver, power adapter, and user manual.
4. නිෂ්පාදන අවසන්view සහ සංරචක
Familiarize yourself with the ports and indicators on both the Transmitter (TX) and Receiver (RX) units.
රූපය: විස්තරාත්මක view of the Transmitter (TX) and Receiver (RX) units, highlighting HDMI Input/Output, 5V Power Output, EDID Copy button, and RJ45 ports.
Transmitter (TX) Unit:
- HDMI ආදානය: Connects to the HDMI source device (e.g., PC, DVD player, game console).
- 5V බල ආදානය: Connects to the included 5V DC power adapter.
- EDID Copy Button: Used to copy EDID information from the display.
- RJ45 Output (OUT): Connects to the Receiver (RX) unit via Cat5e/6/7 cable.
Receiver (RX) Unit:
- HDMI ප්රතිදානය: Connects to the HDMI display device (e.g., TV, monitor).
- RJ45 Input (IN): Connects to the Transmitter (TX) unit via Cat5e/6/7 cable.
- Note: The RX unit receives power via the Cat cable (POC) from the TX unit.
5. සැකසුම් උපදෙස්
Follow these steps to set up your HDMI Extender:
- HDMI මූලාශ්රය TX වෙත සම්බන්ධ කරන්න: Connect your HDMI source device (e.g., PC, DVD player, game console) to the HDMI-IN port of the Transmitter (TX) unit using a high-quality HDMI cable.
- Connect Display to RX: Connect your HDMI display device (e.g., TV, monitor) to the HDMI පිටතට port of the Receiver (RX) unit using a high-quality HDMI cable.
- Connect TX and RX with Ethernet Cable: සම්බන්ධ කරන්න RJ45 අවුට් port of the TX unit to the RJ45 IN port of the RX unit using a single Cat5e, Cat6, or Cat7 Ethernet cable. Ensure the cable is oxygen-free copper for optimal performance.
- Power On TX Unit: Connect the included 5V DC power adapter to the 5V බල ආදානය port on the Transmitter (TX) unit. The RX unit will receive power via the Ethernet cable (POC).
- සම්බන්ධතාවය තහවුරු කරන්න: Once all connections are made and the TX unit is powered, check for signal on your display.
Image: Connection diagram illustrating how to connect the HDMI source (laptop, PC, DVD, TV Box) to the Transmitter (TX), the TX to the Receiver (RX) via a Cat5e/6/7 cable, and the RX to the display.
EDID පිටපත් කිරීමේ කාර්යය:
The EDID (Extended Display Identification Data) copy function ensures the best video and audio signals are transmitted by allowing the TX unit to learn the display's capabilities. It is recommended to perform this step if you experience display issues.
- Connect the Transmitter (TX) unit directly to your monitor/display using an HDMI cable (without the RX unit or Cat cable).
- Connect the 5V power adapter to the TX unit.
- ඔබා අල්ලාගෙන සිටින්න EDID බොත්තම on the TX unit for approximately 3 seconds.
- The signal indicator light will flash 3 times, indicating that the EDID information has been successfully copied and stored.
- You can now proceed with the full setup as described above. The copied EDID will be remembered until the TX unit is reset or a new EDID copy operation is performed.
To restore factory EDID settings, connect the TX unit to power, then press and hold the EDID button for 3 seconds. The signal indicator will light up and then turn off, confirming the reset.
Image: Close-up of the Transmitter (TX) unit, highlighting the EDID button and its function in copying display information.
6. මෙහෙයුම් උපදෙස්
Once the setup is complete, the VPFET HDMI Extender operates automatically. Ensure your source device is powered on and outputting an HDMI signal, and your display is set to the correct HDMI input.
- Power Over Cable (POC): The TX unit powers the RX unit through the Ethernet cable, simplifying installation by eliminating the need for a power outlet at the display end.
- Automatic Equalization: The built-in automatic equalization algorithm adjusts for cable transmission distance, ensuring stable signal transmission without manual configuration.
- සහාය දක්වන විභේදන: The extender supports resolutions up to 1920x1200@60Hz and 1080p@60Hz.
- සහාය දක්වන ශ්රව්ය ආකෘති: DTS-HD, Dolby-trueHD, DTS, Dolby-AC3, DSD.

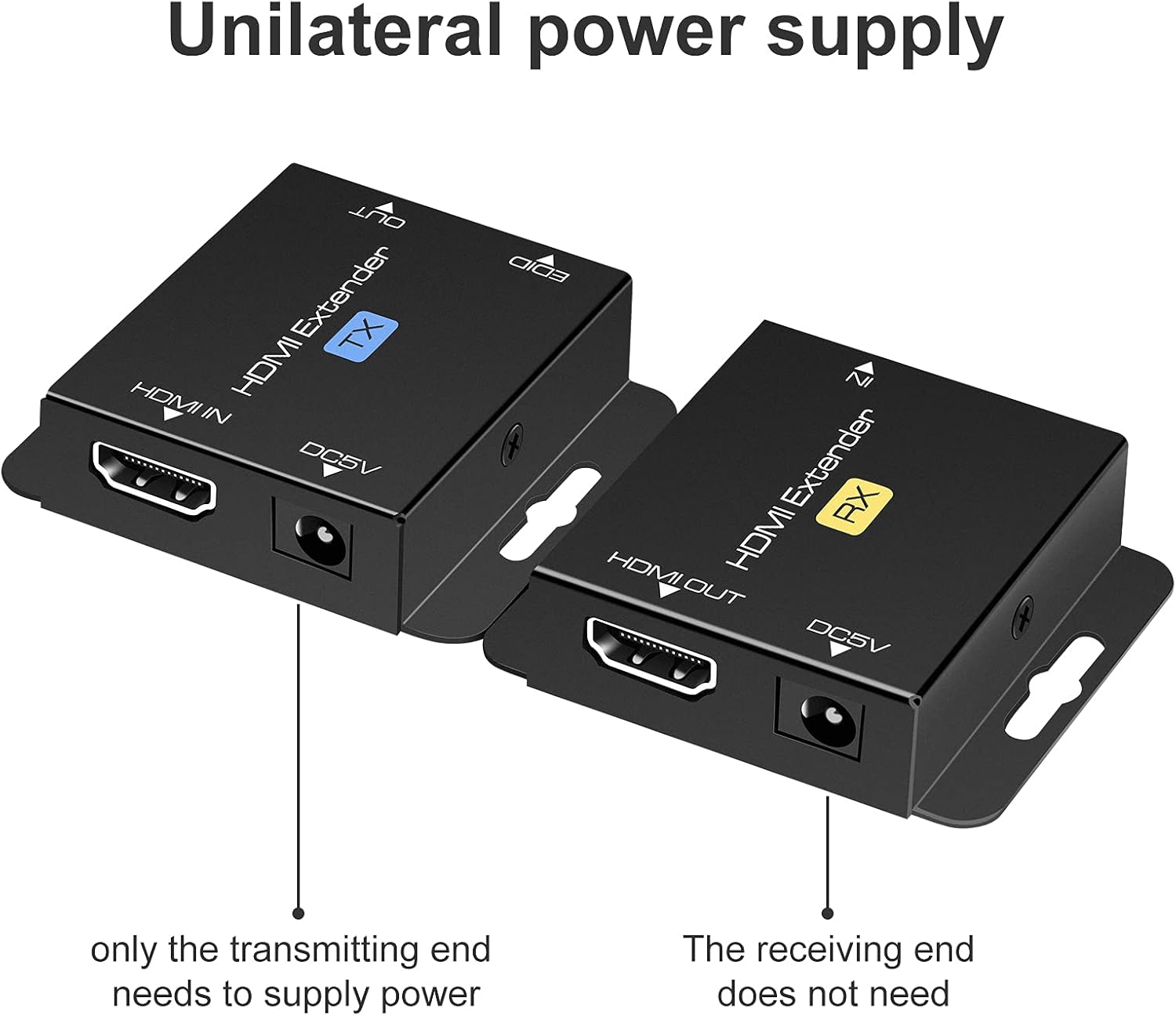

Image: Illustration of the unilateral power supply (POC) feature, indicating that only the transmitting (TX) end requires a power connection, while the receiving (RX) end does not.
Image: An illustration of the HDMI Extender in operation, showing a laptop connected to the TX unit, which is then connected via a long Ethernet cable to the RX unit, and finally to a large display, demonstrating extended transmission distance.
7. පිරිවිතර
| විශේෂාංගය | විස්තර |
|---|---|
| උපරිම විභේදන සහාය | 1920x1200@60Hz / 1080p@60Hz / 3D |
| Transmission Distance (Cat5e/6/7) | Up to 200ft (60m) for 1080p; up to 165ft for 1920x1200@60Hz |
| සහාය දක්වන ශ්රව්ය ආකෘති | DTS-HD, Dolby-trueHD, DTS, Dolby-AC3, DSD |
| උපරිම සම්ප්රේෂණ කලාප පළල | 1.65Gbps |
| ආදාන/ප්රතිදාන HDMI කේබල් දුර | Up to 16ft (5m) AWG26 HDMI standard cable |
| බල සැපයුම | Input: AC 100V-240V (50/60Hz), Output: DC 5V |
| POC Support | Yes (Power on Cat6/7 from TX to RX) |
| EDID පිටපත | ඔව් |
| Dimensions (TX/RX Unit) | Approx. 2.4in x 2.1in x 0.63in (6.1cm x 5.3cm x 1.6cm) |
| අයිතමයේ බර | අවුන්ස 9.3 (මුළු පැකේජ බර) |
Image: Dimensions of the VPFET HDMI Extender Transmitter (TX) unit, showing its compact size.
8. දෝශ නිරාකරණය
ඔබට ගැටළු ඇති වුවහොත්, පහත පොදු ගැටළු සහ විසඳුම් වෙත යොමු වන්න:
- පින්තූරයක්/සංඥාවක් නැත:
- සියලුම HDMI සහ ඊතර්නෙට් කේබල් ආරක්ෂිතව සම්බන්ධ කර ඇති බවට වග බලා ගන්න.
- Verify the TX unit is powered on with the included 5V adapter.
- Check if the display is set to the correct HDMI input.
- Try performing the EDID Copy procedure (Section 5).
- Test with shorter, certified HDMI and Ethernet cables.
- Ensure the Ethernet cable is Cat5e/6/7 (oxygen-free copper recommended) and not damaged.
- දිලිසෙන/අතරමැදි සංඥාව:
- Check cable lengths; ensure they are within the specified limits (200ft for Cat cable, 16ft for HDMI).
- Ensure the Ethernet cable is not running parallel to power lines or other sources of interference.
- වෙනස් ඊතර්නෙට් කේබලයක් උත්සාහ කරන්න.
- Perform the EDID Copy procedure.
- ශ්රව්ය නැත:
- ඔබගේ මූලාශ්ර උපාංගයේ සහ සංදර්ශකයේ ශ්රව්ය සැකසුම් සත්යාපනය කරන්න.
- HDMI කේබල් ශ්රව්ය සම්ප්රේෂණයට සහාය වන බවට වග බලා ගන්න.
- Perform the EDID Copy procedure.
9. නඩත්තු කිරීම
The VPFET HDMI Extender requires minimal maintenance. Follow these guidelines to ensure longevity:
- උපාංගය සිසිල්, වියළි ස්ථානයක, සෘජු හිරු එළියෙන් සහ තාප ප්රභවයන්ගෙන් ඈත්ව තබා ගන්න.
- මෘදු වියළි රෙද්දකින් බාහිර පිරිසිදු කරන්න. දියර පිරිසිදු කරන්නන් හෝ එයරෙසෝල් භාවිතා නොකරන්න.
- අධික උනුසුම් වීම වැළැක්වීම සඳහා ඒකක වටා නිසි වාතාශ්රය සහතික කරන්න.
10. වගකීම් සහ සහාය
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official VPFET website. Please have your model number (B099ZCTV74) and purchase date ready when contacting support.
