VONROC V22-1 පීඩන සේදුම් උපදෙස් අත්පොත

1. හැඳින්වීම

Thank you for choosing the VONROC V22-1 Pressure Washer. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new pressure washer. Please read it thoroughly before first use and keep it for future reference.

The VONROC V22-1 is a powerful electric pressure washer designed for various outdoor cleaning tasks, offering 2200W of power and a maximum pressure of 170 bar.

2. ආරක්ෂිත උපදෙස්

සාමාන්ය ආරක්ෂණ අනතුරු ඇඟවීම්:

• Always wear appropriate personal protective equipment (PPE) such as safety glasses, gloves, and hearing protection when operating the pressure washer.
• Never direct the water jet at people, animals, electrical equipment, or the pressure washer itself. High-pressure jets can be dangerous if misused.
• Ensure all connections are secure before starting the machine. Leaking connections can reduce pressure and cause hazards.
• Do not operate the pressure washer if the power cord, plug, or other essential parts are damaged.
• ළමයින් සහ සුරතල් සතුන් මෙහෙයුම් ප්‍රදේශයෙන් ඈත් කරන්න.
• Always disconnect the power supply before performing any maintenance or cleaning tasks.
• Use only original VONROC spare parts and accessories.
• Do not use the pressure washer in temperatures below 0°C (32°F) to prevent freezing damage.

3. නිෂ්පාදන අවසන්view සහ සංරචක

Familiarize yourself with the parts of your VONROC V22-1 Pressure Washer.

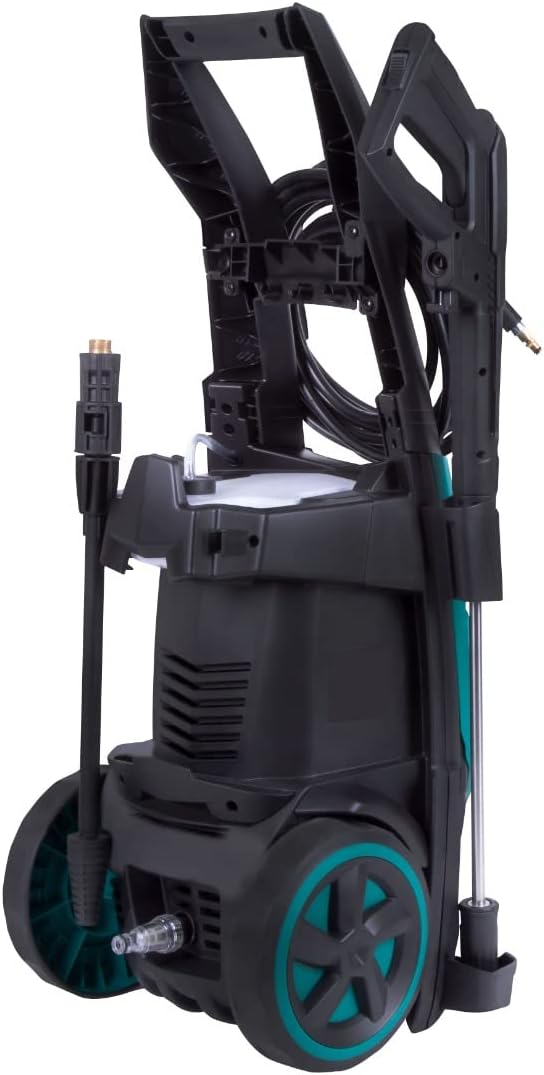

රූපය: පැත්ත view of the VONROC V22-1 Pressure Washer main unit, showing its compact design with wheels and handle.

පැකේජයේ අන්තර්ගතය:

• VONROC V22-1 Pressure Washer Unit
• අධි පීඩන හෝස් (මීටර් 8)
• ඉසින තුවක්කුව
• සකස් කළ හැකි තුණ්ඩය
• Turbo Lance (Dirt Blaster Nozzle)
• Extension Lances (2 pieces)
• Detergent Tank (integrated/adjustable)
• Cleaning Needle for Nozzle
• Terrace Cleaner (Surface Cleaner)

Image: Various accessories included with the pressure washer, such as the spray gun, high-pressure hose, extension lances, and cleaning needle.

4. සැකසීම සහ එකලස් කිරීම

ඔබේ පීඩන සෝදන යන්ත්‍රය එකලස් කර භාවිතය සඳහා සූදානම් කිරීමට මෙම පියවර අනුගමනය කරන්න.

1. Attach the Wheels and Handle: If not already assembled, secure the wheels and handle to the main unit according to the diagrams in the quick start guide (if provided).
2. ජල සැපයුම සම්බන්ධ කරන්න:
   • Connect a garden hose (not included) to the water inlet on the pressure washer. Ensure the hose is free of kinks and has a minimum diameter of 1/2 inch.
   • උද්‍යාන හෝස් එකේ අනෙක් කෙළවර ජල කරාමයකට සම්බන්ධ කරන්න.
   • Turn on the water tap fully to ensure a steady water flow to the pressure washer.
3. Connect High-Pressure Hose and Spray Gun:
   • Attach one end of the 8-meter high-pressure hose to the high-pressure outlet on the pressure washer unit. Tighten securely.
   • අධි පීඩන සොඬ නළයේ අනෙක් කෙළවර ඉසින තුවක්කුවට අමුණන්න.
   • Select the desired nozzle (adjustable or turbo lance) and attach it to the end of the spray gun. You may need to use an extension lance for longer reach.
4. ඩිටර්ජන්ට් ටැංකිය පුරවන්න (විකල්ප): If using detergent, open the cap of the integrated detergent tank and fill it with a suitable pressure washer detergent. The dosage can be adjusted during operation.
5. සම්බන්ධක බලය: Plug the 5-meter power cable into a grounded electrical outlet. Ensure the outlet meets the power requirements of the pressure washer (2200W).

5. මෙහෙයුම් උපදෙස්

Operating your VONROC V22-1 Pressure Washer effectively.

1. පීඩන සෝදන යන්ත්රය ආරම්භ කිරීම:
   • Ensure the water supply is fully open and the power cable is connected.
   • Press the ON/OFF switch to the "ON" position.
   • Squeeze the trigger on the spray gun to release any trapped air and allow water to flow steadily. This primes the pump.
   • The pressure washer features an automatic start/stop system: the motor will only run when the trigger is squeezed and will stop when the trigger is released.
2. විවිධ තුණ්ඩ භාවිතා කිරීම:
   • සකස් කළ හැකි තුණ්ඩය: Rotate the nozzle head to change the spray pattern from a concentrated jet to a wide fan spray. Suitable for general cleaning.
   • Turbo Lance (Dirt Blaster): Provides a rotating, concentrated jet for removing stubborn dirt and grime from hard surfaces like concrete and stone. Use with caution on delicate surfaces.
   • Terrace Cleaner: Attach the terrace cleaner for efficient and splash-free cleaning of large flat surfaces such as patios and driveways.
3. ඩිටර්ජන්ට් යෙදීම:
   • Ensure the detergent tank is filled.
   • For detergent application, typically a low-pressure setting or a specific detergent nozzle is used. Refer to the nozzle instructions.
   • Adjust the detergent dosage knob on the pressure washer unit to control the amount of detergent mixed with the water.
   • Apply detergent to the surface, allow it to soak for a few minutes (do not let it dry), then rinse thoroughly with high-pressure water.
4. පිරිසිදු කිරීමේ තාක්ෂණය:
   • Cars/Vehicles: Use a wide fan spray or a dedicated car wash brush attachment. Start from the bottom and work your way up, then rinse from top to bottom. Avoid spraying directly into engine compartments or electrical components.
   • Patios/Driveways: Use the turbo lance for tough stains or the terrace cleaner for large areas. Work in sections, overlapping slightly.
   • Fences/Walls: Start with a wider spray pattern and gradually narrow it if needed. Maintain a safe distance to avoid damaging the surface.

Image: A person using the VONROC pressure washer to clean a car, demonstrating a common application.

රූපය: සමීප රූපය view of the pressure washer nozzle cleaning a dirty patio, showing the effectiveness on grime.

6. නඩත්තු කිරීම හා ගබඩා කිරීම

Proper maintenance ensures longevity and optimal performance of your pressure washer.

1. එක් එක් භාවිතයෙන් පසු:
   • Turn off the pressure washer and disconnect the power supply.
   • ජල සැපයුම විසන්ධි කරන්න.
   • Squeeze the spray gun trigger to release any remaining pressure in the system.
   • උද්යාන හෝස් සහ අධි පීඩන හෝස් විසන්ධි කරන්න.
   • Drain any remaining water from the pump by tilting the unit and from the hoses and spray gun.
   • If detergent was used, rinse the detergent tank thoroughly with clean water.
2. තුණ්ඩ පිරිසිදු කිරීම: Use the provided cleaning needle to clear any blockages from the nozzle tip. This helps maintain consistent spray patterns and pressure.
3. සාමාන්ය පිරිසිදු කිරීම: පීඩන සෝදන යන්ත්‍රයේ බාහිර පෙනුම දැන්වීමකින් පිස දමන්න.amp රෙදි. දරුණු රසායනික ද්රව්ය හෝ උල්ෙල්ඛ පිරිසිදු කරන්නන් භාවිතා නොකරන්න.
4. ගබඩා:
   • පීඩන සෝදන යන්ත්‍රය වියළි, ​​හිම වලින් තොර ස්ථානයක ගබඩා කරන්න.
   • Ensure all water is drained from the unit, hoses, and accessories to prevent freezing damage.
   • Coil the high-pressure hose and power cable neatly. Store accessories in their designated holders on the unit if available.

7. දෝශ නිරාකරණය

පොදු ගැටළු සහ ඒවාට විසඳුම්.

If you encounter problems not listed here or if the solutions provided do not resolve the issue, please contact VONROC customer support.

8. තාක්ෂණික පිරිවිතර

9. වගකීම් සහ සහාය

වගකීම් තොරතුරු: VONROC products are designed for reliability. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official VONROC webවෙබ් අඩවිය. වගකීම් හිමිකම් සඳහා ඔබේ මිලදී ගැනීමේ සාක්ෂි තබා ගන්න.

පාරිභෝගික සහාය: If you have any questions, require technical assistance, or need to order spare parts, please contact VONROC customer service. Contact details can typically be found on the VONROC webඅඩවියේ හෝ නිෂ්පාදන ඇසුරුම්වල.
