Estink LED Tracing Light Pad Instruction Manual

1. හැඳින්වීම

The Estink LED Tracing Light Pad is a versatile and ultra-thin device designed to assist with various artistic and design tasks. It provides an evenly lit surface, making tracing, sketching, and other detailed work easier and more comfortable. This manual will guide you through the setup, operation, and maintenance of your new light pad.

2 ආරක්ෂිත තොරතුරු

• උපාංගය ජලයට හෝ අධික තෙතමනයට නිරාවරණය නොකරන්න.
• උපාංගය ප්‍රබල බලපෑම්වලට වැටීමෙන් හෝ යටත් කිරීමෙන් වළකින්න.
• Use only the provided USB cable and a compatible power adapter (5V/2A recommended).
• කුඩා දරුවන්ට ළඟා විය නොහැකි ලෙස තබා ගන්න.
• උපාංගය ඔබම විසුරුවා හැරීමට හෝ අලුත්වැඩියා කිරීමට උත්සාහ නොකරන්න. ගැටළු ඇති වුවහොත් පාරිභෝගික සහාය අමතන්න.

3. පැකේජ අන්තර්ගතය

සියලුම අයිතම තිබේදැයි සහතික කර ගැනීමට කරුණාකර පැකේජය පරීක්ෂා කරන්න:

• 1 x Estink LED Tracing Light Pad (A6 size)
• 1 x USB Power Cable (approximately 11 feet long)
• 1 x බල ඇඩැප්ටරය
• Several sheets of flappable paper
• Various sizes of binding screws
• 1 x Portable Clip

4. පිහිටුවීම

1. Place the LED Tracing Light Pad on a flat, stable surface. The anti-slip rubber stands on the back will help keep it in place.
2. Connect the Micro USB end of the provided USB cable into the port on the light pad.
3. Connect the standard USB end of the cable to a power source. This can be a computer's USB port, a power bank, or a wall outlet using the included power adapter.
4. An indicator LED will illuminate when the device is successfully powered.

Image: Power connection options for the Estink LED Tracing Light Pad.

Image: The light pad can be powered by a wall charger, power bank, or laptop.

5. මෙහෙයුම් උපදෙස්

1. බලය සක්රිය / අක්රිය: Once connected to a power source, touch the power symbol button on the light pad once to turn it on or off.
2. දීප්තිය සකසන්න: To adjust the brightness, long-press the power symbol button. The brightness will gradually cycle through three levels: Minimum, Medium, and Maximum. Release the button when the desired brightness is reached.

Image: Touch sensor switch for power and brightness adjustment.

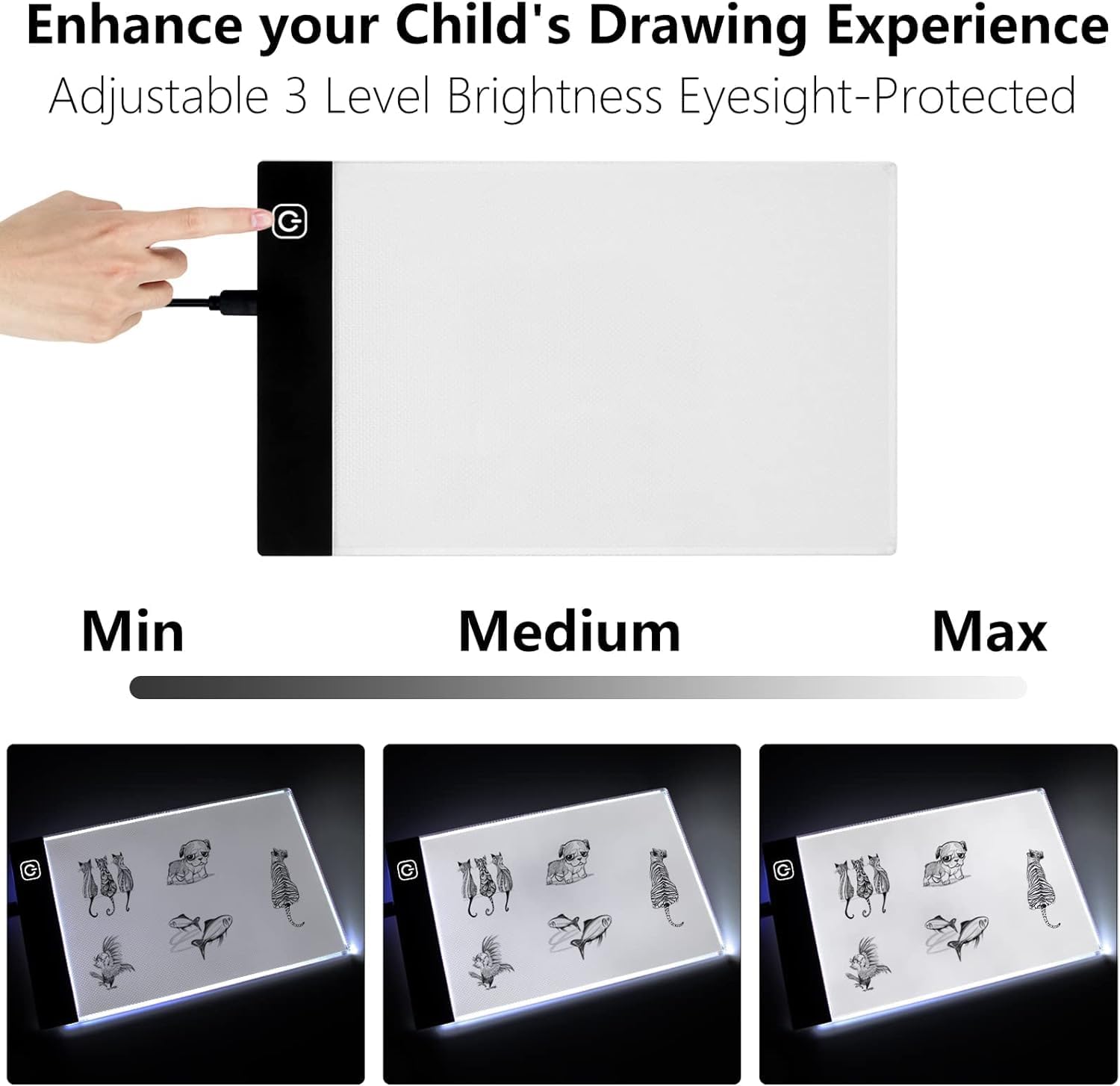

Image: Three adjustable brightness levels: Minimum, Medium, and Maximum.

6. යෙදුම්

The Estink LED Tracing Light Pad is suitable for a wide range of creative and professional applications:

• ඇඳීම සහ ඇඳීම: Ideal for tracing existing designs, refining sketches, and creating new artwork.
• 2D Animation: Use with the included flappable paper and binding screws to create flip books and traditional animations.
• Calligraphy & Embossing: Provides a clear backlight for precise lettering and embossing work.
• Scrapbooking & Tattoo Transferring: Facilitates accurate placement and transfer of designs.
• Diamond Painting & Vinyl Weeding: The adjustable brightness helps in clearly seeing grids for diamond painting and intricate details for weeding vinyl cutouts.
• නිර්මාණ කටයුතු: Useful for fashion design, industrial design, and architectural design.
• එක්ස් කිරණ Viewing: Can be used for basic X-ray viewing due to its bright, even illumination.

Image: Various applications of the light pad, including diamond painting, 2D animation, and design.

Image: Additional uses for the light pad, such as children's drawing and calligraphy.

Image: The light pad is part of a flip book kit, including paper and binding screws.

7. නඩත්තු කිරීම

• පිරිසිදු කිරීම: To clean the surface of the light pad, use a soft, dry cloth. Avoid abrasive cleaners or solvents that could damage the surface.
• ගබඩා: Due to its ultra-thin design (approximately 5mm thick), the light pad is easy to store. Keep it in a dry place, away from direct sunlight and extreme temperatures.

Image: The compact dimensions of the A6 light pad.

8. දෝශ නිරාකරණය

• Light Pad Not Turning On:
  • Ensure the USB cable is securely connected to both the light pad and the power source.
  • Verify that the power source (computer, power bank, or wall adapter) is functioning correctly.
  • Try a different USB port or power adapter if available.
• Brightness Not Adjusting:
  • Ensure you are long-pressing the power button to cycle through brightness levels, not just tapping it.

9. පිරිවිතර

10. වගකීම් සහ සහාය

For warranty information and customer support, please refer to the product packaging or contact your retailer. Keep your purchase receipt for any warranty claims.
