Gardena AssistCut Cordless Pruning Shears (Model 12222-20) User Manual

1. හැඳින්වීම

This manual provides essential information for the safe and effective use of your Gardena AssistCut Cordless Pruning Shears. Please read these instructions carefully before operating the device and retain them for future reference. The Gardena AssistCut is designed to assist with pruning tasks, offering enhanced power for cutting branches up to 25 mm in diameter.

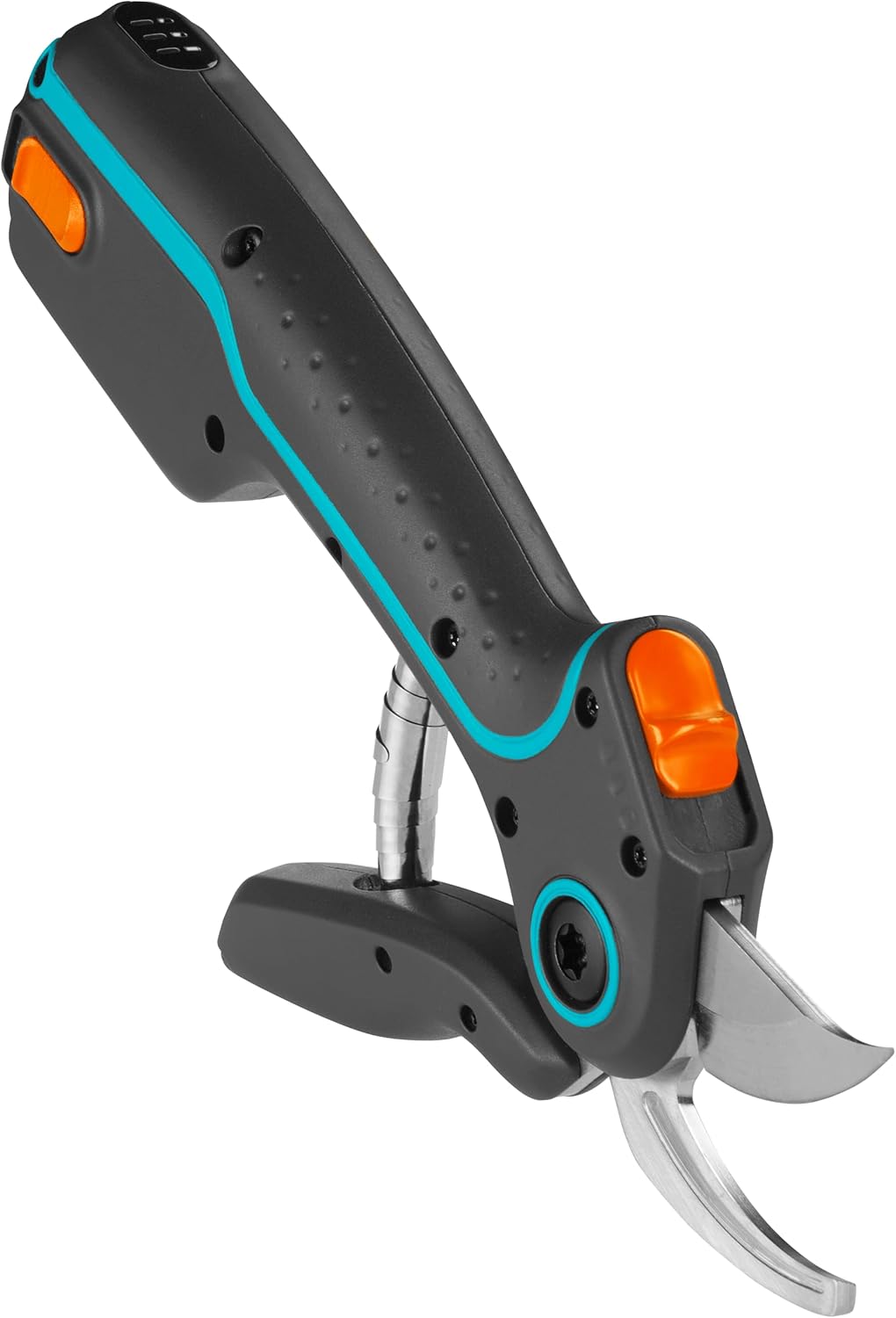

Image 1.1: Gardena AssistCut Cordless Pruning Shears, showing the ergonomic design and cutting blades.

2 ආරක්ෂිත තොරතුරු

• සියලුම උපදෙස් කියවන්න: Familiarize yourself with the controls and proper use of the device.
• සුදුසු ආරක්ෂක ආම්පන්න පළඳින්න: Always wear safety glasses and gardening gloves when operating the pruning shears.
• Keep hands and body clear: Ensure hands and other body parts are kept away from the cutting blades.
• Secure footing: Maintain proper balance and footing when pruning.
• ආරක්ෂිතව ගබඩා කරන්න: When not in use, store the pruning shears in a dry, secure place, out of reach of children.
• අපේක්ෂිත අරමුණ සඳහා පමණක් භාවිතා කරන්න: Do not use the device for cutting materials other than plant matter.
• Charging safety: Use only the provided USB-C cable for charging. Do not expose the device to extreme temperatures or moisture during charging.

3. පැකේජ අන්තර්ගතය

සියලුම අයිතම පැකේජයේ ඇති බව තහවුරු කරගන්න:

• 1 x Gardena AssistCut Cordless Pruning Shears
• 1 x USB-C Charging Cable (power supply not included)

Image 3.1: Included USB-C charging cable.

4. නිෂ්පාදන ලක්ෂණ

• කැපුම් විෂ්කම්භය: Capable of cutting branches, young shoots, and fresh wood up to 25 mm in diameter.
• බුද්ධිමත් සංවේදකය: Provides up to 5 times additional power compared to conventional pruning shears when resistance is detected, ensuring effortless cutting.
• Ergonomic Design: Comfortable handling with a two-stage opening width, suitable for various hand sizes.
• නිරවද්‍ය තල: Features precision-ground, German-made knives with a bypass cutting principle for a clean, plant-friendly cut.
• Battery-Assisted: Integrated battery provides power assistance for reduced effort.

5. පිහිටුවීම

5.1 මූලික ආරෝපණය

1. Before first use, fully charge the Gardena AssistCut.
2. සපයා ඇති USB-C ආරෝපණ කේබලය උපාංගයේ ආරෝපණ තොටට සම්බන්ධ කරන්න.
3. USB-C කේබලයේ අනෙක් කෙළවර අනුකූල USB බල ඇඩැප්ටරයකට සම්බන්ධ කරන්න (ඇතුළත් කර නැත).
4. බැටරි දර්ශකය සම්පූර්ණ ආරෝපණයක් පෙන්වන තුරු උපාංගය ආරෝපණය වීමට ඉඩ දෙන්න.

5.2 Adjusting Opening Width

The shears feature a two-stage opening width for ergonomic handling and to accommodate different hand sizes or cutting needs. Refer to the device for specific adjustment mechanisms, typically a switch or lever near the handle.

Image 5.1: Demonstrating the two-stage opening width for comfortable use.

6. මෙහෙයුම් උපදෙස්

6.1 බල ගැන්වීම සක්‍රිය / අක්‍රිය කිරීම

Locate the power button on the device. Press and hold to power on or off. The battery indicator lights will typically illuminate upon powering on.

6.2 Pruning Technique

1. Ensure the blades are clean and sharp.
2. Select the appropriate opening width for the branch you intend to cut.
3. Position the branch as deep as possible into the blades, close to the pivot point, for maximum leverage and a clean cut.
4. Squeeze the handles firmly. The intelligent sensor will detect resistance and activate the battery assistance, providing additional power to complete the cut.
5. Release the handles to open the blades for the next cut.

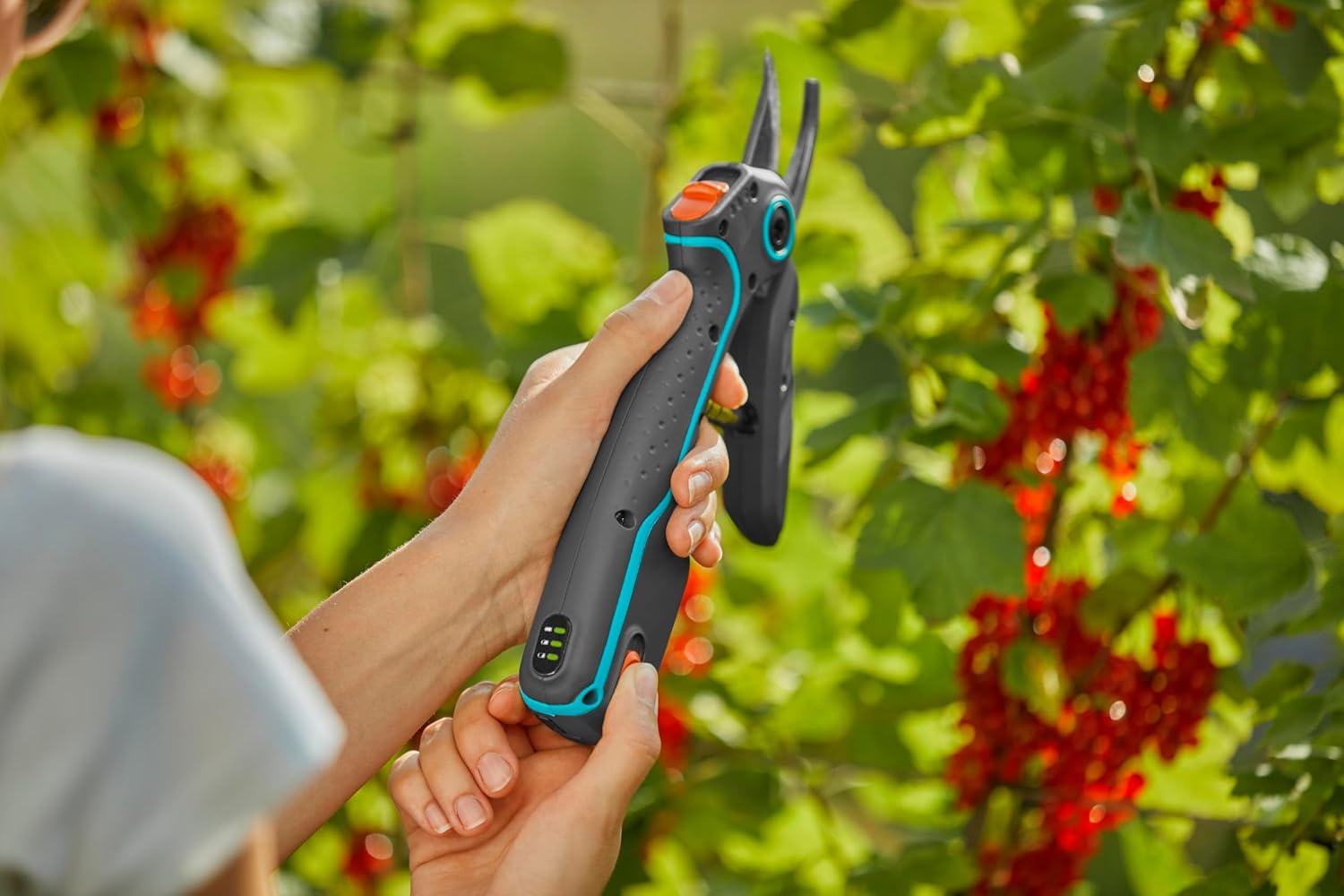

Image 6.1: User pruning red currants with the Gardena AssistCut.

Image 6.2: User pruning grapevines, demonstrating effective use in a garden setting.

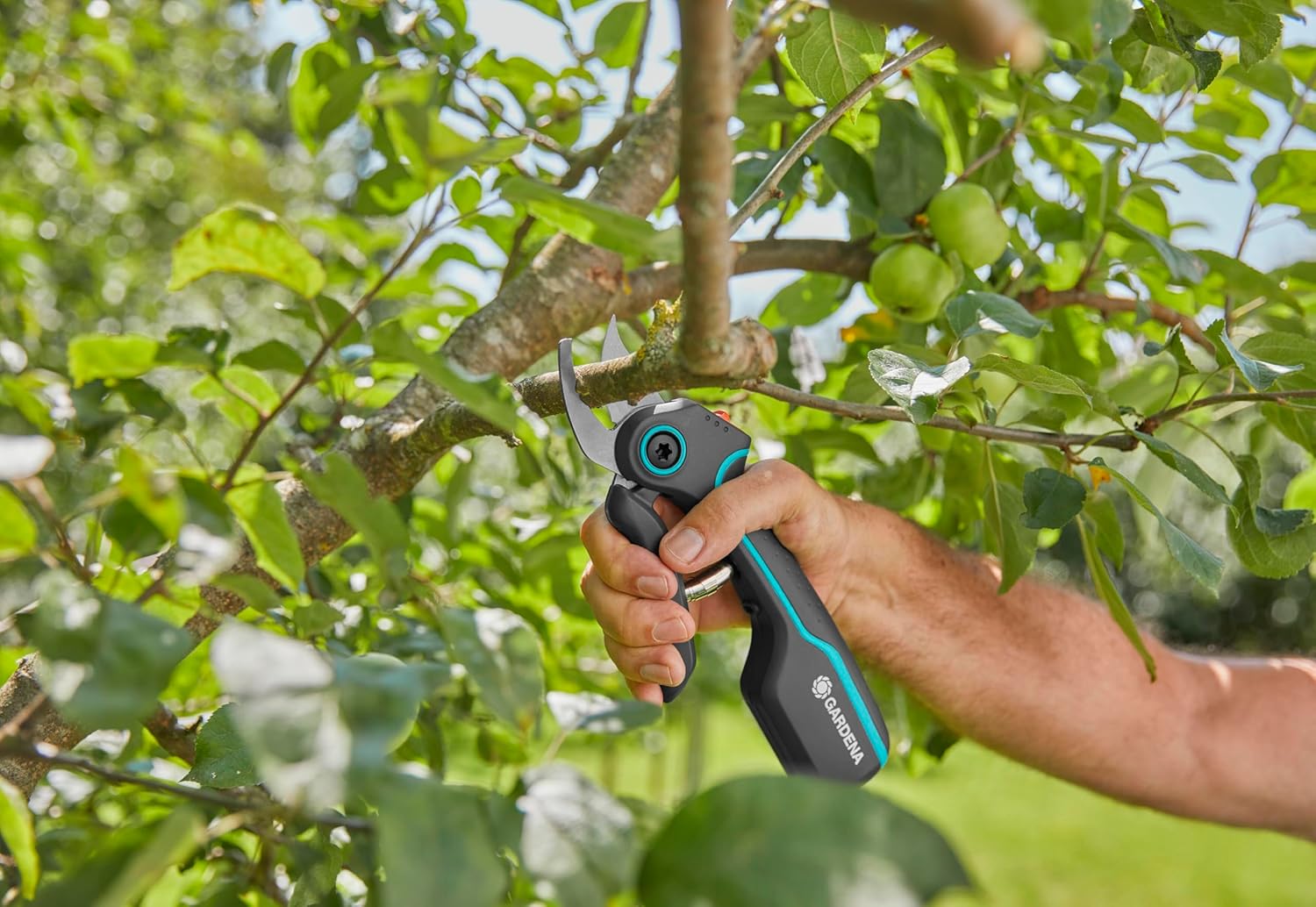

Image 6.3: User pruning an apple tree branch, highlighting the shears' capability for thicker cuts.

7. නඩත්තු කිරීම

7.1 තල පිරිසිදු කිරීම

After each use, clean the blades to remove sap, dirt, and debris. Use a damp cloth and, if necessary, a mild cleaning solution. Ensure the blades are dry before storage to prevent rust.

7.2 තල තියුණු කිරීම

The precision-ground blades will maintain their sharpness for a long time. If sharpening becomes necessary, use a fine-grit sharpening stone or consult a professional tool sharpener to maintain the bypass cutting edge.

7.3 ලිහිසි කිරීම

Periodically apply a light oil to the pivot point and blades to ensure smooth operation and prevent corrosion.

7.4 ගබඩා කිරීම

Store the Gardena AssistCut in a dry, cool place, away from direct sunlight and moisture. Ensure the blades are closed and locked (if a locking mechanism is present) for safety.

8. දෝශ නිරාකරණය

• උපාංගය බලගන්වන්නේ නැත: Ensure the battery is charged. Connect to the USB-C charging cable and allow sufficient charging time.
• තල ඵලදායී ලෙස කපා නොගැනීම: Check if the blades are clean and free of debris. If dull, consider sharpening or professional service. Ensure the branch diameter is within the 25 mm limit.
• Reduced power assistance: This may indicate a low battery. Recharge the device. If the issue persists after charging, contact customer support.
• Blades sticking: Clean and lubricate the blades and pivot point.

9. පිරිවිතර

10. වගකීම් සහ සහාය

For warranty information, product registration, or technical support, please refer to the official Gardena webවෙබ් අඩවියට පිවිසෙන්න හෝ ගාර්ඩනා පාරිභෝගික සේවය කෙලින්ම අමතන්න. ඕනෑම වගකීම් හිමිකම් සඳහා ඔබේ මිලදී ගැනීමේ සාක්ෂි තබා ගන්න.

Gardena Official Webඅඩවිය: www.gardena.com
