1. නිෂ්පාදන අවසන්view
This manual provides instructions for the installation, operation, and maintenance of the JUBEST 72-inch Bypass Door Hardware. This hardware set is designed for two-door systems, allowing smooth and quiet operation for closet or room divider applications.
Image: JUBEST Bypass Door Hardware installed in a closet, demonstrating its application.
ප්රධාන ලක්ෂණ:
- බර වැඩ ඉදිකිරීම්: Supports doors up to 150 lbs (68 kg) per panel.
- සුමට හා නිහඬ මෙහෙයුම: Features three-wheel hangers with heavy-duty ball bearings for minimal friction.
- Durable Aluminum Track: Commercial-grade extruded aluminum track prevents doors from derailing.
- පහසු ස්ථාපනය: Designed for straightforward setup with quick-release locking tabs.
- බහුකාර්ය යෙදුම: Suitable for various indoor spaces including living rooms, bedrooms, closets, and storage rooms.
2. පිරිවිතර
Refer to the following specifications to ensure compatibility and proper installation.

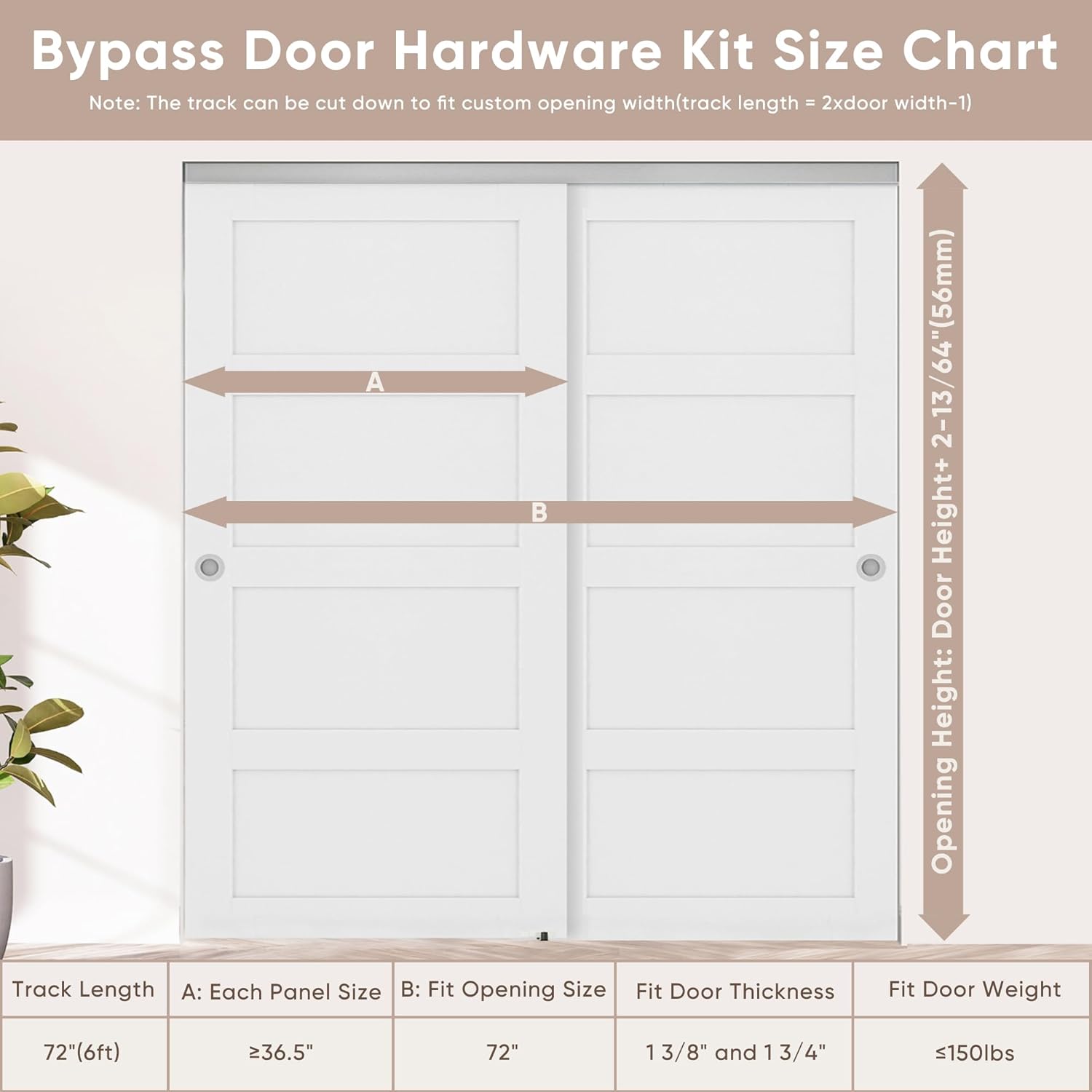

Image: Size chart for the bypass door hardware kit, detailing track length, door panel size, opening size, door thickness, and door weight capacity.
| විශේෂාංගය | විස්තර |
|---|---|
| උපරිම දොර බර | Up to 150 lbs (68 kg) per panel |
| දොර පැනල් ඝණකම | 1 3/8" and 1 3/4" |
| Max Door Panel Width | 36 1/2" per door (for 2 doors) |
| ධාවන දිග | 72" (6 feet) |
| Track Dimensions (L x W x H) | 72" x 4 3/4" x 2 3/16" |
| ද්රව්ය | ඇලුමිනියම් |
| අයිතමයේ බර | පවුම් 9ක් |
| ආදර්ශ අංකය | TSQAL04 |
Note: The track can be cut down to fit custom opening widths. The recommended track length is approximately (2 x door width - 1").
Image: Detailed technical drawing showing dimensions of the rollers, track, floor guide, and finger pull.
3. පිහිටුවීම සහ ස්ථාපනය
Follow these steps for proper installation of your JUBEST Bypass Door Hardware. A second person is recommended for certain steps.
රූපය: අවසන්view graphic illustrating the four main steps for easy installation: sliding rollers, mounting track, mounting hanger plates, and installing the floor guide.
අවශ්ය මෙවලම් (ඇතුළත් නොවේ):
- මිනුම් පටිය
- පැන්සල
- සරඹ
- ඉස්කුරුප්පු නියනක් (පිලිප්ස් හිස නිර්දේශ කෙරේ)
- මට්ටම
- Saw (for cutting track if necessary, suitable for aluminum)
ස්ථාපන පියවර:
- විවෘත කිරීම සූදානම් කරන්න: Ensure your door opening is clean and clear. Verify door panel thickness is 1 3/8" or 1 3/4". If necessary, cut the track to the desired length (track length = 2 x door width - 1").
- Slide Rollers to the Track: Insert the three-wheel hangers into the track. Ensure they slide freely within the track channels.
- Mount the Track to the Opening: Position the track above the door opening. Use a level to ensure it is perfectly horizontal. Mark and drill pilot holes, then secure the track using appropriate fasteners. The built-in front cover should face outwards.
Image: Diagram showing the track being mounted to the top of the door opening with screws.
- Mount Hanger Plates to Doors: Attach the hanger plates to the top edge of each door panel. Ensure they are centered and securely fastened.
Image: Illustration of hanger plates being mounted to the top edge of a door panel.
- දොරවල් එල්ලන්න: Carefully lift each door panel and engage the hanger plates with the rollers in the track. The quick-release locking tab allows for easy installation and removal.
- බිම් මාර්ගෝපදේශය ස්ථාපනය කරන්න: Position the adjustable floor guide at the bottom of the door opening. This guide prevents the doors from swinging outwards. Adjust it to fit your door thickness (1 3/8" or 1 3/4") and secure it to the floor.
රූපය: සමීප රූපය view of the adjustable floor guide, door stop, and finger pull, highlighting their features.
- Install Finger Pulls: If included, install the finger pulls into the pre-drilled holes on your door panels for easy opening and closing.
4. මෙහෙයුම් උපදෙස්
The JUBEST Bypass Door Hardware is designed for smooth and quiet operation. To operate the doors:
- Grasp the door panel by the finger pull or edge.
- Gently slide the door along the track to open or close. The three-wheel hangers and aluminum track ensure minimal resistance.
- Ensure the doors remain within the floor guide channels during movement to prevent misalignment.
Image: Components illustrating the smooth and silent gliding mechanism, including the heavy-duty aluminum track and wear-resistant three-wheel rollers.
5. නඩත්තු කිරීම
Regular maintenance ensures the longevity and optimal performance of your bypass door hardware.
- පිරිසිදු කිරීම: Wipe the aluminum track and rollers periodically with a soft, damp දූවිලි හා සුන්බුන් ඉවත් කිරීමට රෙදි. උල්ෙල්ඛ පිරිසිදු කරන්නන්ගෙන් වළකින්න.
- ලිහිසි තෙල්: If the doors begin to feel stiff, apply a small amount of silicone-based lubricant to the roller bearings and along the track. Do not use oil-based lubricants as they can attract dust.
- පරීක්ෂාව: Periodically check all screws and fasteners to ensure they are tight. Re-tighten if necessary. Inspect rollers for any signs of wear or damage.
- Floor Guide: Ensure the floor guide remains clear of obstructions and is securely fastened.
6. දෝශ නිරාකරණය
If you encounter issues with your JUBEST Bypass Door Hardware, refer to the following common problems and solutions:
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| Doors are difficult to slide or feel stiff. | Dust or debris in the track; rollers need lubrication; track is not level. | Clean the track and rollers. Apply silicone lubricant to rollers. Check track with a level and adjust if necessary. |
| Doors come off the track. | Track not level; rollers not properly engaged; damaged rollers. | Verify the track is perfectly level. Re-engage rollers into the track. Inspect rollers for damage and replace if needed. Ensure the quick-release tabs are securely locked. |
| Doors rub against each other or the frame. | Improper door alignment; floor guide not adjusted correctly. | Adjust the hanger plates on the doors to correct alignment. Ensure the floor guide is properly positioned and secured for your door thickness. |
| Screws or fasteners are loose. | Normal wear and tear; insufficient tightening during installation. | Re-tighten all screws and fasteners on the track and hanger plates. Avoid over-tightening. |
7. වගකීම් තොරතුරු
The JUBEST Bypass Door Hardware comes with a වසර 5ක ගුණාත්මක වගකීමක්. This warranty covers manufacturing defects and material failures under normal use. Please retain your proof of purchase for warranty claims.
For warranty service, please contact customer support with details of the issue and your purchase information.
8. පාරිභෝගික සහාය
If you have any questions, require assistance with installation, or need to report missing parts, please contact our customer service team. We are available to provide professional support.
- සම්බන්ධතා ක්රමය: Refer to the contact information provided with your product packaging or visit the official JUBEST webඅඩවිය.
- Before Contacting: Please have your product model number (TSQAL04) and purchase date ready.
