Tenda NVR N3L-8H 4K 8CH ජාල වීඩියෝ පටිගත කිරීමේ පරිශීලක අත්පොත

හැඳින්වීම

This manual provides detailed instructions for the installation, operation, and maintenance of your Tenda NVR N3L-8H 4K 8CH Network Video Recorder. Please read this manual thoroughly before using the device to ensure proper setup and functionality. The Tenda N3L-8H supports up to 8-channel 8MP/4K network camera inputs, 4-channel 1080p decoding, and up to 10TB HDD storage.

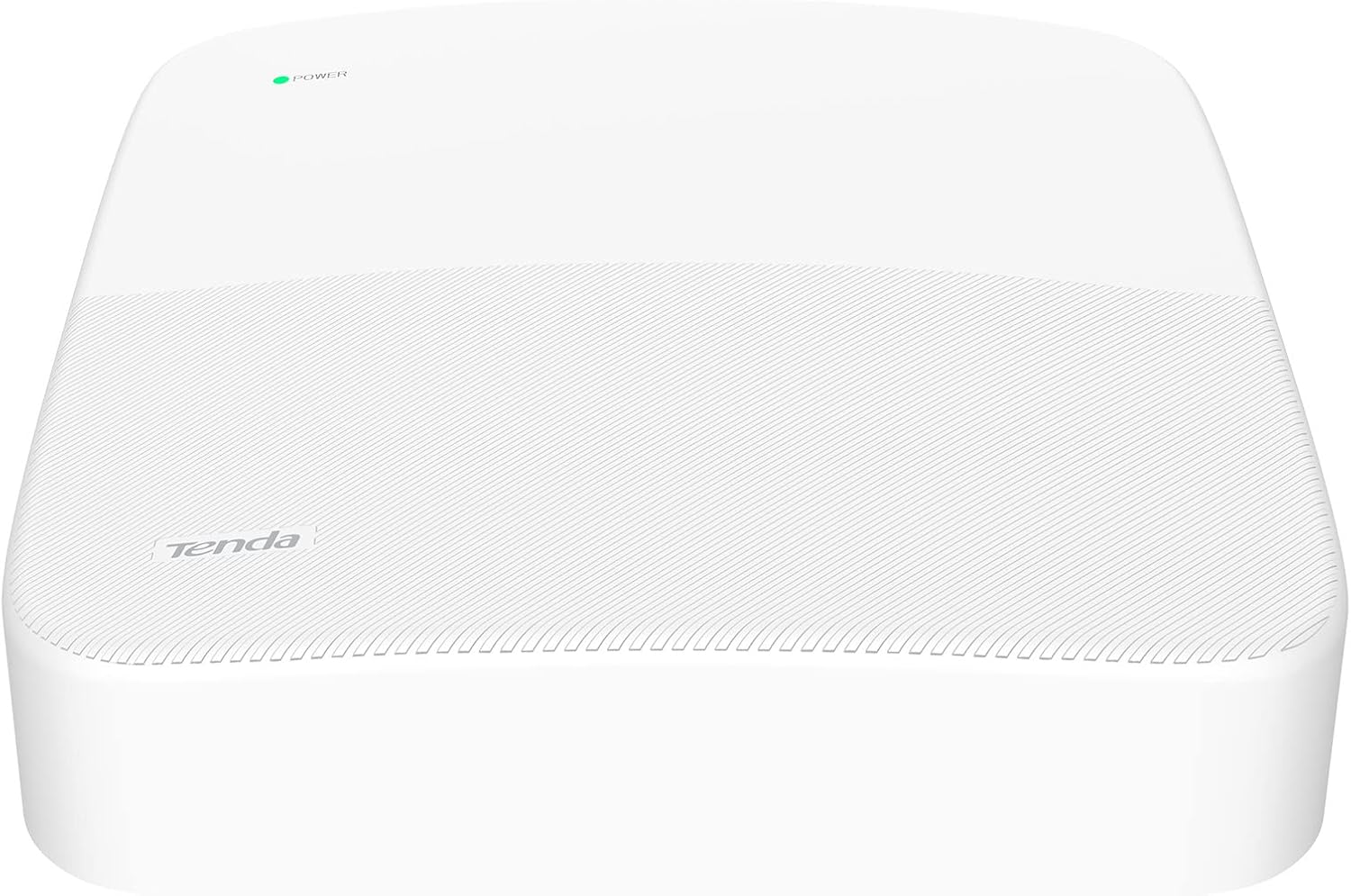

Image: Tenda N3L-8H NVR device highlighting 4K Ultra HD capabilities.

පෙට්ටියේ ඇති දේ

සියලුම අයිතම පැකේජයේ ඇති බව තහවුරු කරගන්න:

• Tenda N3L-8H 8 Channel Non-PoE NVR
• බල ඇඩැප්ටරය
• USB මූසිකය
• HDD ස්ථාපනය සඳහා ඉස්කුරුප්පු
• ඉක්මන් ස්ථාපන මාර්ගෝපදේශය

Image: Unpacked contents of the Tenda N3L-8H NVR box.

සැකසුම් මාර්ගෝපදේශය

Follow these steps to set up your Tenda NVR N3L-8H.

1. දෘඪ තැටි ස්ථාපනය

The NVR supports up to 10TB HDD (not included). Install the hard drive before initial setup.

1. NVR හි පහළ කවරයේ ඉස්කුරුප්පු ගලවන්න.
2. අභ්‍යන්තර සංරචක නිරාවරණය කිරීම සඳහා කවරය ප්‍රවේශමෙන් ඉවත් කරන්න.
3. Insert the hard disk drive into the designated slot, ensuring it connects properly to the SATA interface.
4. Fix the hard disk drive securely with the provided screws.
5. Reinstall the cover and fasten the screws.

රූපය: අභ්‍යන්තර view of the NVR with the hard drive installed.

2. මූලික සම්බන්ධතා

Connect the necessary peripherals to the NVR.

1. Connect the USB mouse to one of the USB ports on the NVR.
2. VGA හෝ HDMI කේබලයක් භාවිතයෙන් මොනිටරයක් ​​NVR වෙත සම්බන්ධ කරන්න.
3. Connect the NVR to your network router or switch using an Ethernet cable.
4. Plug the power adapter into the NVR's power input and then into an electrical outlet.

Image: Rear panel of the NVR with various connection ports.

3. කැමරා සම්බන්ධතාවය

Connect your IP cameras to the network for the NVR to detect them.

1. Ensure your network switch is connected to the internet.
2. Connect your IP cameras to the network switch using Ethernet cables.
3. Power on all connected cameras.
4. Power on the NVR. It will automatically search for and connect to compatible cameras on your network.

Image: Connection diagram for the NVR, switch, and cameras.

4. උපාංග සක්‍රිය කිරීම

Upon first boot, you will need to activate the NVR.

1. තිරයේ ඇති විමසීම් සැරිසැරීමට සම්බන්ධිත මූසිකය භාවිතා කරන්න.
2. Set a strong password for the NVR. The password should be 8 to 32 characters, including at least two types of characters (numbers, uppercase, lowercase, special characters).
3. Complete the unlock pattern settings as prompted.
4. Configure network settings (DHCP is usually enabled by default) and cloud settings.

Setup and Connection Video Guide

Video: A comprehensive guide demonstrating the unpacking, hard drive installation, physical connections, and initial activation process for the Tenda N3L-8H NVR.

මෙහෙයුම් උපදෙස්

Learn how to use the core features of your Tenda NVR.

1. සජීවී View

Once activated and connected, the NVR will automatically display a live preview from your connected cameras on the monitor.

2. Playback Recordings

වෙත view වාර්තාගත footage, click the 'Playback' button on the NVR interface. You can select channels and navigate through the timeline to review සිදුවීම්.

3. Remote Monitoring (TDSEE App)

The TDSEE App allows you to monitor your security system remotely from your mobile device.

1. Download and install the TDSEE App on your smartphone.
2. Scan the QR Code found on the Cloud Service page of your NVR's interface to bind the device to your app.
3. Once bound, you can preview monitoring videos, view playback recordings, and receive real-time alarm notifications directly on your phone.

රූපය: දුරස්ථ පාලකය viewing of camera feeds via the TDSEE mobile application.

නඩත්තු කිරීම

Proper maintenance ensures the longevity and optimal performance of your NVR system.

1. Data Safety and Storage

The Tenda NVR N3L-8H includes features to protect your recorded data:

• Bad Sector Isolation: බුද්ධිමත් file storage system automatically detects, identifies, and skips bad sectors on your hard drive to prevent data corruption and loss.
• USB උපස්ථ: Utilize the USB backup feature to regularly save your video data to an external storage device.
• H.265+ වීඩියෝ සම්පීඩනය: This advanced compression technology saves storage space while maintaining high video quality, allowing for more recordings on your HDD.

Image: Visual representation of HDD Bad Sector Isolation.

Image: H.265+ video compression efficiency with 10TB HDD support.

දෝෂගවේෂණය

If you encounter issues with your Tenda NVR, refer to the following common troubleshooting steps.

• කැමරා අනුකූලතාව: The NVR supports Tenda IT7/IC7 Series Cameras and cameras from other brands that support the ONVIF protocol. Ensure your cameras meet these specifications. If using third-party cameras, verify ONVIF is enabled on the camera and check for specific compatibility notes.
• ස්ථිරාංග යාවත්කාලීන කිරීම්: Ensure your NVR is running the latest firmware version. Check the official Tenda website for available updates for your specific hardware version. Firmware updates can resolve compatibility issues and improve performance.
• ජාල සම්බන්ධතාවය: Verify all Ethernet cables are securely connected. Ensure the NVR and cameras are on the same network segment and have valid IP addresses. Check your router settings if experiencing internet connectivity issues for remote viewing.
• Hard Drive Detection: If the hard drive is not detected or recording fails, ensure it is correctly installed and securely connected to the SATA interface. Power cycle the NVR after checking connections.
• Web Interface/App Access: If you cannot access the NVR via the web interface or TDSEE app, ensure the NVR has internet access (if required for remote features) and that the correct IP address or cloud ID is being used. Restarting the NVR and your network equipment can often resolve temporary connectivity glitches.

නිෂ්පාදන පිරිවිතර

Detailed technical specifications for the Tenda NVR N3L-8H.

වගකීම් සහ සහාය

නිශ්චිත වගකීම් විස්තර සාමාන්‍යයෙන් ඔබේ නිෂ්පාදන ඇසුරුම්කරණය සමඟ හෝ නිෂ්පාදකයාගේ නිල ප්‍රකාශයේ සපයනු ලැබේ. website. For technical support, product registration, or to inquire about warranty services, please visit the official Tenda support website or contact their customer service. Keep your purchase receipt and product serial number handy for any support inquiries.
