1. හැඳින්වීම
This manual provides instructions for the proper installation, operation, and maintenance of the SHIMANO CUES FD-U6010-L Front Derailleur. This component is engineered for 10/11-speed LINKGLIDE systems, designed to provide seamless and precise front shifting for bicycles equipped with a double chainring setup.
The FD-U6010-L features a top-swing, low clamp mount design, offering versatility for various frame types and sizes. It is compatible with chainrings up to 40/46 teeth and is suitable for mountain biking, trekking, and gravel riding applications.
2. පැකේජ අන්තර්ගතය
සියලුම සංරචක පැකේජයේ ඇති බව තහවුරු කර ගන්න:
- SHIMANO CUES FD-U6010-L Front Derailleur
3 ආරක්ෂිත තොරතුරු
Always prioritize safety during installation and use. Improper installation or maintenance can lead to serious injury or damage to the bicycle. It is recommended that installation and adjustments be performed by a qualified bicycle mechanic.
- Always wear appropriate safety gear, including eye protection, when working on your bicycle.
- Ensure all fasteners are tightened to the manufacturer's specified torque values. Overtightening or undertightening can cause component failure.
- Regularly inspect the derailleur and associated components for wear, damage, or loose connections. Replace worn or damaged parts immediately.
- ක්රියාත්මක වන විට අත් සහ ඇඳුම් චලනය වන කොටස් වලින් ඈත් කර තබා ගන්න.
4. පිහිටුවීම සහ ස්ථාපනය
The FD-U6010-L front derailleur is designed for low clamp mounting and features a top-swing mechanism. It includes adapters for various seat tube diameters.
4.1. Prepare the Frame
Clean the seat tube area where the derailleur clamp will be positioned. Ensure there are no burrs or obstructions. Determine the correct seat tube diameter (28.6mm, 31.8mm, or 34.9mm) and select the appropriate adapter if necessary.
4.2. Mount the Derailleur

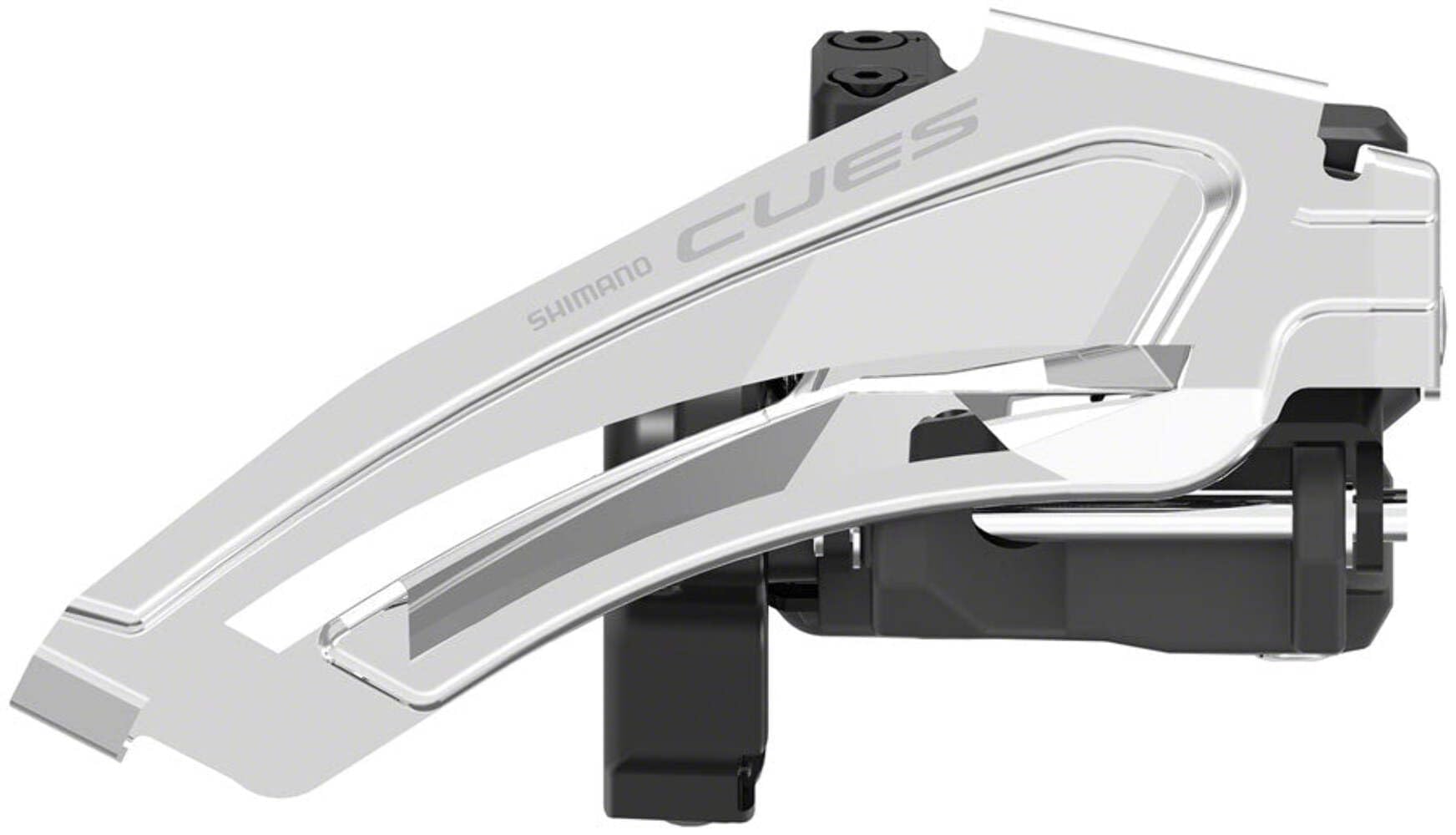

An image showing the SHIMANO CUES FD-U6010-L Front Derailleur, highlighting its top-swing, low clamp design and overall construction.
- Position the derailleur clamp on the seat tube. The outer cage plate should be parallel to the largest chainring.
- Adjust the height of the derailleur so that the bottom of the outer cage plate is 1-3mm above the teeth of the largest chainring.
- cl එක තද කරන්නamp bolt to the specified torque (refer to SHIMANO technical documentation for exact values).
4.3. කේබලය සම්බන්ධ කරන්න
The FD-U6010-L features a dual cable pull design, allowing for versatile cable routing (top or bottom pull). Route the shift cable through the appropriate guide and secure it to the derailleur's cable fixing bolt. Ensure the cable is taut but not overly tight before final adjustment.
4.4. Adjust Limit Screws
There are two limit screws: High (H) and Low (L). These screws prevent the derailleur from shifting the chain off the chainrings.
- Low Limit (L): Shift the chain to the smallest chainring and the largest rear cog. Adjust the L-screw so that the inner cage plate is as close as possible to the chain without rubbing.
- High Limit (H): Shift the chain to the largest chainring and the smallest rear cog. Adjust the H-screw so that the outer cage plate is as close as possible to the chain without rubbing.
4.5. Adjust Cable Tension
Fine-tune the cable tension using the barrel adjuster on the shifter or the derailleur (if present). Shift through all gears to ensure smooth and precise operation without hesitation or chain rub.
5. Operating the Front Derailleur
The SHIMANO CUES FD-U6010-L Front Derailleur is designed for intuitive and reliable shifting within a 10/11-speed LINKGLIDE double chainring system. Use your left shifter to control the front derailleur.
- To shift to a larger chainring (harder gear), press the main lever of your left shifter.
- To shift to a smaller chainring (easier gear), press the release lever of your left shifter.
- Always shift smoothly and avoid excessive force. Anticipate shifts and execute them before encountering steep inclines or obstacles.
- Avoid cross-chaining (e.g., largest front chainring with largest rear cog, or smallest front chainring with smallest rear cog) as this can increase wear and reduce shifting performance.
6. නඩත්තු කිරීම
Regular maintenance ensures optimal performance and extends the lifespan of your front derailleur.
6.1 පිරිසිදු කිරීම
Periodically clean the derailleur cage, pivot points, and cable routing areas to remove dirt, mud, and grime. Use a mild degreaser and a brush, then rinse with water and dry thoroughly.
6.2. ලිහිසි කිරීම
Apply a small amount of bicycle-specific lubricant to the pivot points of the derailleur. Avoid over-lubricating, which can attract dirt. Lubricate the shift cable where it enters the housing and at the cable fixing point on the derailleur.
6.3. Inspections and Adjustments
- Check cable tension regularly. If shifting becomes sluggish or imprecise, adjust the barrel adjuster.
- Verify that the limit screws are still correctly set and prevent the chain from over-shifting.
- Inspect the derailleur cage for any bends or damage. A bent cage can cause chain rub and poor shifting.
- Ensure all mounting bolts are secure and tightened to the correct torque.
7. දෝශ නිරාකරණය
පහත දැක්වෙන්නේ පොදු ගැටළු සහ ඒවාට ඇති විය හැකි විසඳුම් ය:
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| Difficulty shifting to a larger chainring | Insufficient cable tension, bent derailleur cage, H-limit screw too tight | Increase cable tension, check/straighten/replace cage, loosen H-limit screw slightly |
| Difficulty shifting to a smaller chainring | Excessive cable tension, L-limit screw too tight, dirty/sticky pivots | Decrease cable tension, loosen L-limit screw slightly, clean and lubricate pivots |
| Chain rubs on derailleur cage | Incorrect limit screw adjustment, bent derailleur cage, incorrect derailleur height/angle | Adjust H/L limit screws, check/straighten/replace cage, re-adjust derailleur height/angle |
| Derailleur is noisy | Lack of lubrication, dirt, chain rub, loose mounting bolts | Clean and lubricate, adjust for chain rub, tighten mounting bolts |
8. පිරිවිතර
- මාදිලියේ නම:
- FD-U6010-L
- Speed Compatibility:
- 10/11-Speed LINKGLIDE
- Chainring Compatibility:
- ද්විත්ව
- සවි කිරීමේ වර්ගය:
- Top-Swing, Low Clamp (34.9mm, with adapters for 28.6mm, 31.8mm)
- Maximum Chainring Size:
- 40/46 teeth
- Chainstay Angle:
- අංශක 63-68
- දාම රේඛාව:
- 48.8 මි.මී
- Cable Pull:
- ද්විත්ව අදින්න
- ද්රව්ය:
- ඇලුමිනියම් මිශ්ර ලෝහ ශරීරය
- අයිතමයේ බර:
- කිලෝ ග්රෑම් 0.22 යි
- නිෂ්පාදන මානයන් (LxWxH):
- 10" x 8" x 2"
- UPC:
- 192790232362
- කොටස අංකය:
- EFDU6010LX3
9. වගකීම් සහ සහාය
9.1. වගකීම් තොරතුරු
This SHIMANO product is covered by a Limited Warranty. For specific terms and conditions, please refer to the warranty documentation provided with your purchase or visit the official SHIMANO webඅඩවිය.
9.2. පාරිභෝගික සහාය
If you encounter any issues not covered in this manual or require further assistance, please contact your authorized SHIMANO dealer or visit the official SHIMANO customer support portal for detailed technical information and service options.
