maXpeedingrods 7500 lbs Rear Air Suspension Bags Kit Instruction Manual

1. හැඳින්වීම

This manual provides detailed instructions for the installation, operation, and maintenance of the maXpeedingrods 7500 lbs Rear Air Suspension Bags Kit, model WM69LX. This kit is designed to enhance vehicle stability and comfort when hauling or towing heavy loads.

Image: A truck towing a trailer, illustrating the enhanced towing performance provided by the air helper spring bag kit.

2. වාහන අනුකූලතාව

This air suspension kit is compatible with the following vehicle models:

• ඩොජ් රැම් 2500 4WD: 2003-2013
• ඩොජ් රැම් 3500 4WD: 2003-2018

සටහන: This kit fits single rear wheel (SRW) and dual rear wheel (DRW) models. It is compatible with factory in-bed hitch systems and most side-mount fifth-wheel hitch models. It is නැත suitable for cab and chassis models or models with a fifth-wheel hitch that interferes with the air spring installation.

Image: A table detailing compatible Dodge Ram 2500 and 3500 4WD models and years.

3. පැකේජ අන්තර්ගතය

ස්ථාපනය ආරම්භ කිරීමට පෙර සියලුම සංරචක පැකේජයේ ඇති බව තහවුරු කර ගන්න:

• Air Suspension Bags (2)
• Upper and Lower Mounting Brackets
• රෝල් තහඩු
• ගුවන් මාර්ගය
• Hardware Kits (bolts, nuts, washers, air fittings, zip ties)
• ස්ථාපන අත්පොත

Image: A visual representation of all items included in the air spring kit package.

4. ප්‍රධාන විශේෂාංග සහ සංරචක

4.1. Durable Material Construction

The air springs are constructed with a multi-ply natural rubber design and a unique rubber formulation. The 4.5-5mm thickness enhances load support capability. High-strength ST12 steel end caps provide structural integrity.

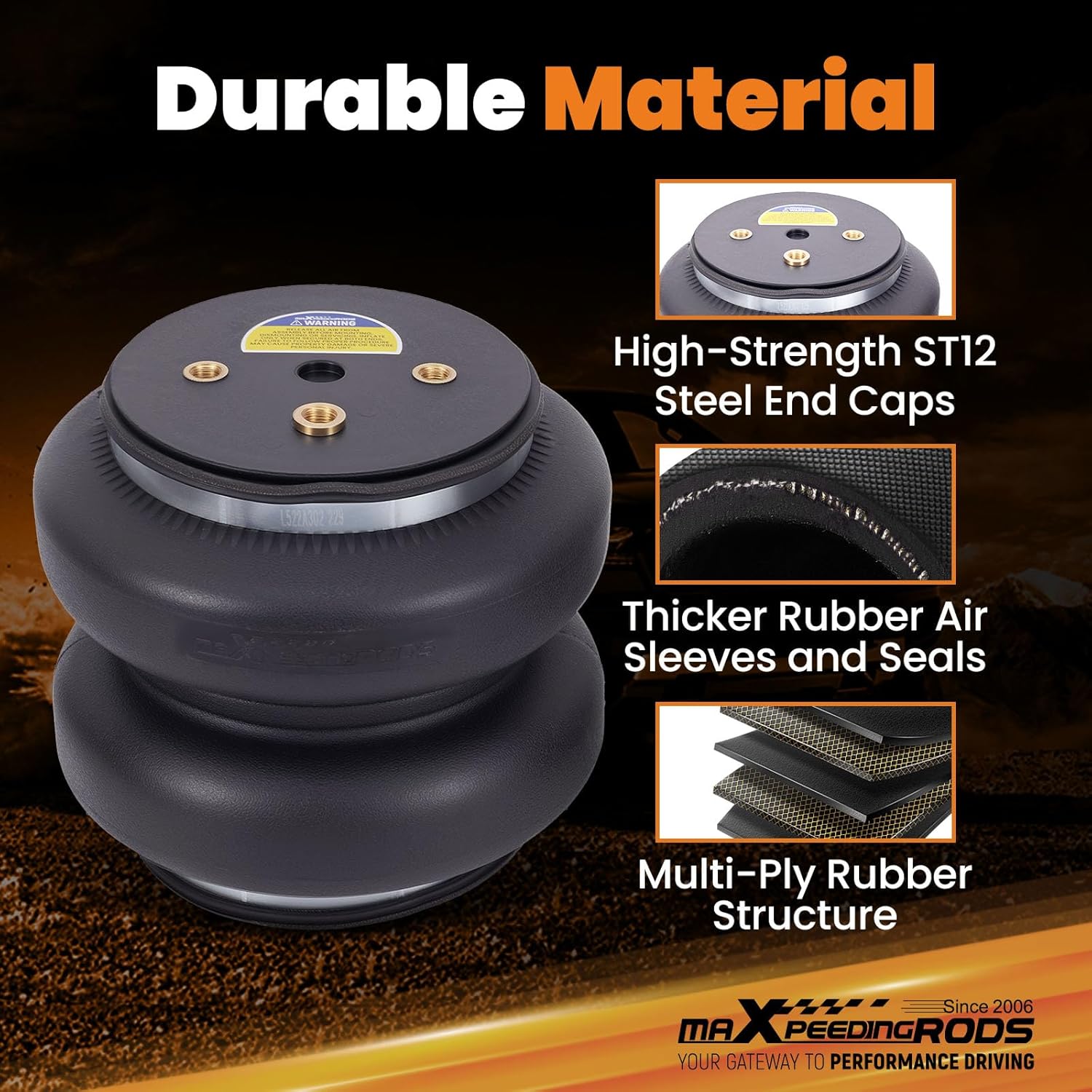

රූපය: විස්තරාත්මක view of the air spring, highlighting its high-strength ST12 steel end caps, thicker rubber air sleeves, and multi-ply rubber structure for durability.

4.2. Reliable Mounting Accessories

The kit includes plastic-sprayed Q235 steel mounting brackets and Dacromat anti-rust bolts for enhanced durability and corrosion resistance, ensuring long-lasting performance.

Image: Components for mounting, showing plastic-sprayed Q235 steel brackets and Dacromat anti-rust treated bolts.

4.3. Load Leveling Capacity

The system provides up to 7500 pounds of load leveling capability, significantly improving stability and handling when carrying heavy loads or towing. The air pressure is adjustable from 5 to 100 PSI.

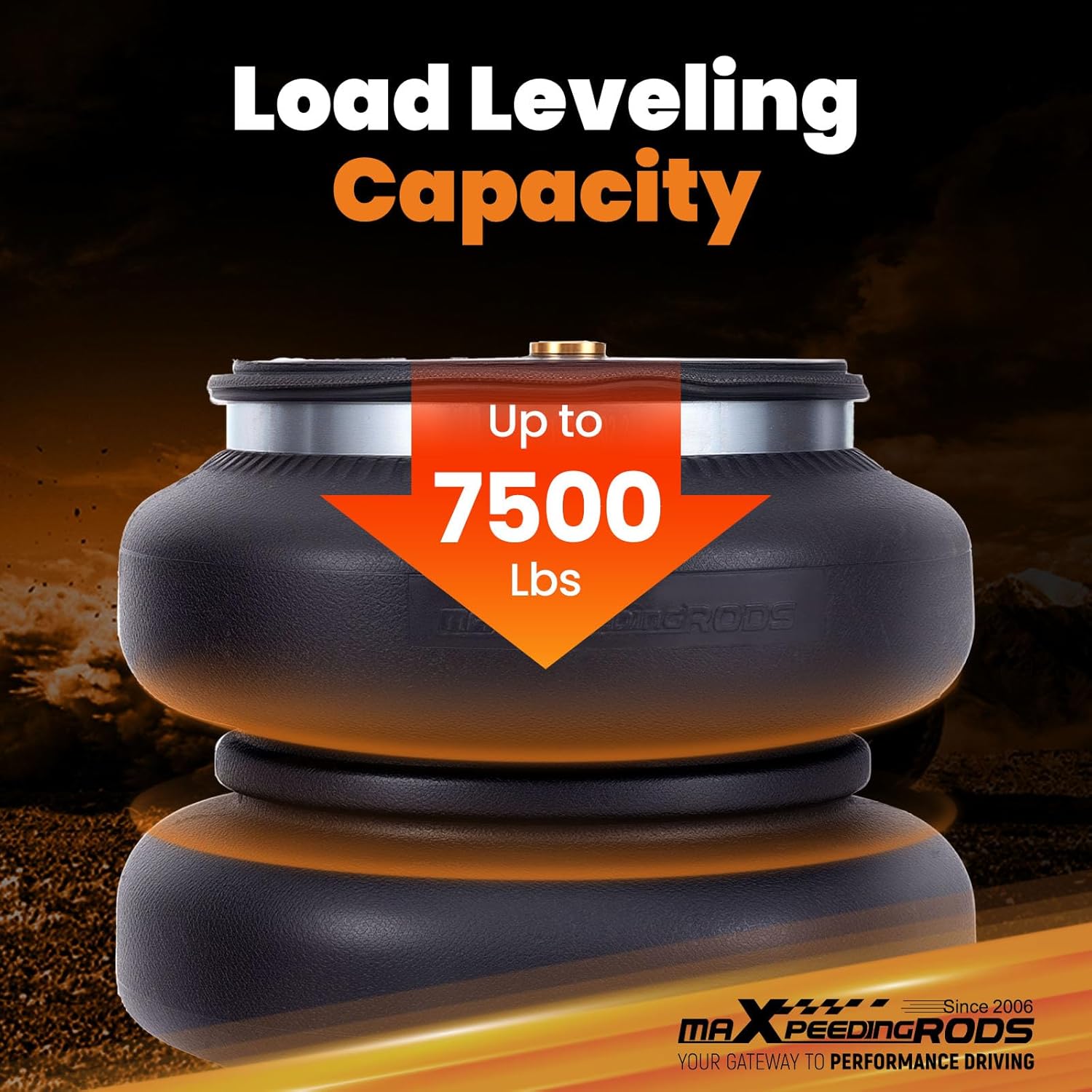

Image: An air spring with an overlay indicating its load leveling capacity of up to 7500 lbs.

5. ස්ථාපනය සහ සැකසුම

This kit is designed for bolt-on installation. Refer to the included installation manual for detailed, step-by-step instructions specific to your vehicle model. Professional installation is recommended if you are not familiar with automotive suspension systems.

5.1. පූර්ව-ස්ථාපන පරීක්ෂාව

Before installation, ensure your vehicle's suspension is in its original configuration. If the rear of your vehicle is lifted, you may need an additional spacer to support the kit. If only the front of your vehicle is lifted, the kit will fit. The kit will නැත fit if both the front and rear of your vehicle are lowered.

Image: Visual guide on vehicle modification compatibility, indicating that the kit fits if the front is lifted, may require spacers if the rear is lifted, and does not fit if both front and rear are lowered.

5.2. සාමාන්‍ය ස්ථාපනය අවසන්view

The air springs are installed between the vehicle's frame and the rear axle. The air lines connect to the air springs and are routed to an accessible inflation point. Ensure all connections are secure and free from leaks.

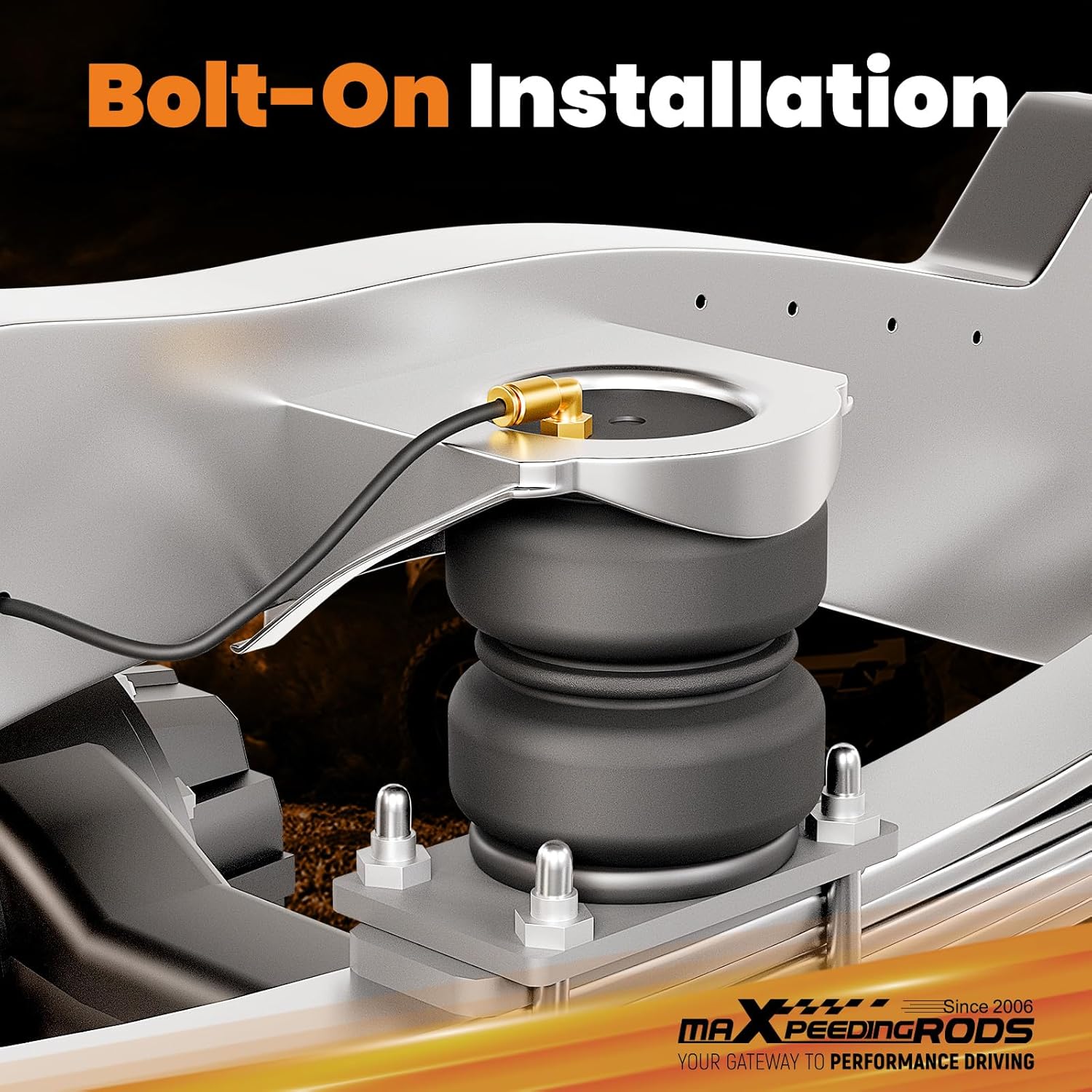

Image: An illustration of the bolt-on installation process for the air suspension system on a vehicle chassis.

6. ක්‍රියාකාරිත්වය සහ ගැලපීම

The air springs are adjustable from 5 to 100 PSI. Adjust the air pressure based on the load being carried and road conditions to achieve optimal stability and comfort. Proper adjustment helps to:

• Prevent unbalanced loads
• Reduce bottoming out
• Keep headlights level
• Improve steering control and braking
• Preserve tires
• Eliminate sag
• Increase ride comfort

Image: A visual comparison of a truck towing a trailer, demonstrating the benefits of adjustable air spring kits by showing the vehicle's level stance after loading the air springs compared to before.

7. නඩත්තු කිරීම

Regular inspection and proper maintenance are crucial for the longevity and performance of your air suspension system.

7.1. Preventing Leaks

To prevent air leaks, ensure that the air line ends are cut perfectly smooth and provide a tight seal when inserted into fittings. Verify that the air line is properly placed and routed, avoiding sharp bends or contact with moving parts. After installation, use a spray bottle filled with soapy water to check all fittings and the air bags for leaks. Bubbles will indicate a leak.

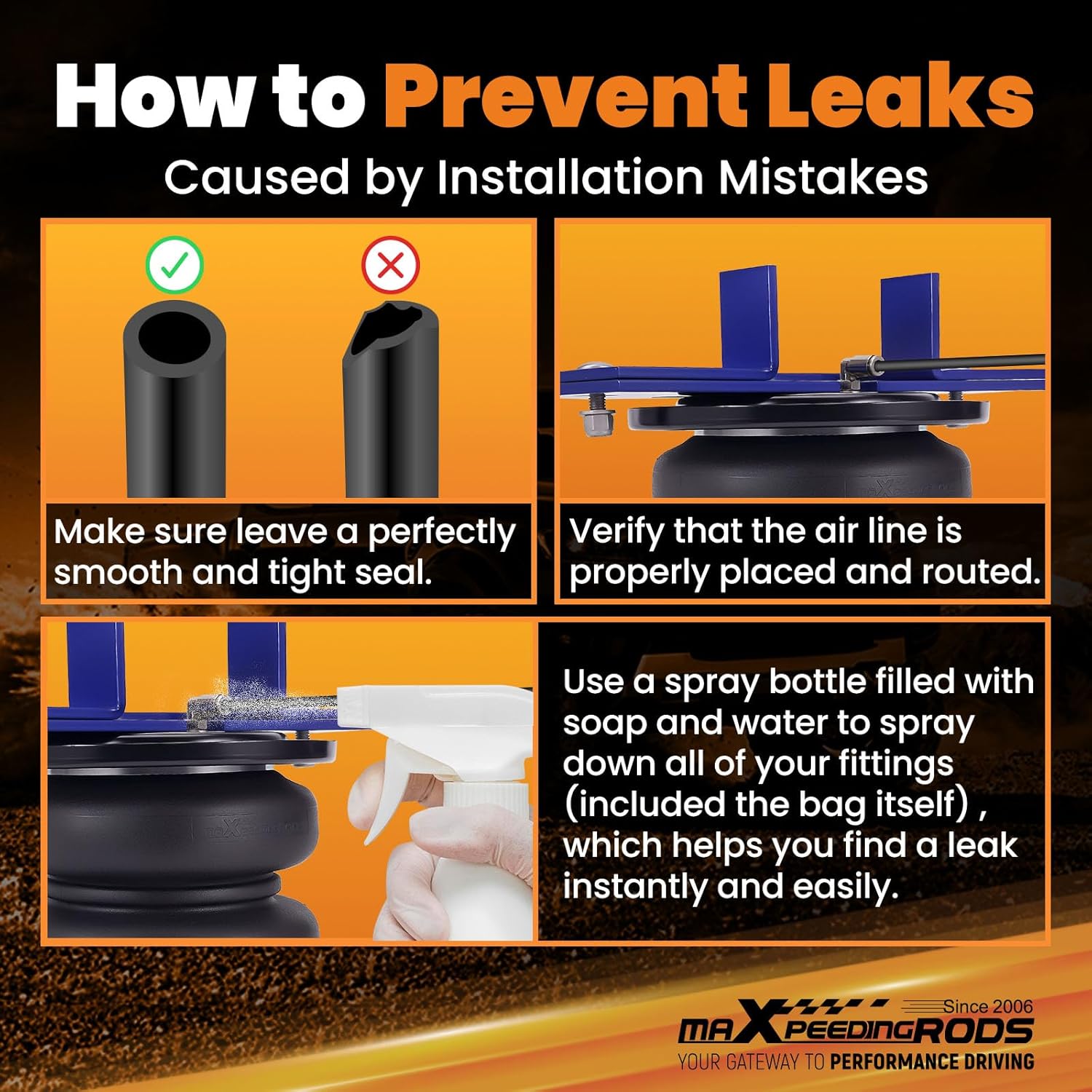

Image: A guide on preventing leaks, showing correct air line cuts, proper air line placement, and the soap-and-water method for leak detection.

7.2 සාමාන්ය සත්කාර

• Periodically check air pressure and adjust as needed.
• Inspect air lines and fittings for wear, damage, or corrosion.
• Clean the air springs and surrounding components to prevent dirt and debris buildup.

8. දෝශ නිරාකරණය

If you experience issues with your air suspension kit, consider the following:

• වායු පීඩනය නැතිවීම: Check all air line connections and the air bags for leaks using soapy water. Ensure valve caps are securely tightened.
• අසමාන ගමන් උස: Verify that both air springs are inflated to the same pressure. Check for obstructions or damage to the suspension components.
• දුර්වල ගමන් ගුණාත්මකභාවය: Adjust air pressure within the recommended range (5-100 PSI) to suit the load and road conditions.

9. පිරිවිතර

10. වගකීම් සහ සහාය

maXpeedingrods provides the following support for this product:

• වගකීම්: 12 Months Warranty. Replacement is available within 12 months for quality issues.
• පාරිභෝගික සේවාව: 24/7 customer service and support.
• තාක්ෂණික සහාය: ජීවිත කාලය තාක්ෂණික සහාය.

Image: An illustration emphasizing maXpeedingrods' commitment to quality through thorough testing, extensive product tests, and experienced engineers.

For further assistance, please contact maXpeedingrods customer support.
