හැඳින්වීම
This manual provides detailed instructions for the installation, operation, and maintenance of your HIKVISION DS-7616NXI-K1 16 Channel 8MP 4K Network Video Recorder (NVR). Please read this manual thoroughly before using the product to ensure proper and safe operation. Keep this manual for future reference.
පැකේජයේ අන්තර්ගතය
ඇසුරුම් ඉවත් කිරීමෙන් පසු, පහත ලැයිස්තුගත කර ඇති සියලුම අයිතම පවතින බවත් හොඳ තත්ත්වයේ පවතින බවත් තහවුරු කර ගන්න:
- HIKVISION DS-7616NXI-K1 NVR Main Unit
- බල ඇඩැප්ටරය
- USB මූසිකය
- ඊතර්නෙට් කේබලය
- SATA Cables (for HDD connection)
- HDMI Cable (USEWEll HDMI Included)
- ඉක්මන් ආරම්භක මාර්ගෝපදේශය
Figure 1: Package Contents. The image displays the NVR unit, power adapter, USB mouse, Ethernet cable, SATA cables, and a quick start guide, all neatly arranged as they would appear upon unboxing.
නිෂ්පාදනය අවසන්view
ප්රධාන ලක්ෂණ
- Supports up to 16 IP camera inputs.
- Advanced H.265+/H.265/H.264+/H.264 video formats for efficient storage and bandwidth usage.
- Equipped with Motion Detection 2.0 for enhanced security.
- Up to 160 Mbps incoming bandwidth to support multiple high-resolution cameras.
- AcuSense technology for intelligent analysis and reduced false alarms.

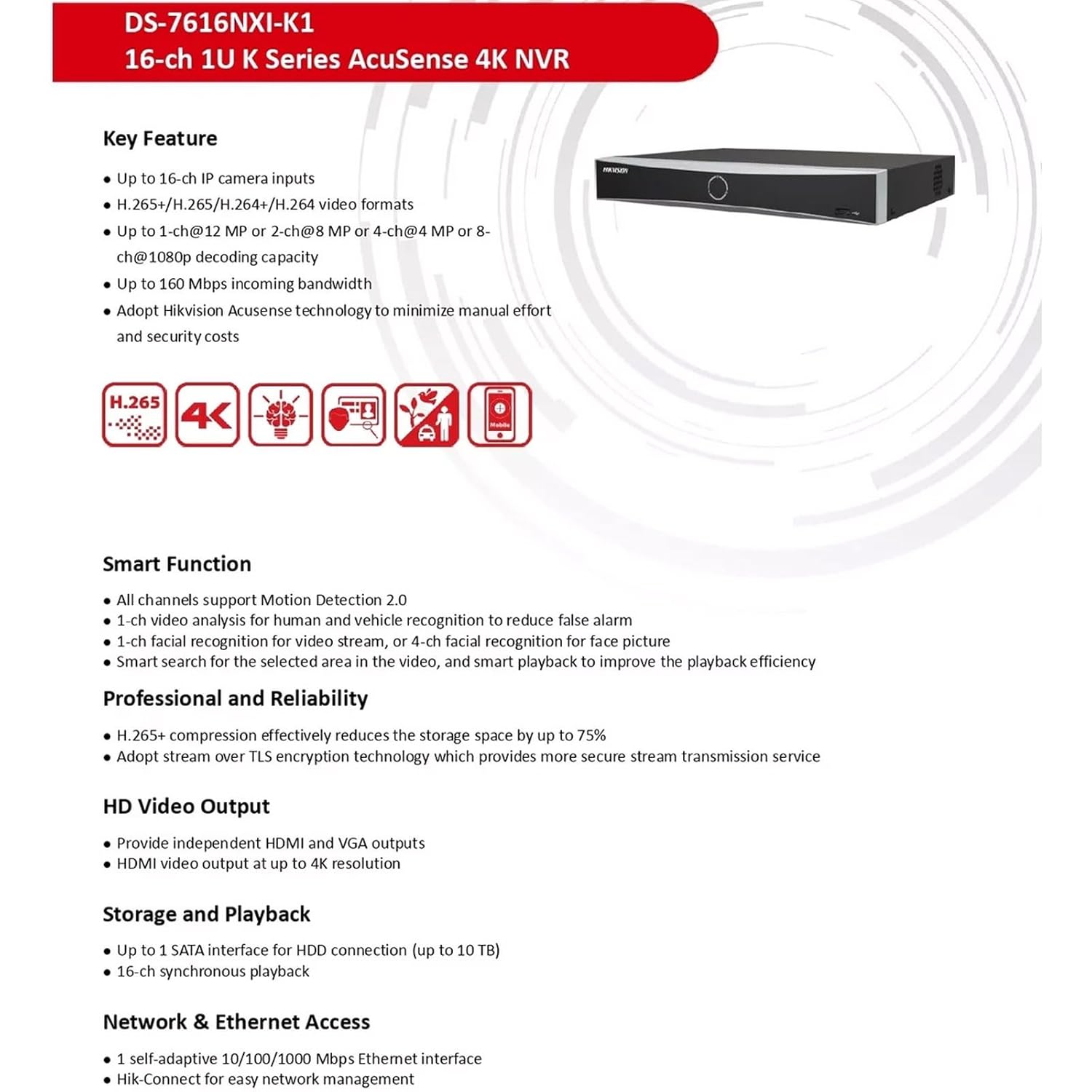

Figure 2: Key Features. This image highlights the main capabilities of the NVR, such as H.265+ compression, 4K resolution support, AcuSense technology, and various smart functions.
භෞතික අතුරු මුහුණත
The NVR features a well-organized rear panel with various ports for connectivity. Refer to the diagram below for a detailed layout.
Figure 3: Physical Interface. This diagram illustrates the rear panel of the NVR, labeling ports such as LAN, Audio In/Out, HDMI, VGA, USB, and Power Supply.
| නැත. | විස්තරය | නැත. | විස්තරය |
|---|---|---|---|
| 1 | LAN ජාල අතුරුමුහුණත | 6 | USB අතුරුමුහුණත |
| 2 | ශ්රව්ය උපකරණ | 7 | බල සැපයුම |
| 3 | ඕඩියෝ එළියට | 8 | බල ස්විචය |
| 4 | HDMI අතුරුමුහුණත | 9 | GND |
| 5 | වීජීඒ අතුරුමුහුණත |
Figure 4: NVR Front and Rear View. This image provides a clear view of the NVR's front panel with its minimalist design and the rear panel showcasing all connectivity options.
සැලසුම
Follow these steps to set up your HIKVISION NVR:
- Hard Drive Installation (Optional): If a hard drive is not pre-installed, open the NVR casing, connect the SATA power and data cables to the hard drive, and secure it within the NVR. Close the casing.
- සම්බන්ධක සංදර්ශකය: Connect a monitor to the NVR's HDMI or VGA output port using the provided HDMI cable or a VGA cable.
- මූසිකය සම්බන්ධ කරන්න: USB මූසිකය NVR හි USB පෝට් එකකට සම්බන්ධ කරන්න.
- ජාල සම්බන්ධතාවය: Connect the NVR to your local network using an Ethernet cable. Ensure your network has internet access for remote viewing විශේෂාංග.
- බල ගැන්වීම: Connect the power adapter to the NVR and then to a power outlet. Turn on the NVR using the power switch on the rear panel.
- ආරම්භක වින්යාසය: Follow the on-screen prompts to complete the initial setup, including setting up a password, network settings, and hard drive initialization.
- IP කැමරා සම්බන්ධ කරන්න: Connect your IP cameras to the same network as the NVR. The NVR will automatically search for and add compatible cameras. For non-PoE cameras, ensure they are powered separately and connected to the network.
මෙහෙයුම් උපදෙස්
Once the NVR is set up, you can begin monitoring and managing your surveillance system.
සජීවීව View සහ පටිගත කිරීම
- සජීවීව වෙත පිවිසෙන්න view interface from the connected monitor or via the Hik-Connect app/web අතුරු මුහුණත.
- Configure recording schedules and motion detection settings for each camera through the NVR's menu.
AcuSense Features
The NVR's AcuSense technology enhances security by providing intelligent detection capabilities:
- චලන අනාවරණය 2.0: Reduces false alarms caused by environmental factors (e.g., rain, leaves) by accurately classifying human and vehicle targets.
- මුහුණු හඳුනාගැනීම: Supports face picture comparison and facial detection for specific applications.
- පරිමිතිය ආරක්ෂාව: Utilizes deep learning algorithms to reduce false alarms in intrusion detection and line crossing scenarios.

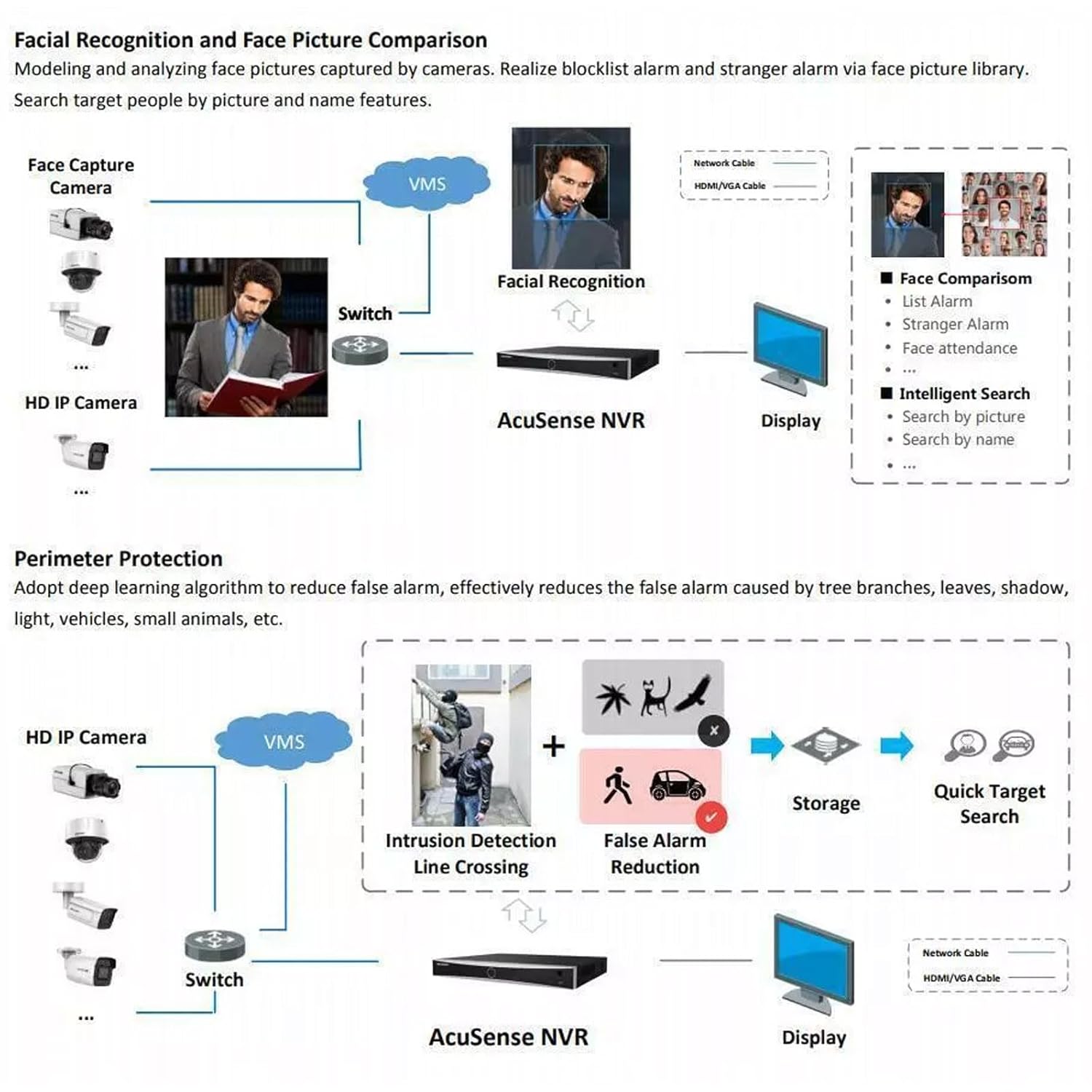

Figure 5: AcuSense Detection Capabilities. This image visually explains how AcuSense technology works for facial recognition and perimeter protection, showing the integration with cameras and the NVR.
දුරස්ථ ප්රවේශය
Utilize the Hik-Connect P2P function for easy remote management and live viewing from your mobile device or web බ්රවුසරය.
නඩත්තු කිරීම
Regular maintenance ensures optimal performance and longevity of your NVR system.
- පිරිසිදු කිරීම: Periodically clean the exterior of the NVR with a soft, dry cloth. Ensure ventilation openings are free from dust and obstructions.
- ස්ථිරාංග යාවත්කාලීන කිරීම්: Check the official HIKVISION website for the latest firmware updates. Regularly updating the firmware can improve system stability and add new features.
- දෘඪ තැටි කළමනාකරණය: Monitor the health of your hard drive(s) through the NVR's system settings. Ensure sufficient storage space is available for recordings.
- උපස්ථ වින්යාසය: ඔබේ NVR හි වින්යාස සැකසුම් නිතිපතා USB ධාවකයකට හෝ ජාල ස්ථානයකට උපස්ථ කරන්න.
දෝෂගවේෂණය
මෙම කොටසින් ඔබට මුහුණ දීමට සිදුවිය හැකි පොදු ගැටළු සාකච්ඡා කෙරේ.
- වීඩියෝ ප්රතිදානය නැත: Check all cable connections (HDMI/VGA, power). Ensure the monitor is on and set to the correct input. Restart the NVR.
- නොපෙන්වන කැමරා: Verify that IP cameras are powered on and correctly connected to the network. Check network settings on both the NVR and cameras. Ensure cameras are added to the NVR.
- ජාල සම්බන්ධතා ගැටළු: Confirm the Ethernet cable is securely connected. Check your router/switch status. Verify NVR network settings (IP address, gateway, DNS).
- Hard Drive Detection Issues: If the hard drive is not detected or shows errors, ensure it is properly connected inside the NVR. In some cases, an insufficient power supply to the NVR can cause HDD issues. Consider using a 12V 2A power adapter if the supplied 12V 1.5A adapter proves insufficient for your HDD.
- ව්යාජ එලාම්: Adjust the sensitivity and detection zones for motion detection. Utilize AcuSense features (Motion Detection 2.0, Perimeter Protection) to filter out non-human/vehicle events.
පිරිවිතර
Detailed technical specifications for the HIKVISION DS-7616NXI-K1 NVR.
| විශේෂාංගය | විස්තර |
|---|---|
| IP වීඩියෝ ආදානය | 16-නාලිකාව |
| එන කලාප පළල | 160 Mbps |
| පිටතට යන කලාප පළල | 80 Mbps |
| HDMI ප්රතිදානය | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA ප්රතිදානය | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| විකේතනය කිරීමේ ආකෘතිය | H.265 + / H.265 / H.264 + / H.264 |
| පටිගත කිරීමේ විභේදනය | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| සමමුහුර්ත ප්ලේබැක් | 16-ච |
| SATA අතුරුමුහුණත | 1 SATA අතුරුමුහුණත |
| මතක ගබඩා ධාරිතාව | Up to 10 TB per HDD |
| USB අතුරුමුහුණත | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
| ජාල අතුරුමුහුණත | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| බල සැපයුම | 12 වීඩීසී, 1.5 ඒ |
| බලශක්ති පරිභෝජනය | ≤ 10 W (HDD නොමැතිව) |
| වැඩ කරන උෂ්ණත්වය | -10 °C සිට 55 °C (14 °F සිට 131 °F) |
| වැඩ කරන ආර්ද්රතාවය | 10% සිට 90% දක්වා |
| මානයන් (W × D × H) | 320 මි.මී. × 240 මි.මී. × 48 මි.මී. (12.6" × 9.4" × 1.9") |
| බර | ≤ 1 kg (without HDD), 1.5 kg (Item Weight) |
| මුල් රට | ඉන්දියාව |
Figure 6: NVR Dimensions. This technical drawing provides precise measurements of the NVR unit in millimeters.
නිල නිෂ්පාදන වීඩියෝව
Video 1: HIKVISION 16 Channel 8MP 4K NVR Overview. This video provides a brief visual introduction to the HIKVISION DS-7616NXI-K1 NVR, showcasing its design, package contents, and key features.
වගකීම් සහ සහාය
Your HIKVISION DS-7616NXI-K1 NVR comes with a වසර 2ක වගකීමක්, ensuring peace of mind regarding product quality and performance. For technical support, troubleshooting assistance, or warranty claims, please contact HIKVISION customer service or your authorized dealer.
Additionally, extended warranty plans are available for purchase:
- 1 Year Extended warranty by OneAssist
- 2 Year Extended warranty by OneAssist
For further information, visit the official HIKVISION website or consult your product documentation.
