හැඳින්වීම
This manual provides detailed instructions for the installation, operation, and maintenance of your JUBEST 8FT Commercial Grade Pocket Door Hardware and Track Set. Please read all instructions carefully before beginning installation to ensure proper function and safety. This hardware is designed for smooth and durable operation of pocket doors.
නිෂ්පාදන සංරචක
The JUBEST 8FT Commercial Grade Pocket Door Hardware and Track Set includes the following components:
- 1x Aluminum Track (92 inches long)
- 2x Hangers with Mounting Plates
- 2x Floor Guides
- 1x Door Bumper
- Wrench & Mounting Screws
- ස්ථාපන උපදෙස් (මෙම අත්පොත)
Image: All components of the JUBEST Pocket Door Hardware Kit, including the aluminum track, hangers, floor guides, door bumper, wrench, and screws.
පිරිවිතර
| වෙළඳ නාමය | JUBEST |
| ආදර්ශ අංකය | JUBEST Pocket Door Track-TSQAL05-8FT |
| ධාවන දිග | 92 inches (8 Feet) |
| ද්රව්ය | ඇලුමිනියම් |
| වර්ණය | රිදී |
| Suitable Door Panel Thickness | 1" to 1-3/4" |
| Suitable Door Panel Width | 24" සිට 48" දක්වා |
| උපරිම දොර බර | Up to 220 lbs (100 kg) per panel |
| අයිතමයේ බර | පවුම් 3.95ක් |
| නිෂ්පාදන මානයන් | අඟල් 1.76 x 92 x 1.22 |
Image: Detailed measurements and dimensions for the track, hangers, and other components of the pocket door hardware kit.

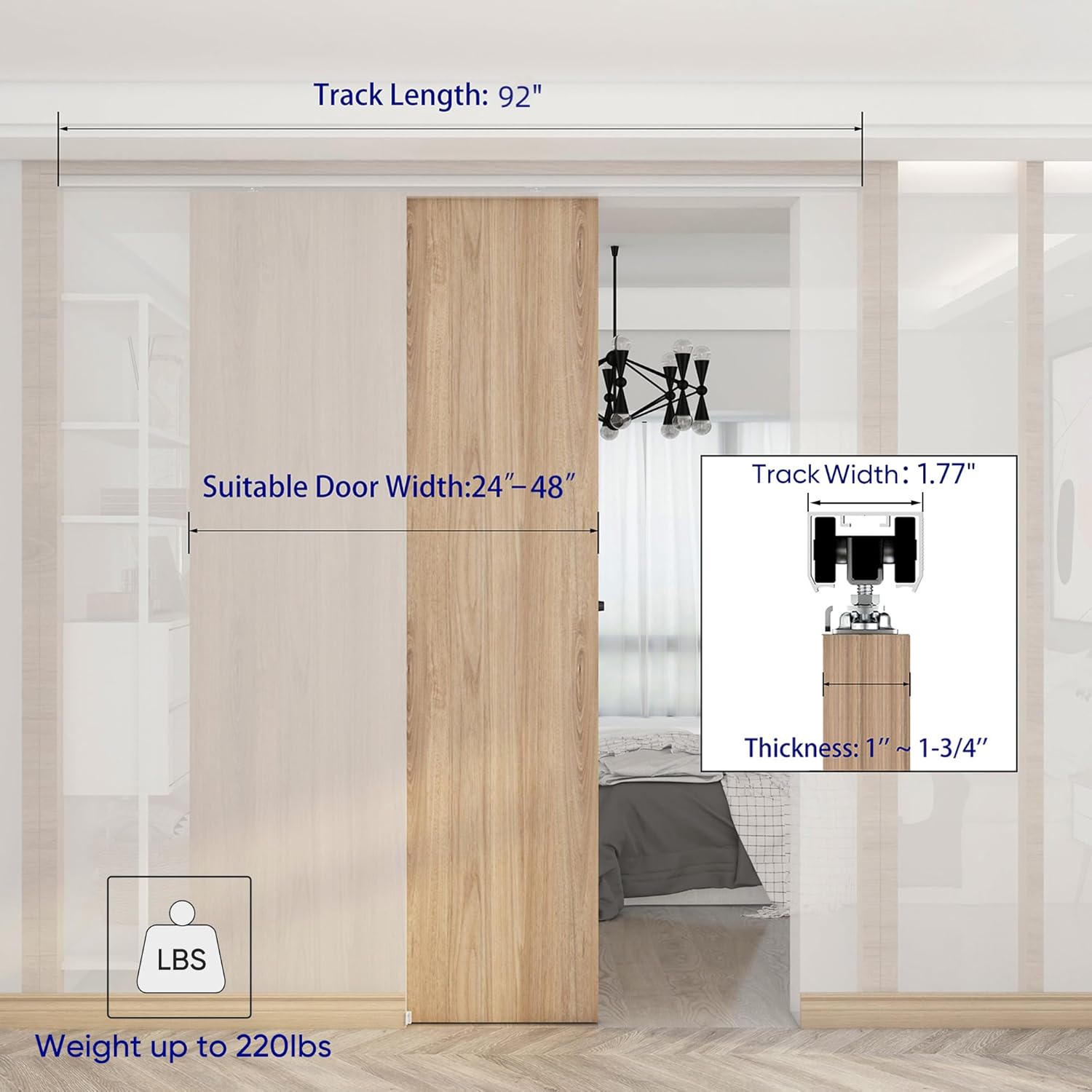

Image: Diagram illustrating the track length of 92 inches, suitable door width range of 24-48 inches, and door thickness range of 1-1 3/4 inches, with a maximum weight capacity of 220 lbs.
සැකසුම සහ ස්ථාපනය
Proper installation is crucial for the smooth operation and longevity of your pocket door system. It is recommended to have basic carpentry skills and tools for this installation. Refer to the provided diagrams for visual guidance.
අවශ්ය මෙවලම් (ඇතුළත් නොවේ):
- මිනුම් පටිය
- මට්ටම
- සරඹ
- ඉස්කුරුප්පු නියනක් (පිලිප්ස් හිස නිර්දේශ කෙරේ)
- පැන්සල
- Saw (if track modification is needed)
ස්ථාපන පියවර:
- විවෘත කිරීම සූදානම් කරන්න: Ensure your wall opening is correctly framed for a pocket door. The opening width should be approximately twice the door width plus 1 inch, and the height should accommodate the door plus the track system.
- Install the Aluminum Track:
- Position the aluminum track within the header of your pocket door frame.
- Ensure the track is perfectly level.
- Secure the track using the provided mounting screws. The precision extruded aluminum box track is designed to prevent the door from jumping.
Image: Close-up of the high-quality aluminum track, highlighting its long-lasting, anti-corrosion, and anti-rust properties.
- Attach Hangers to Door:
- Mount the hangers with their plates to the top edge of your door panel.
- Ensure they are evenly spaced and securely fastened.
රූපය: විස්තරාත්මක view of the three-wheel hanger with ball bearings, designed for smooth and quiet operation.
- දොර එල්ලන්න:
- Carefully lift the door panel and engage the hanger wheels into the track's convex rails.
- The quick-release locking tab allows for easy installation and removal.
- Install Floor Guides:
- Position the floor guides at the bottom of the door opening to prevent the door from swinging.
- Secure them to the floor according to your door's thickness and desired stability.
- Install Door Bumper:
- Attach the door bumper to the inside of the pocket frame where the door fully retracts.
- This prevents the door from hitting the jamb and ensures quiet operation.
Image: Black door bumper installed on a wooden pocket door, designed to prevent impact with the jamb and reduce noise.
- සකස් කර පරීක්ෂා කරන්න:
- Slide the door back and forth several times to ensure smooth operation.
- Make any necessary adjustments to the hangers or floor guides for optimal alignment and movement.
මෙහෙයුම් උපදෙස්
To operate your JUBEST pocket door, simply grasp the door pull or handle and slide the door along the track. The three-wheel hangers with heavy-duty ball bearings ensure minimal friction and quiet rolling, allowing for smooth and effortless movement. Avoid forcing the door if it encounters resistance.
Image: A wooden pocket door smoothly retracting into the wall, demonstrating the hardware's smooth sliding capability.
නඩත්තු කිරීම
Regular maintenance will help ensure the long-term performance of your JUBEST pocket door hardware.
- පිරිසිදු කිරීම: Periodically wipe down the aluminum track and hangers with a clean, dry cloth to remove dust and debris. Avoid abrasive cleaners.
- ලිහිසි තෙල්: If the door's movement becomes less smooth over time, a light application of silicone-based lubricant to the track and hanger wheels can restore optimal performance. Do not use oil-based lubricants as they can attract dust.
- පරීක්ෂාව: Annually inspect all mounting screws and hardware components for tightness and wear. Tighten any loose screws.
දෝෂගවේෂණය
| ගැටලුව | විය හැකි හේතුව | විසඳුම |
|---|---|---|
| Door is difficult to slide or sticks. |
|
|
| Door makes noise when sliding. |
|
|
| Door jumps off the track. |
|
|
වගකීම් සහ සහාය
JUBEST stands behind the quality of its products. This pocket door track system has passed 100,000 cycles of testing, ensuring a lifespan of up to 10 years under normal use.
For any questions, concerns, or assistance with installation or troubleshooting, please contact our professional customer service team. They are available to help you resolve any issues in a timely manner.
Please refer to your purchase documentation or the JUBEST official website for specific contact information and the most up-to-date warranty details.
