Zenwire External CD/DVD Drive User Manual

1. හැඳින්වීම

Thank you for choosing the Zenwire External CD/DVD Drive. This device is a versatile and portable solution for both reading and writing optical discs, designed for use with laptops and desktop computers. It features modern USB 3.0 and USB-C 3.1 interfaces, ensuring rapid data transfer speeds up to 5 Gb/s. Its durable aluminum casing provides efficient heat dissipation and a sleek design. This drive is compatible with various operating systems, including Windows, Mac OS, and Linux, offering broad utility for a wide range of users.

ප්රධාන ලක්ෂණ ඇතුළත් වේ:

• USB 3.0 and USB-C 3.1 Support: Offers very high data transfer speeds up to 5 Gb/s, enhancing efficiency for large files and multimedia.
• ඇලුමිනියම් සීasing: Durable and elegant, effectively dissipates heat for long-lasting and safe use.
• මෙහෙයුම් පද්ධති අනුකූලතාව: Seamless operation across multiple platforms, including Windows, Mac OS, and Linux.
• අතේ ගෙන යා හැකි හැකියාව: Slim design and low weight allow for easy transport, ideal for users on the go.
• ප්ලග් සහ ප්ලේ: Simple installation without the need for additional drivers, enabling quick use immediately after connection.

2 ආරක්ෂිත තොරතුරු

Please read and follow these safety guidelines to ensure proper operation and prevent damage to the device or injury:

• උපාංගය ජලය, තෙතමනය හෝ අධික උෂ්ණත්වයන්ට නිරාවරණය නොකරන්න.
• උපාංගය ප්‍රබල බලපෑම්වලට වැටීමෙන් හෝ යටත් කිරීමෙන් වළකින්න.
• උපාංගය ඔබම විසුරුවා හැරීමට හෝ අලුත්වැඩියා කිරීමට උත්සාහ නොකරන්න. සුදුසුකම් ලත් සේවා නිලධාරීන් වෙත යොමු වන්න.
• Use only compatible discs and cables.
• උපාංගය ශක්තිමත් චුම්බක ක්ෂේත්ර වලින් ඈත් කරන්න.

3. පැකේජ අන්තර්ගතය

ඔබගේ පැකේජයේ සියලුම අයිතම ඇති බව තහවුරු කරගන්න:

• Zenwire External CD/DVD Drive
• Integrated USB 3.0 / USB-C 3.1 Cable
• පරිශීලක අත්පොත (මෙම ලේඛනය)

4. නිෂ්පාදන අවසන්view

Familiarize yourself with the components and dimensions of your Zenwire External CD/DVD Drive.

රූපය: සමීප රූපය views of the Zenwire External CD/DVD Drive, highlighting the integrated USB cable, the disc eject button, and the anti-slip feet on the bottom. These details illustrate the device's connectivity and stable design.

රූපය: The Zenwire External CD/DVD Drive displayed with its approximate dimensions: 5.9 inches (148mm) in length, 5.9 inches (149mm) in width, and 0.6 inches in thickness. This illustrates the compact and slim profile උපාංගයේ.

5. පිහිටුවීම

The Zenwire External CD/DVD Drive is designed for simple plug-and-play operation. No additional drivers are typically required for most operating systems.

1. Locate an available USB 3.0 or USB-C port on your computer (laptop or desktop).
2. Connect the integrated USB cable from the Zenwire drive directly into the chosen port on your computer.
3. The operating system should automatically detect and install the necessary drivers. This process may take a few moments.
4. Once installed, the drive will appear as a removable storage device in your computer's file ගවේෂක හෝ ඩෙස්ක්ටොප්.

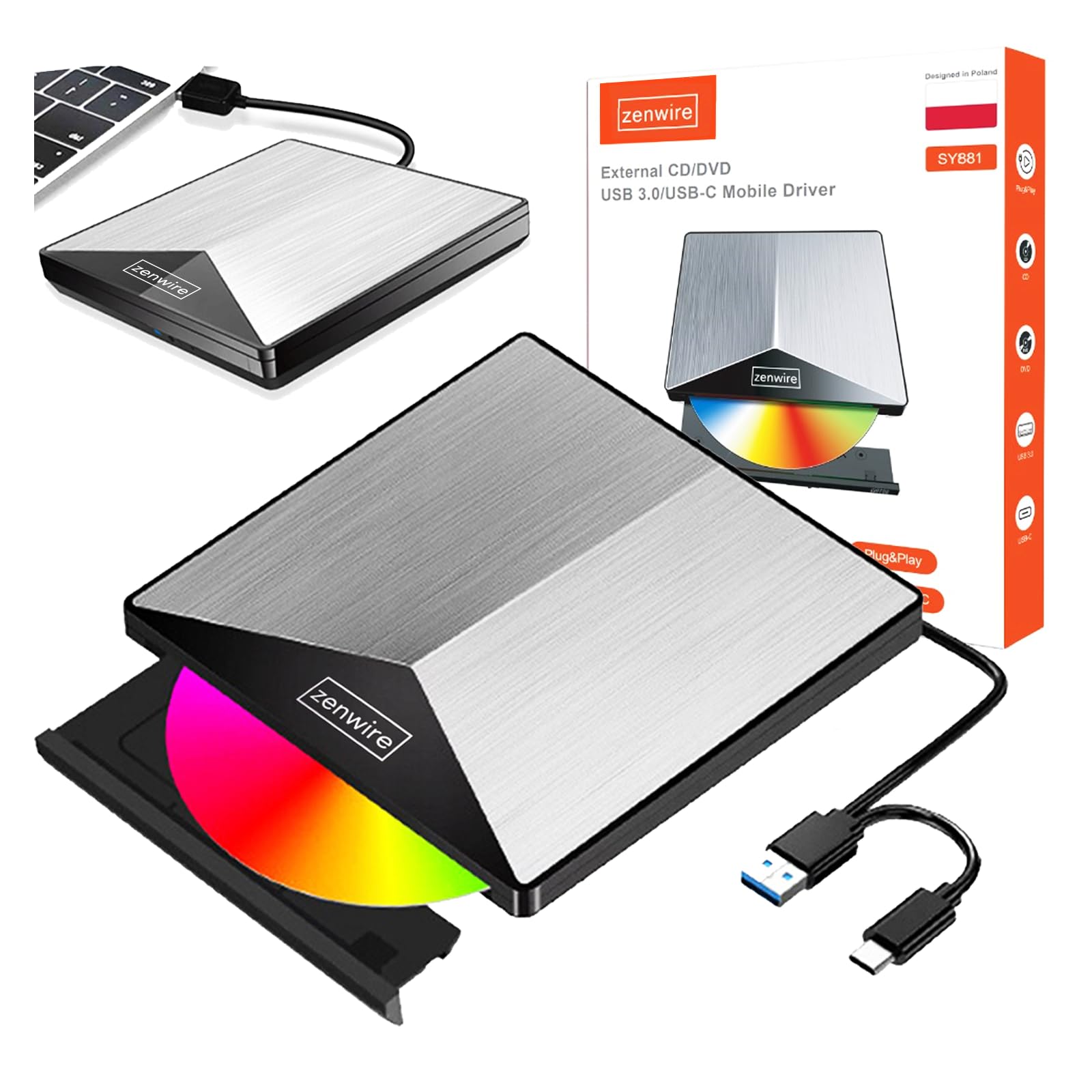

රූපය: The Zenwire External CD/DVD Drive shown connected to a laptop via its integrated USB cable. This illustrates the simple plug-and-play connection process.

6. මෙහෙයුම් උපදෙස්

6.1 තැටියක් ඇතුළු කිරීම

1. ධාවකයේ ඉදිරිපස ඇති eject බොත්තම ඔබන්න. තැටි තැටිය පිටතට ලිස්සා යනු ඇත.
2. Carefully place the disc onto the tray with the label side facing up. Ensure the disc is seated correctly in the center.
3. Gently push the tray back into the drive until it clicks into place. Do not force the tray.

රූපය: A hand carefully inserting a CD into the open disc tray of the Zenwire External CD/DVD Drive. This demonstrates the correct method for disc placement.

6.2 කියවීමේ සහ ලිවීමේ තැටි

Once a disc is inserted and recognized by your computer, you can perform various operations:

• කියවීම: For data discs, open 'This PC' or 'My Computer' (Windows) or 'Finder' (Mac) and click on the drive icon to access its contents. For movie DVDs or audio CDs, your operating system may prompt you to open a media player.
• Writing (Burning): To burn data to a blank CD or DVD, insert a blank disc. Your operating system or third-party burning software will guide you through the process of selecting files and initiating the burn.

6.3 සහාය දක්වන තැටි ආකෘති

The drive supports a variety of optical disc formats:

• CD-ROM, CD-R, CD-RW
• DVD-ROM, DVD-R, DVD+R, DVD-RW, DVD+RW
• වීසීඩී

රූපය: The Zenwire External CD/DVD Drive displayed alongside icons representing VCD, CD, and DVD, clearly indicating the range of optical disc formats supported by the device.

6.4 මෙහෙයුම් පද්ධති අනුකූලතාව

The drive is compatible with the following operating systems:

• Windows (XP, Vista, 7, 8, 10, 11)
• Mac OS
• ලිනක්ස්

රූපය: The Zenwire External CD/DVD Drive depicted in a setup demonstrating its compatibility with multiple operating systems, including various versions of Windows, Mac OS, and Linux. This highlights its universal usability.

7. නඩත්තු කිරීම

Proper maintenance ensures the longevity and optimal performance of your drive.

• ධාවකය පිරිසිදු කිරීම: Use a soft, dry, lint-free cloth to wipe the exterior of the drive. Do not use liquid cleaners or abrasive materials. For the optical lens, use a specialized CD/DVD lens cleaning kit if necessary, following its instructions carefully.
• පිරිසිදු කිරීමේ තැටි: Always handle discs by their edges. If a disc is dirty, gently wipe it from the center outwards with a soft, lint-free cloth.
• ගබඩා: Store the drive in a cool, dry place away from direct sunlight and extreme temperatures when not in use. Keep discs in their cases to prevent scratches and dust accumulation.
• ආරක්ෂිත චිත්රපටය: Upon first use, you may need to remove any protective film from the device's surface.

රූපය: A hand demonstrating the removal of a protective film from the surface of the Zenwire External CD/DVD Drive. This step is often performed during the initial setup or maintenance to ensure optimal appearance and function.

8. දෝශ නිරාකරණය

If you encounter issues with your Zenwire External CD/DVD Drive, refer to the following common problems and solutions:

• Drive not recognized by the computer:
  • USB කේබලය ධාවකයට සහ පරිගණකයට ආරක්ෂිතව සම්බන්ධ වී ඇති බවට වග බලා ගන්න.
  • ඔබගේ පරිගණකයේ වෙනත් USB පෝට් එකකට ධාවකය සම්බන්ධ කිරීමට උත්සාහ කරන්න.
  • පරිගණකයට විශේෂිත ගැටළුවක් බැහැර කිරීම සඳහා වෙනත් පරිගණකයක ධාවකය පරීක්ෂා කරන්න.
  • ඔබේ පරිගණකය නැවත ආරම්භ කරන්න.
• Disc not reading or writing:
  • තැටියේ සීරීම්, අපිරිසිදුකම් හෝ හානි තිබේදැයි පරීක්ෂා කරන්න. වෙනත් තැටියක් උත්සාහ කරන්න.
  • ලේබල පැත්ත ඉහළට යොමු වන පරිදි තැටිය නිවැරදිව ඇතුළු කර ඇති බවට වග බලා ගන්න.
  • For writing, ensure you are using a blank, compatible disc (CD-R/RW, DVD-R/RW, DVD+R/RW).
  • Clean the drive's optical lens using a specialized cleaning disc.
• Slow data transfer speed:
  • Ensure the drive is connected to a USB 3.0 or USB-C 3.1 port on your computer for optimal speed. USB 2.0 ports will result in slower performance.
  • Avoid using USB hubs if possible, or ensure the hub is powered and supports USB 3.0/USB-C speeds.
• Drive makes unusual noises:
  • This can sometimes occur with unbalanced or damaged discs. Try a different disc.
  • ධාවකය ස්ථාවර, පැතලි මතුපිටක් මත තබා ඇති බවට වග බලා ගන්න.

9. පිරිවිතර

10. වගකීම් තොරතුරු

Warranty terms and conditions are typically provided with your purchase documentation. Please refer to the specific warranty information included with your product or contact the retailer/manufacturer for details regarding warranty coverage and claims.

11. සහාය

If you require further assistance or have questions not covered in this manual, please contact Zenwire customer support or your product retailer. Please have your model number (5904507529123) and purchase details ready when contacting support.
